Plan 765030TWN Coastal Home Plan with Expansion Option on the Main Level

Coastal Home Plan with Expansion Option on the Main Level

Plan 765030TWN

  • 2,000

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This coastal beach home plan - just 39' wide - works well on narrow lots. The main level offers parking for 2 cars and comes with an optional finished area giving you 900 square feet of expansion space.
  • Stairs in front take you up to the charming front porch with a door opening to the entry. Inside, the opening to your left takes you to the master suite with 5-fixture bath and large walk-in closet.
  • A hallway takes you past the bedrooms and takes you to the vaulted shared living spaces of the kitchen, dining and living rooms. The rectangular kitchen island provides plenty of workspace and casual seating.
  • Sliding doors on the back wall of the dining and living rooms take you outside where you can enjoy fresh air and the views.
  • Stairs go down to the ground level where there is parking and storage for your gear.
  • Get 900 square feet of expansion space on the ground floor by selecting the Main Level Layout option ($150) from the options menu.
  • Related Plans: Downsize with house plans 765017TWN (1,600 sq. ft.) and 765012TWN (1,496 sq. ft.).

This designer's plans include the following:

  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

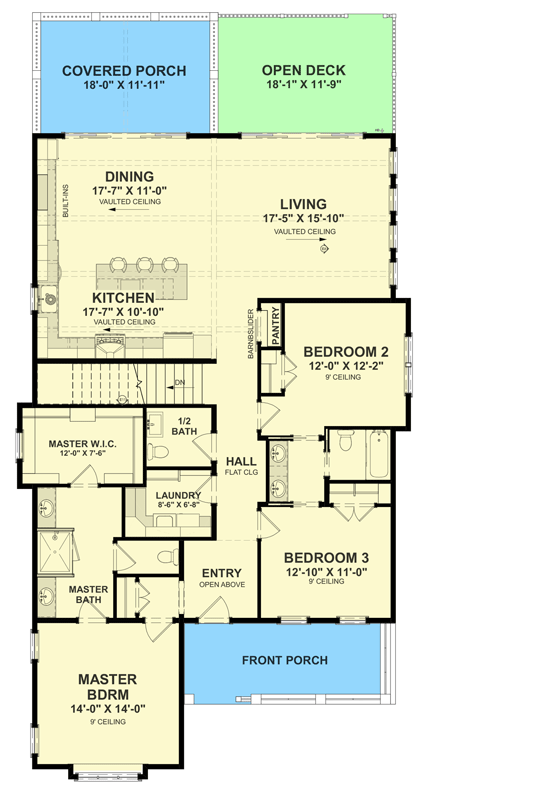

Coastal Home Plan with Expansion Option on the Main Level - 765030TWN floor plan - 2nd Floor

Main (ground) Level w/ Optional Finished Layout

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

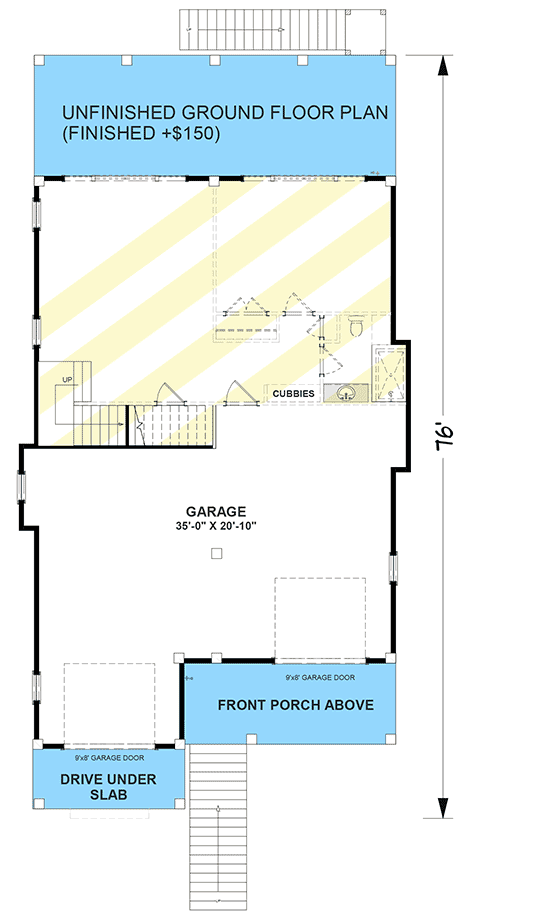

Coastal Home Plan with Expansion Option on the Main Level - 765030TWN floor plan - Main (ground) Level w/ Optional Finished Layout

Plan details

Coastal Home Plan with Expansion Option on the Main Level

  • 2,000

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,050
  • CAD - Single-Build $1,350
  • Chief Architect Plan File - Single Build $1,750
  • View all purchase option online

About This Plan

  • This coastal beach home plan - just 39' wide - works well on narrow lots. The main level offers parking for 2 cars and comes with an optional finished area giving you 900 square feet of expansion space.
  • Stairs in front take you up to the charming front porch with a door opening to the entry. Inside, the opening to your left takes you to the master suite with 5-fixture bath and large walk-in closet.
  • A hallway takes you past the bedrooms and takes you to the vaulted shared living spaces of the kitchen, dining and living rooms. The rectangular kitchen island provides plenty of workspace and casual seating.
  • Sliding doors on the back wall of the dining and living rooms take you outside where you can enjoy fresh air and the views.
  • Stairs go down to the ground level where there is parking and storage for your gear.
  • Get 900 square feet of expansion space on the ground floor by selecting the Main Level Layout option ($150) from the options menu.
  • Related Plans: Downsize with house plans 765017TWN (1,600 sq. ft.) and 765012TWN (1,496 sq. ft.).

Floor Plans

  • 2nd Floor

  • Main (ground) Level w/ Optional Finished Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,000 sq. ft.
  • 2nd Floor: 2,000 sq. ft.
  • Deck: 215 sq. ft.
  • Porch, Combined: 384 sq. ft.
  • Opt. Main Flr : 900 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Pier

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 76' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Drive Under, Attached
  • Area: 1000 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
