Comfortable Shingle Style Home Plan

Plan 2323JD

  • 4,220

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

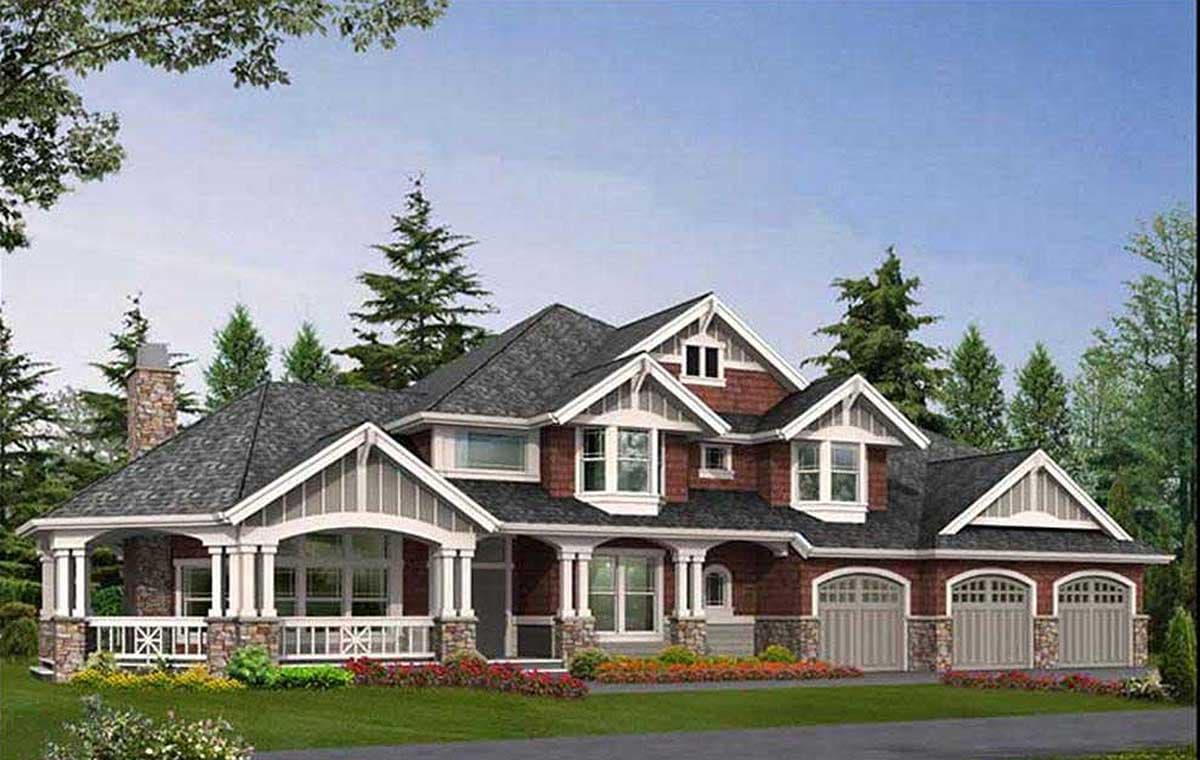

  • Large, comfortable rooms will welcome your family and friends in this delightful shingle style home plan.

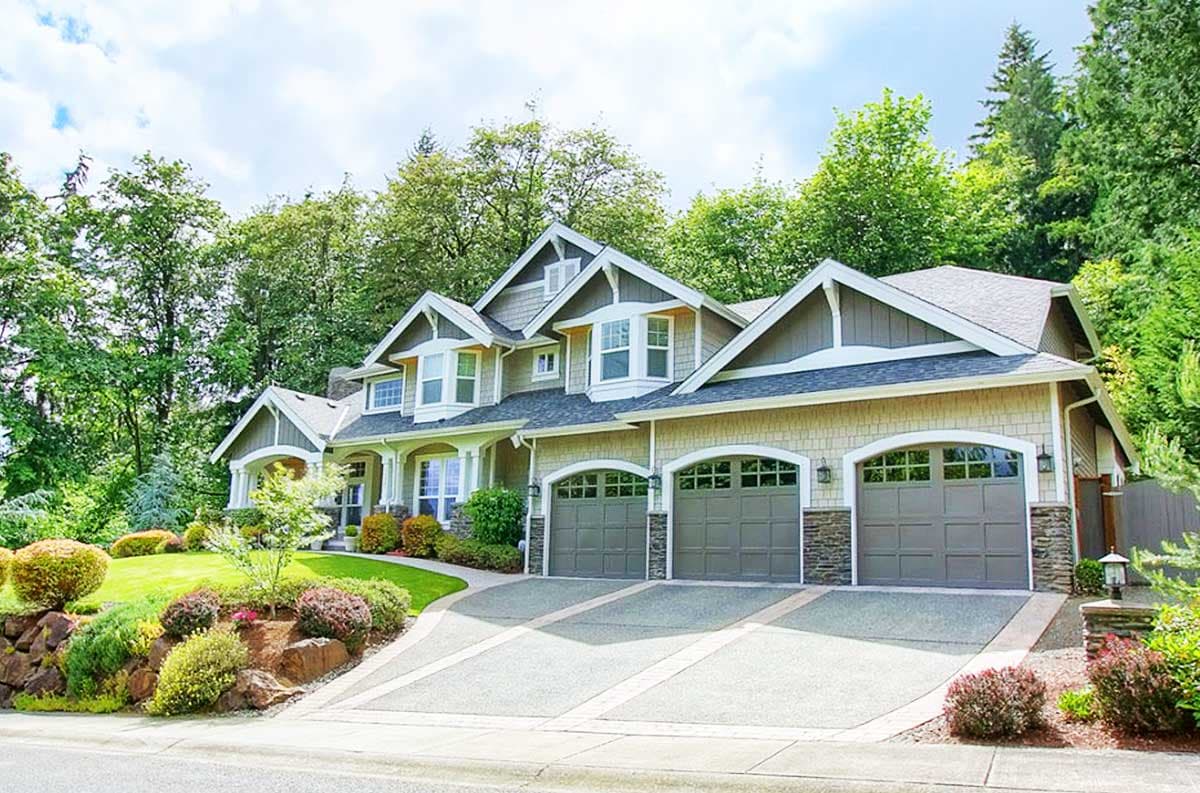

  • A covered porch wraps around the front and side, adding space for your outdoor enjoyment.

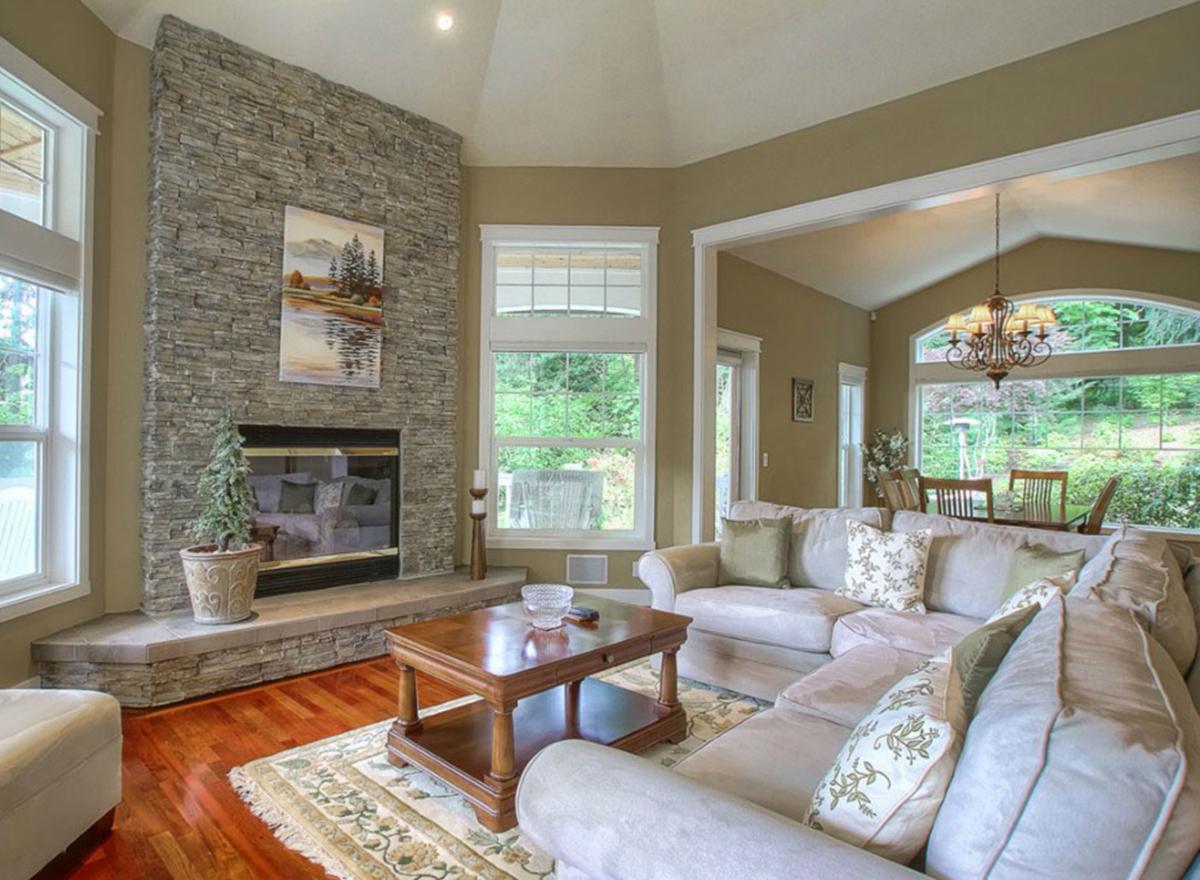

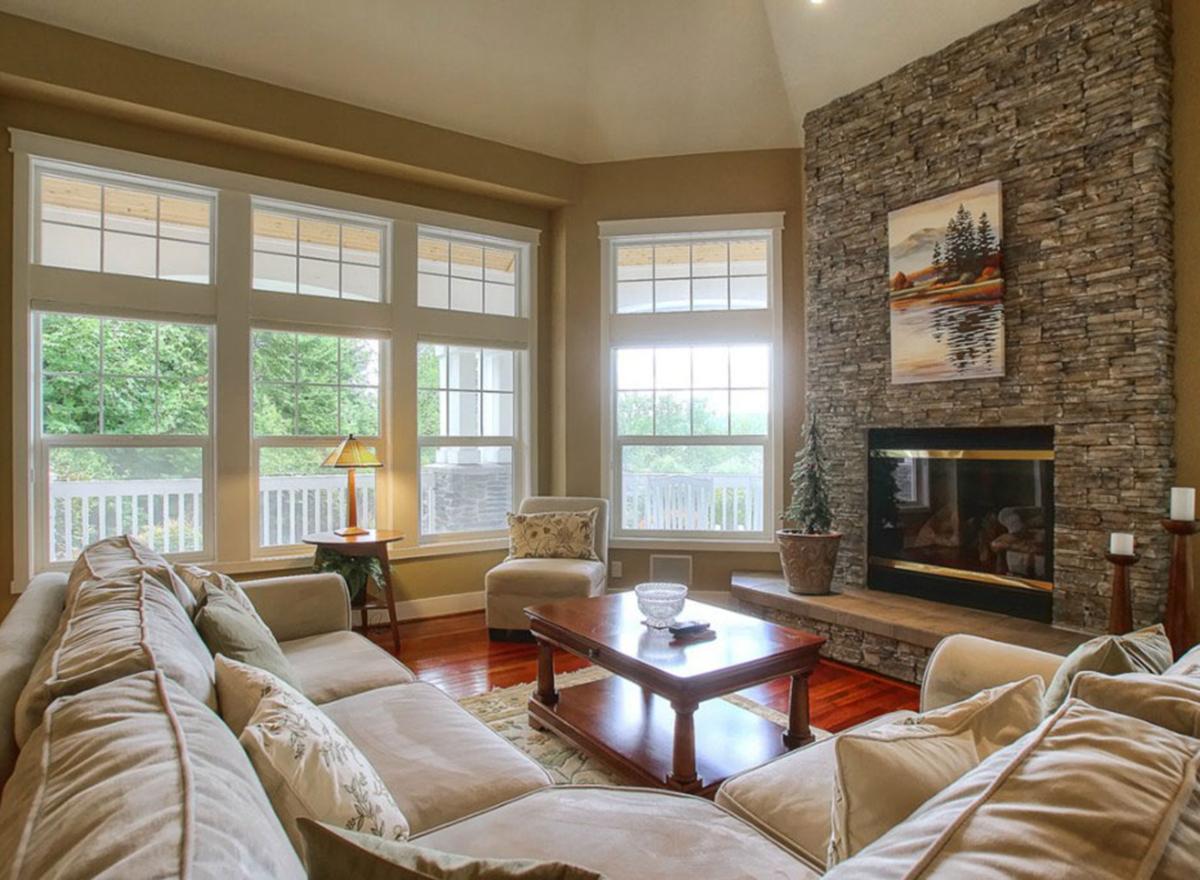

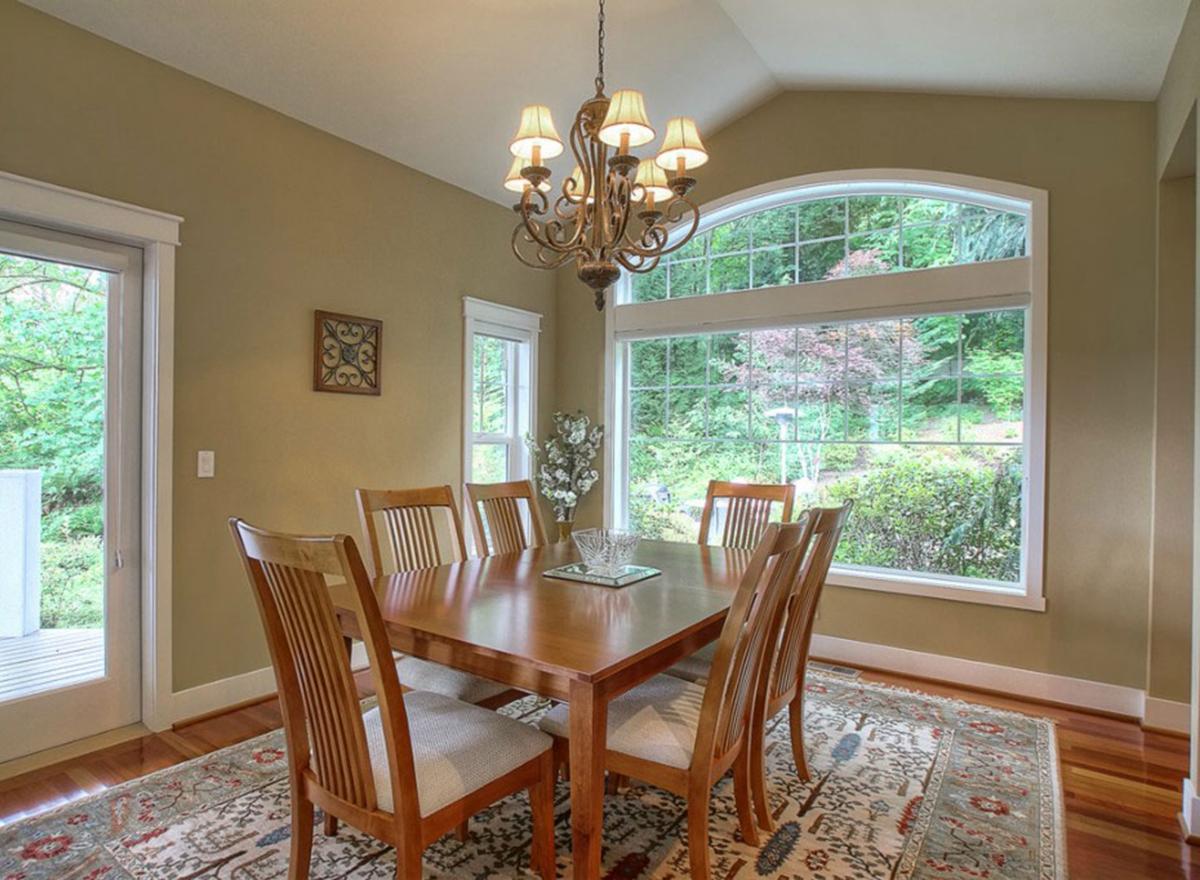

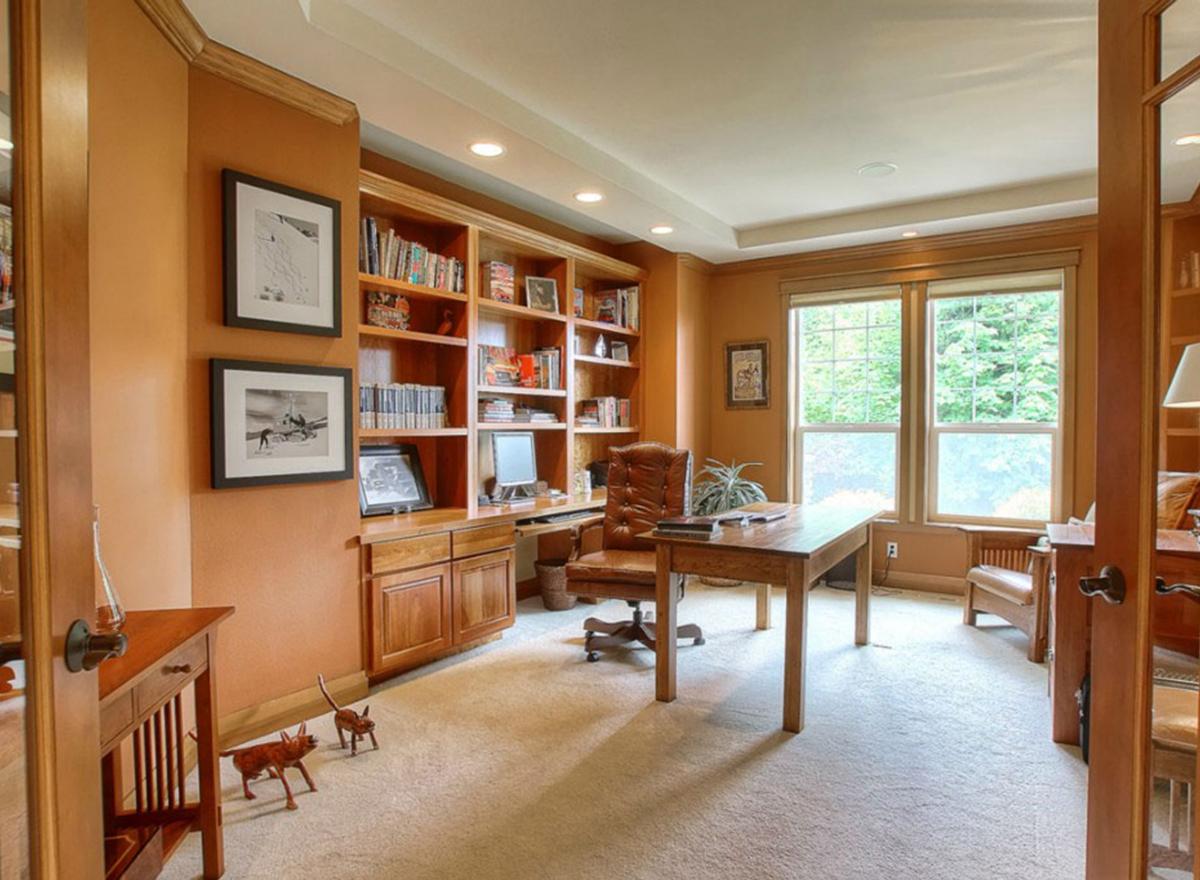

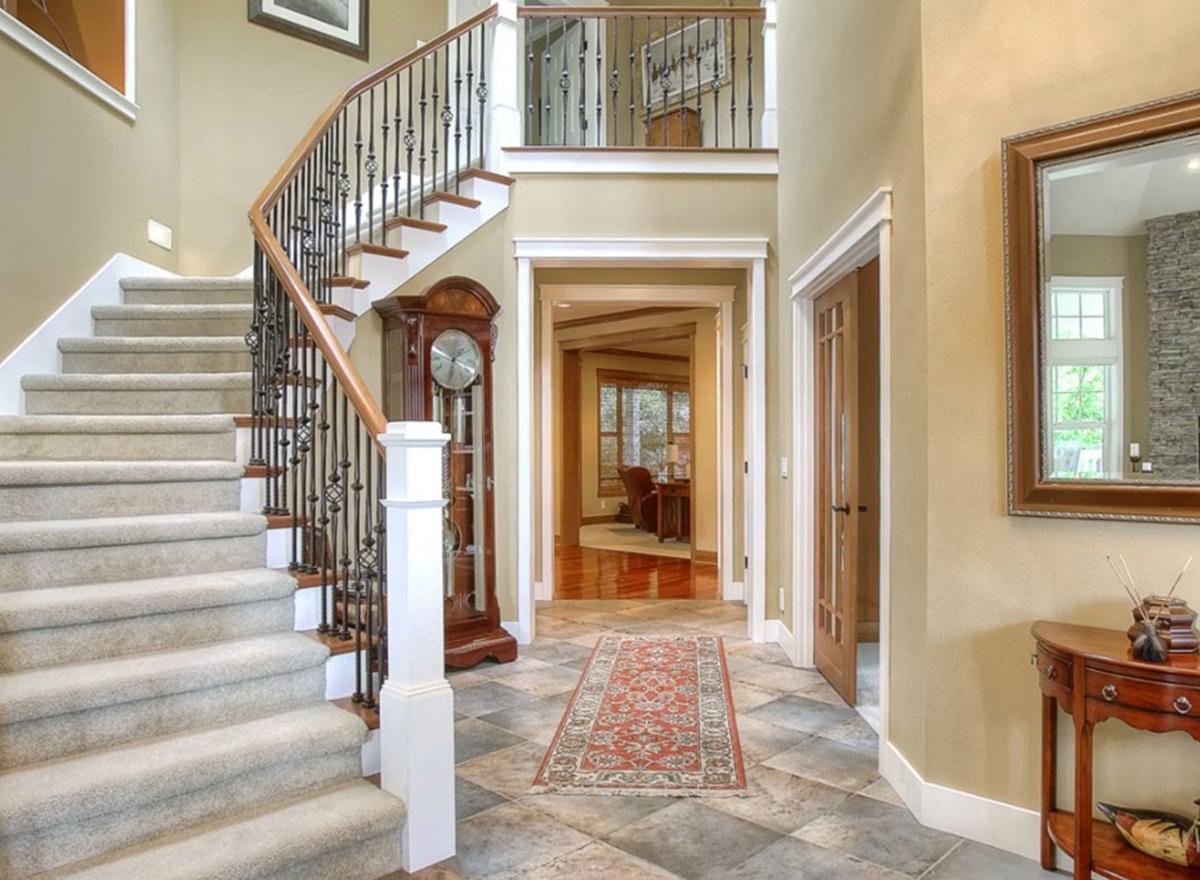

  • Vaulted ceilings in the living room and dining room enhance the formal rooms. Double doors off the foyer lead to the den with tray ceiling and built-ins.

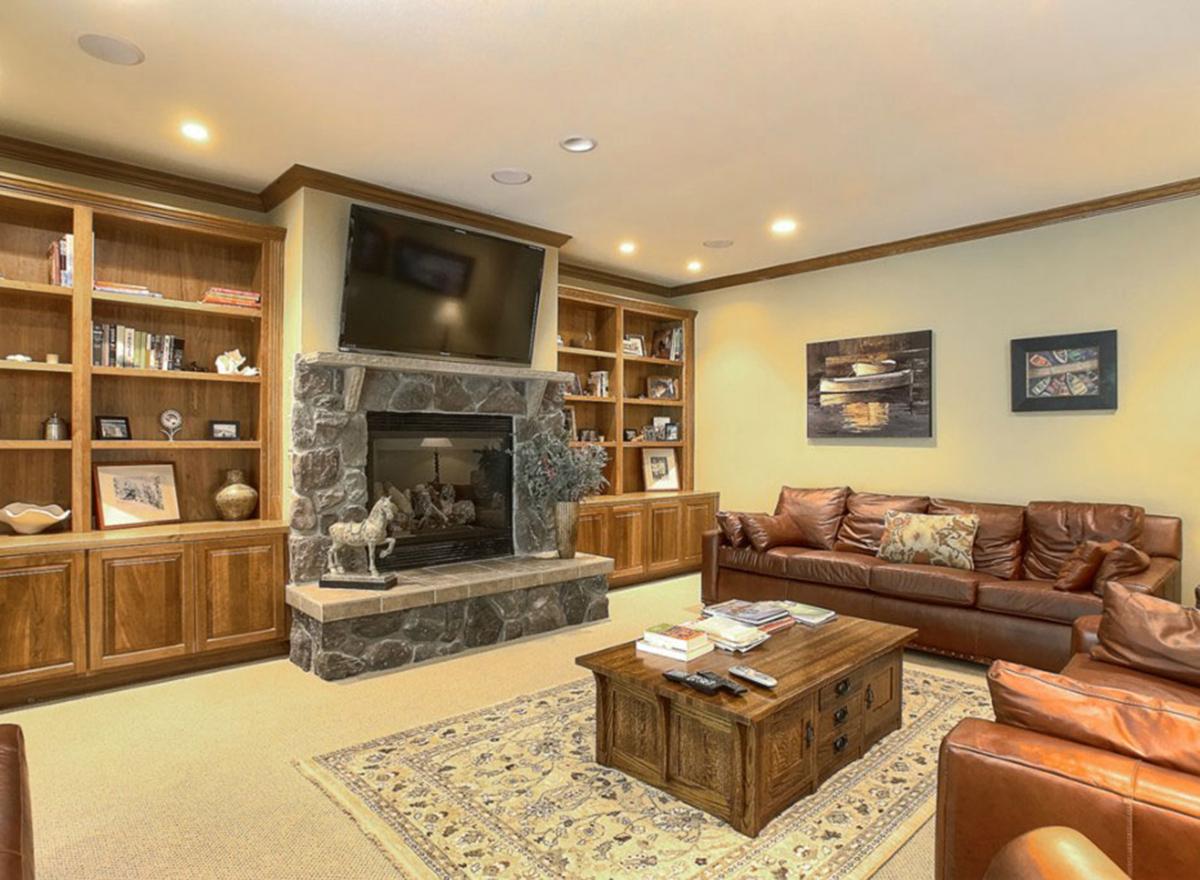

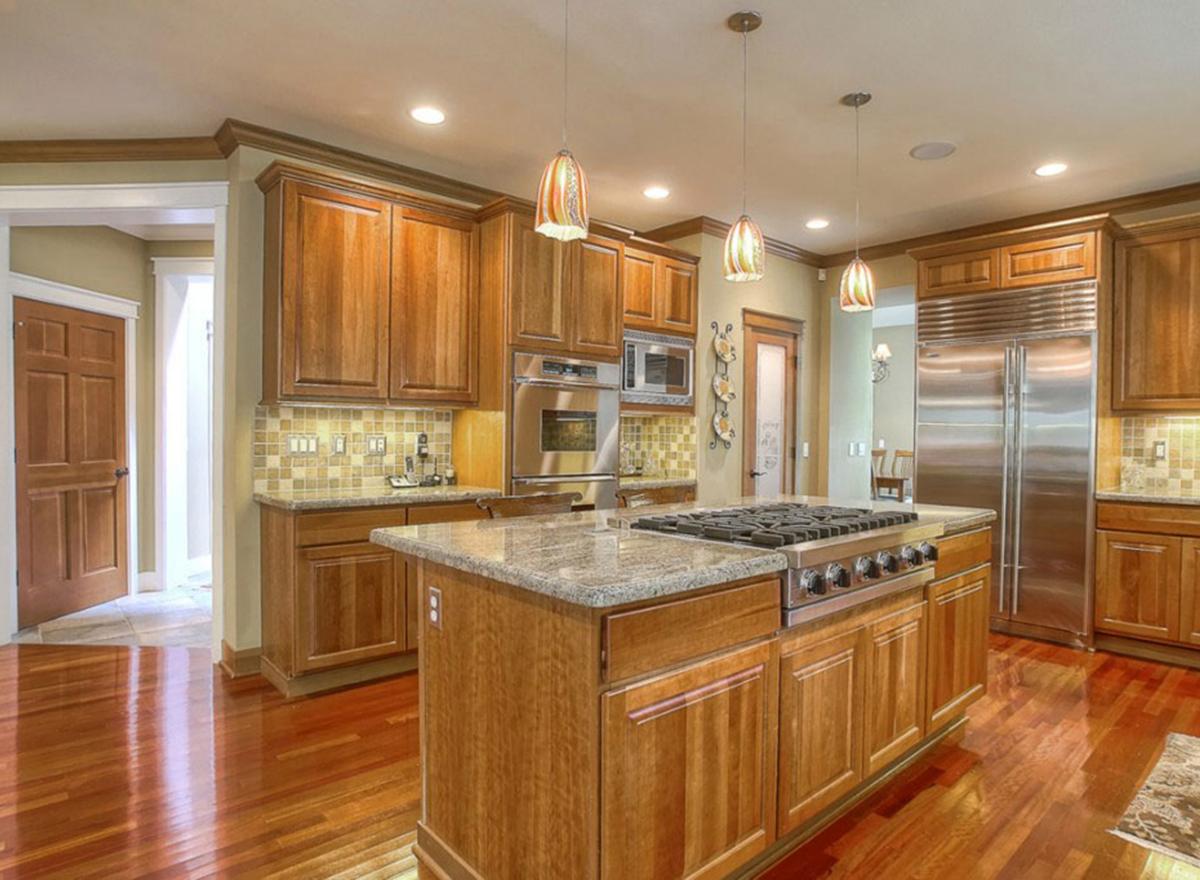

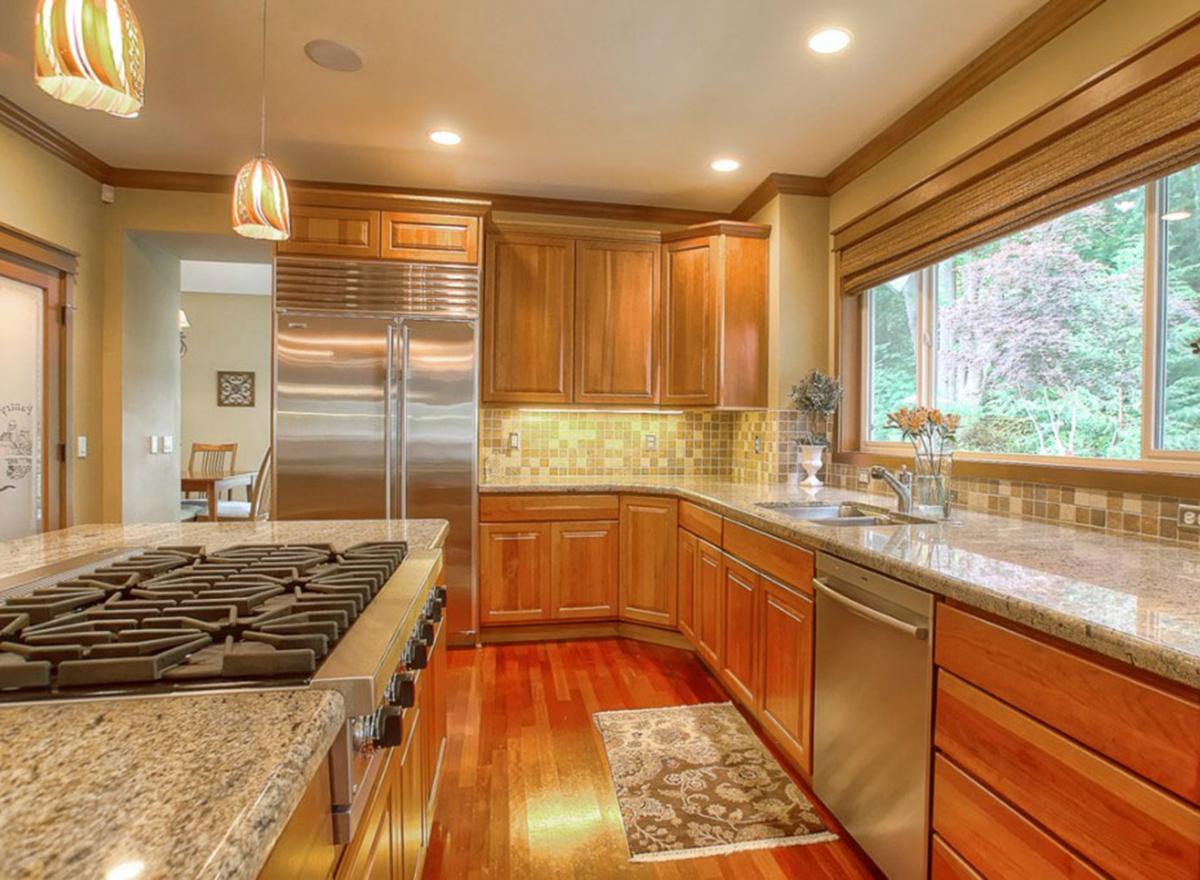

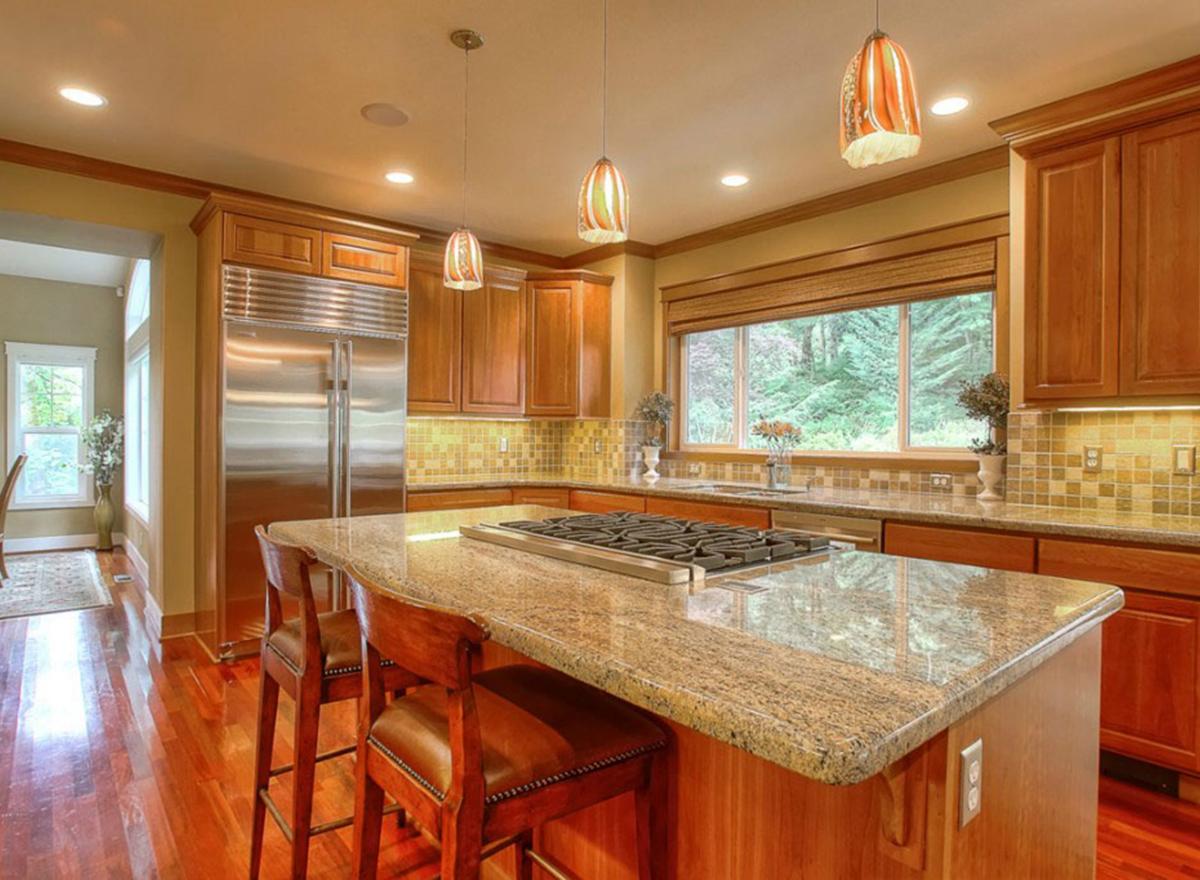

  • The heart of the home is the informal area in the back of the house. Built-in shelves flank the fireplace in the family room that opens to the kitchen with island and the breakfast nook set in a bay.

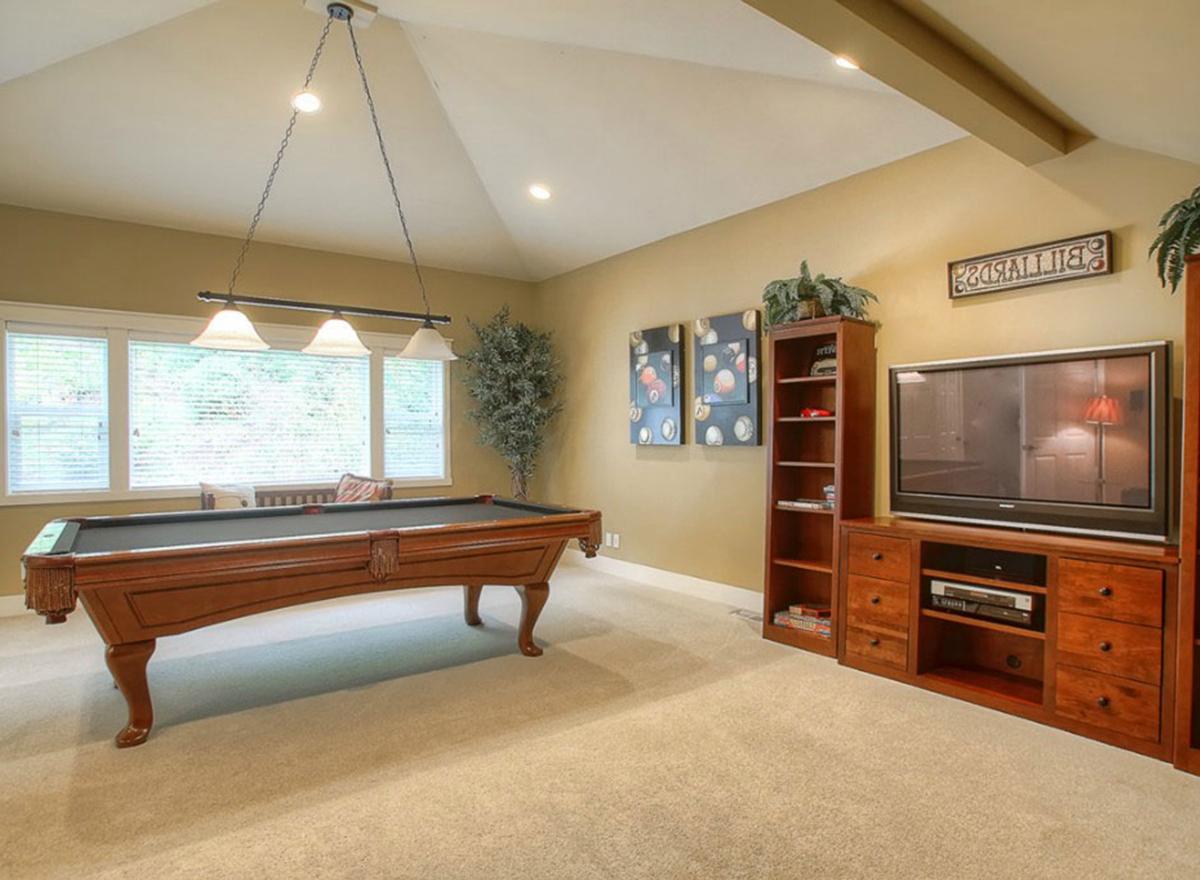

  • All the bedrooms are located on the second floor with a giant bonus room near the back staircase.

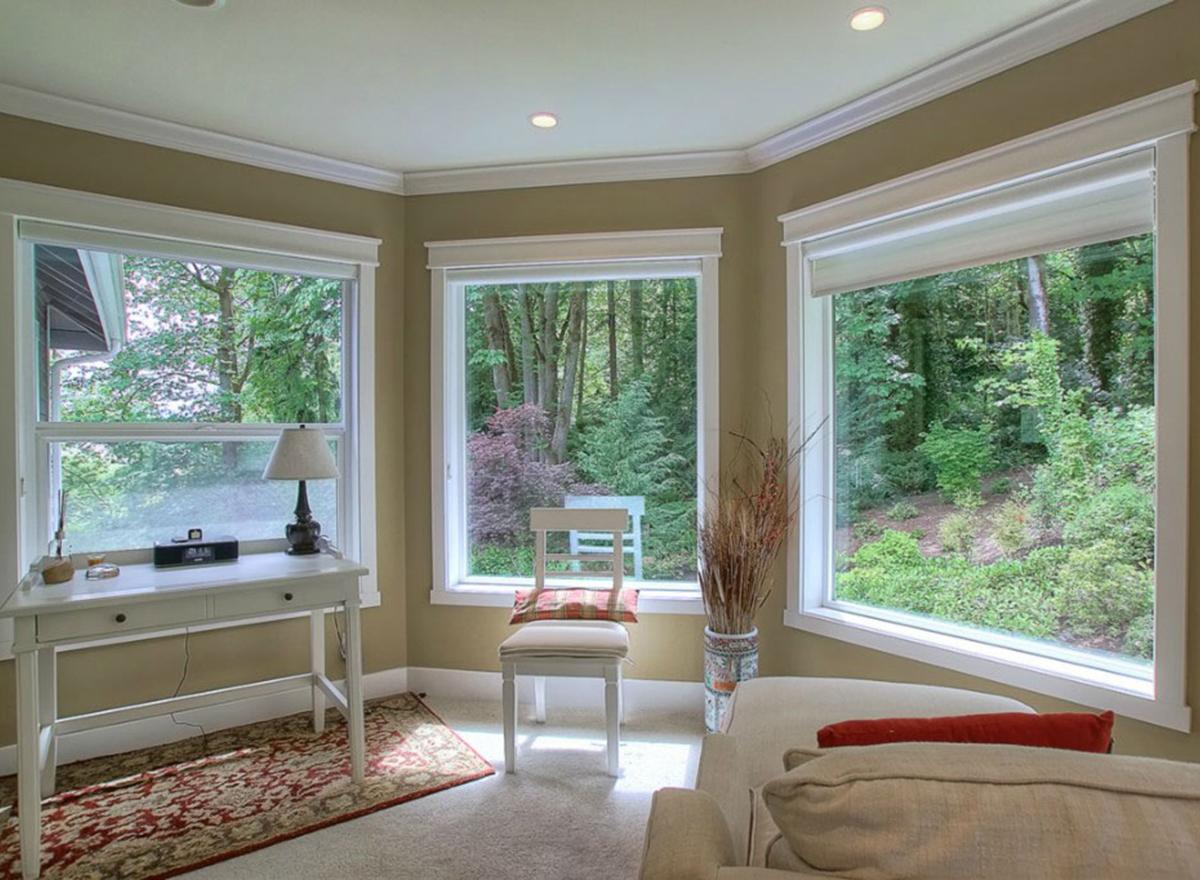

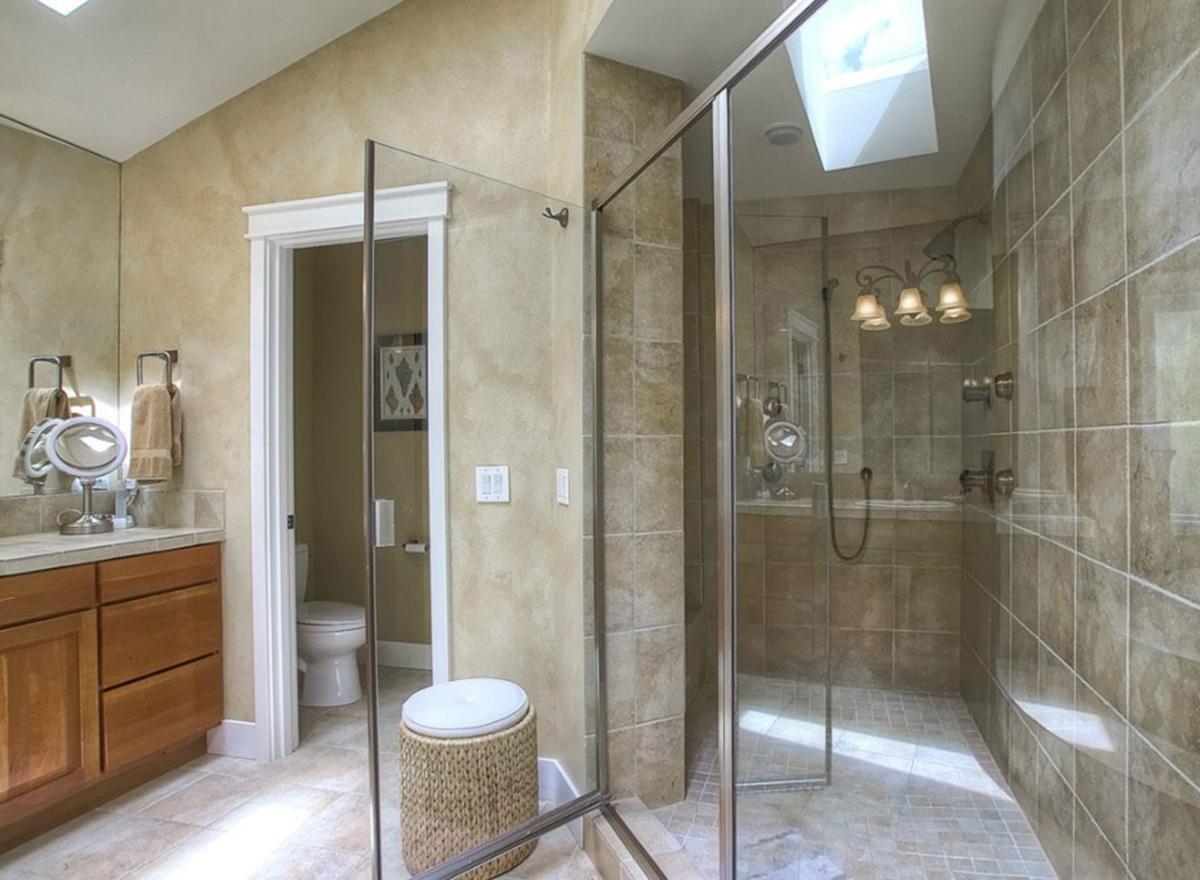

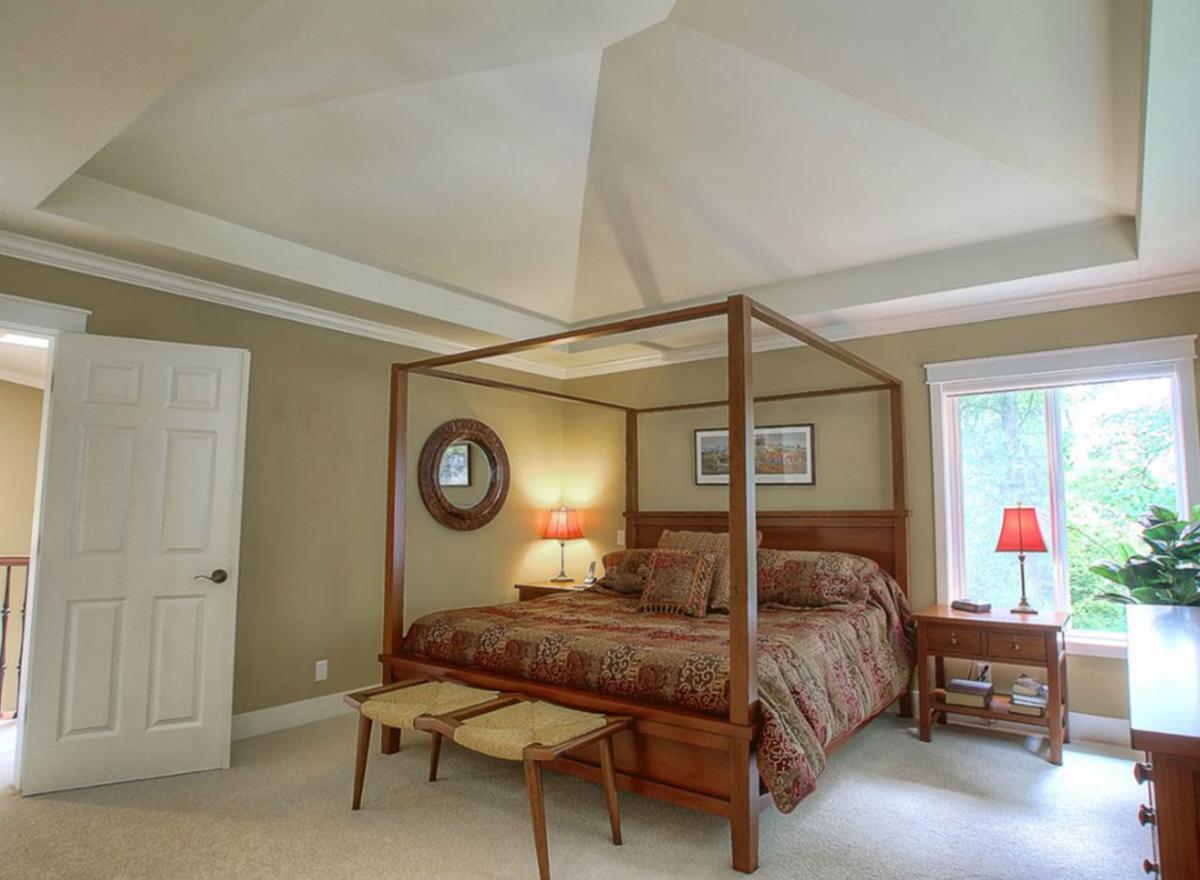

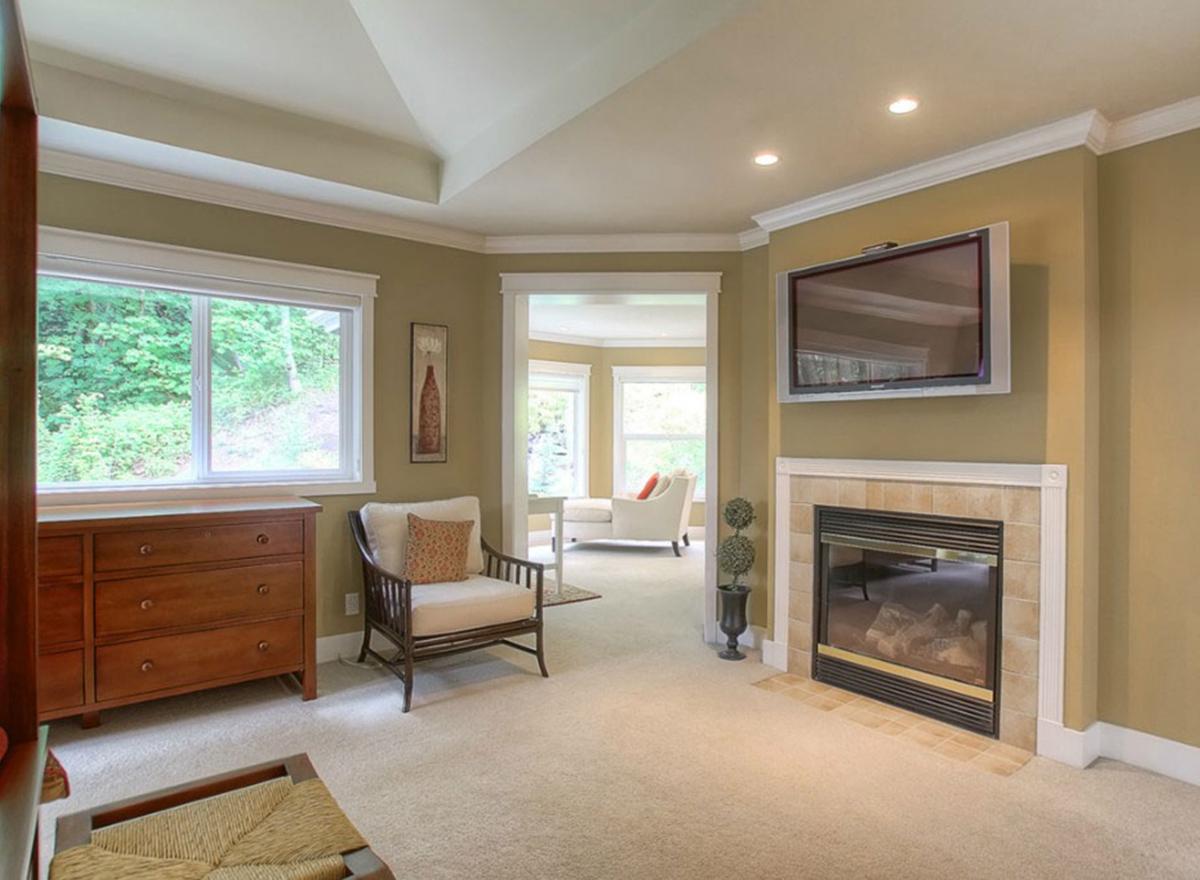

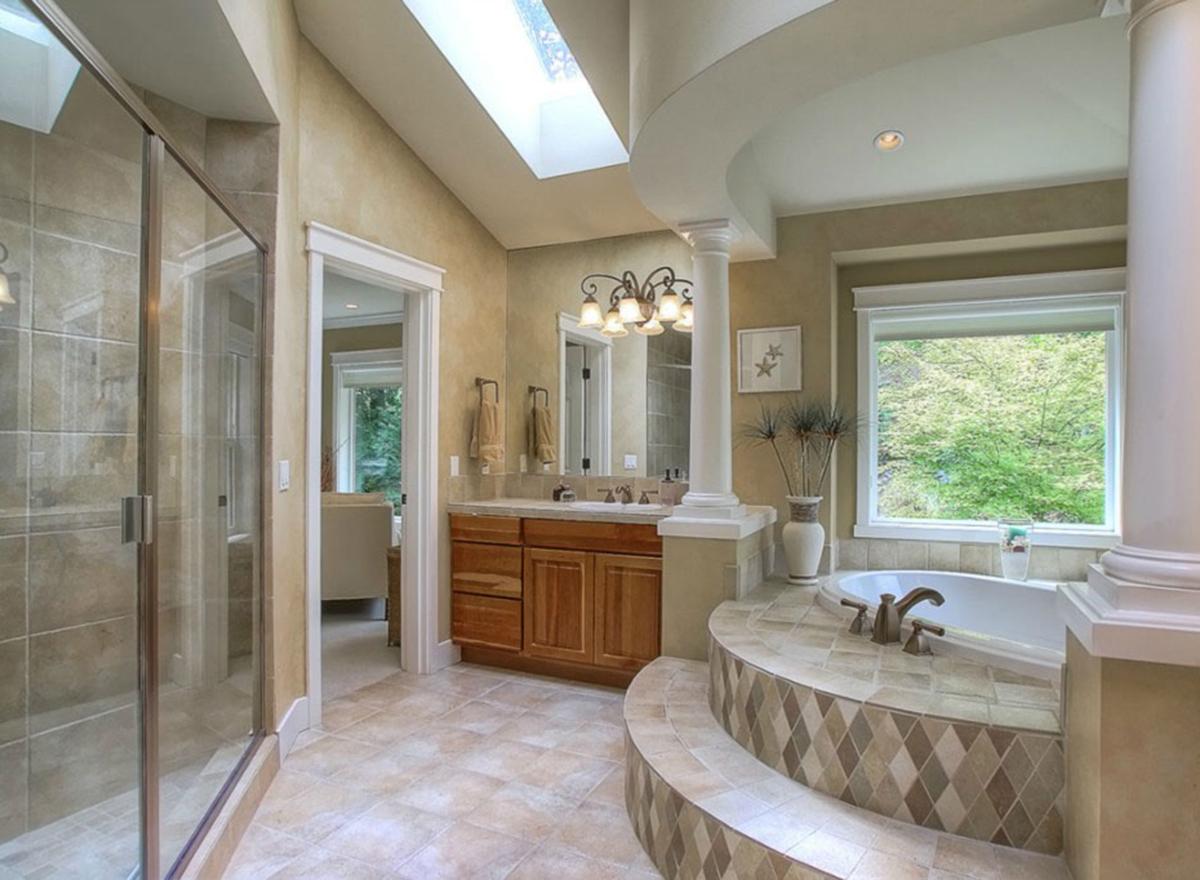

  • The master suite boasts a vaulted ceiling and its own sitting room along with a spa bath and a large walk-in closet.
  • Related Plans: Get a side-entry garage with house plans 2324JD (master-up) and 23298JD (master-down).
  • Add an accompanying carriage house with plan 23243JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

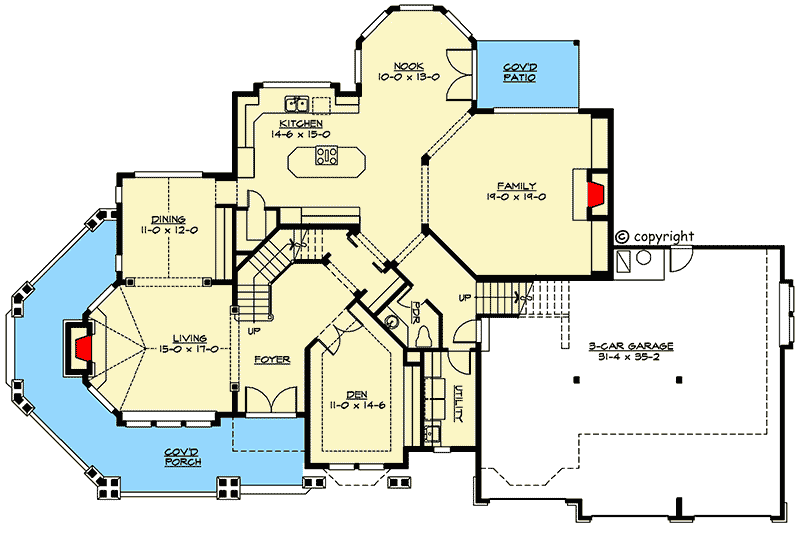

Comfortable Shingle Style Home Plan - 2323JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

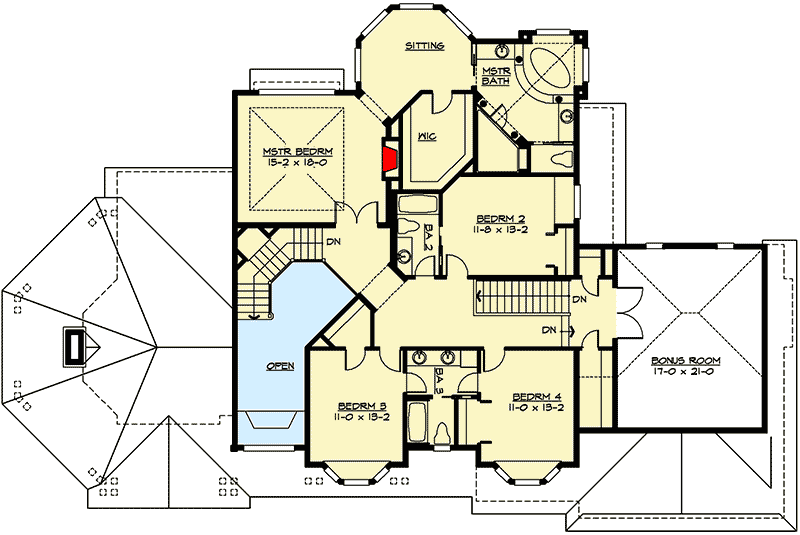

Comfortable Shingle Style Home Plan - 2323JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,220 sq. ft.
  • 1st Floor: 2,075 sq. ft.
  • 2nd Floor: 2,145 sq. ft.
  • Covered Patio: 96 sq. ft.
  • Porch, Front: 406 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 90' 0"
  • Depth: 60' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1065 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick and Truss

Architectural Style

Special features

Plan Collections

Comfortable Shingle Style Home Plan

  • 4,220

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,400
  • CAD + PDF - Unlimited Build $3,900
  • View all purchase option online

About This Plan

  • Large, comfortable rooms will welcome your family and friends in this delightful shingle style home plan.
  • A covered porch wraps around the front and side, adding space for your outdoor enjoyment.
  • Vaulted ceilings in the living room and dining room enhance the formal rooms. Double doors off the foyer lead to the den with tray ceiling and built-ins.
  • The heart of the home is the informal area in the back of the house. Built-in shelves flank the fireplace in the family room that opens to the kitchen with island and the breakfast nook set in a bay.
  • All the bedrooms are located on the second floor with a giant bonus room near the back staircase.
  • The master suite boasts a vaulted ceiling and its own sitting room along with a spa bath and a large walk-in closet.
  • Related Plans: Get a side-entry garage with house plans 2324JD (master-up) and 23298JD (master-down).
  • Add an accompanying carriage house with plan 23243JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,220 sq. ft.
  • 1st Floor: 2,075 sq. ft.
  • 2nd Floor: 2,145 sq. ft.
  • Covered Patio: 96 sq. ft.
  • Porch, Front: 406 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 90' 0"
  • Depth: 60' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1065 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick and Truss
