Plan 65757BS Contemporary Coastal Home Plan with Rear Lanai and Main Floor Master

3,720 4 4.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Coastal Home Plan with Rear Lanai and Main Floor Master

Plan 65757BS

  • 3,720

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The front elevation of this European-style Beach home plan is lined with tall windows with a stucco-framed front entrance serving as the focal point.
  • From the foyer, french doors grant access to a quiet study, while straight ahead, the great room features a coffered ceiling and multi-panel glass door that opens to the covered lanai.
  • Enjoy cooking in this gourmet kitchen with its prep island, large range, and roomy walk-in pantry. Easy access to the double garage makes grocery unloading that much easier.
  • The master suite's main-level location serves as a true retreat for the homeowner, along with the 5-fixture shower and his / hers closets.
  • Upstairs, a loft greets you with an 11' tray ceiling and access to a balcony. Three bedroom suites can also be found upstairs, each with a walk-in closet.
  • Related Plans: Get an alternate exterior with house plans 65749BS and 65758BS.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

Plans include the following:

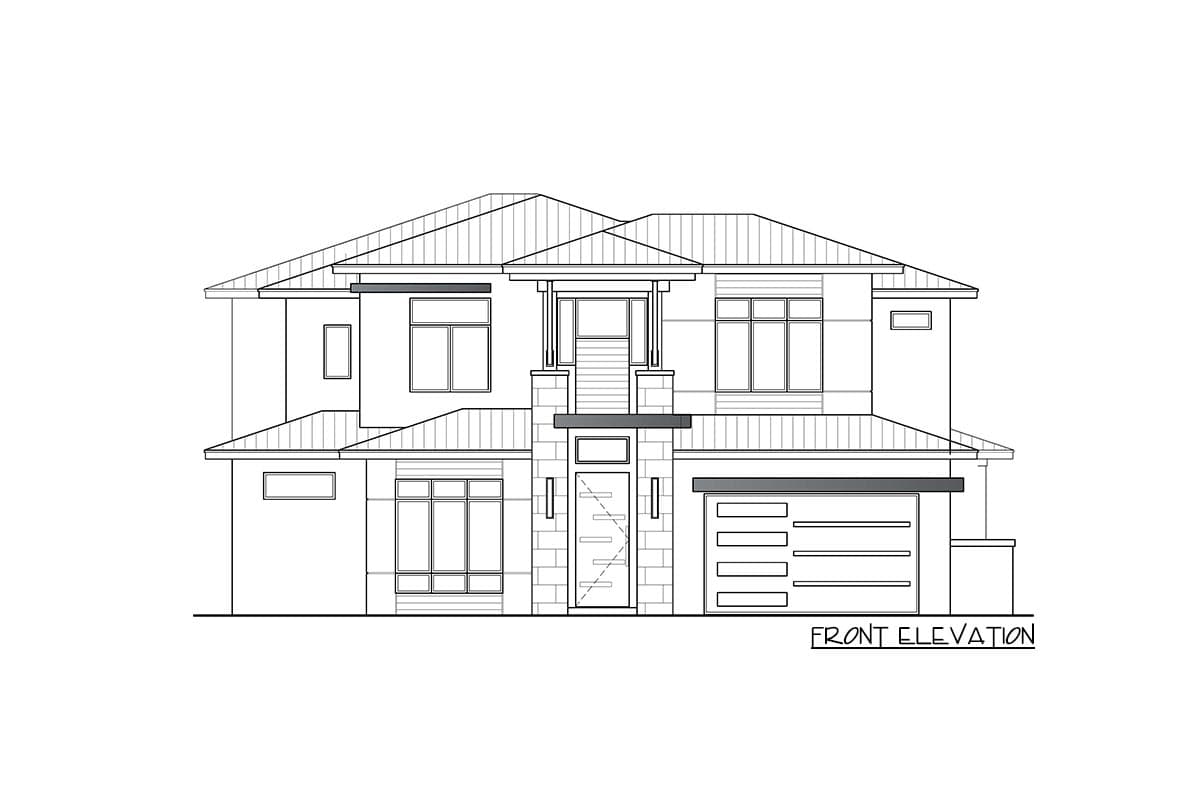

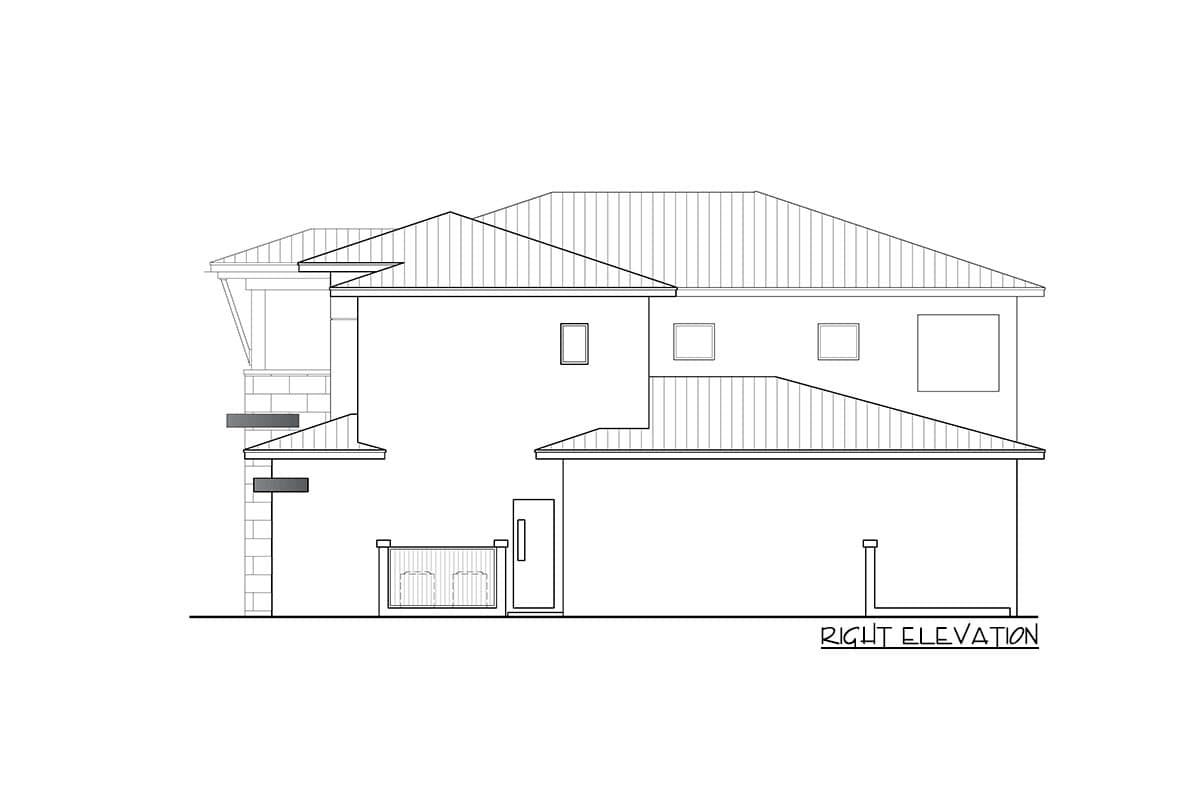

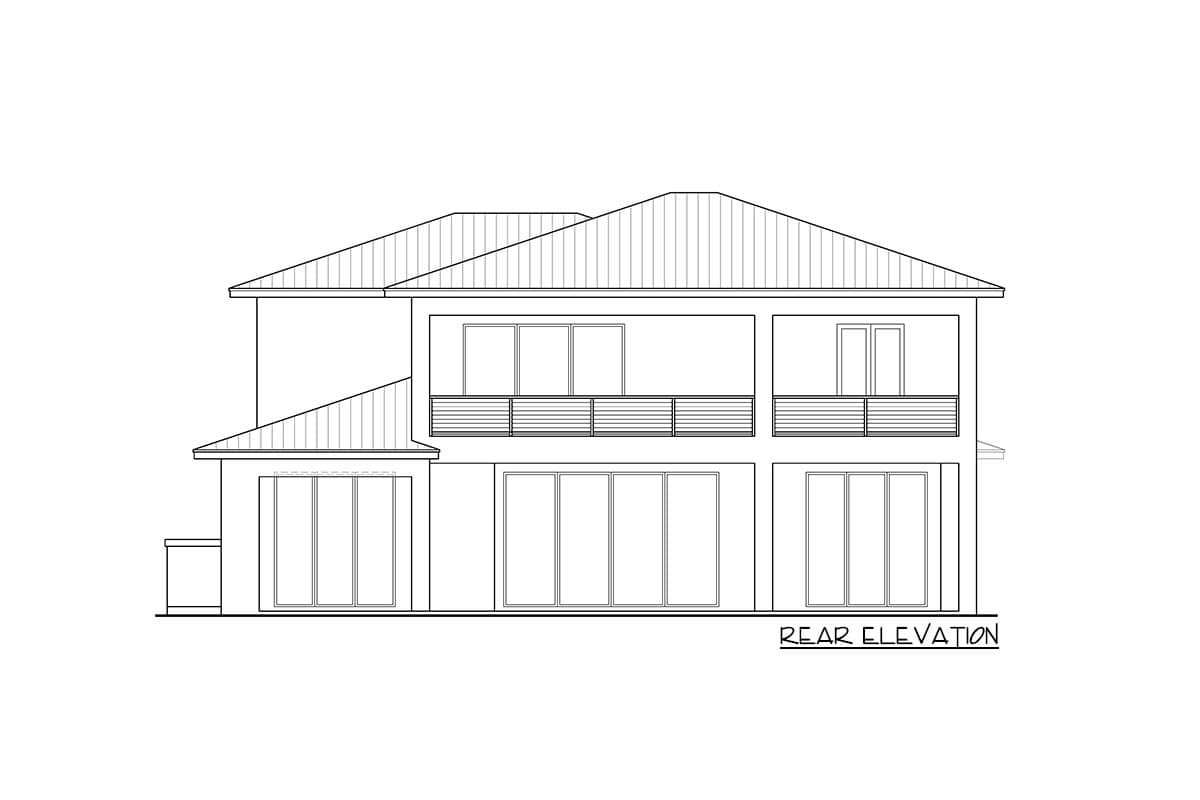

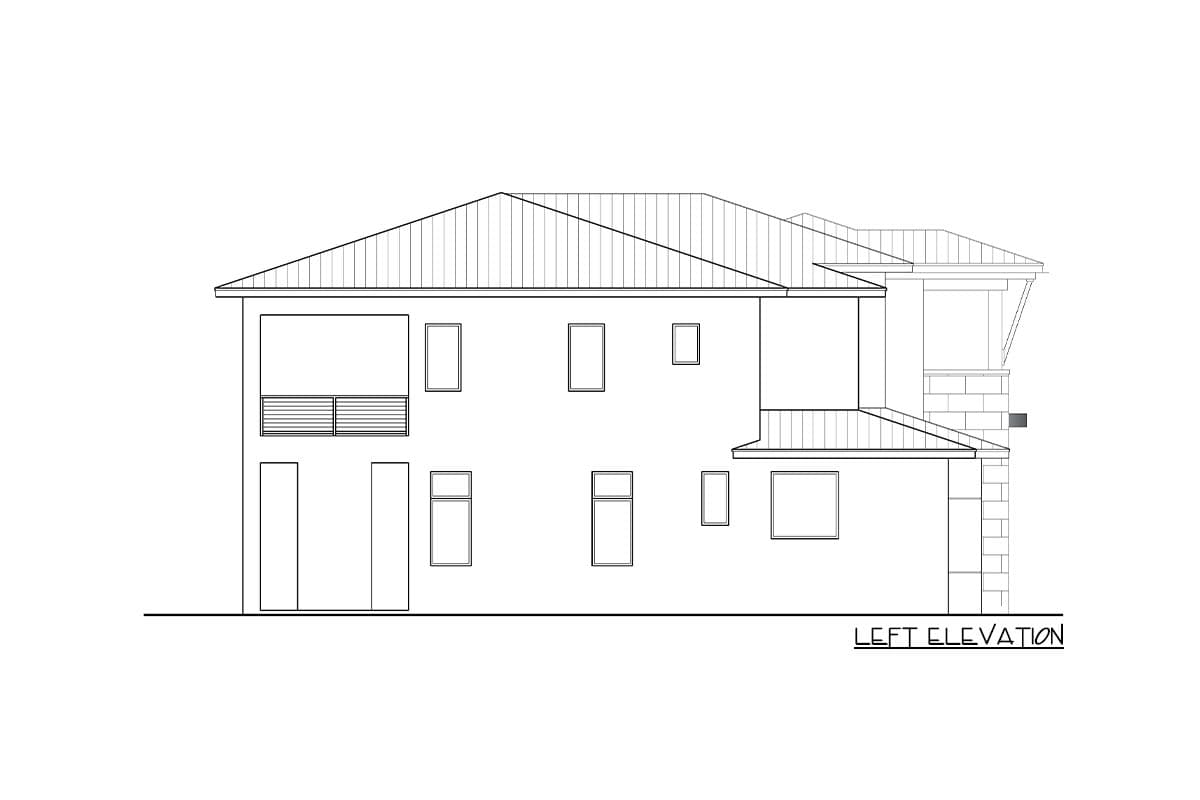

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

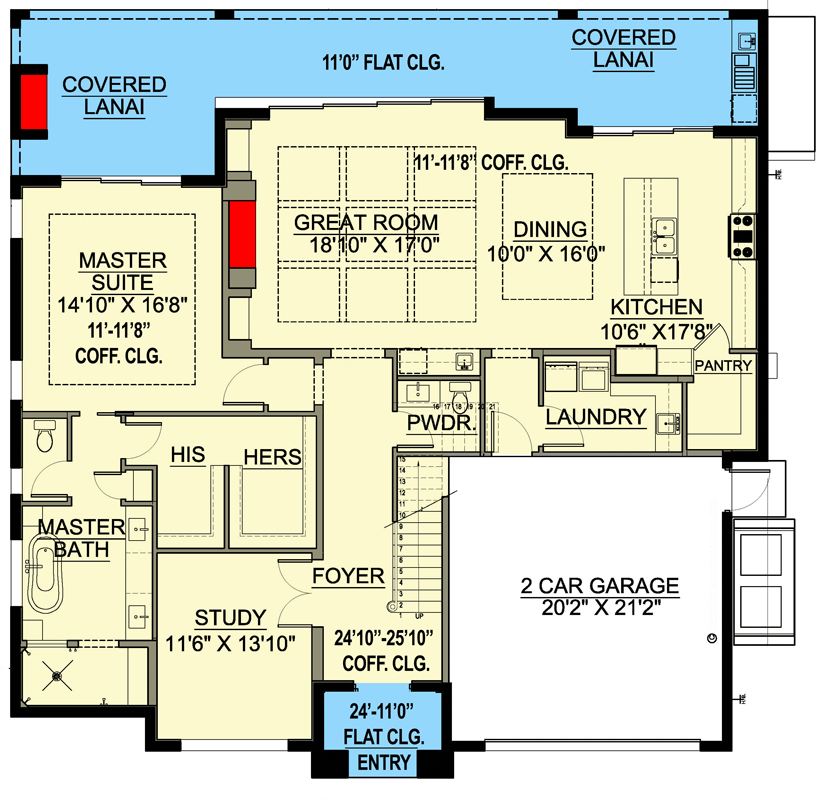

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Coastal Home Plan with Rear Lanai and Main Floor Master - 65757BS floor plan - Main Level

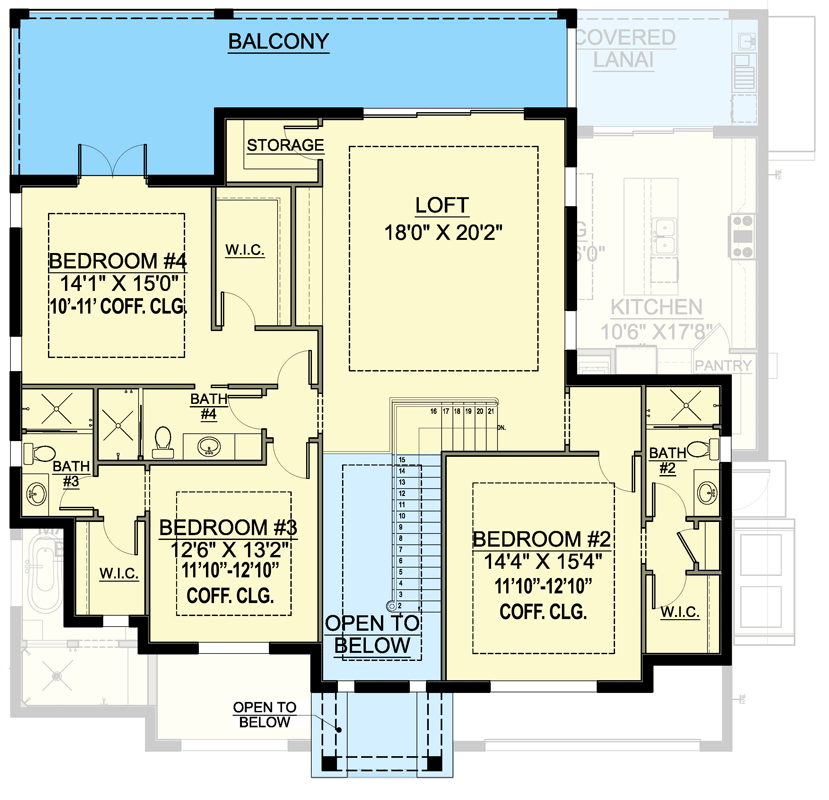

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Coastal Home Plan with Rear Lanai and Main Floor Master - 65757BS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,720 sq. ft.
  • 1st Floor: 2,001 sq. ft.
  • 2nd Floor: 1,719 sq. ft.
  • Lanai: 507 sq. ft.
  • Porch, Front: 60 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 2"
  • Depth: 57' 0"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 461 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary Coastal Home Plan with Rear Lanai and Main Floor Master

  • 3,720

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $3,720
  • PDF - Single-Build $3,720
  • View all purchase option online

About This Plan

  • The front elevation of this European-style Beach home plan is lined with tall windows with a stucco-framed front entrance serving as the focal point.
  • From the foyer, french doors grant access to a quiet study, while straight ahead, the great room features a coffered ceiling and multi-panel glass door that opens to the covered lanai.
  • Enjoy cooking in this gourmet kitchen with its prep island, large range, and roomy walk-in pantry. Easy access to the double garage makes grocery unloading that much easier.
  • The master suite's main-level location serves as a true retreat for the homeowner, along with the 5-fixture shower and his / hers closets.
  • Upstairs, a loft greets you with an 11' tray ceiling and access to a balcony. Three bedroom suites can also be found upstairs, each with a walk-in closet.
  • Related Plans: Get an alternate exterior with house plans 65749BS and 65758BS.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,720 sq. ft.
  • 1st Floor: 2,001 sq. ft.
  • 2nd Floor: 1,719 sq. ft.
  • Lanai: 507 sq. ft.
  • Porch, Front: 60 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 2"
  • Depth: 57' 0"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 461 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 65757BS
