Contemporary Coastal House Plan with a 2-Car Garage

Plan 65637BS

  • 1,515

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Clean lines and a flat roof add to the contemporary style of this simple and elegant coastal house plan. Stone accents complete the design.
  • The 2-car garage juts out from the primarily rectangular design, allowing the formal entry and garage entry to merge into the foyer. A powder bath resides nearby for convenience, along with the laundry closet.
  • The shared living space is oriented to take advantage of any rearward views, and a large sliding door brings the outdoors in, while allowing access to the covered living space.
  • The master bedroom also grants access to the covered outdoor living area, and includes two walk-in closets and a 4-fixture bath.
  • Bedrooms 2 and 3 are located just off the foyer, or convert one of the rooms as a den, if preferred.
  • Related Plans: Get an alternate version with house plans 86086BS and 65740BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

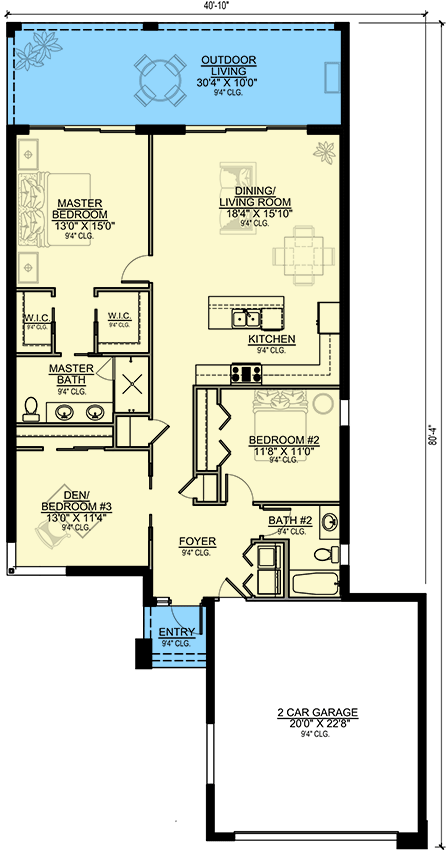

Floor Plan
