Plan 23871JD Contemporary Craftsman Plan with Wine Cellar

Contemporary Craftsman Plan with Wine Cellar

Plan 23871JD

  • 3,854

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

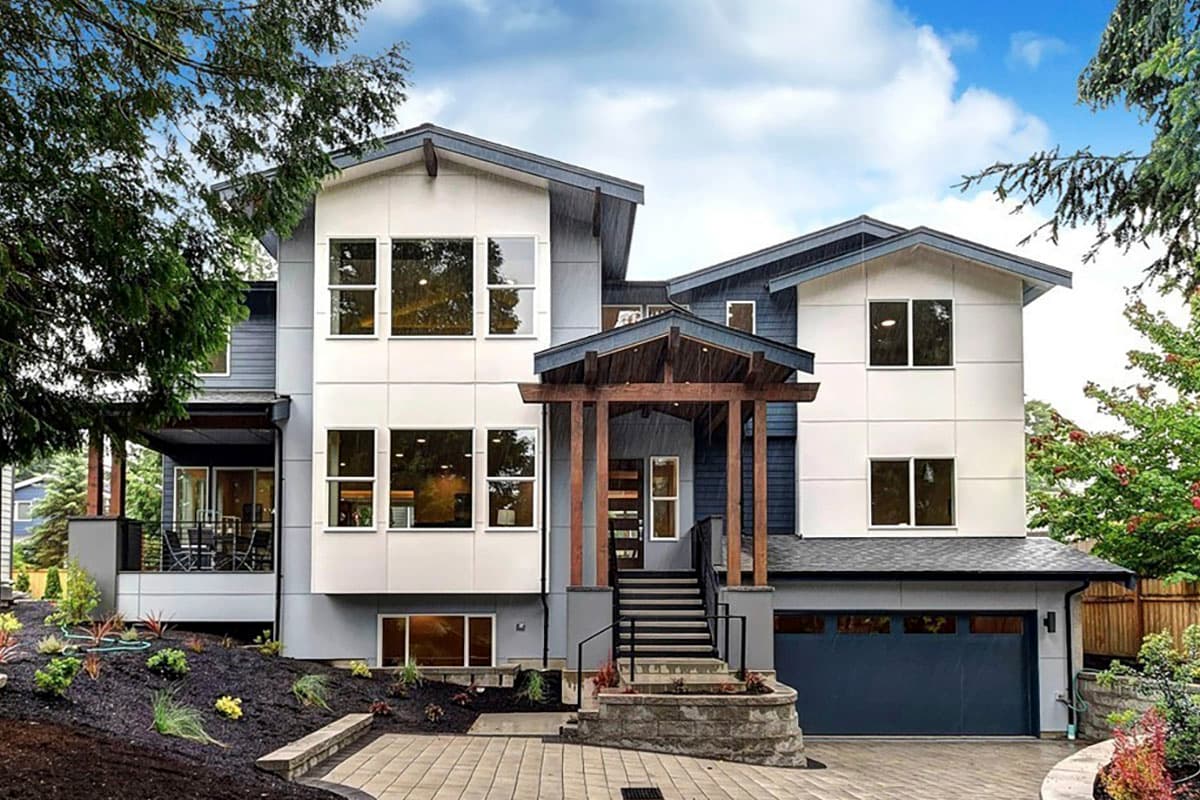

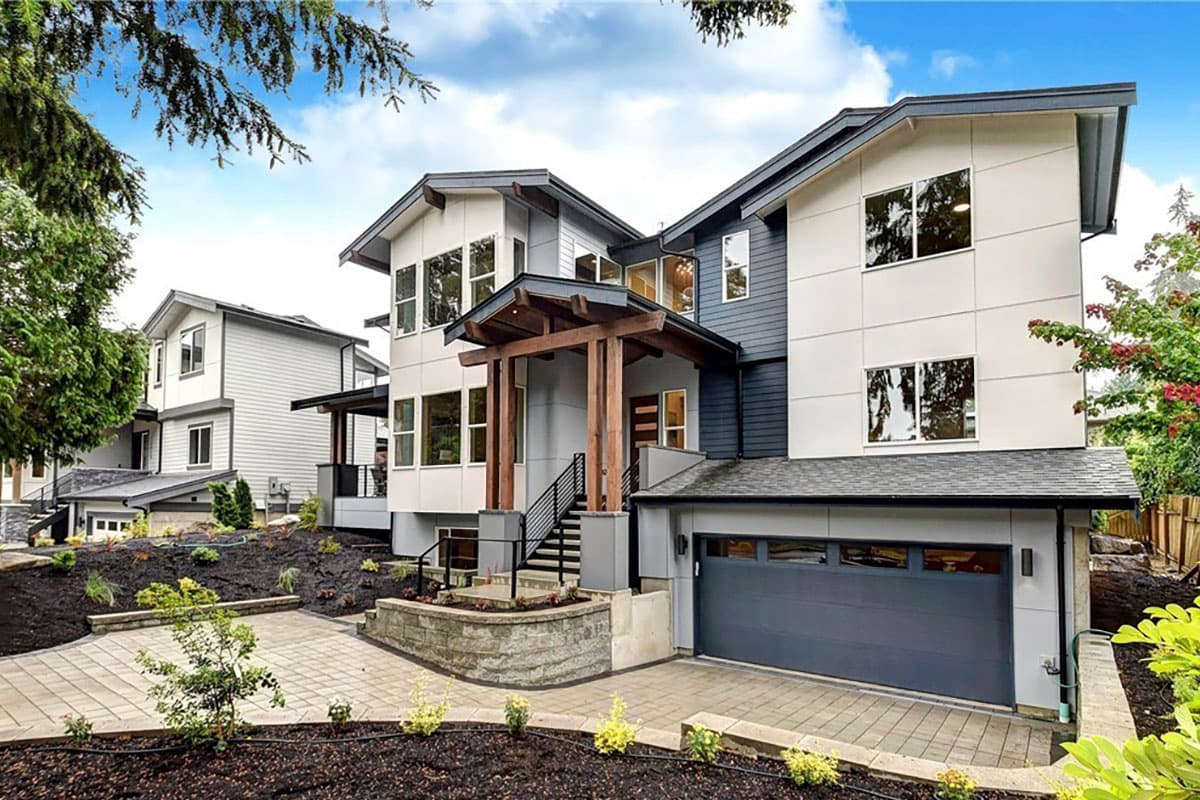

  • Craftsman detailing meets modern siding on the exterior of this luxury home plan, which features three levels of living with easy access to the outdoor spaces.

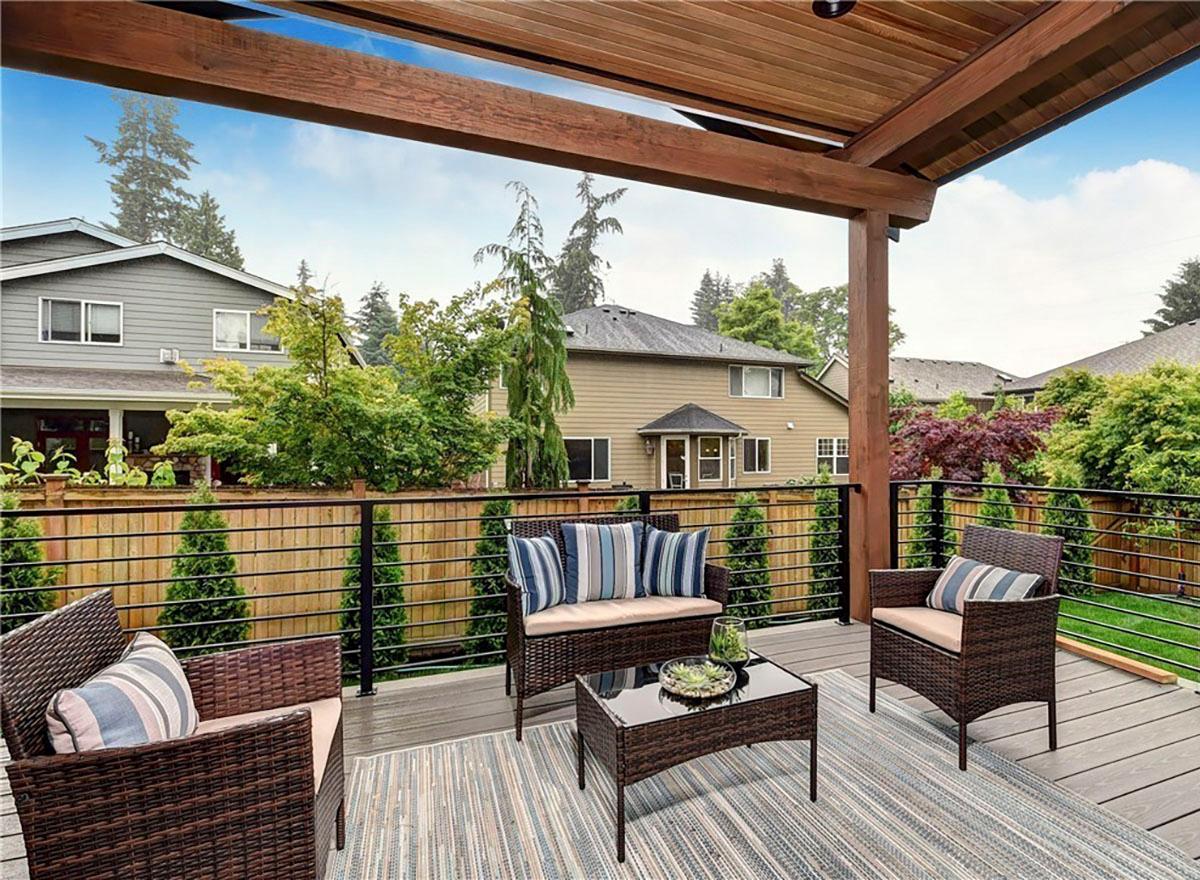

  • A coat closet lines the right wall of the foyer, while the adjacent great room is filled with natural light and oriented to take advantage of the frontal views. Multiple dining options for guests include the formal dining room, breakfast nook, or rear porch.
  • An oversized opening creates a natural flow to and from the kitchen with a central island offering loads of workspace. The butler's pantry provides a shortcut to the dining room, along with access to the rear porch. Discover a quiet den, next to a full bath, to finish the main level.
  • Upstairs, three bedrooms surround the sizable laundry room; the largest of the bedrooms reserved for the homeowner. A boxed bay window juts out from the master bedroom, which is joined by a 5-fixture ensuite and roomy walk-in closet.
  • Head downstairs to find a recreation room with a wet bar, wine cellar, and fourth bedroom. The 2-car garage is also located on this level and includes a coat closet just inside the family entry.
  • Related Plan: Get an alternate version with house plan 23585JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

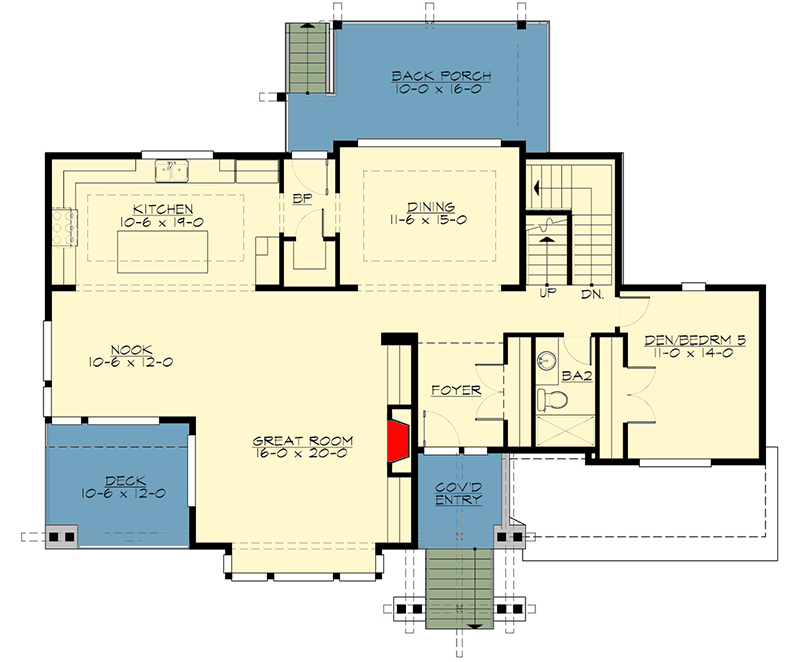

Contemporary Craftsman Plan with Wine Cellar - 23871JD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

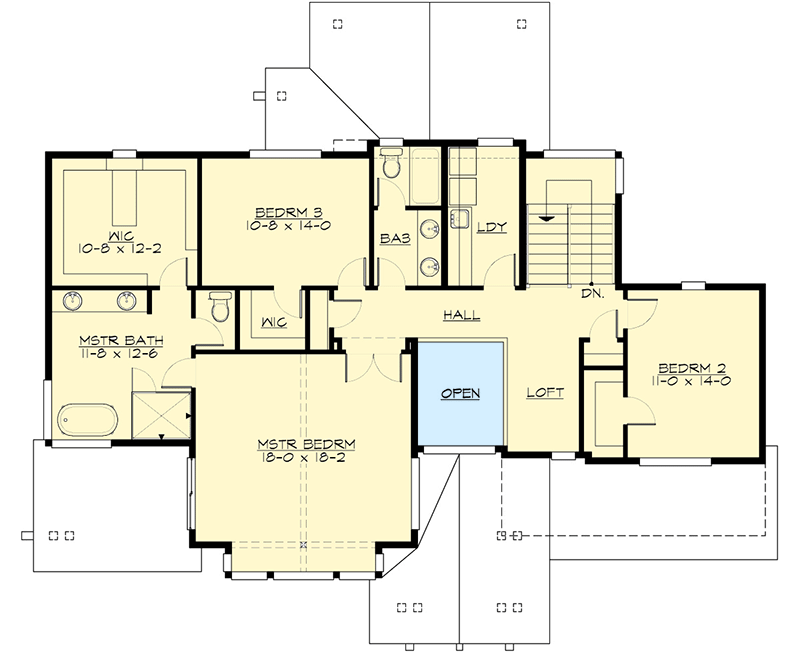

Contemporary Craftsman Plan with Wine Cellar - 23871JD floor plan - Second Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

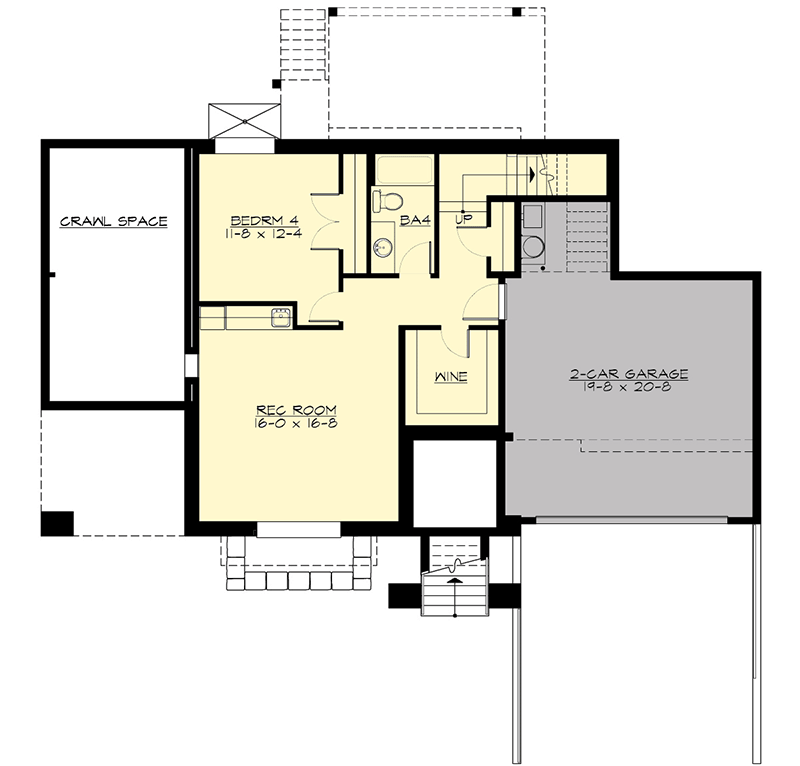

Contemporary Craftsman Plan with Wine Cellar - 23871JD floor plan - Lower Level

Plan details

Contemporary Craftsman Plan with Wine Cellar

  • 3,854

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,100
  • CAD + PDF - Unlimited Build $3,500
  • View all purchase option online

About This Plan

  • Craftsman detailing meets modern siding on the exterior of this luxury home plan, which features three levels of living with easy access to the outdoor spaces.
  • A coat closet lines the right wall of the foyer, while the adjacent great room is filled with natural light and oriented to take advantage of the frontal views. Multiple dining options for guests include the formal dining room, breakfast nook, or rear porch.
  • An oversized opening creates a natural flow to and from the kitchen with a central island offering loads of workspace. The butler's pantry provides a shortcut to the dining room, along with access to the rear porch. Discover a quiet den, next to a full bath, to finish the main level.
  • Upstairs, three bedrooms surround the sizable laundry room; the largest of the bedrooms reserved for the homeowner. A boxed bay window juts out from the master bedroom, which is joined by a 5-fixture ensuite and roomy walk-in closet.
  • Head downstairs to find a recreation room with a wet bar, wine cellar, and fourth bedroom. The 2-car garage is also located on this level and includes a coat closet just inside the family entry.
  • Related Plan: Get an alternate version with house plan 23585JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,854 sq. ft.
  • Lower Level: 876 sq. ft.
  • 1st Floor: 1,553 sq. ft.
  • 2nd Floor: 1,425 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 49' 4"
  • Max ridge height: 25' 2"

Garage

  • Type: Drive Under
  • Area: 500 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss
