Plan 65795BS

Contemporary Florida Style House Plan with 6 Bedrooms and Rooftop Deck

Name: Plan 65795BS: Contemporary Florida Style House Plan with 6 Bedrooms and Rooftop Deck
Brand: Architectural Designs
SKU: 65795BS
Price: 5922.0 USD
Availability: InStock

Heated S.F.

5,922

Beds

Baths

7.5

Stories

Cars

Floor Plan

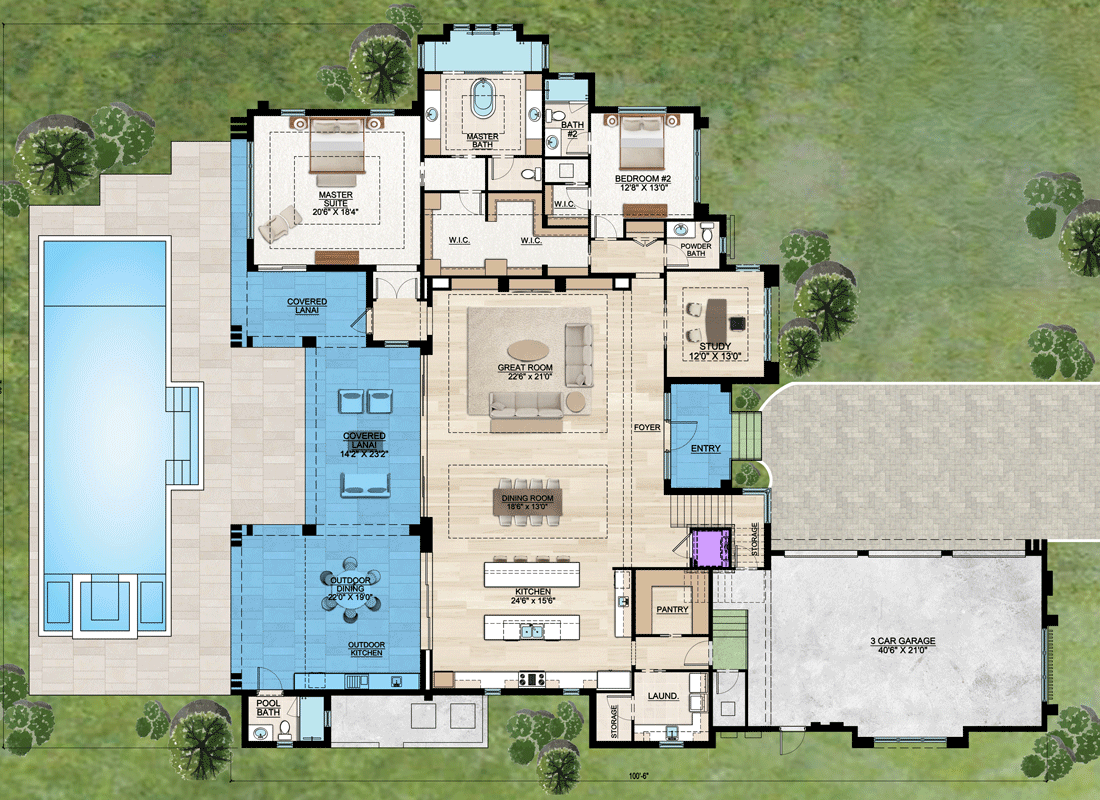

Main Level

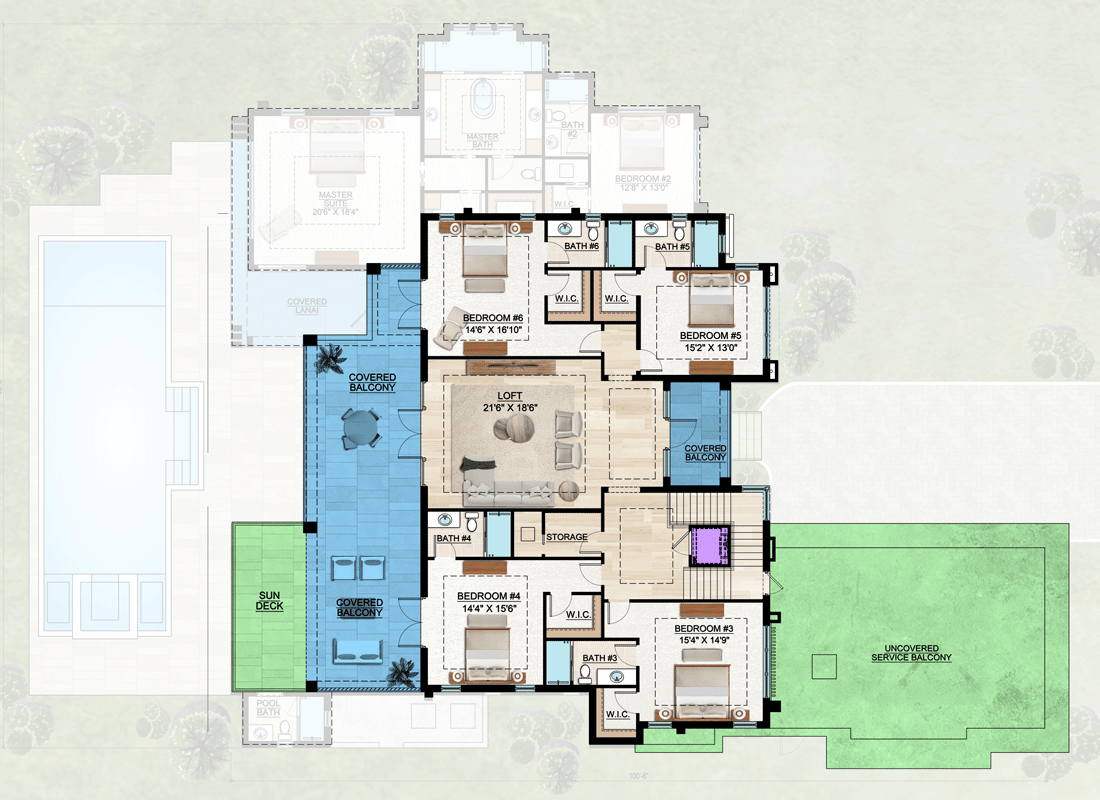

2nd Level

Plan Details

This expansive 5,922 square foot contemporary Florida-style estate offers 6 bedrooms, 7.5 bathrooms, and a 3-car courtyard garage.

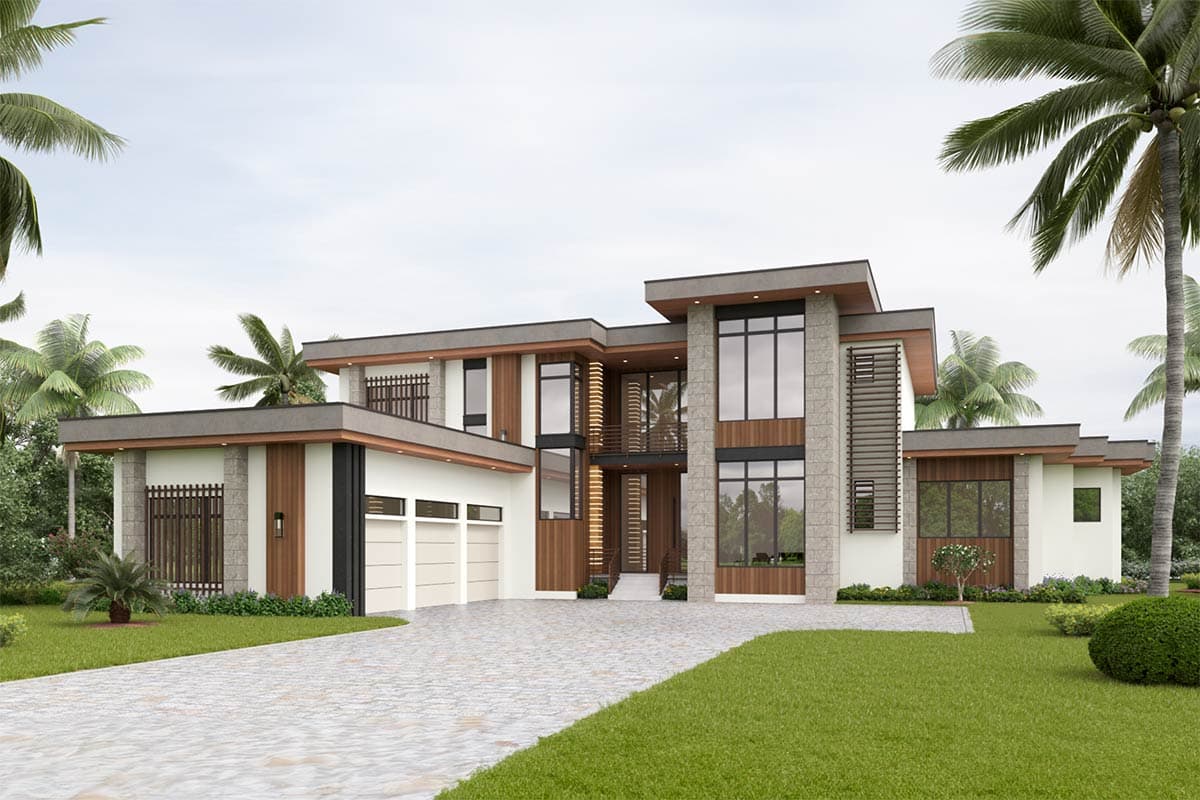

The striking exterior blends modern clean lines with wood accents and stone detailing, leading to an inviting entry that sets the tone for a sophisticated interior.
Inside, the main level features a grand great room that serves as the heart of the home, seamlessly connecting to formal dining and a dedicated library or study.
The primary suite is conveniently situated on the first floor for maximum privacy and comfort, while additional bedrooms are thoughtfully clustered to accommodate family and guests.

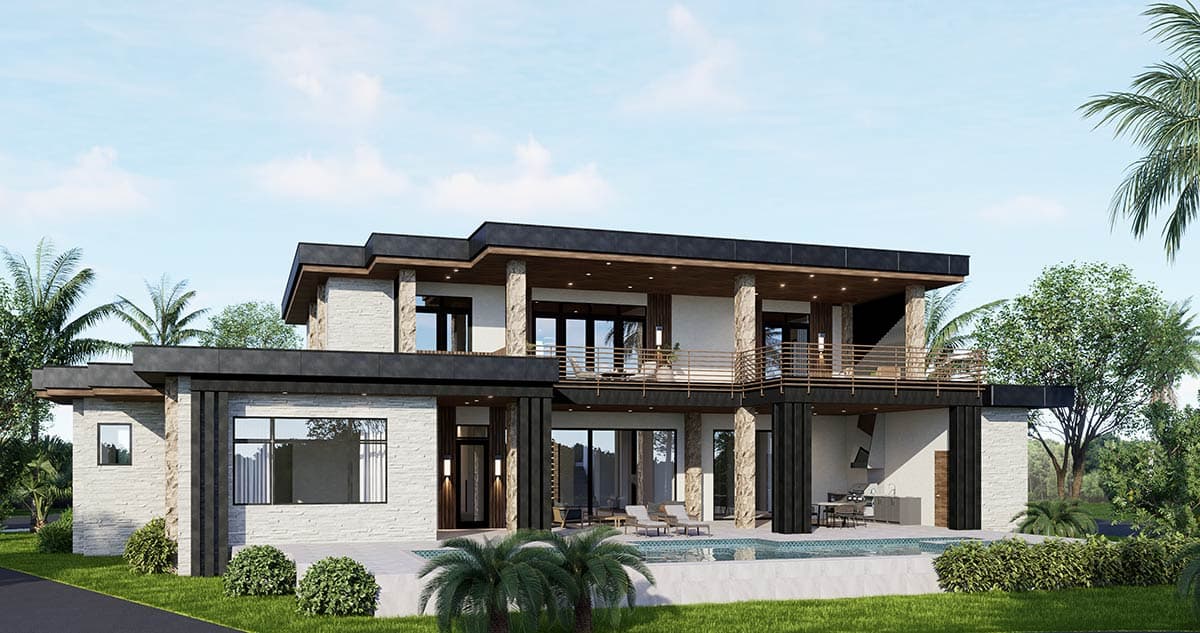

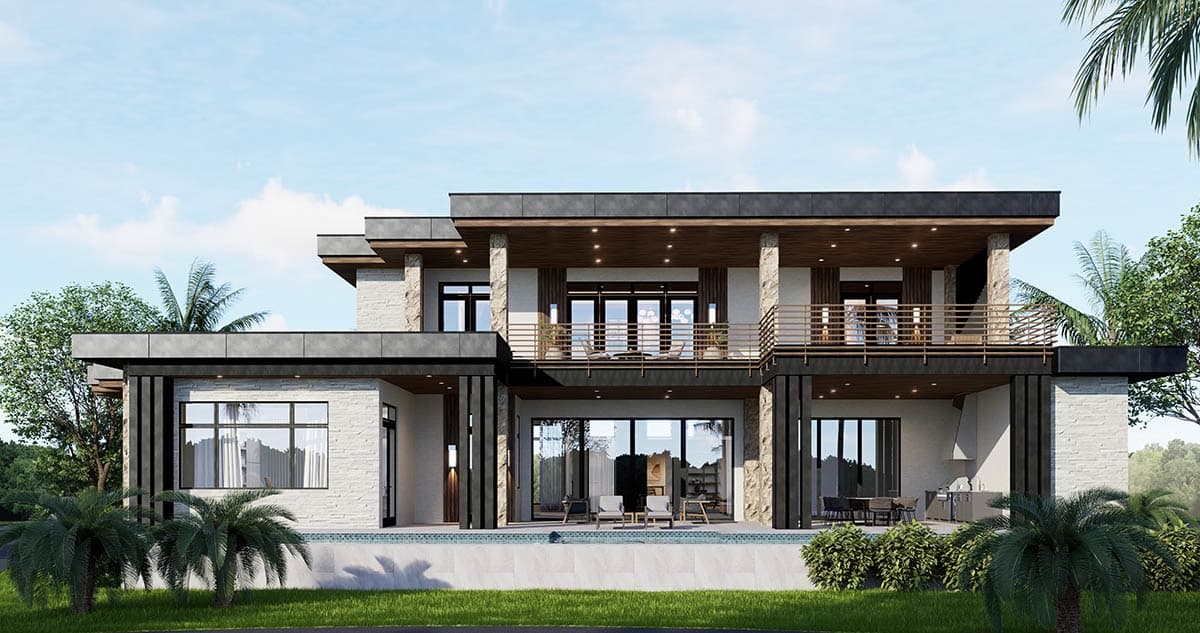

Modern conveniences are integrated throughout, including a private elevator for easy access between floors and a massive lanai designed for seamless indoor-outdoor living.
The home is further enhanced by an outdoor kitchen for alfresco dining and a private rooftop deck that provides an elevated vantage point for enjoying the surrounding landscape.

What's Included

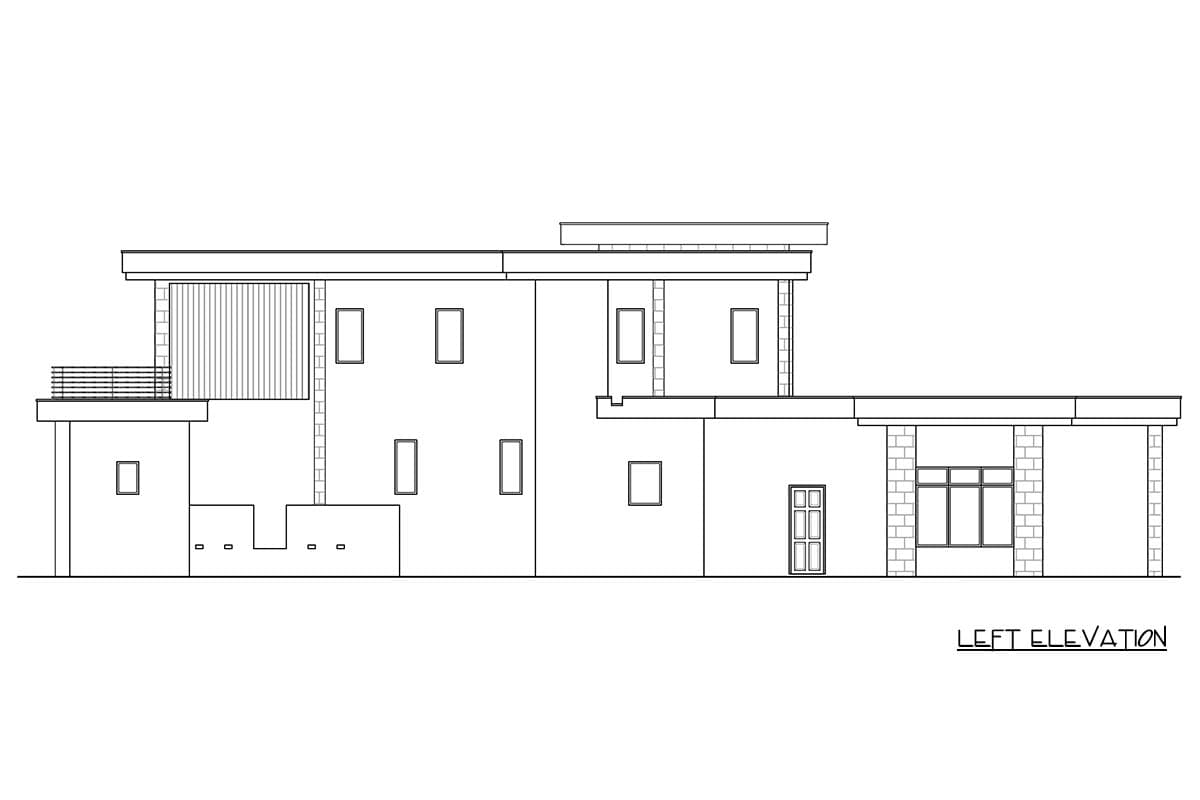

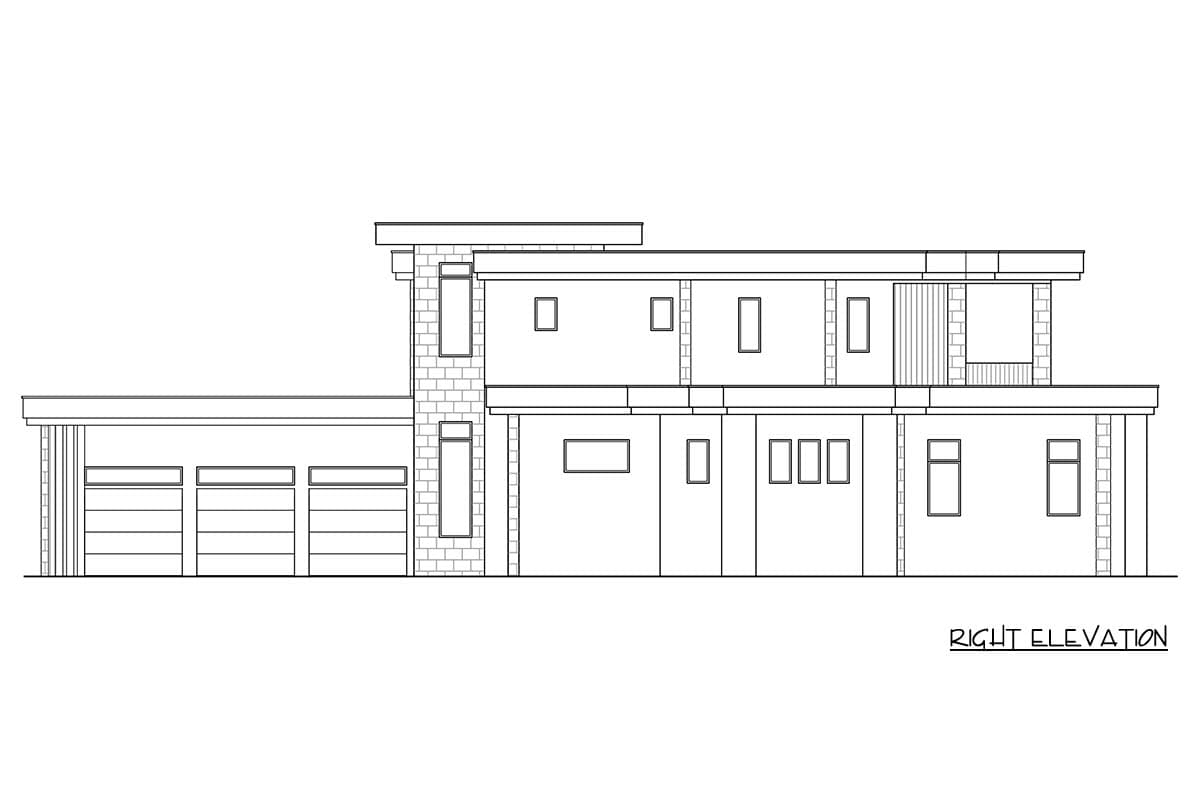

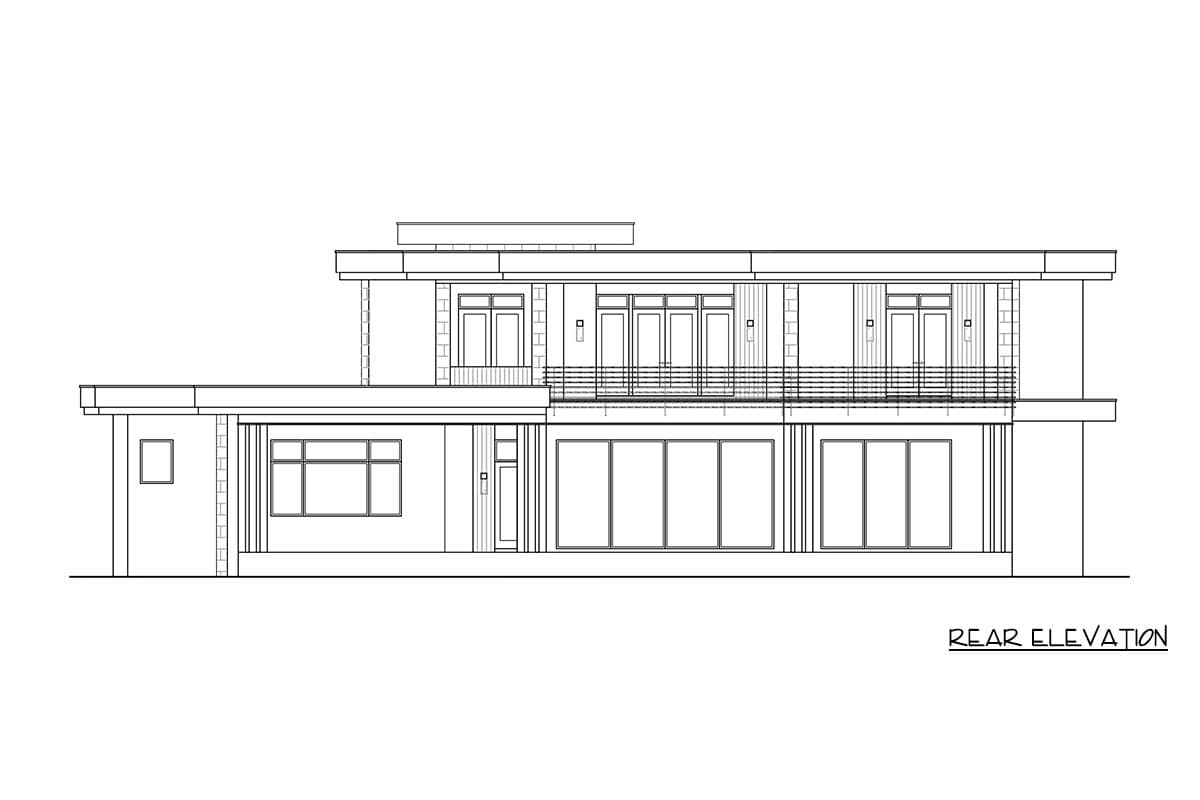

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
