Plan 68921VR Contemporary Home Plan with Ship's-ladder-accessible Loft

1,792 3 2 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Home Plan with Ship's-ladder-accessible Loft

Plan 68921VR

  • 1,792

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • The simplicity of the square footprint of this contemporary home plan keeps budget in mind. Paired with a single-plane sloped roof, a sleek, modern design is the result.
  • A 2-car side-load garage resides on the main level and has a single 16' by 8' garage door. Enter the living area from the side porch or the garage and you are greeted by an entry with stairs to the main living area above. A bedroom, bath and a living area complete the main floor.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling giving you ceilings that start at 8' in back and rise to 16' in front. The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony.
  • A C-shaped kitchen includes counter seating for up to five and a nearby pantry closet increases storage space.
  • A barn door grants access to the master bedroom, which includes two closets, and shares the full bath with the second bedroom on this level. A ship ladder in the family room leads to a 200 square foot artist's loft, or flexible creative space.
  • Related Plans: Get alternate versions with house plans 68633VR, 68775VR, 68760VR , 68740VR, or 680103VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

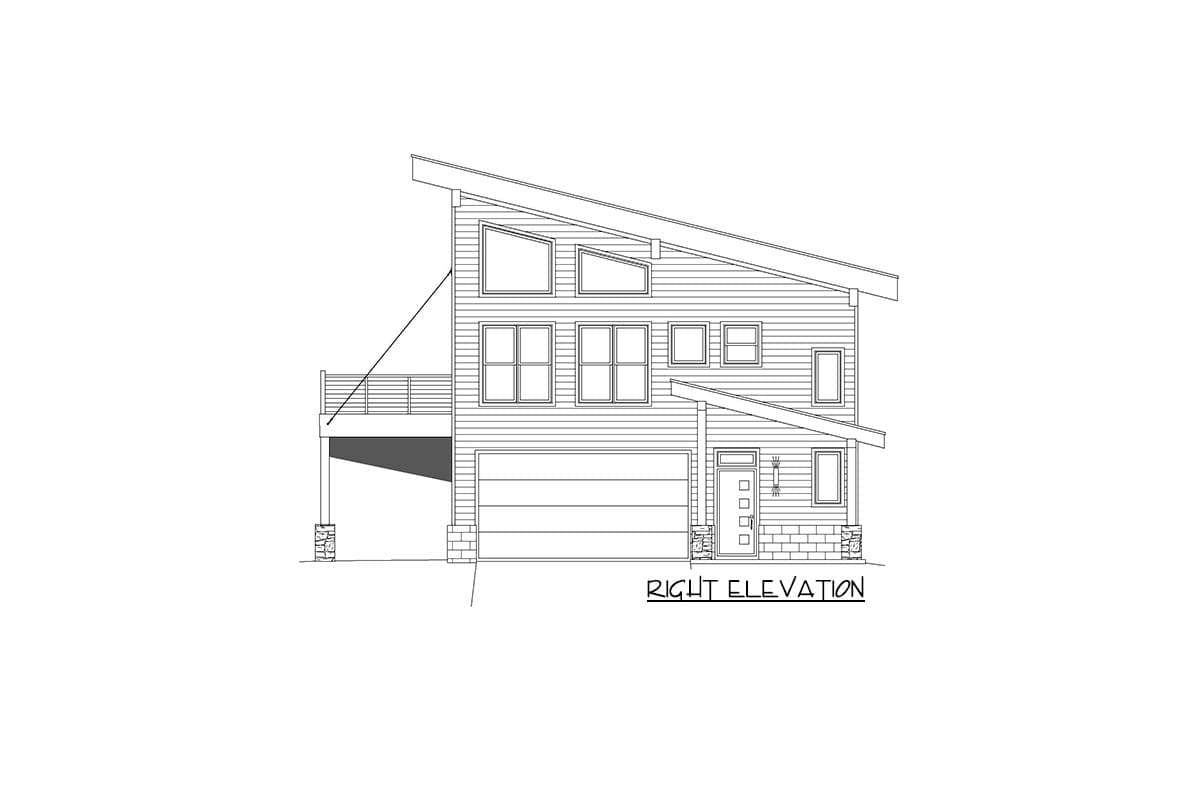

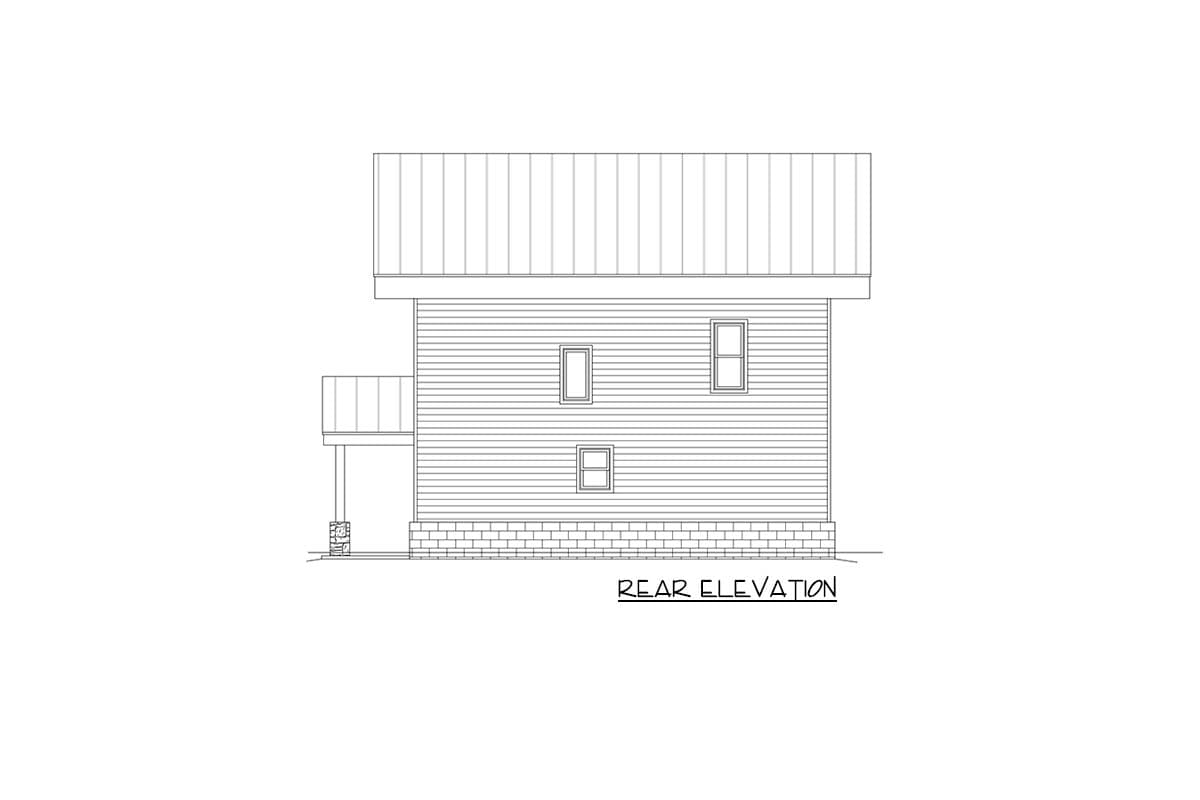

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

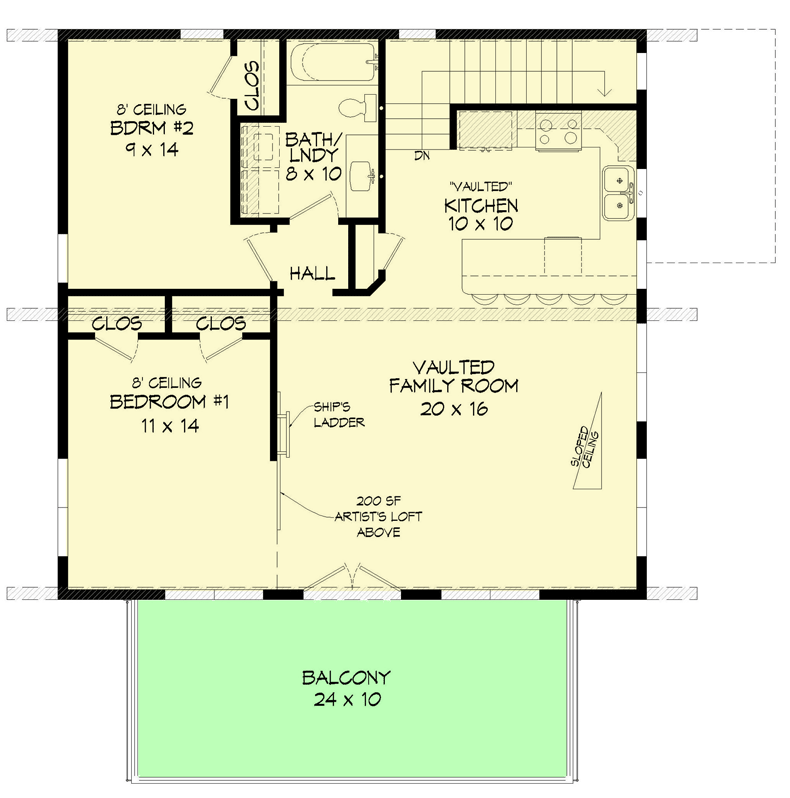

Contemporary Home Plan with Ship's-ladder-accessible Loft - 68921VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Home Plan with Ship's-ladder-accessible Loft - 68921VR floor plan - 2nd Floor

Loft

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Home Plan with Ship's-ladder-accessible Loft - 68921VR floor plan - Loft

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,792 sq. ft.
  • 1st Floor: 600 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • 3rd Floor: 200 sq. ft.
  • Balcony / Veranda: 240 sq. ft.
  • Side Porch: 98 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 8"

Garage

  • Type: Attached
  • Area: 392 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Contemporary Home Plan with Ship's-ladder-accessible Loft

  • 1,792

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,175
  • 5 Sets $1,260
  • 5 Sets + PDF $1,390
  • CAD + PDF - Single-Build $1,725
  • View all purchase option online

About This Plan

  • The simplicity of the square footprint of this contemporary home plan keeps budget in mind. Paired with a single-plane sloped roof, a sleek, modern design is the result.
  • A 2-car side-load garage resides on the main level and has a single 16' by 8' garage door. Enter the living area from the side porch or the garage and you are greeted by an entry with stairs to the main living area above. A bedroom, bath and a living area complete the main floor.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling giving you ceilings that start at 8' in back and rise to 16' in front. The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony.
  • A C-shaped kitchen includes counter seating for up to five and a nearby pantry closet increases storage space.
  • A barn door grants access to the master bedroom, which includes two closets, and shares the full bath with the second bedroom on this level. A ship ladder in the family room leads to a 200 square foot artist's loft, or flexible creative space.
  • Related Plans: Get alternate versions with house plans 68633VR, 68775VR, 68760VR , 68740VR, or 680103VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Loft

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,792 sq. ft.
  • 1st Floor: 600 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • 3rd Floor: 200 sq. ft.
  • Balcony / Veranda: 240 sq. ft.
  • Side Porch: 98 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 8"

Garage

  • Type: Attached
  • Area: 392 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
Plan 68921VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68921VR
|
Need Help? 800-854-7852
|
Plan 68921VR
