2-Bed Modern Mountain Cottage with Lower Level Apartment

Plan 680103VR

  • 2,356

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 4-5

    Cars

  • The simplicity of the square footprint of this mountain home keeps budget in mind, but when paired with a sloped shed roof, a sleek, modern design is the result.
  • A drive-under double garage resides on the lower level, and includes a partitioned space for mechanicals.
  • A carport flanks the left side, 12 feet wide by 32 feet deep, offers a storage or additional vehicle storage as well as the private entrance into the lower level apartment's living room.
  • The apartment is appointed with a living space open to an L-shaped kitchen, leading to a single bedroom with walk-in closet. Past the bedroom a hallway leads to the full bath and a small utility room for a stacked washer/dryer unit.
  • The main entry on the lower level entryway offers storage under the stair leading to the main level.
  • Upstairs, oversized windows surround the vaulted living room and kitchen, providing a bright and airy interior. The kitchen and family room are open to one another, and extend outdoors onto a spacious open balcony.
  • Wrap-around kitchen counters and a large 10' x 13' island offers seating for six, and a nearby 1/2 bath is conveniently located for guests.
  • Access to the bedroom is possible from the family room or through the huge utility/walk-in closet, which includes a center dresser island for additional storage. A pocket door from the utility area enters the 3/4 bathroom with double vanity sinks, a water closet and stand alone shower, with an attractive sliding barn door leads you into the main bedroom.
  • A spiral staircase in the family room leads to a generous artist's loft, or flexible creative space, laying above the main level bedroom.
  • The main level's entry door in the kitchen leads you under a covered breezeway to an additional 2-vehicle carport.
  • Related Plans: Get alternate versions with house plans 68787VR (1,559 sq. ft.), 68760VR (1,571 sq. ft.), 68633VR (1,359 sq. ft.), 68775VR (1,700 sq. ft.), or 68921VR (1,792 sq. ft.)

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

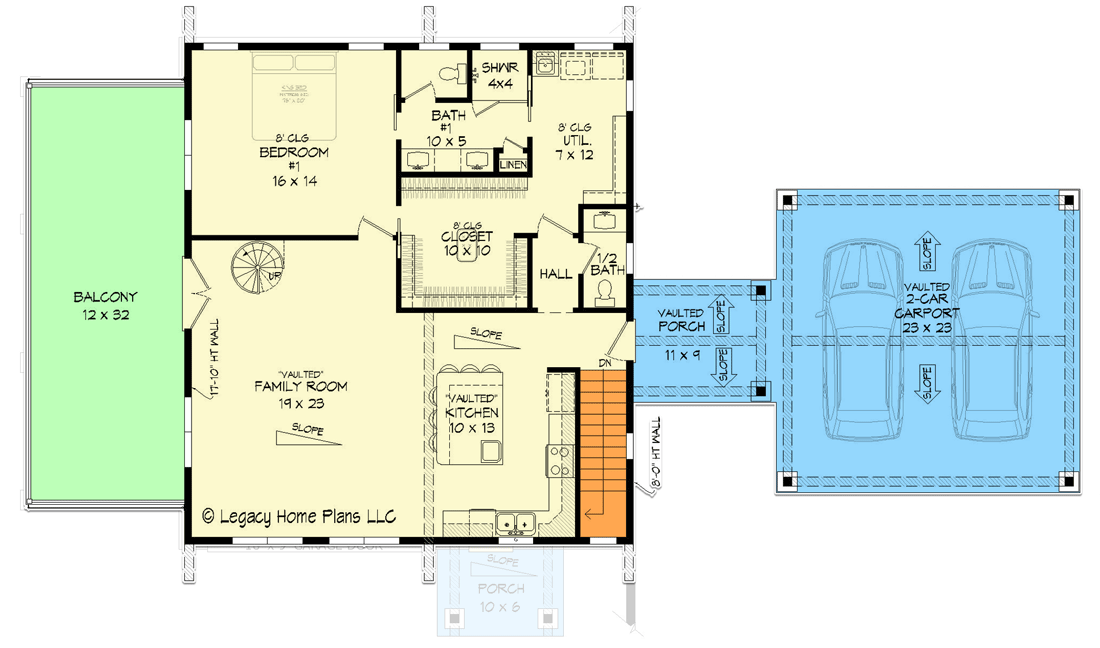

2-Bed Modern Mountain Cottage with Lower Level Apartment - 680103VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

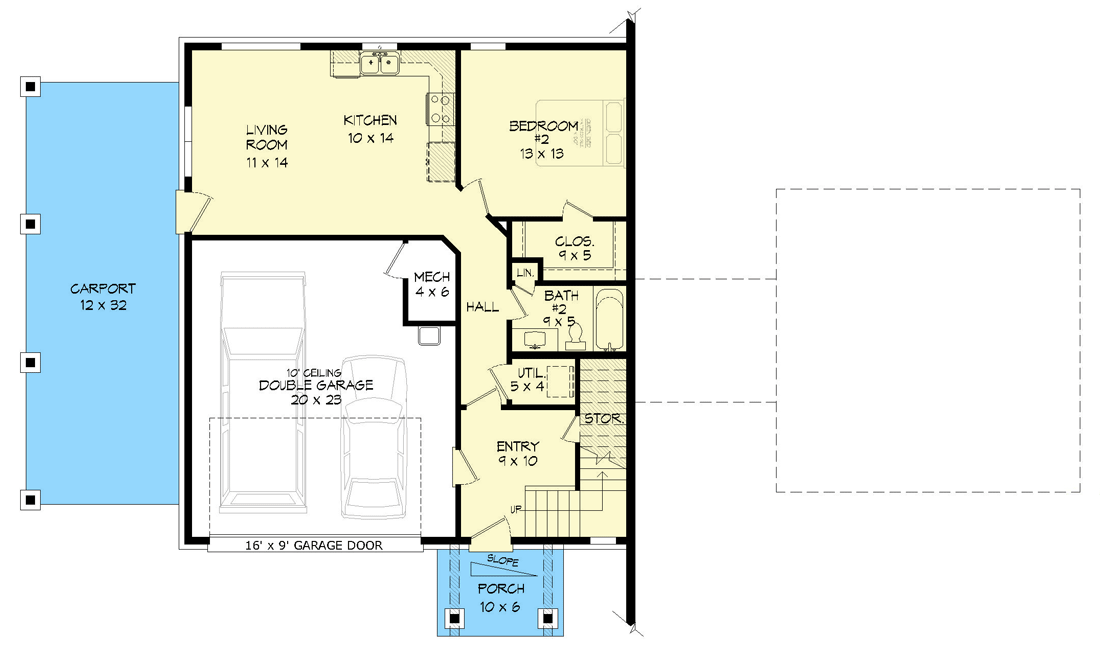

2-Bed Modern Mountain Cottage with Lower Level Apartment - 680103VR floor plan - Lower Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

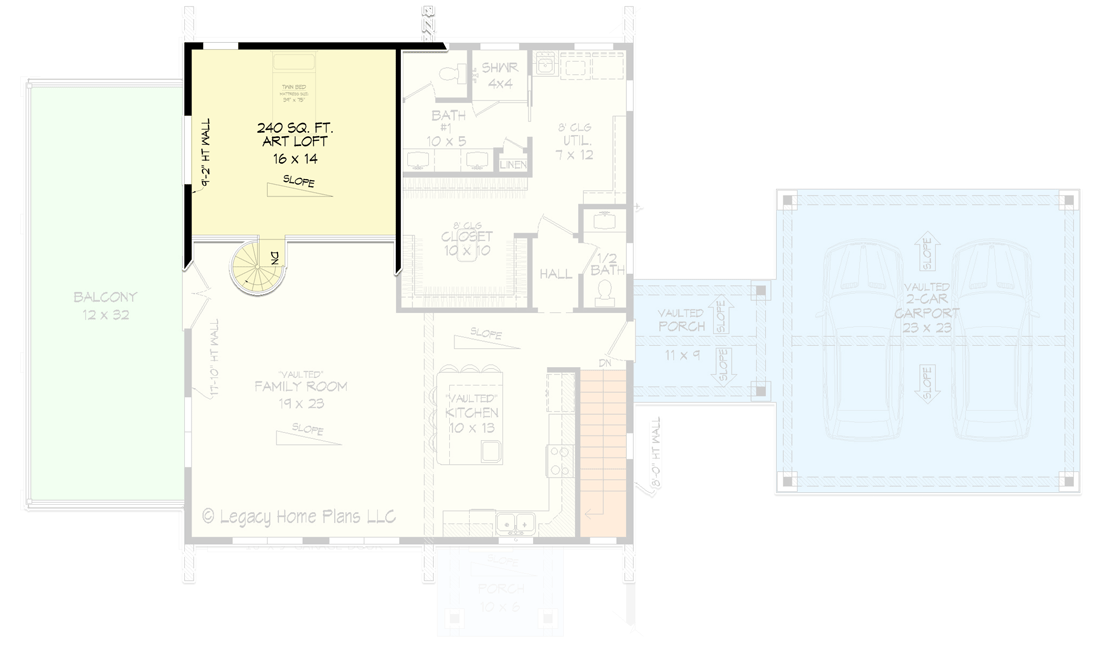

2-Bed Modern Mountain Cottage with Lower Level Apartment - 680103VR floor plan - Loft

2-Bed Modern Mountain Cottage with Lower Level Apartment

  • 2,356

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4 - 5

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • Loft

Plan Details

Square Footage Breakdown

  • Total: 2,356 sq. ft.
  • Lower Level: 824 sq. ft.
  • 1st Floor: 1,292 sq. ft.

Dimensions

  • Width: 68' 0"
  • Depth: 38' 0"
  • Max ridge height: 31' 5"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Drive Under, Carport, Attached
  • Count: 4 or 5 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 8' 10"

Roof

  • Primary Pitch: 3.5 on 12
  • Secondary Pitch: 8 on 12
