Plan 65696BS
Contemporary Mediterranean Home Plan for Indoor Outdoor Living
Heated S.F.
3,284
Beds
4
Baths
4.5
Stories
1
Cars
3
Plan Details
  • The fresh exterior of this Contemporary Mediterranean home plan is loaded with character and curb appeal. Inside, bedrooms flank the central living area that extends onto a sizable outdoor living space.
  • The focal point of the spacious great room is the clear view onto the back porch through a retractable wall of glass. The adjoining kitchen features two islands, loads of counter space, and a nearby dry bar.
  • The dining room is filled with natural lighting and creates an outdoor dining experience with its oversized sliding doors.
  • The master bedroom is tucked into the rear and boasts a deluxe ensuite with a freestanding tub and two walk-in closets. Three secondary bedrooms are sprinkled throughout the plan, while a quiet study rests behind french doors off the great room.
  • A 3-car garage protrudes from the front of the home with a man door providing access to the side yard.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.
What's Included

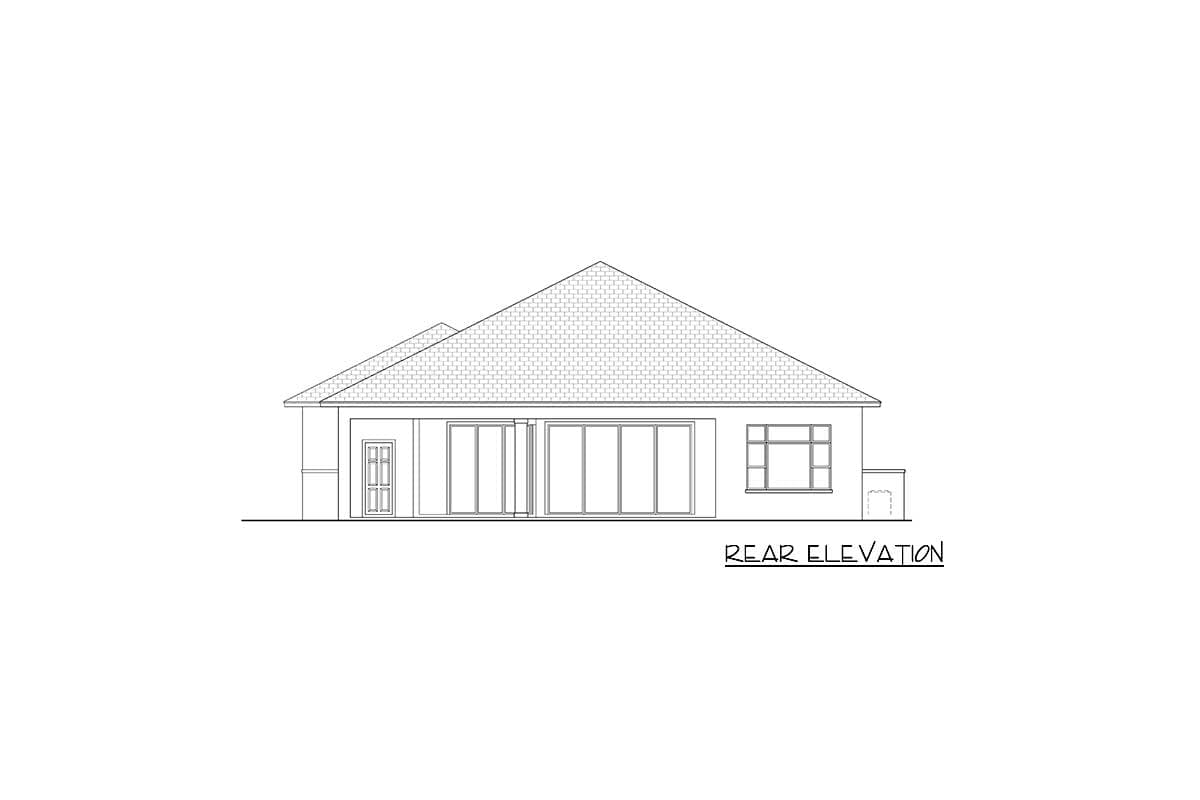

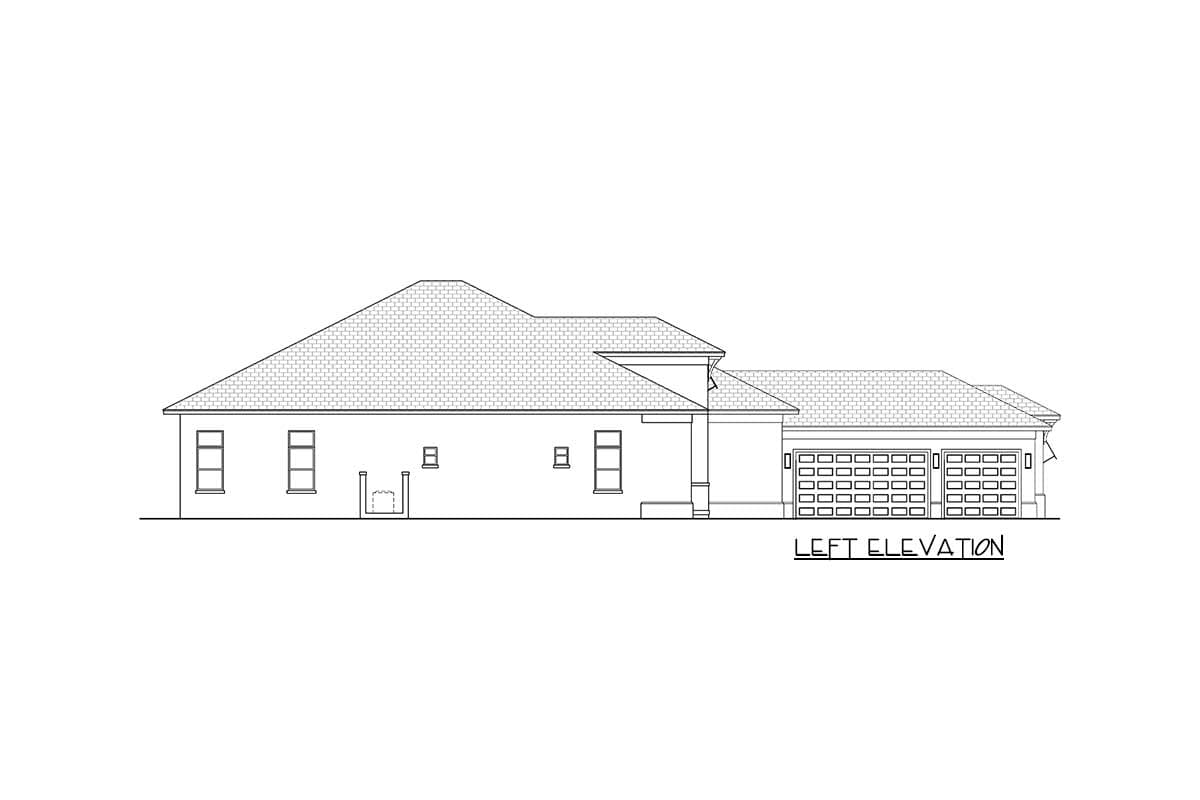

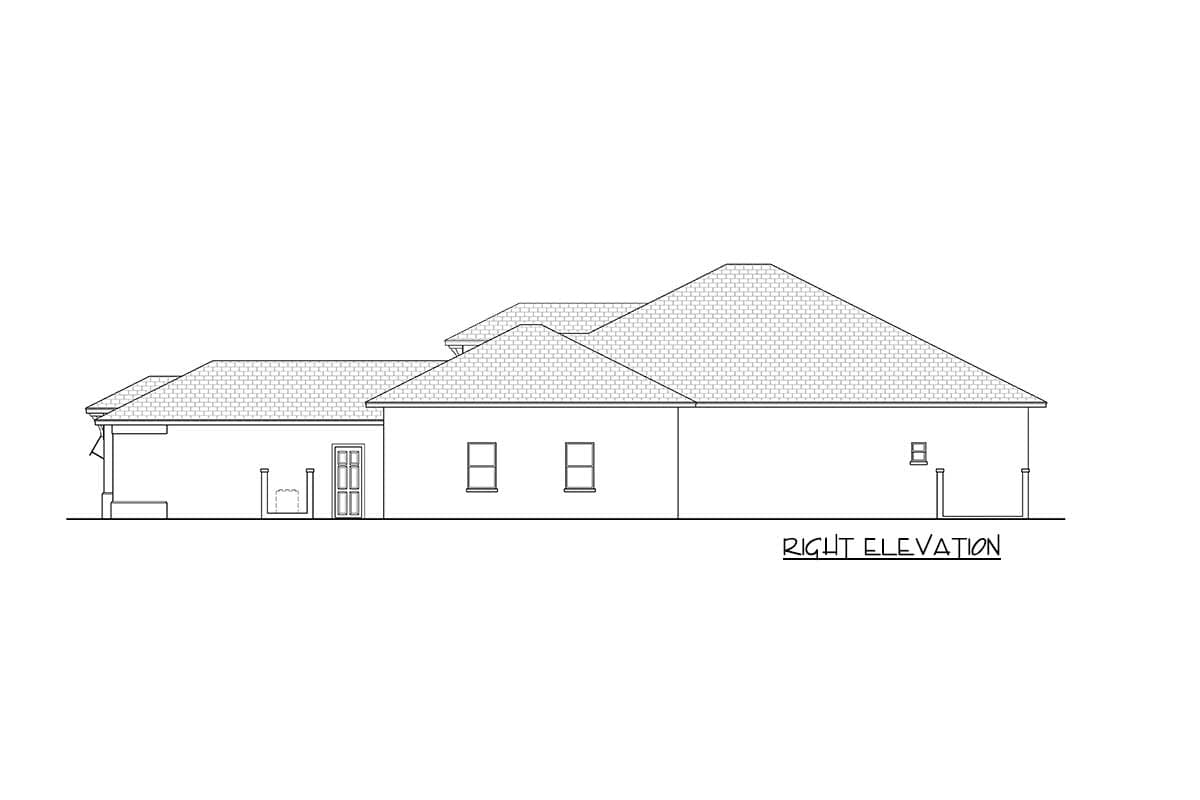

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Mediterranean Home Plan for Indoor Outdoor Living

  • 3,284

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

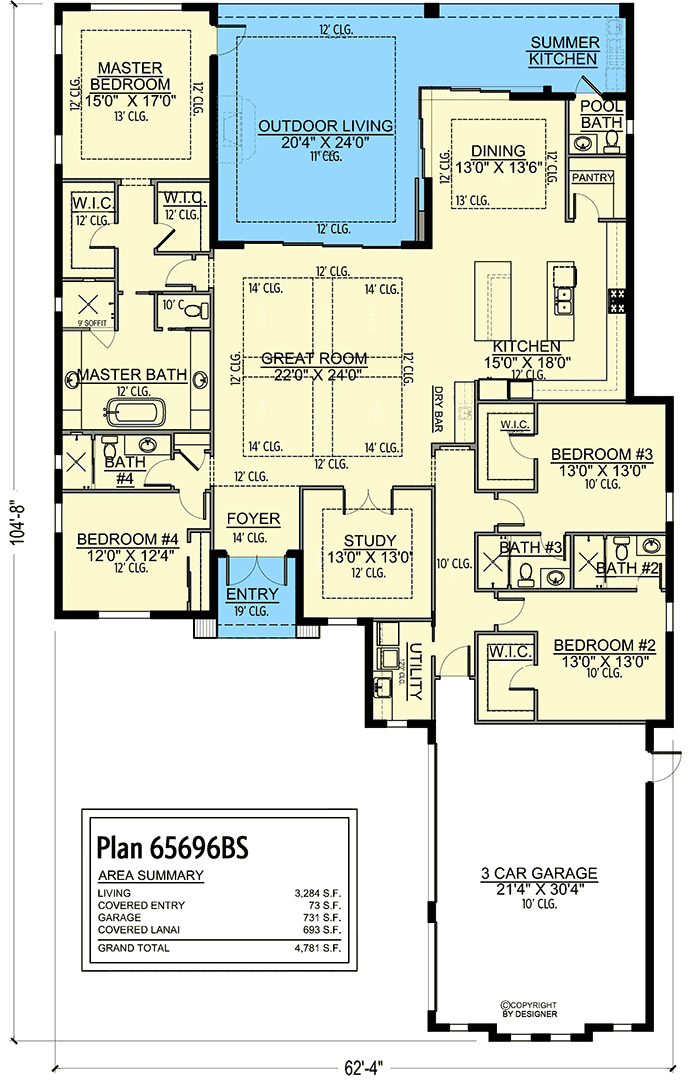

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,284 sq. ft.
  • 1st Floor: 3,284 sq. ft.

Dimensions

  • Width: 62' 4"
  • Depth: 104' 8"
  • Max ridge height: 28' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 731 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Contemporary Mediterranean Home Plan for Indoor Outdoor Living

  • 3,284

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Contemporary Mediterranean Home Plan for Indoor Outdoor Living

  • 3,284

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,284 sq. ft.
  • 1st Floor: 3,284 sq. ft.

Dimensions

  • Width: 62' 4"
  • Depth: 104' 8"
  • Max ridge height: 28' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 731 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

    Main Level
