Plan 64558SC

Contemporary Mediterranean House Plan with Expansive Lanai, Outdoor Kitchen, and 3-Car Garage

Name: Plan 64558SC: Contemporary Mediterranean House Plan with Expansive Lanai, Outdoor Kitchen, and 3-Car Garage
Brand: Architectural Designs
SKU: 64558SC
Price: 1795.0 USD
Availability: InStock

Heated S.F.

2,624

Beds

3 - 6

Baths

2.5 - 4.5

Stories

Cars

Tour

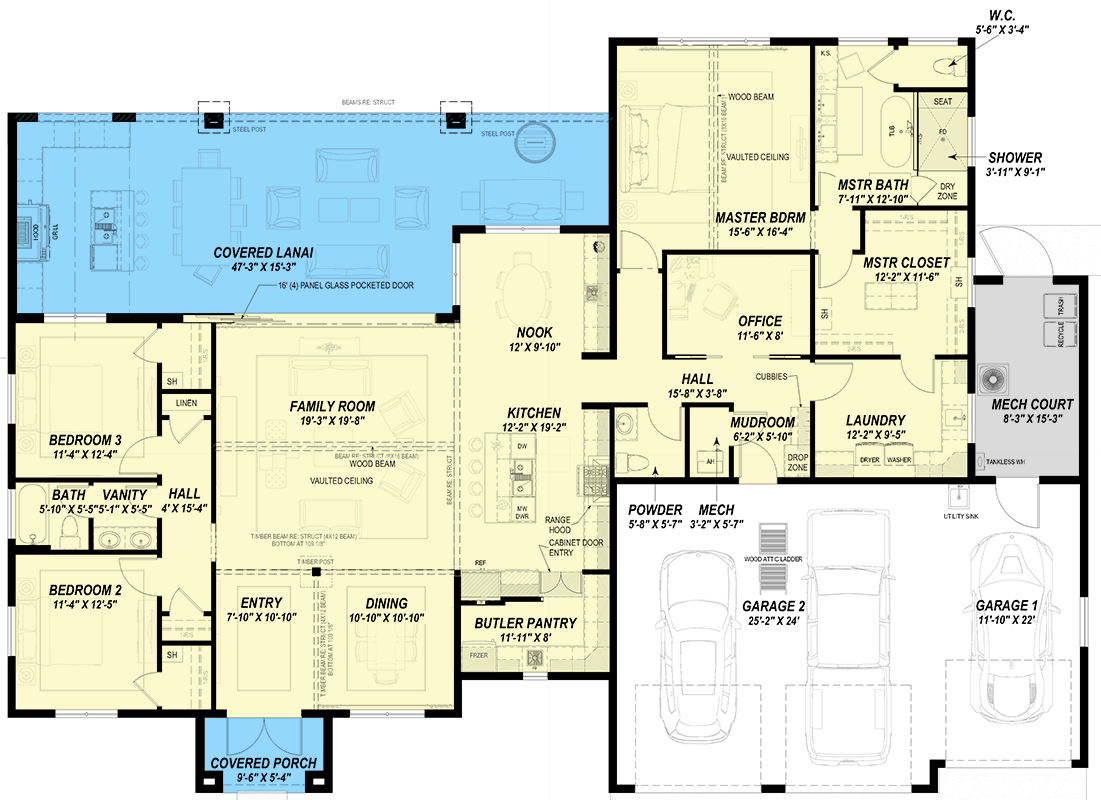

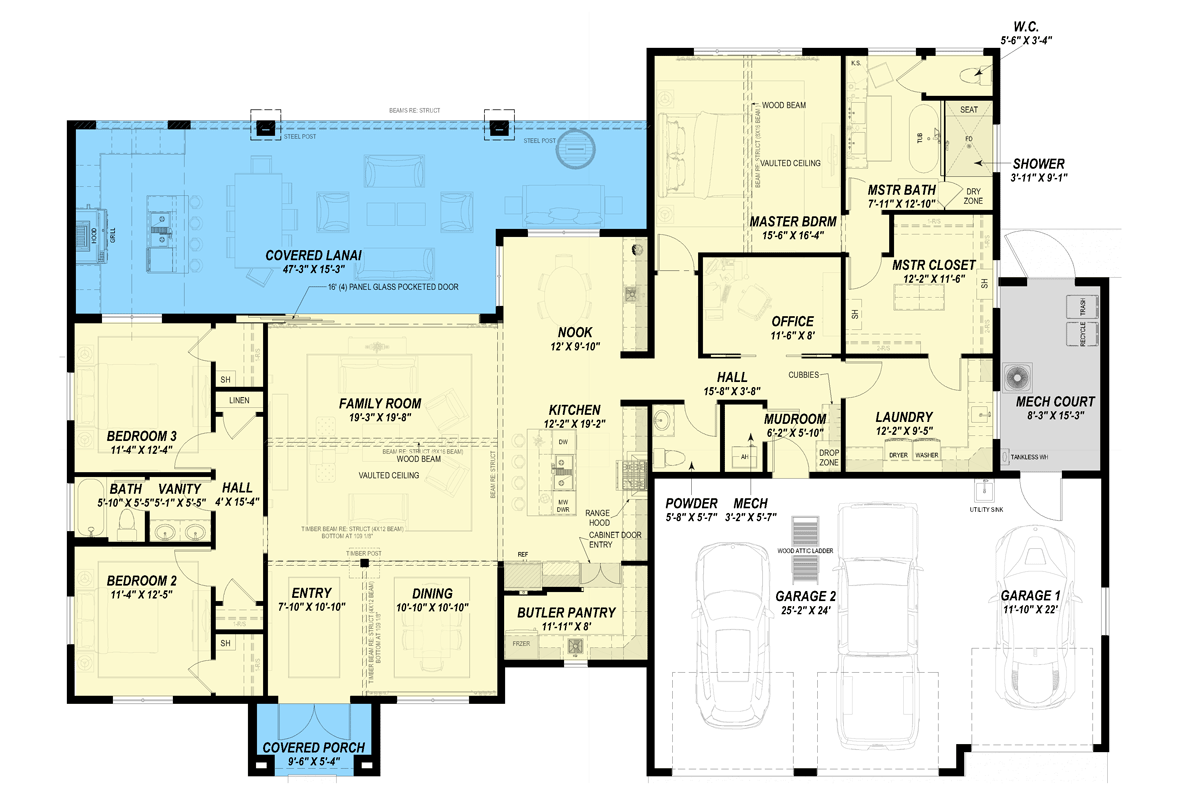

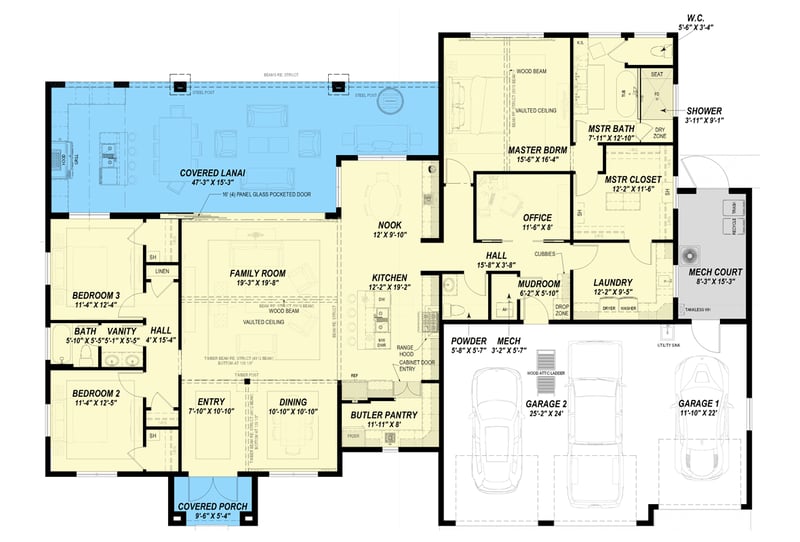

Floor Plan

Main Level

Plan Details

This sophisticated 2,624 sq ft Contemporary Mediterranean House Plan offers 3 bedrooms, 2.5 bathrooms, and an impressive 790 sq ft, 3-car garage, presenting a sleek, single-story design.
Upon entry, guests are greeted by soaring 10-foot ceilings and an immediate sense of open-concept luxury, with a dedicated space that can serve as a formal dining area, den, or private home office.
The heart of the home features a fluid transition between the gourmet kitchen, breakfast nook, and great room, enhanced by a convenient wet bar and a spacious butler's walk-in pantry, ideal for seamless entertaining.
Designed for privacy, the first-floor master suite is strategically split from the secondary bedrooms, offering a serene retreat with direct access to the main-level laundry room.
Beyond the main living areas, a versatile den provides a quiet sanctuary for reading or a productive home office, while the centrally located wet bar adds a touch of sophistication to social gatherings.
Embrace the indoor-outdoor lifestyle with a generous 640 sq ft lanai, complete with an outdoor kitchen, perfect for al fresco dining and enjoying warm evenings, complemented by a welcoming 66 sq ft front porch.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
