Contemporary Mediterranean Triplex House Plan with Balconies and Loft

Heated S.F.
8,596
Units
3
Width
Depth
Tour

Floor Plan

Plan 623590DJ

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 623590DJ

M-F 9am-5pm EST |

1-203-761-8500

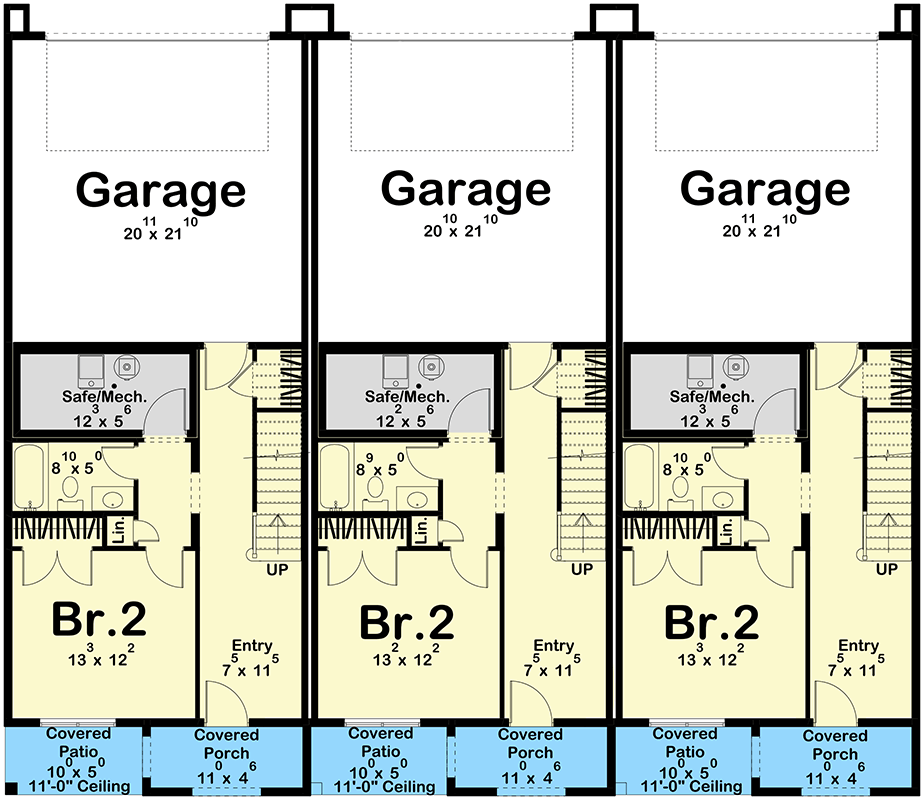

Main Level

Plan 623590DJ: Contemporary Mediterranean Triplex House Plan with Balconies and Loft - Floor Plan - Main Level - Contemporary, Mediterranean, Modern

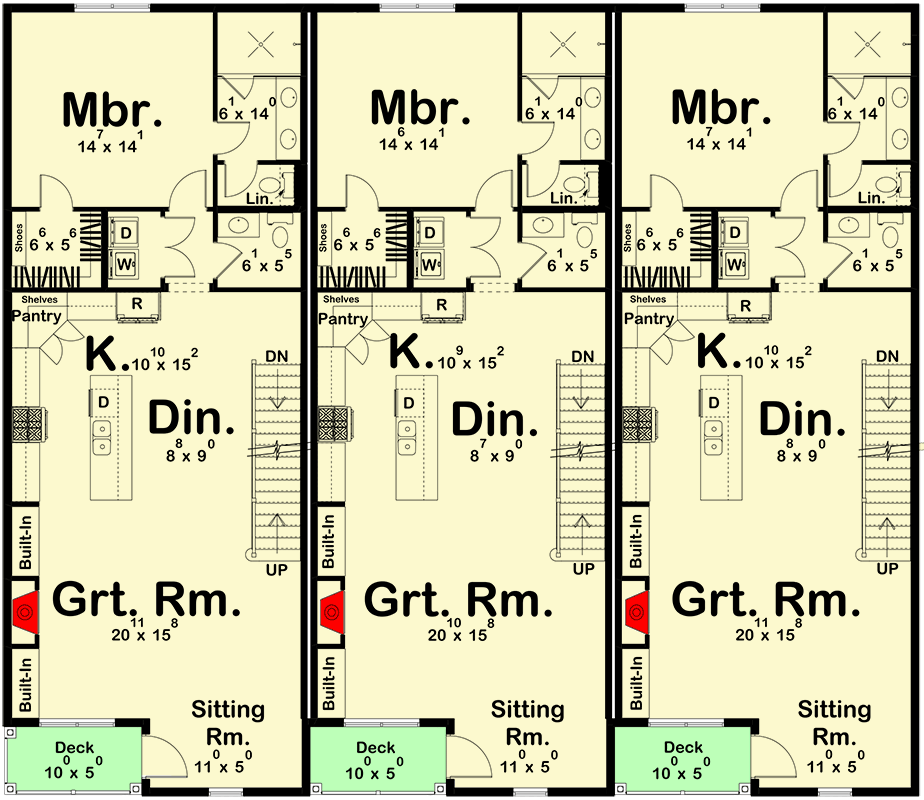

2nd Floor

Plan 623590DJ: Contemporary Mediterranean Triplex House Plan with Balconies and Loft - Floor Plan - 2nd Floor - Contemporary, Mediterranean, Modern

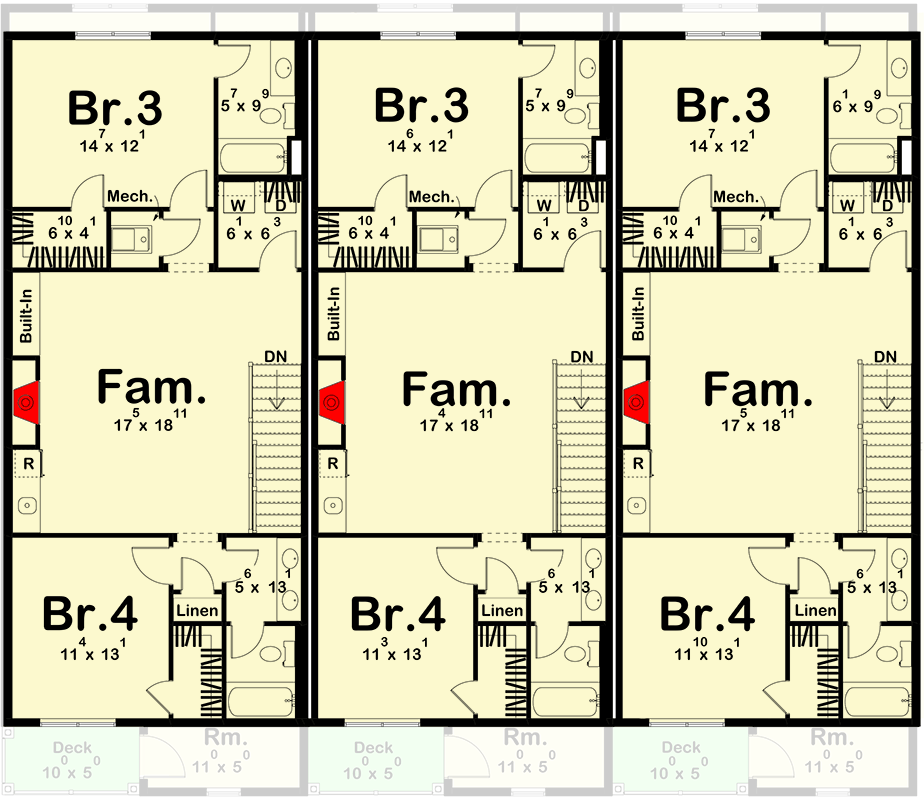

3rd Floor

Plan 623590DJ: Contemporary Mediterranean Triplex House Plan with Balconies and Loft - Floor Plan - 3rd Floor - Contemporary, Mediterranean, Modern

Plan Details

  • This expansive 2,862 sq. ft. contemporary Mediterranean triplex house plan offers a luxurious urban living experience across three levels, featuring 4 bedrooms, 4.5 baths, and an attached 486 sq. ft. two-car garage.
  • Step inside to discover a thoughtfully designed layout, with the ground floor primarily dedicated to a spacious two-car garage and a welcoming entry foyer, setting the stage for the vibrant living spaces above.
  • The second floor, spanning 1,140 sq. ft., hosts the primary living areas in an open-concept arrangement, seamlessly connecting the gourmet kitchen, dining area, and a bright living room, perfect for gathering and daily life. A convenient half-bath is also located on this level.
  • The third floor, totaling 1,030 sq. ft., is dedicated to private retreats, including an opulent master suite designed for relaxation, featuring an upstairs laundry room for ultimate convenience. The remaining bedrooms are thoughtfully arranged, offering split layouts for privacy.
  • This plan also boasts a versatile loft space, ideal for a home office or creative studio, alongside a dedicated safe room for peace of mind and a stylish wet bar, perfect for sophisticated entertaining.
  • Each unit offers charming outdoor spaces, including a welcoming front porch and private balconies on the upper levels, providing serene spots for morning coffee or evening relaxation, embracing the surrounding views.
Unit A & B & C
Heated Area
2,862Sq. Ft.
512 Sq. Ft. 1st
1140 Sq. Ft. 2nd
1030 Sq. Ft. 3rd
Beds
4Beds
Baths
4Full Baths
1Half Bath
Cars
Attached
486 Sq. Ft.
Dimensions
22'width
57'depth
Unfinished Areas
486 Sq. Ft. Garage
108 Sq. Ft. Porch, Combined

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

8,596 sq. ft.

1st Floor

1,536 sq. ft.

2nd Floor

3,420 sq. ft.

3rd Floor

3,090 sq. ft.

Porch, Combined

324 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

57' 0"

Max Ridge Height

48' 10"

Garage

Type

Attached

Area

1458 sq. ft.

Count

6 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mediterranean

Modern

Special Features

Bedrooms - Split

Laundry - Upstairs

Loft

Master Suite - Upstairs

Safe Room

Wet Bar

Square Footage Breakdown

Total Heated Area

8,596 sq. ft.

1st Floor

1,536 sq. ft.

2nd Floor

3,420 sq. ft.

3rd Floor

3,090 sq. ft.

Porch, Combined

324 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

57' 0"

Max Ridge Height

48' 10"

Garage

Type

Attached

Area

1458 sq. ft.

Count

6 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mediterranean

Modern

Special Features

Bedrooms - Split

Laundry - Upstairs

Loft

Master Suite - Upstairs

Safe Room

Wet Bar

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping!Let's go back to the top.
