Plan 666314RAF

Contemporary Modern House Plan with 5 Bedrooms and Courtyard Entry

Heated S.F.
4,335
Beds
5
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 666314RAF

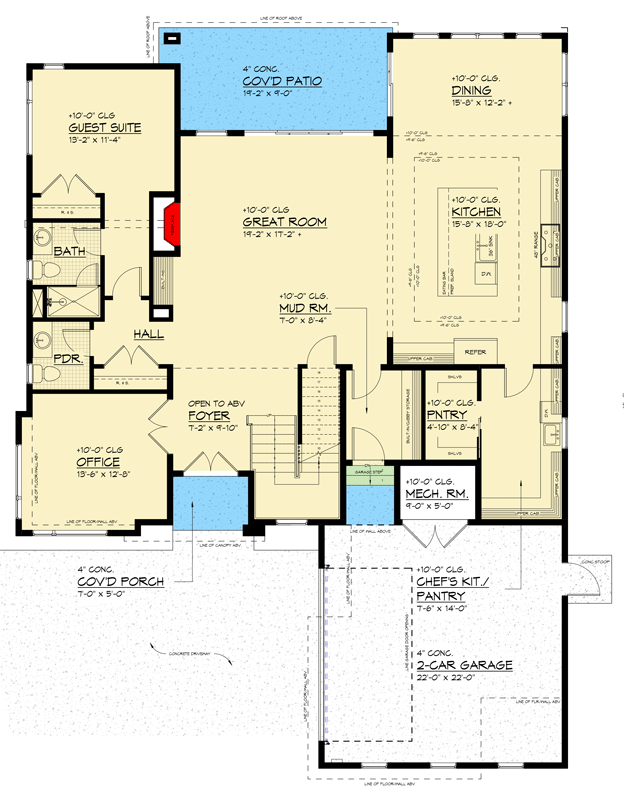

Floor Plan 1

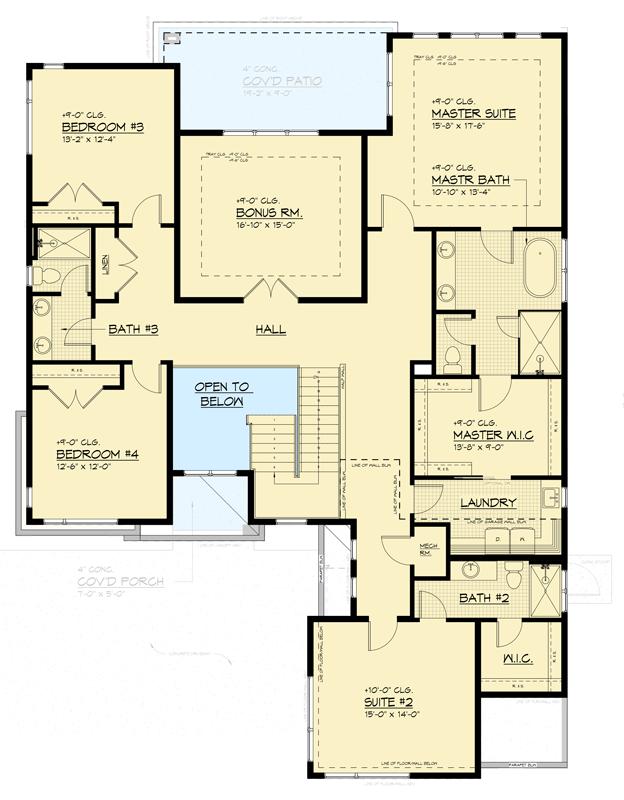

Floor Plan 2

Plan 666314RAF

M-F 9am-5pm EST |

1-203-761-8500

Plan 666314RAF: Contemporary Modern House Plan with 5 Bedrooms and Courtyard Entry - Floor Plan - - Contemporary, Modern, Northwest

Plan 666314RAF: Contemporary Modern House Plan with 5 Bedrooms and Courtyard Entry - Floor Plan - - Contemporary, Modern, Northwest

Plan Details

  • This striking modern residence offers 4,335 finished square feet of living space, featuring five bedrooms, four full baths, one half bath, and a two-car garage.

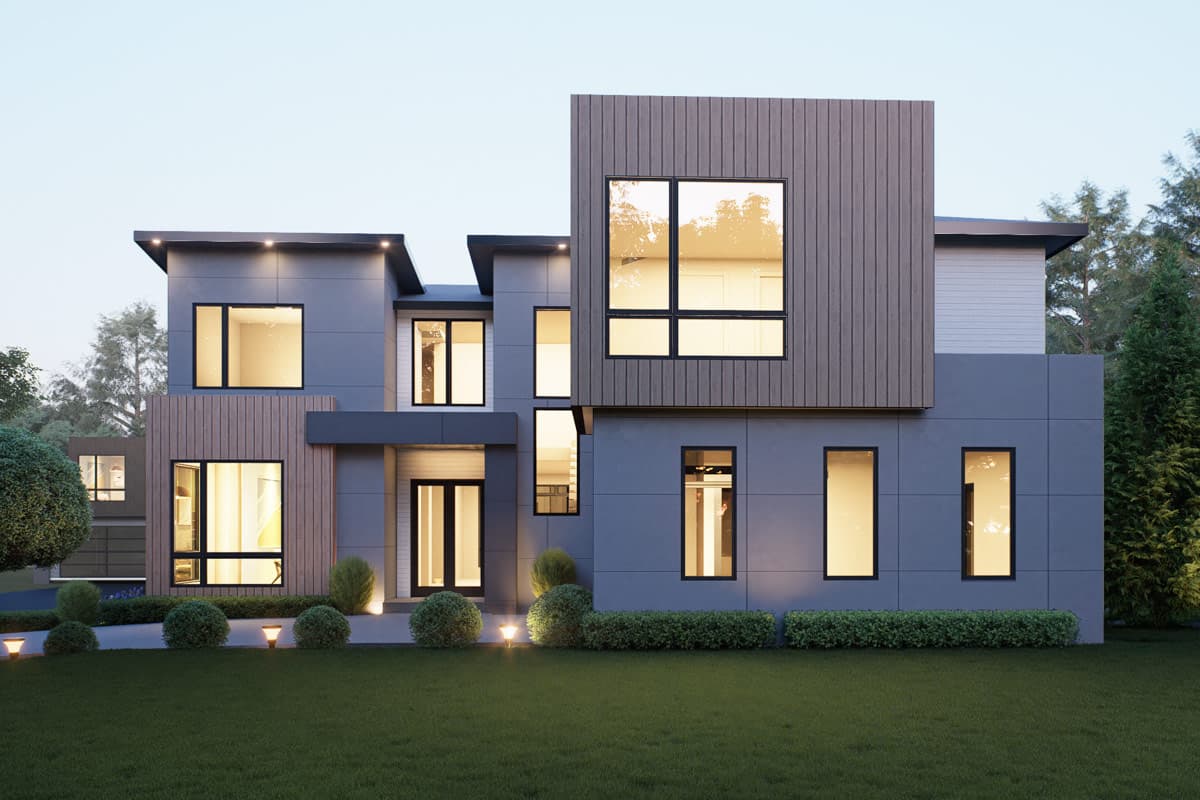

  • The home makes a bold impression with its contemporary facade, leading guests through a private courtyard entry into a meticulously designed floor plan.
  • Ten-foot ceilings on both levels create an airy, expansive atmosphere that connects the open-concept living, dining, and kitchen areas.
  • A dedicated home office and library provide quiet retreats, while the mudroom and walk-in pantry offer practical solutions for a busy household.
  • The luxurious primary suite is positioned on the second floor, complemented by the convenience of an adjacent upstairs laundry room with direct access.

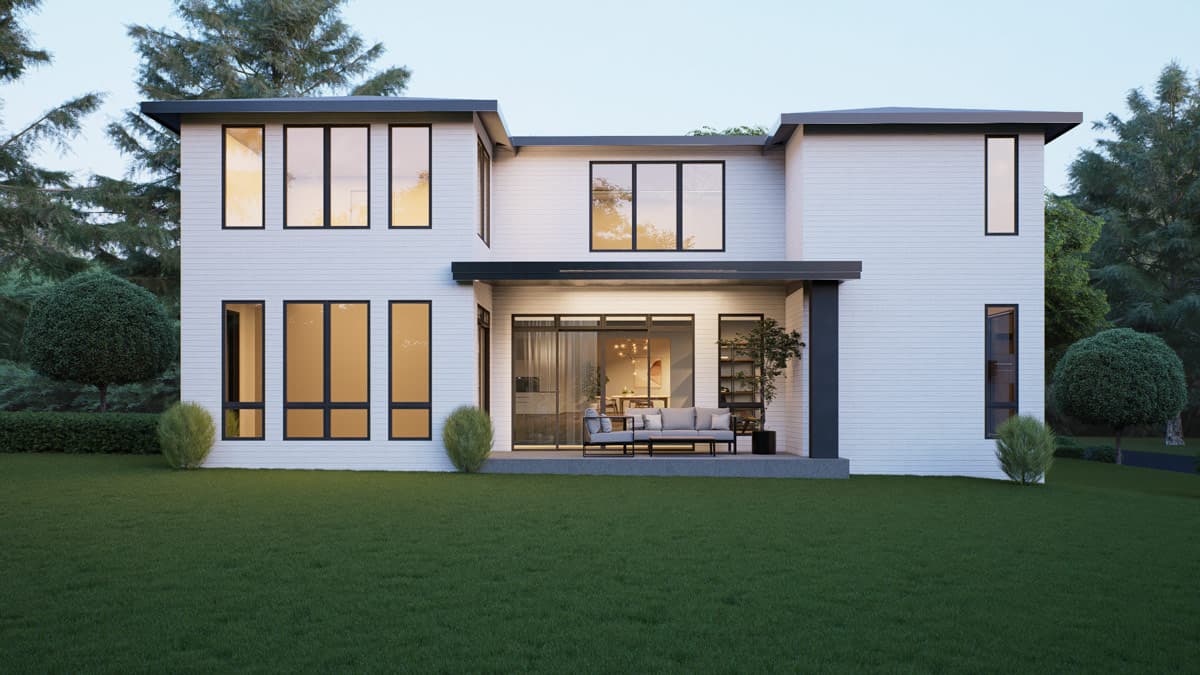

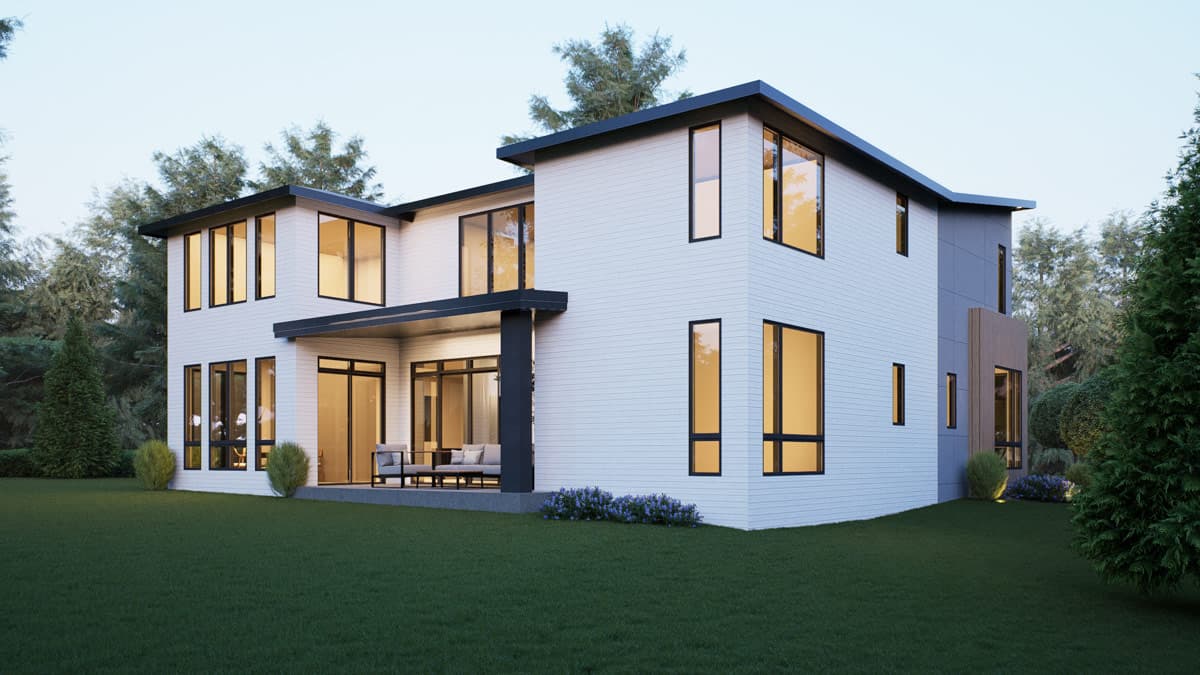

  • Generous outdoor living is facilitated by a spacious rear porch, perfect for relaxing evenings or hosting gatherings in the fresh air.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

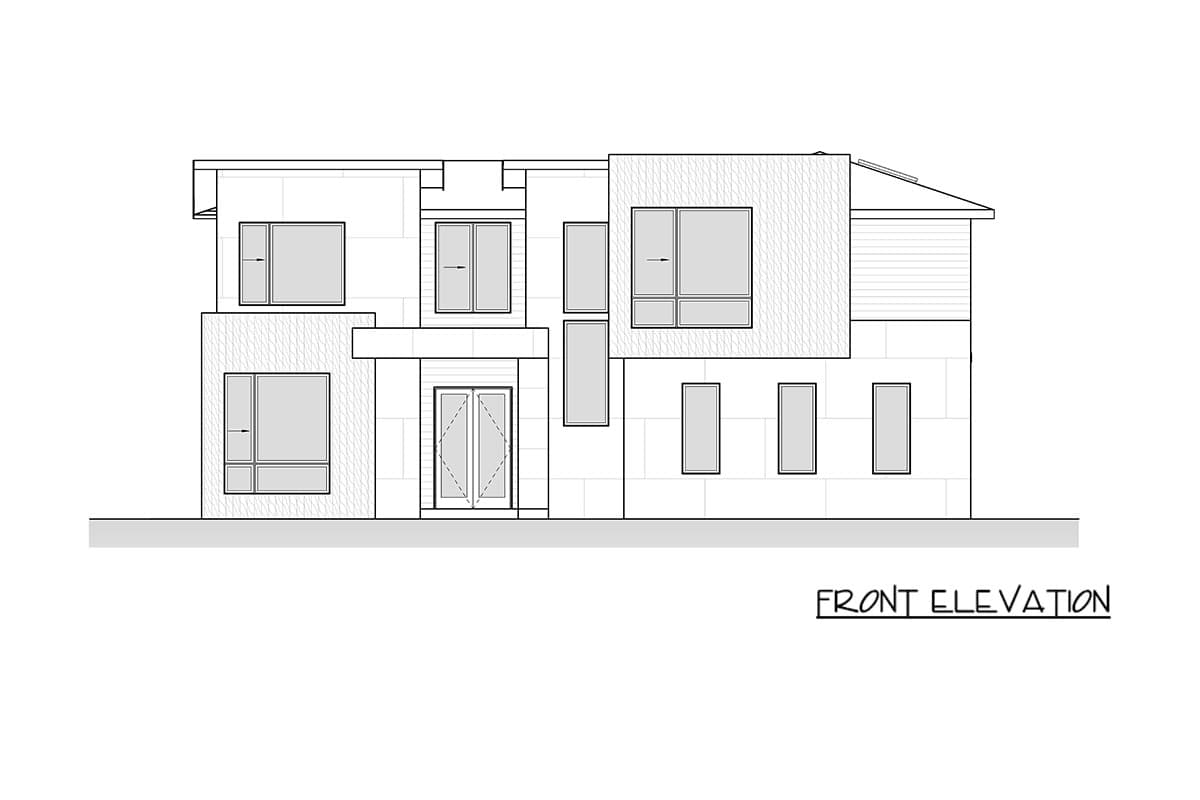

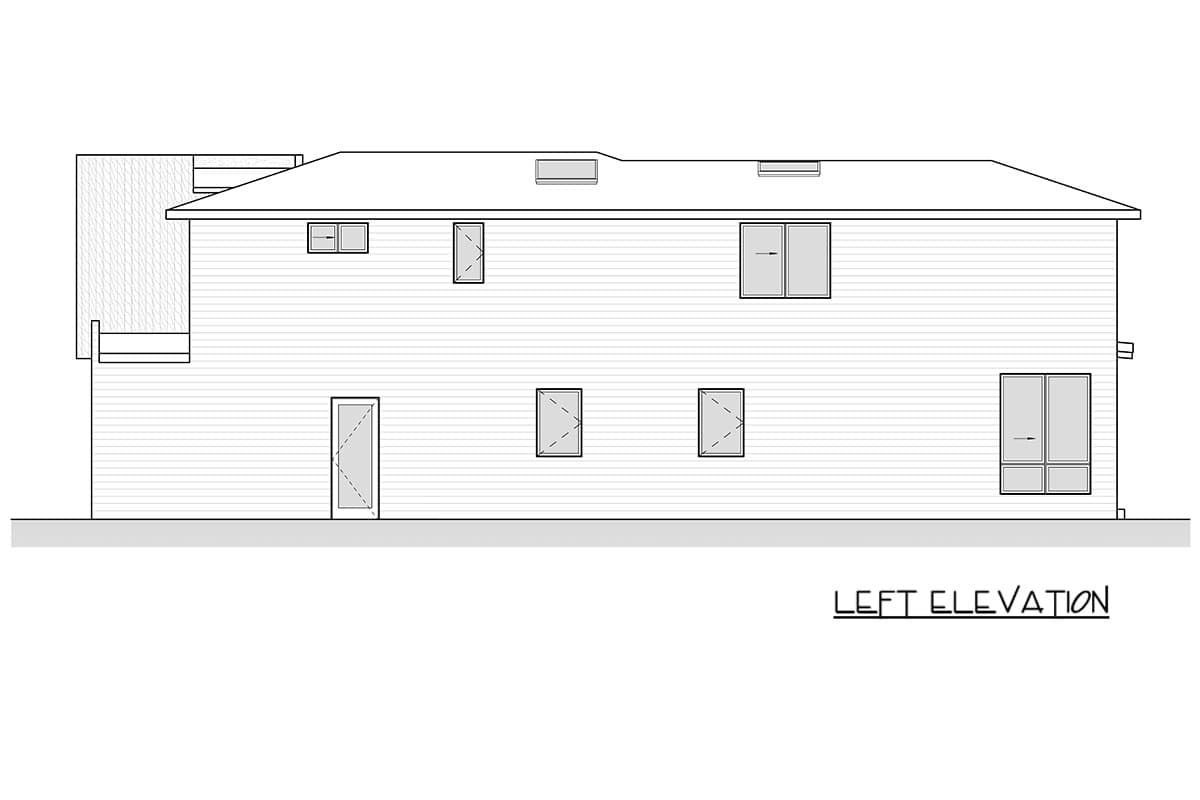

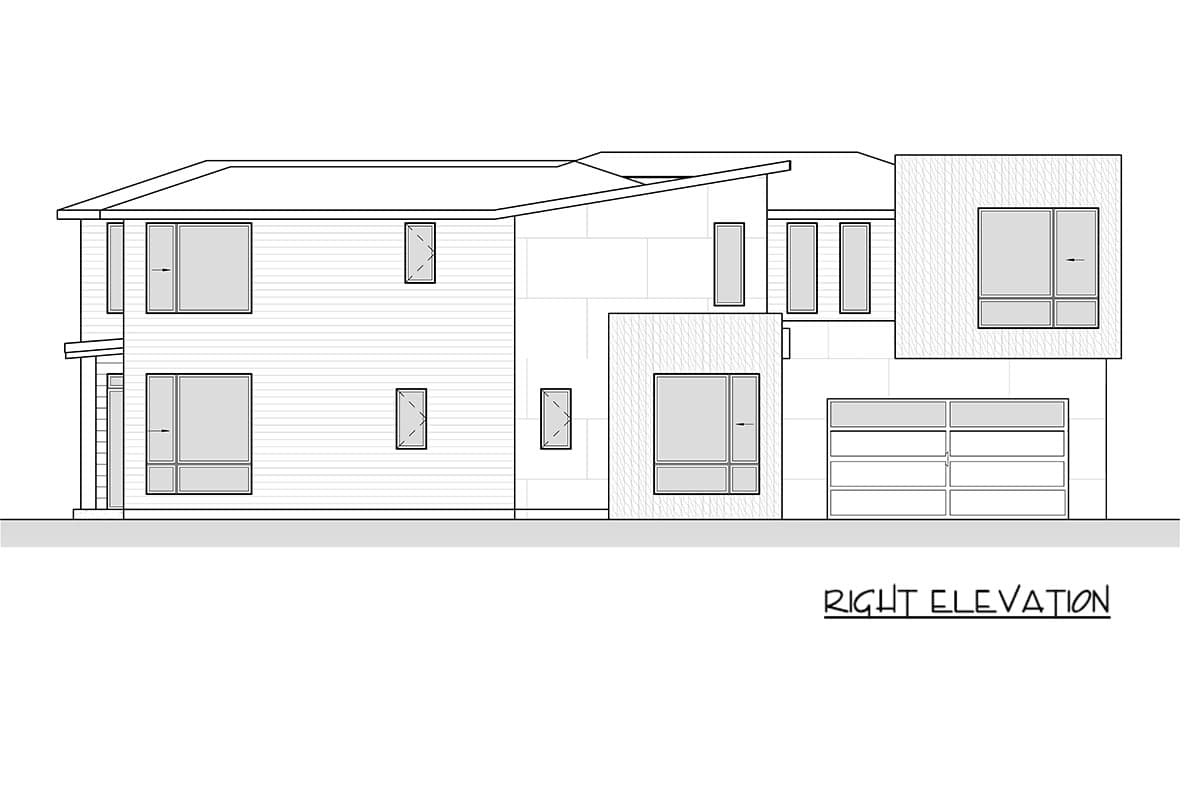

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,335 sq. ft.

1st Floor

2,028 sq. ft.

2nd Floor

2,307 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

189 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

68' 0"

Max Ridge Height

24' 4"

Garage

Type

Standard, Attached

Area

542 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Finished Bonus Room

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Mudroom

Walk-in Pantry
