Plan 370019SEN

Contemporary Ranch House Plan with Split Bedrooms - 2000 Sq Ft

Heated S.F.
2,000
Beds
4
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 370019SEN

Main Level
Main Level
Unfinished Lower Level
Unfinished Lower Level

Plan 370019SEN

M-F 9am-5pm EST |

1-203-761-8500

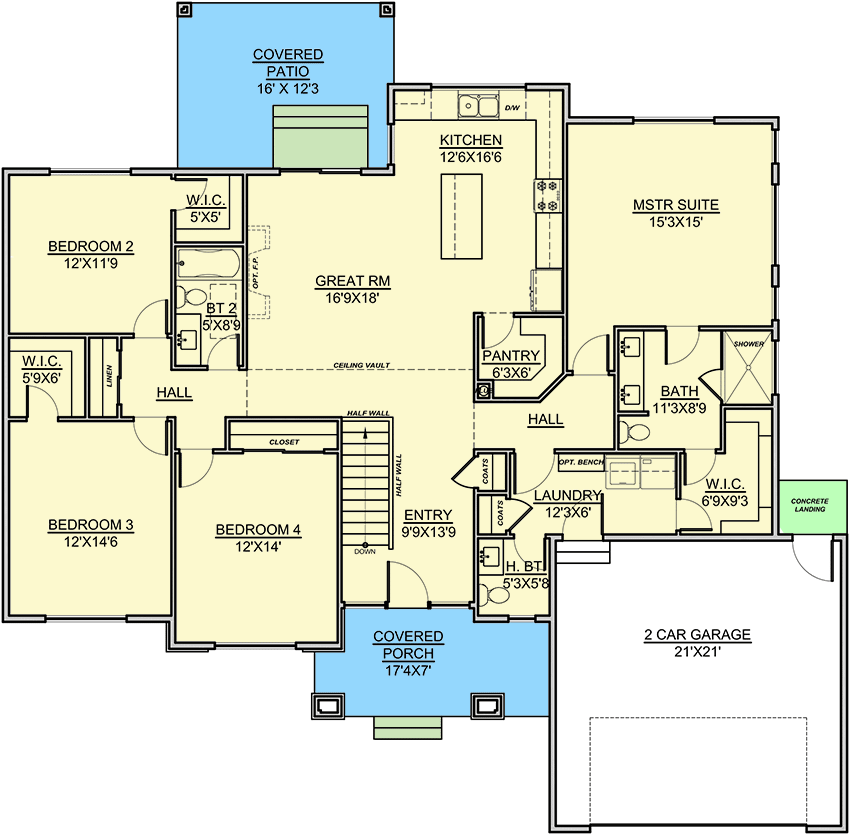

Main Level

Plan 370019SEN: Contemporary Ranch House Plan with Split Bedrooms - 2000 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Ranch, Southern, Southwest, Transitional

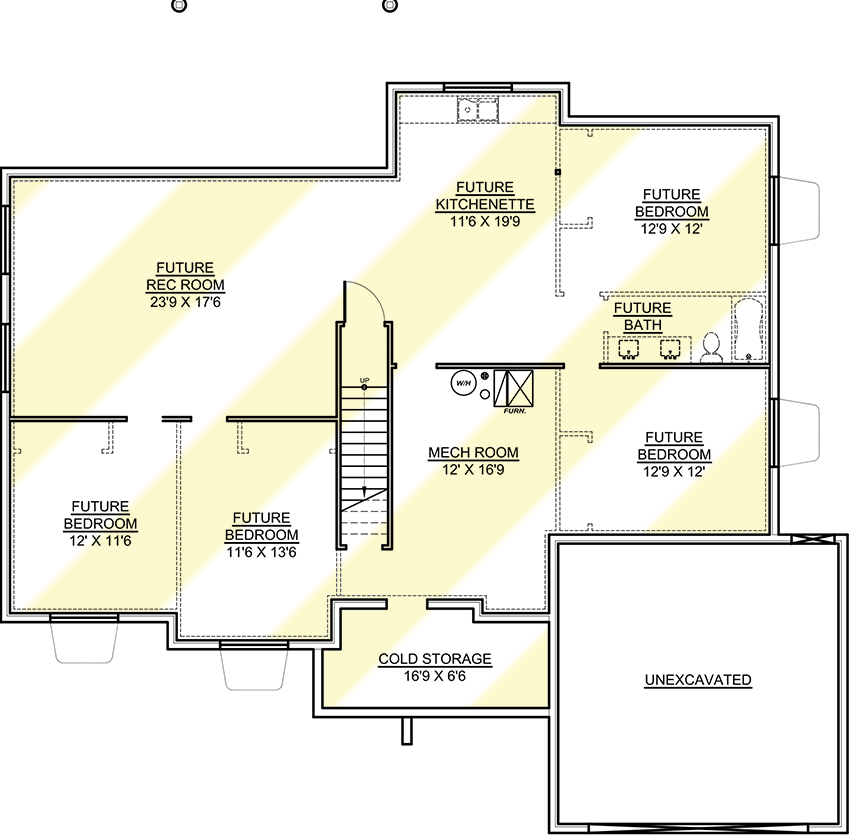

Unfinished Lower Level

Plan 370019SEN: Contemporary Ranch House Plan with Split Bedrooms - 2000 Sq Ft - Floor Plan - Unfinished Lower Level - Contemporary, Mid Century Modern, Modern, Ranch, Southern, Southwest, Transitional

Plan Details

  • Stucco and stone accents finish off the exterior of this contemporary ranch house plan which features an open and airy shared living space in the center of the home and separate bedrooms for privacy.
  • Oversized windows flank the front door and welcome you inside to find a coat closet awaiting your personal gear. Straight ahead, a generous great room opens to the kitchen where L-shaped cabinets and counters surround a prep island.
  • Slip through the sliding doors to enjoy the outdoors on a covered patio; the ideal space for a BBQ.
  • Retreat to the master suite for peace and quiet, and find tons of natural light filtering through large windows. The 4-fixture ensuite leads to the walk-in closet which leads to the laundry room as an added bonus.
  • Three additional family bedrooms are located on the opposite side of the home and share a full bath. A design for the unfinished basement is also provided, should you need space to grow in the future.
  • The garage has a 16' by 8' overhead door and a man door on the back.

What's Included

  • COVER SHEET
  • GENERAL NOTES
  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,000 sq. ft.

Lower Level

20 sq. ft.

1st Floor

1,980 sq. ft.

Basement Unfinished

2,097 sq. ft.

Porch, Combined

193 sq. ft.

Covered Patio

127 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 5"

Depth

61' 4"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9' 1"

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Ranch

Southern

Southwest

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,000 sq. ft.

Lower Level

20 sq. ft.

1st Floor

1,980 sq. ft.

Basement Unfinished

2,097 sq. ft.

Porch, Combined

193 sq. ft.

Covered Patio

127 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 5"

Depth

61' 4"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9' 1"

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Ranch

Southern

Southwest

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
