Plan 95176RW
Contemporary Ranch Plan with Angled Garage and Optional Lower Level
Heated S.F.
2,888
Beds
2-5
Baths
2.5 - 4.5
Stories
1
Cars
3
Flyer
Photos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

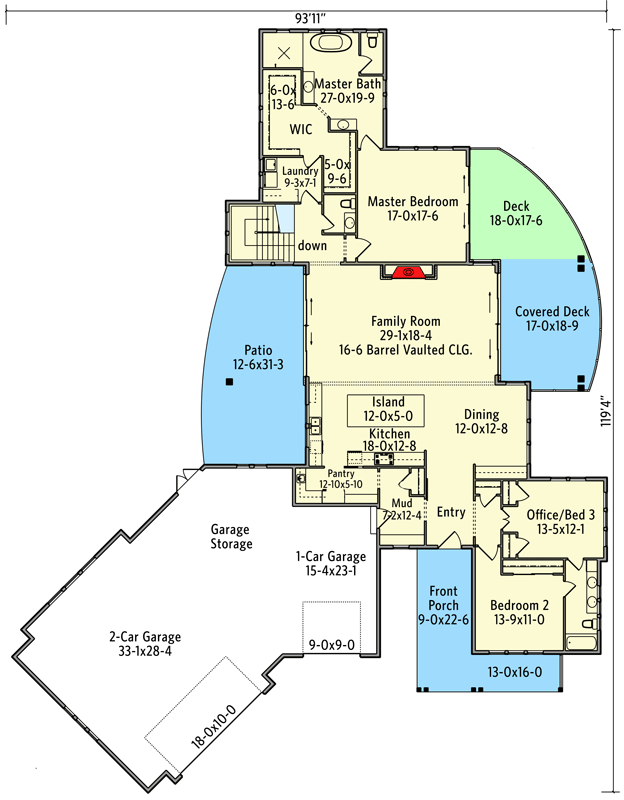

Contemporary Ranch Plan with Angled Garage and Optional Lower Level - 95176RW floor plan - Main Level
Optional Finished Lower Level
Reverse Floor Plan

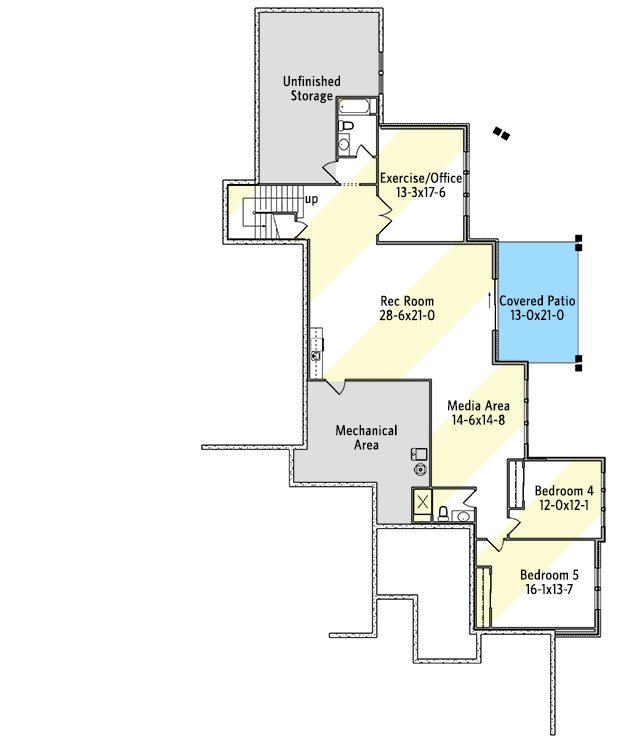

Contemporary Ranch Plan with Angled Garage and Optional Lower Level - 95176RW floor plan - Optional Finished Lower Level
Plan Details
  • The central family room in this Contemporary Ranch plan features a barrel-vaulted ceiling with a max height of 16'6" and is flanked by outdoor living spaces.
  • The gourmet kitchen presents a large island and pass-through pantry that connects to the mudroom to easily unload groceries from the 3-car garage.
  • The master bedroom wing is located in the rear for the utmost privacy and opens to a deck. The deluxe ensuite includes a freestanding tub and walk-in closet with laundry room access.
  • Just off the front entry, discover a second bedroom that shares a Jack-and-Jill bathroom with an office or bedroom 3.
  • Finish the lower level for an additional 2,055 sq ft of living space and enjoy a large recreation / media room, two bedrooms, and an exercise room.
What's Included

  • Cover Page

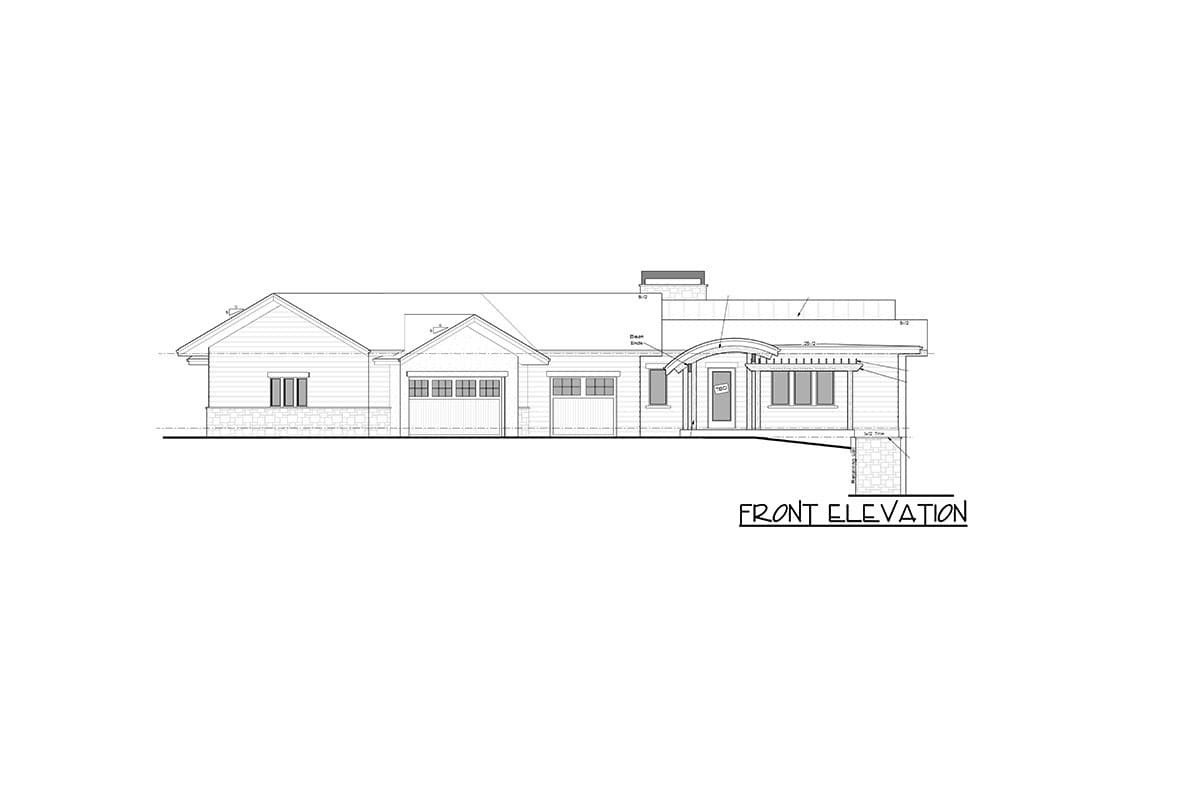

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Ranch Plan with Angled Garage and Optional Lower Level

  • 2,888

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,888 sq. ft.
  • 1st Floor: 2,888 sq. ft.

Dimensions

  • Width: 119' 4"
  • Depth: 93' 11"
  • Max ridge height: 17' 3"

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1726 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
