Contemporary Triplex House Plan with Three Bedrooms and Attached Garages

Heated S.F.
5,124
Units
3
Width
Depth
Tour

Floor Plan

Plan 623689DJ

Floor Plan 1
Floor Plan 2

Plan 623689DJ

M-F 9am-5pm EST |

1-203-761-8500

Plan 623689DJ: Contemporary Triplex House Plan with Three Bedrooms and Attached Garages - Floor Plan - - Contemporary, Modern

Plan 623689DJ: Contemporary Triplex House Plan with Three Bedrooms and Attached Garages - Floor Plan - - Contemporary, Modern

Plan Details

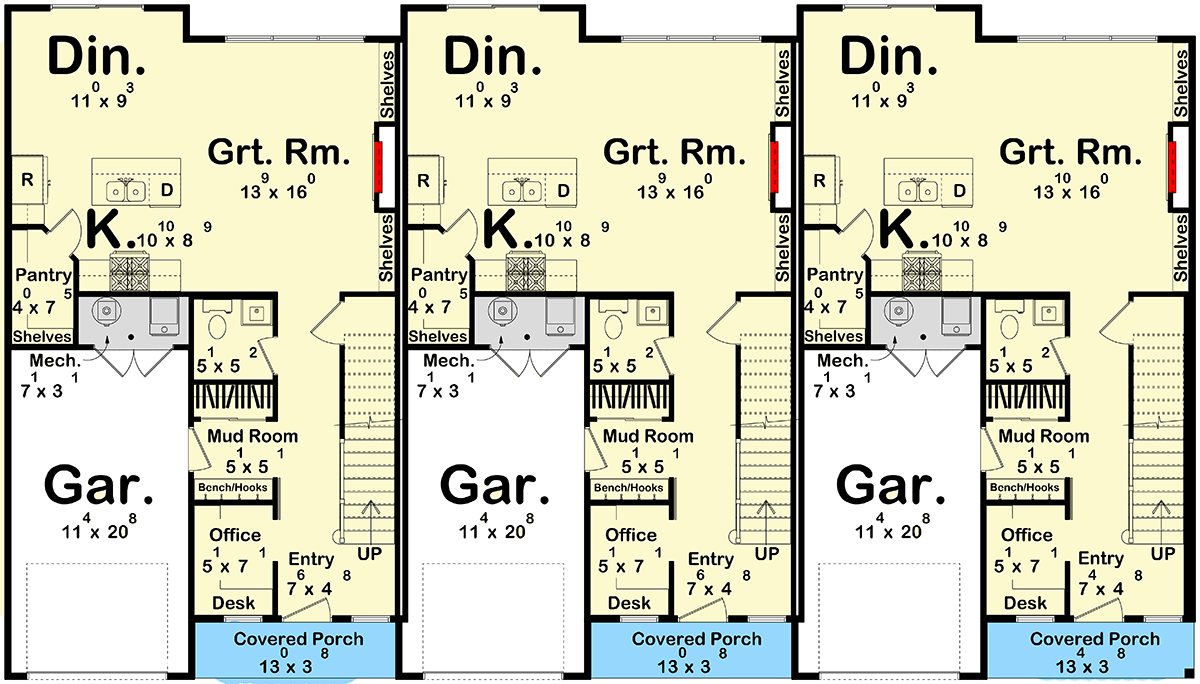

  • This sleek contemporary triplex features 1,708 square feet of finished living space per unit, offering three bedrooms, two full baths, one half bath, and an attached 247-square-foot garage.
  • The ground floor welcomes you through a covered porch into a functional entry area, complete with a dedicated home office and a convenient mudroom.
  • The main level is designed for effortless flow, with an open-concept great room that transitions into a kitchen equipped with a spacious walk-in pantry.

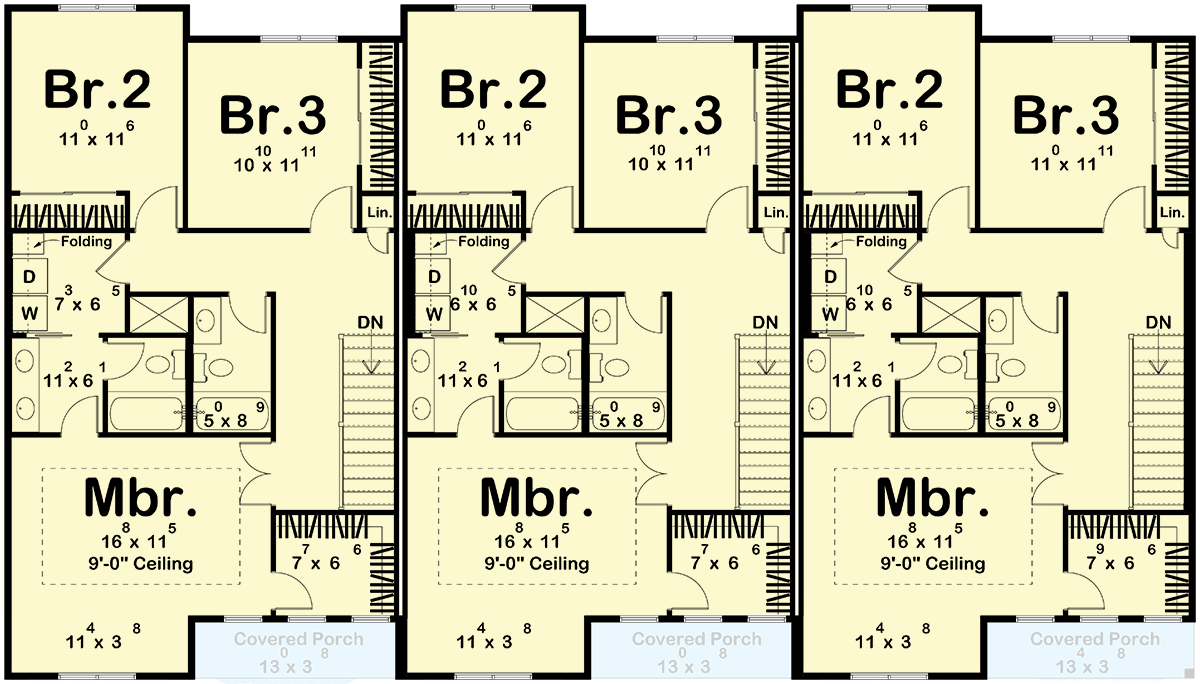

  • Upstairs, the primary bedroom suite serves as a private retreat, featuring a nine-foot ceiling and direct access to an upper-level laundry room.
  • Two additional bedrooms are situated on the second floor, providing comfortable, well-separated living quarters for family or guests.
  • Each unit also includes a private covered porch off the primary suite, perfect for enjoying quiet morning coffee or fresh evening air.
  • Related Plan: Get a quadplex version with 623560DJ (1,701 sq ft per unit).
Unit A & B & C
Heated Area
1,708Sq. Ft.
744 Sq. Ft. 1st
964 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Standard
247 Sq. Ft.
Dimensions
25'width
Unfinished Areas
247 Sq. Ft. Garage
49 Sq. Ft. Porch, Front

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

5,124 sq. ft.

1st Floor

2,232 sq. ft.

2nd Floor

2,892 sq. ft.

Porch, Front

147 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

43' 0"

Max Ridge Height

29' 4"

Garage

Type

Standard, Attached

Area

741 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Unlimited Build License

Square Footage Breakdown

Total Heated Area

5,124 sq. ft.

1st Floor

2,232 sq. ft.

2nd Floor

2,892 sq. ft.

Porch, Front

147 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

43' 0"

Max Ridge Height

29' 4"

Garage

Type

Standard, Attached

Area

741 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Unlimited Build License
