Modern 3-Bedroom Townhouse Quadplex Plan with Home Office and Upstairs Master

Heated S.F.
6,804
Units
4
Width
Depth
Tour

Floor Plan

Plan 623560DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623560DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

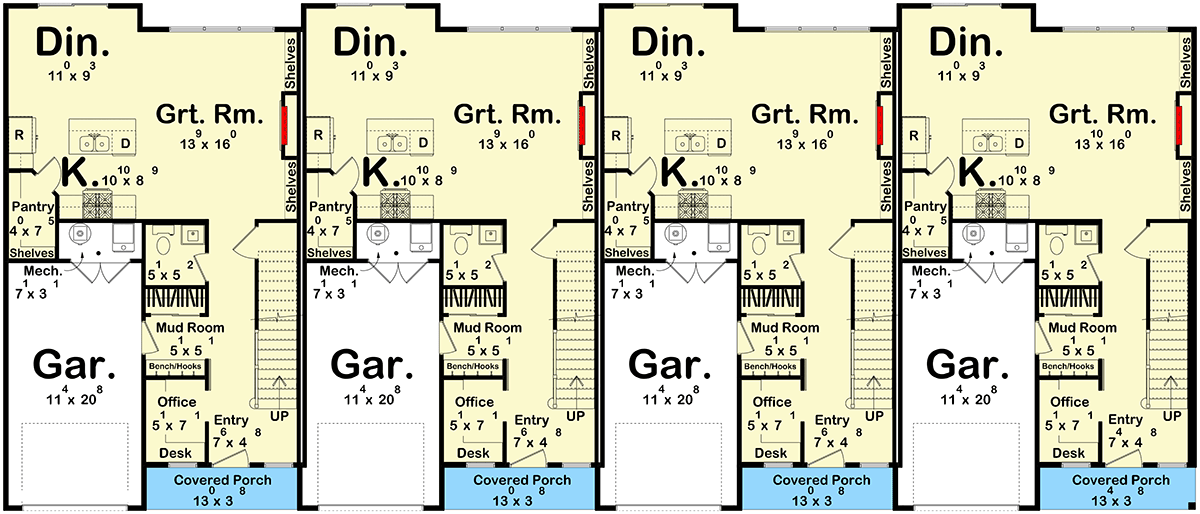

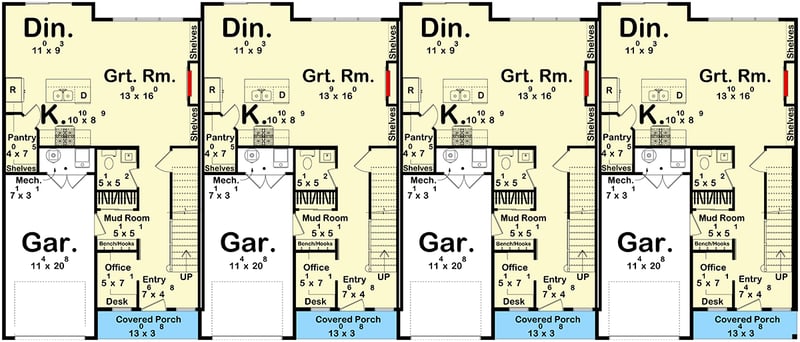

Plan 623560DJ: Modern 3-Bedroom Townhouse Quadplex Plan with Home Office and Upstairs Master - Floor Plan - Main Level - Contemporary, Modern

2nd Floor

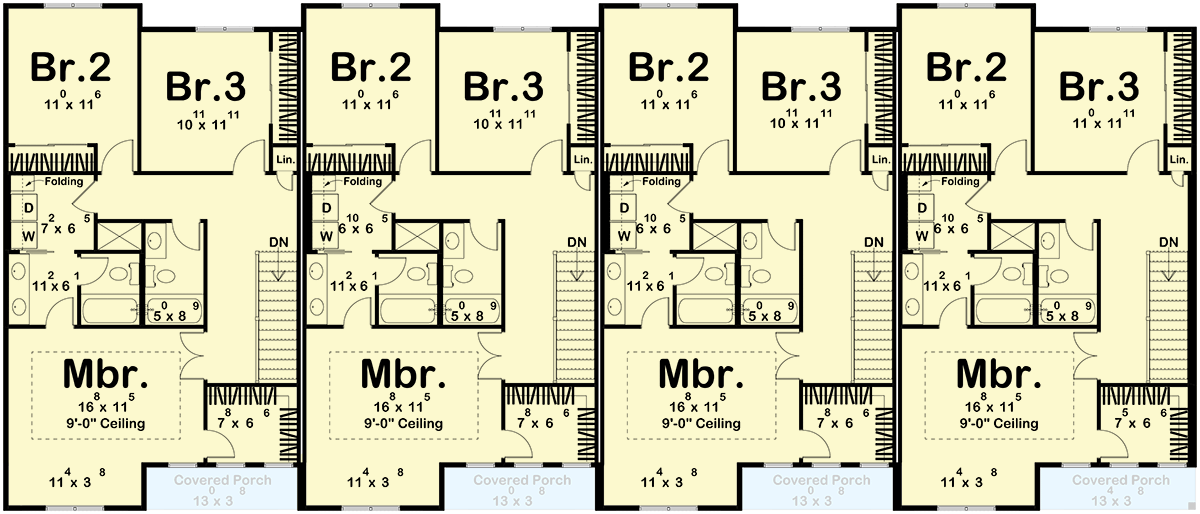

Plan 623560DJ: Modern 3-Bedroom Townhouse Quadplex Plan with Home Office and Upstairs Master - Floor Plan - 2nd Floor - Contemporary, Modern

Plan Details

  • This sleek 1,701 sq. ft. Contemporary Modern quadplex plan offers three bedrooms, two-and-a-half bathrooms, and a convenient 247 sq. ft. one-car attached garage.
  • Step inside from the inviting covered porch directly into a welcoming entry foyer, flanked by a dedicated home office perfect for remote work or creative pursuits, and a practical mudroom that seamlessly connects to the attached garage.
  • The main floor unfolds into an open-concept living space, featuring a spacious great room, a dining area, and a modern kitchen equipped with an expansive butler's walk-in pantry, all designed for effortless daily living and entertaining. A convenient half bath is also located on this level.
  • Ascend to the second floor where the luxurious master suite awaits, complete with a generous bedroom, an ensuite bathroom, and direct access to the upstairs laundry for ultimate convenience. Two additional bedrooms and another full bathroom are thoughtfully placed on this level, offering comfortable private spaces for family or guests.
  • Enjoy tranquil moments on the charming covered porch, offering a perfect spot for morning coffee or a quiet evening retreat.
Unit A & B & C & D
Heated Area
1,701Sq. Ft.
739 Sq. Ft. 1st
962 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Standard
247 Sq. Ft.
Dimensions
25'width
43'depth
Unfinished Areas
247 Sq. Ft. Garage
47 Sq. Ft. Porch, Combined

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,804 sq. ft.

1st Floor

2,956 sq. ft.

2nd Floor

3,848 sq. ft.

Porch, Combined

188 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

101' 4"

Depth

43' 0"

Max Ridge Height

8' 0"

Garage

Type

Standard, Attached

Area

988 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

6,804 sq. ft.

1st Floor

2,956 sq. ft.

2nd Floor

3,848 sq. ft.

Porch, Combined

188 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

101' 4"

Depth

43' 0"

Max Ridge Height

8' 0"

Garage

Type

Standard, Attached

Area

988 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry
