Contemporary Two Story House Plan Under 1700 Square Feet with 3 Upstairs Bedrooms
Heated S.F.
1,652
Beds
3
Baths
1.5
Stories
2
Cars
1
What's Included
Plan Details
  • This two-story house plan stands out with its flat roof porch, its brick and metal facing and its urban style. It is 34 feet wide by 32 feet deep and offers a 1,652 square foot living area in addition to a 288 square foot one-car garage.

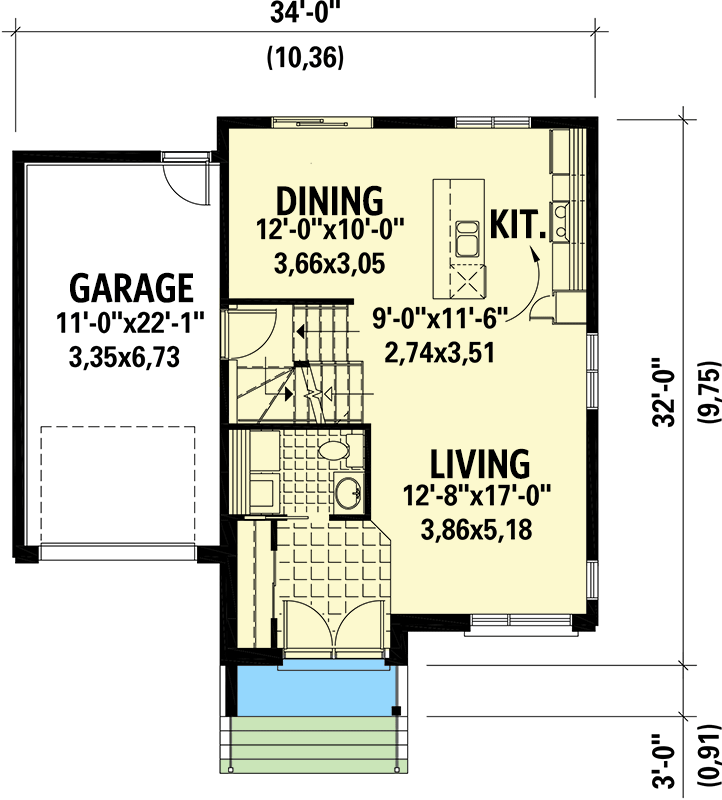

  • With 682 square feet of living space, the ground floor features a powder room with a laundry area, a living room, a dining room, as well as an open kitchen with an island and a lunch counter.
  • The upper floor has a 970 square foot living area and includes a family room located above the garage, three bedrooms and a bathroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.

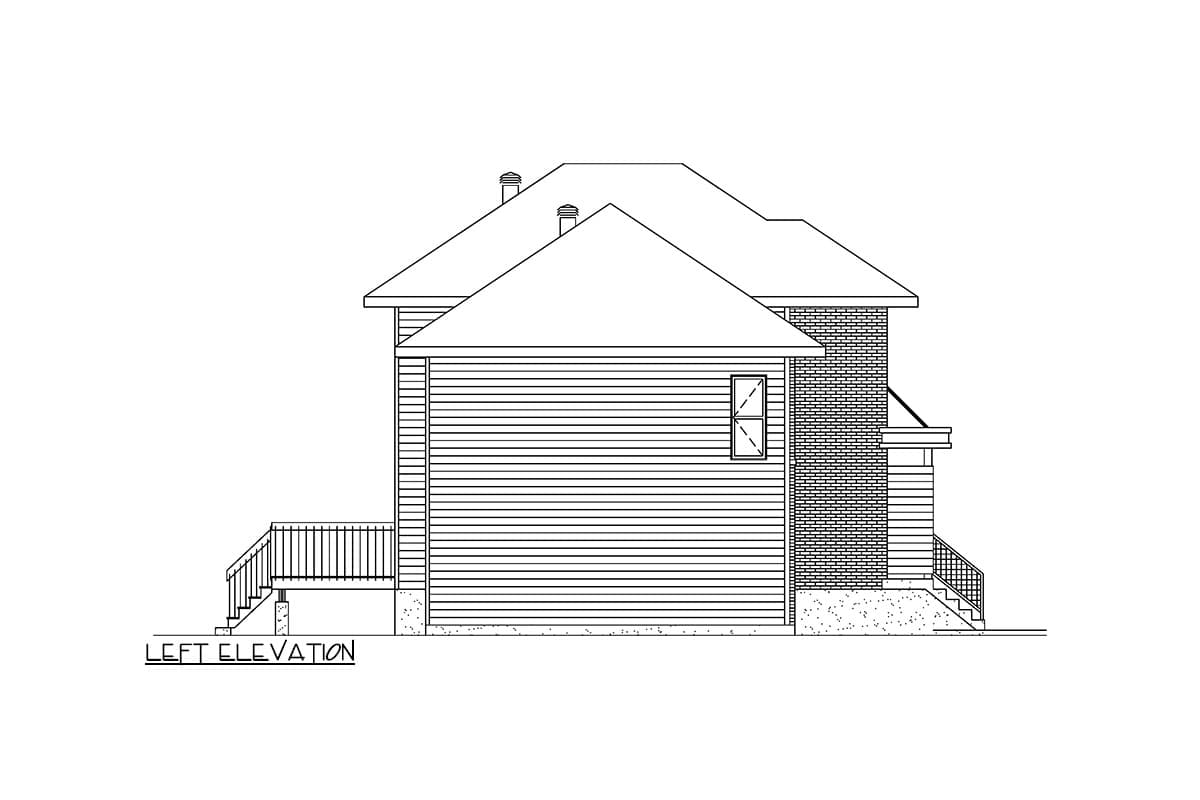

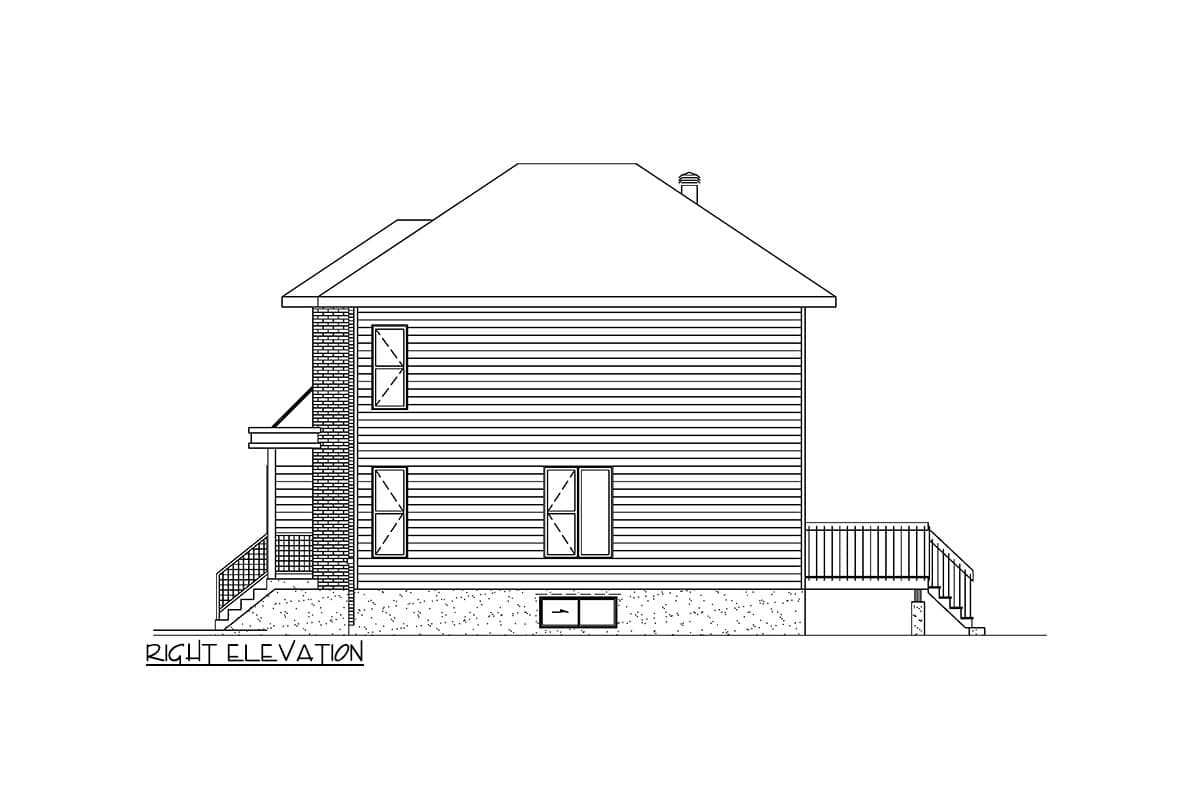

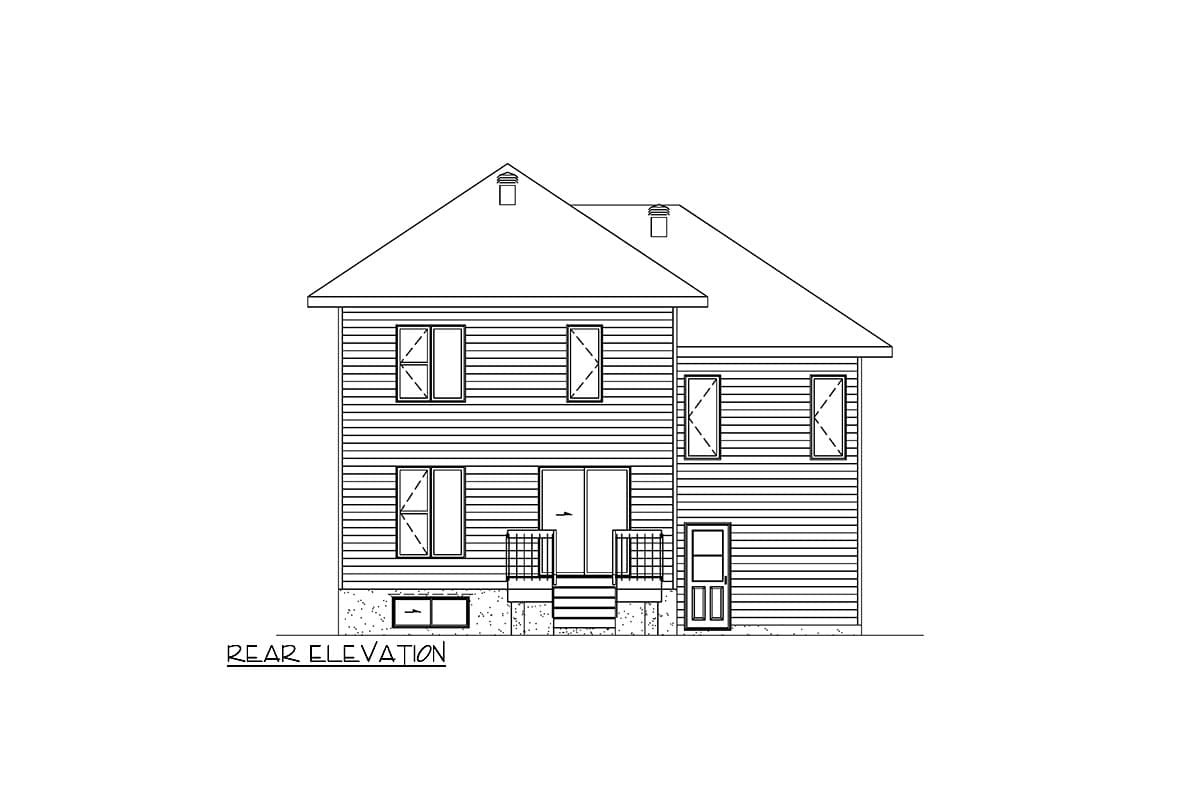

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
