Plan 51847HZ Cottage Escape with Bed and Bunk Room

1,070 1-2 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Cottage Escape with Bed and Bunk Room

Plan 51847HZ

  • 1,070

    Heated s.f.

  • 1-2

    Beds

  • 1

    Baths

  • 1

    Stories

  • A shed dormer sits above the 4-columned front porch into this attractive cottage house plan.
  • Inside, the left side of the home is open front to back.
  • On the right, the bed and bunk rooms are split by the bathroom and laundry room giving you as much privacy as can be afforded in this small footprint.
  • The dormer is for aesthetic purposes only.
  • Related Plans: Get alternate versions with house plans 51903HZ (1,299 sq. ft.), 51835HZ (1,257 sq. ft.), 51891HZ (1,064 sq. ft.), 51886HZ (960 square feet),  51866HZ (732 square feet) and 51939HZ (1,000 square feet).

This house plan has 11 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Misc. notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Sample Plan

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

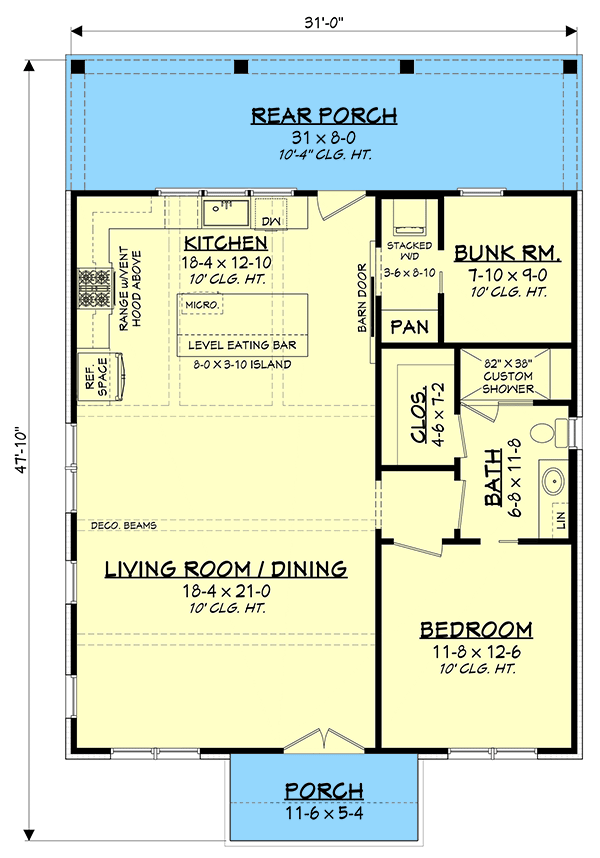

Cottage Escape with Bed and Bunk Room - 51847HZ floor plan - Main Level

Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

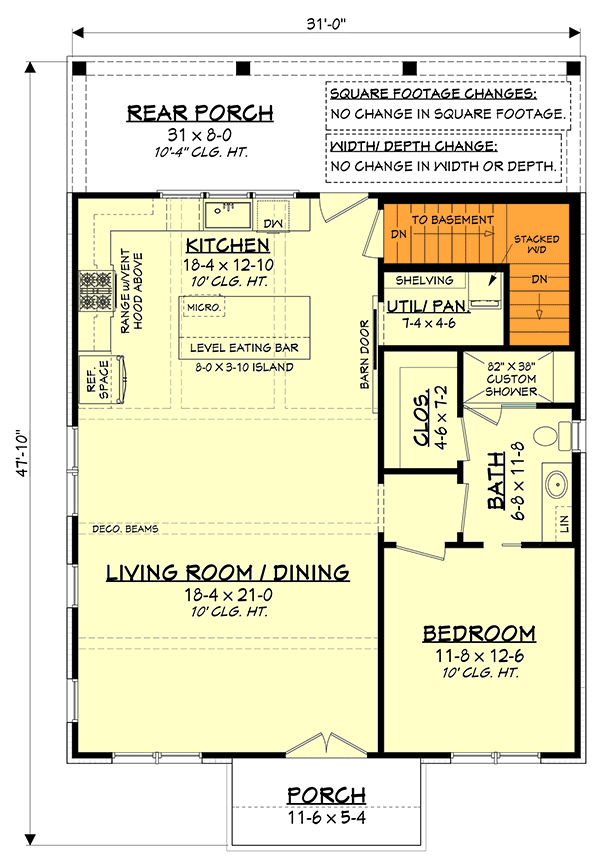

Cottage Escape with Bed and Bunk Room - 51847HZ floor plan - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,070 sq. ft.
  • 1st Floor: 1,070 sq. ft.
  • Porch, Rear: 248 sq. ft.
  • Porch, Front: 61 sq. ft.

Beds/Baths

  • Bedrooms: 1 or 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 31' 0"
  • Depth: 47' 10"
  • Max ridge height: 26' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Cottage Escape with Bed and Bunk Room

  • 1,070

    Heated s.f.

  • 1-2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,195
  • 5 Sets +PDF Single-Build $1,445
  • PDF - Unlimited Build $1,895
  • CAD + PDF - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • A shed dormer sits above the 4-columned front porch into this attractive cottage house plan.
  • Inside, the left side of the home is open front to back.
  • On the right, the bed and bunk rooms are split by the bathroom and laundry room giving you as much privacy as can be afforded in this small footprint.
  • The dormer is for aesthetic purposes only.
  • Related Plans: Get alternate versions with house plans 51903HZ (1,299 sq. ft.), 51835HZ (1,257 sq. ft.), 51891HZ (1,064 sq. ft.), 51886HZ (960 square feet),  51866HZ (732 square feet) and 51939HZ (1,000 square feet).

Floor Plans

  • Main Level

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,070 sq. ft.
  • 1st Floor: 1,070 sq. ft.
  • Porch, Rear: 248 sq. ft.
  • Porch, Front: 61 sq. ft.

Beds/Baths

  • Bedrooms: 1 or 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 31' 0"
  • Depth: 47' 10"
  • Max ridge height: 26' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
