Country Craftsman Home Plan with 3-Car Angled Garage

Plan 360011DK

  • 2,845

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • An angled 3-car garage adds visual interest to this high-end Craftsman house plan.
  • The vaulted entry porch gives way to the vaulted foyer that has the study and dining room on each side.
  • The study could easily be adapted to become the fourth bedroom by closing off the wall from the foyer.
  • Further back, the family room ceiling vaults up in a different direction and has a big fireplace as the focal point.
  • A great big island in the large kitchen faces the family room so you can enjoy the fire while cooking.
  • The master suite occupies the right wing of the home and has a tray ceiling and deluxe master bathroom.
  • The master walk-in closet even has an island for extra storage and it opens directly into the laundry room through pocket doors.
  • Bonus space lies over the garage where any sound does not disturb any rooms below.
  • Related Plans: Get alternate 3-car versions with house plans 360042DK, 36075DK , 360012DK and 360080DK (3,206 sq. ft.).. Get a 2-car version with house plan 36032DK.

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

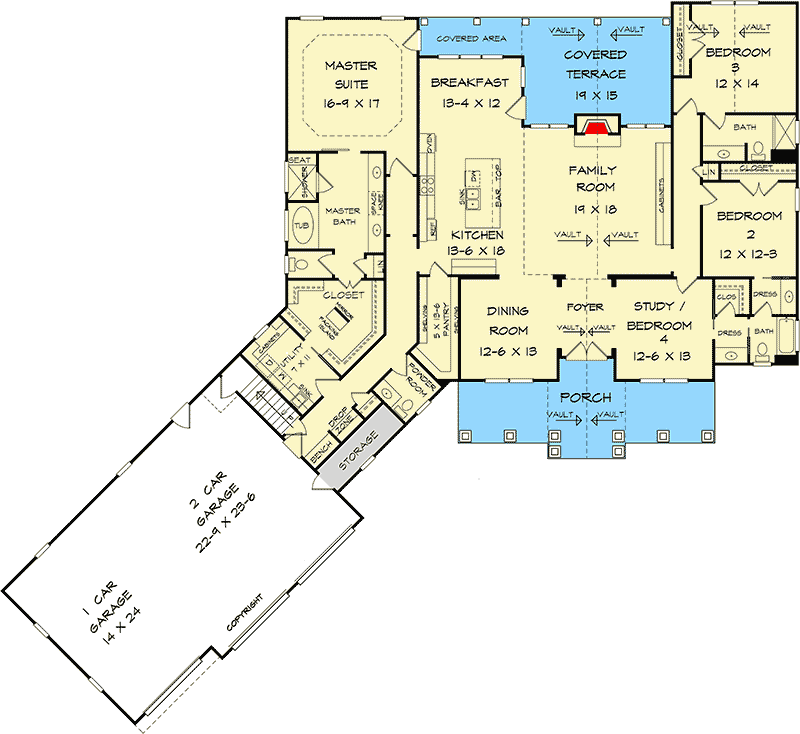

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman Home Plan with 3-Car Angled Garage - 360011DK floor plan - Main Level

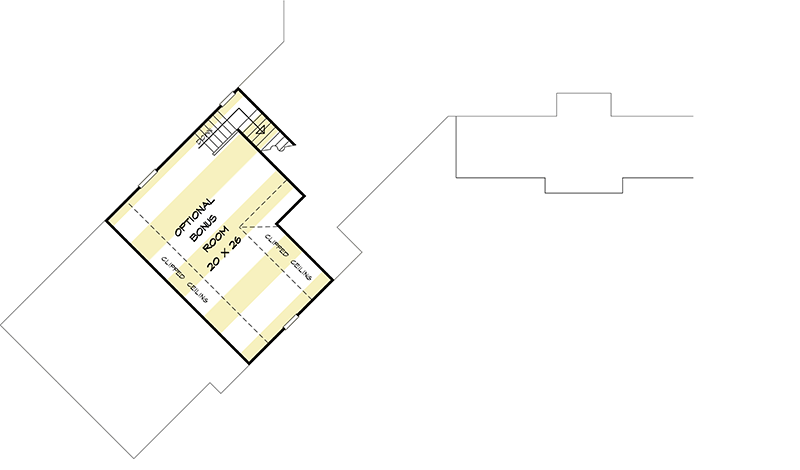

Optional Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman Home Plan with 3-Car Angled Garage - 360011DK floor plan - Optional Bonus Level

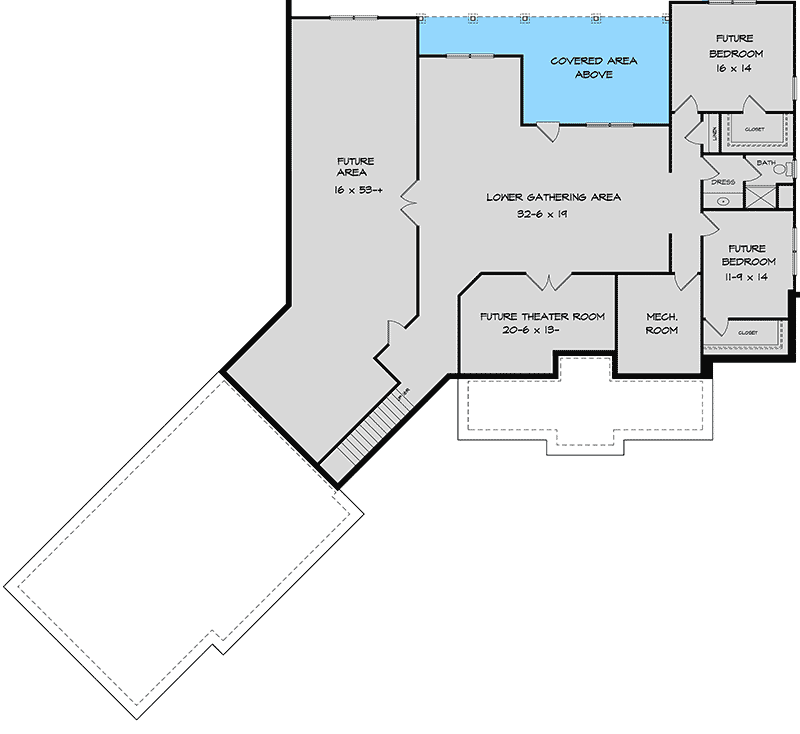

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman Home Plan with 3-Car Angled Garage - 360011DK floor plan - Optional Lower Level

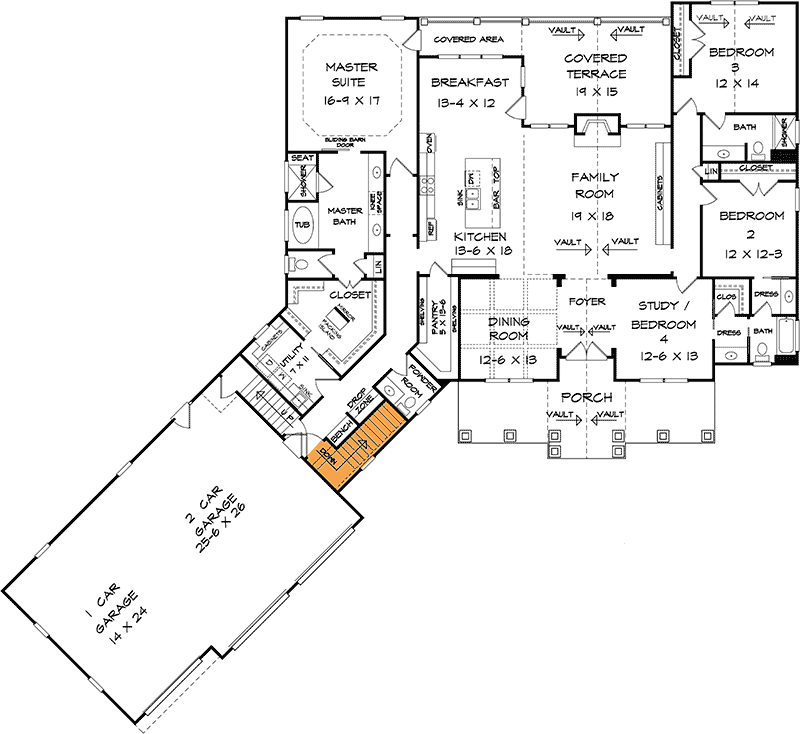

Basement Stairs

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman Home Plan with 3-Car Angled Garage - 360011DK floor plan - Basement Stairs

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,845 sq. ft.
  • 1st Floor: 2,845 sq. ft.
  • Bonus: 545 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 111' 6"
  • Depth: 76' 9"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

Country Craftsman Home Plan with 3-Car Angled Garage

  • 2,845

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,300
  • PDF Light $1,800
  • CAD + PDF - Single-Build $2,100
  • View all purchase option online

About This Plan

  • An angled 3-car garage adds visual interest to this high-end Craftsman house plan.
  • The vaulted entry porch gives way to the vaulted foyer that has the study and dining room on each side.
  • The study could easily be adapted to become the fourth bedroom by closing off the wall from the foyer.
  • Further back, the family room ceiling vaults up in a different direction and has a big fireplace as the focal point.
  • A great big island in the large kitchen faces the family room so you can enjoy the fire while cooking.
  • The master suite occupies the right wing of the home and has a tray ceiling and deluxe master bathroom.
  • The master walk-in closet even has an island for extra storage and it opens directly into the laundry room through pocket doors.
  • Bonus space lies over the garage where any sound does not disturb any rooms below.
  • Related Plans: Get alternate 3-car versions with house plans 360042DK, 36075DK , 360012DK and 360080DK (3,206 sq. ft.).. Get a 2-car version with house plan 36032DK.
