Craftsman Home Plan with Many Options

Plan 23103JD

  • 2,825

    HEATED S.F.

  • 4

    BEDS

  • 3

    BATHS

  • 2

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • This popular narrow lot craftsman home plan comes in a number of versions. All share the same layout that makes this so attractive.

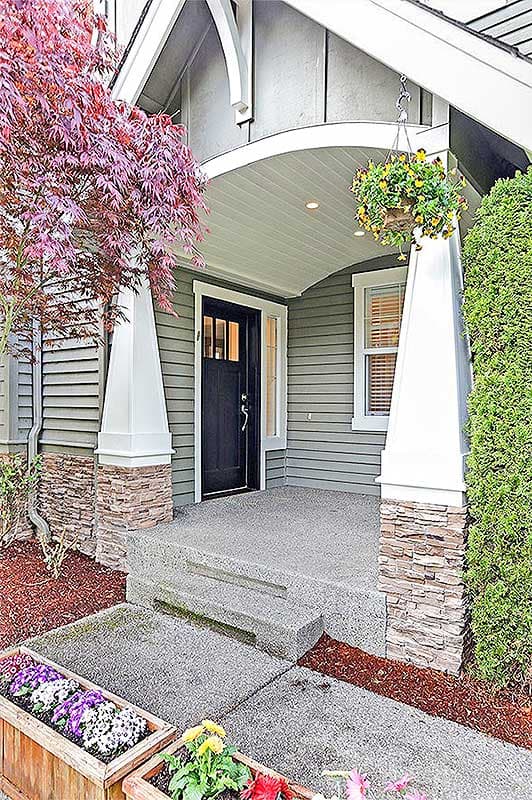

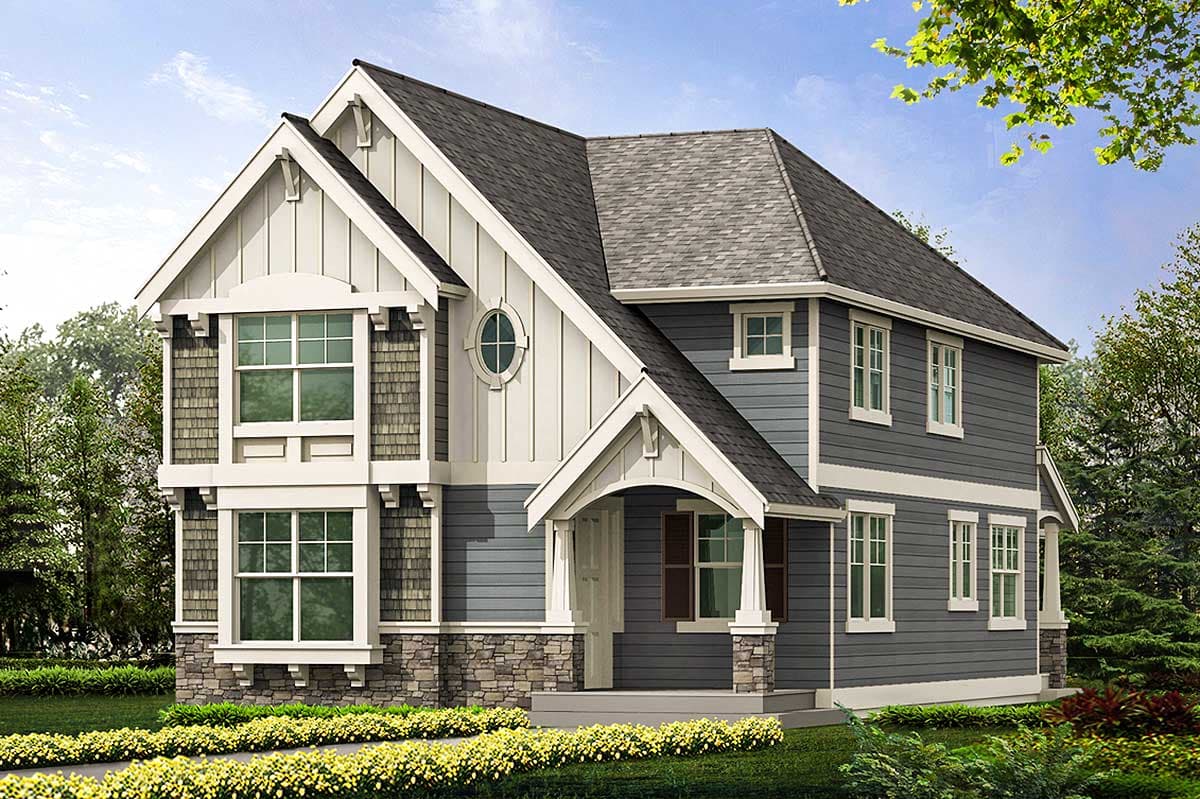

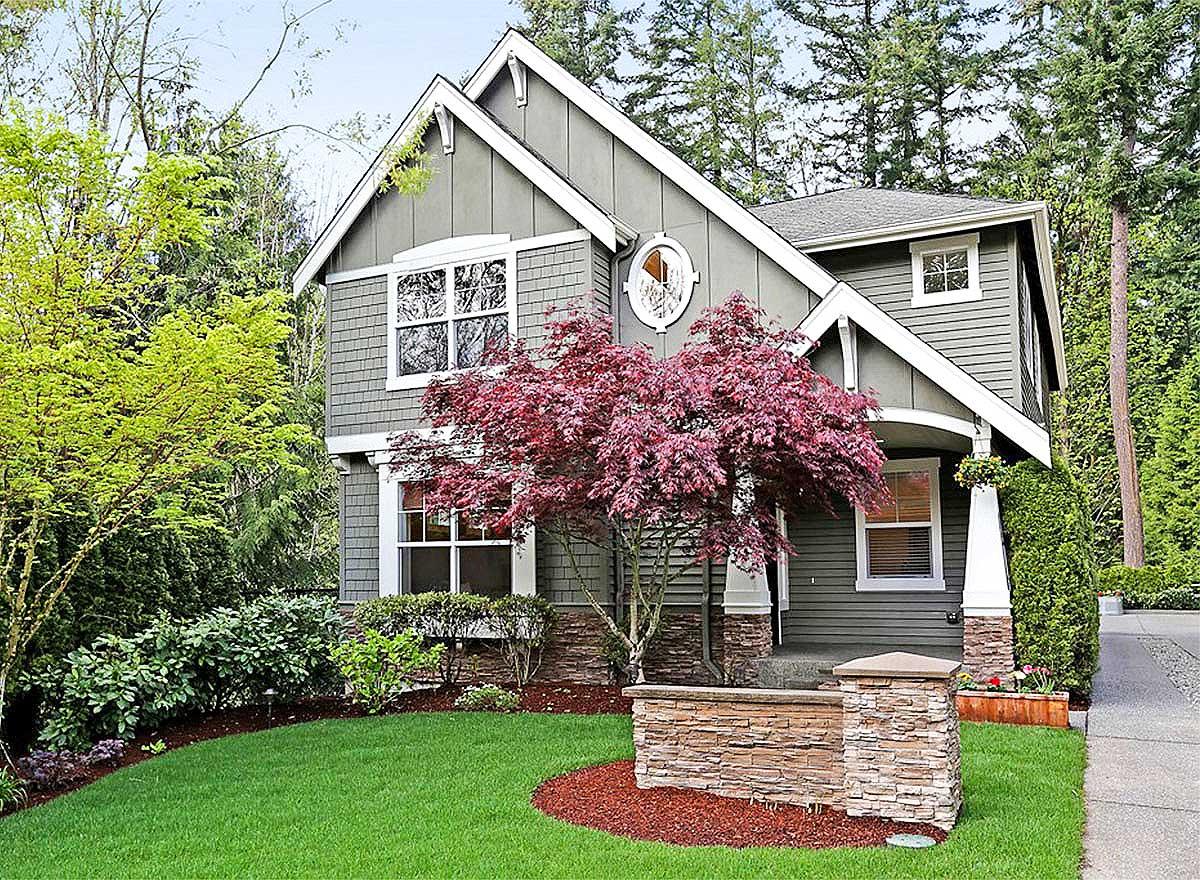

  • Off the covered entry step into a light-filled foyer that is open above.

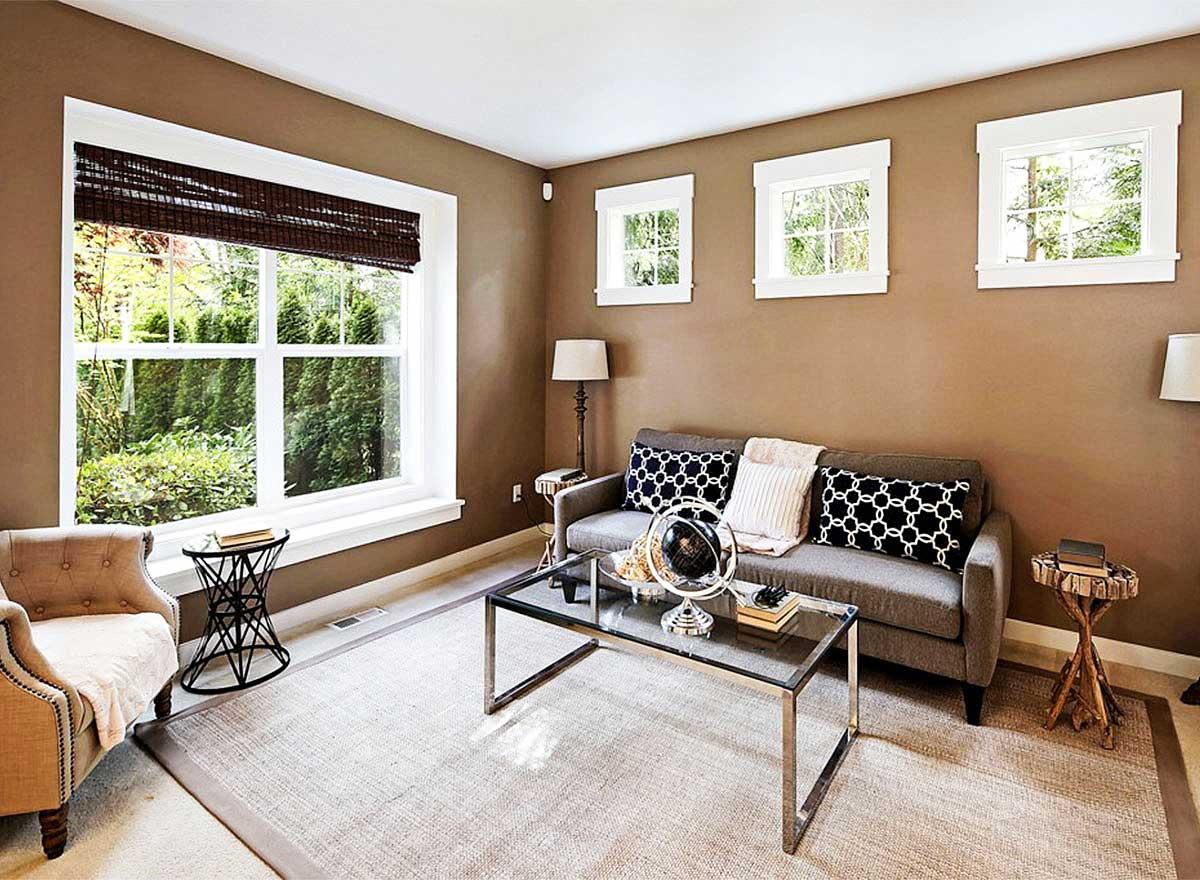

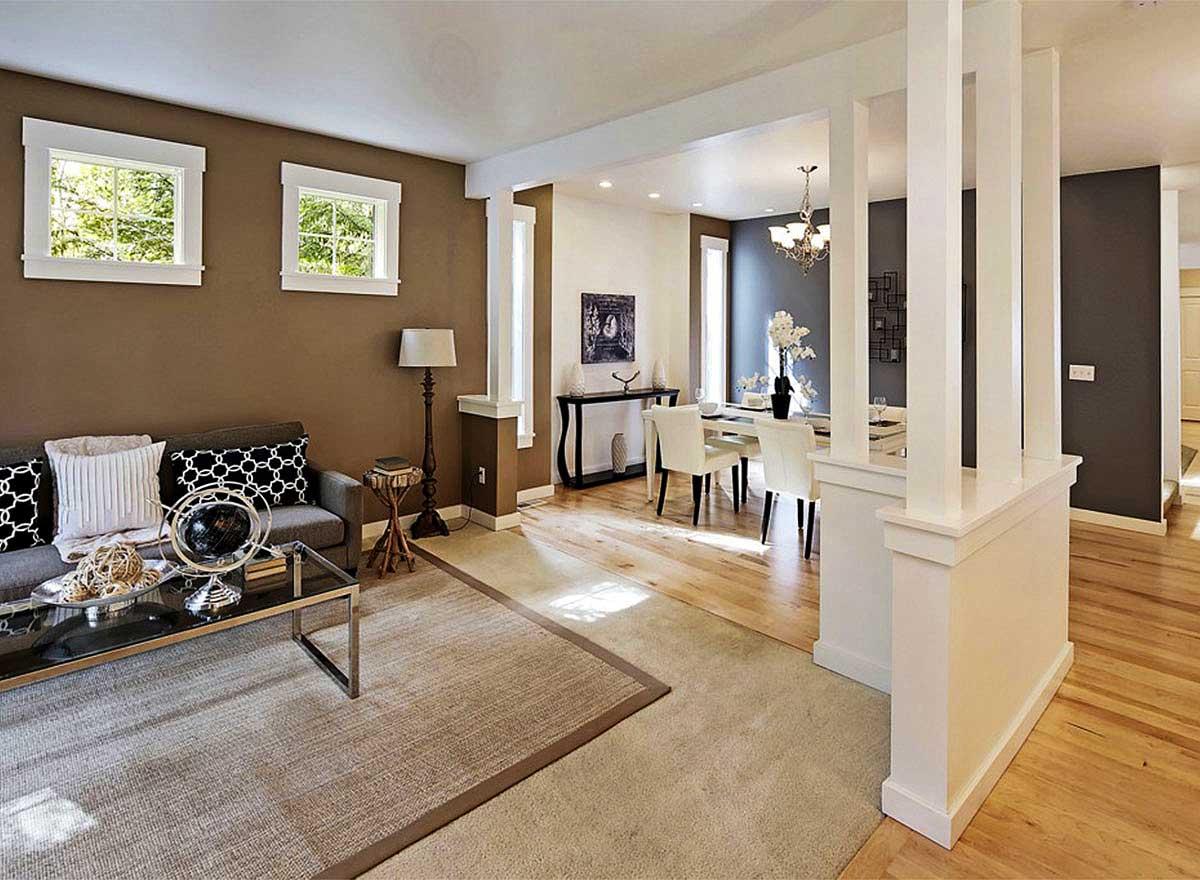

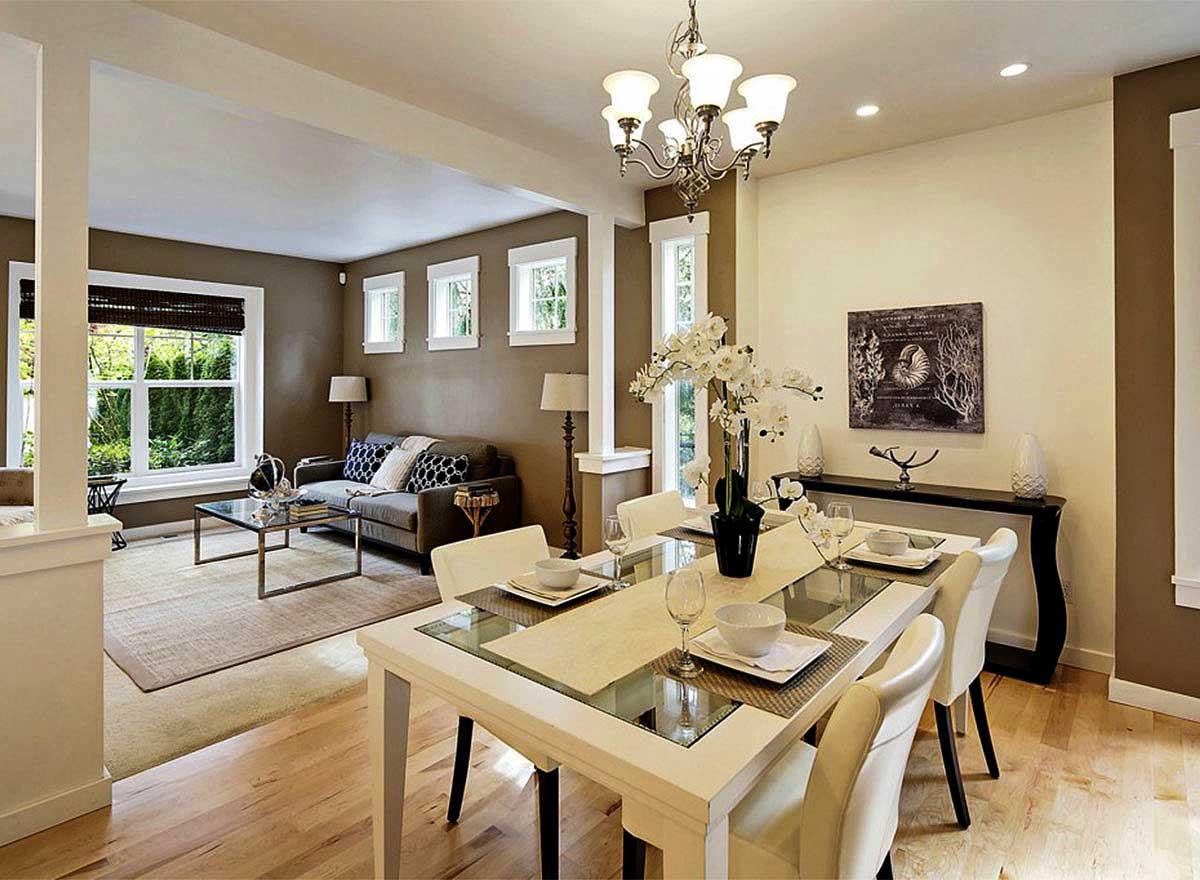

  • Open spaces are everywhere. First you'll enjoy the living room and dining room set off by a columns and half walls. A bumpout in the dining room gives you extra windows and light.

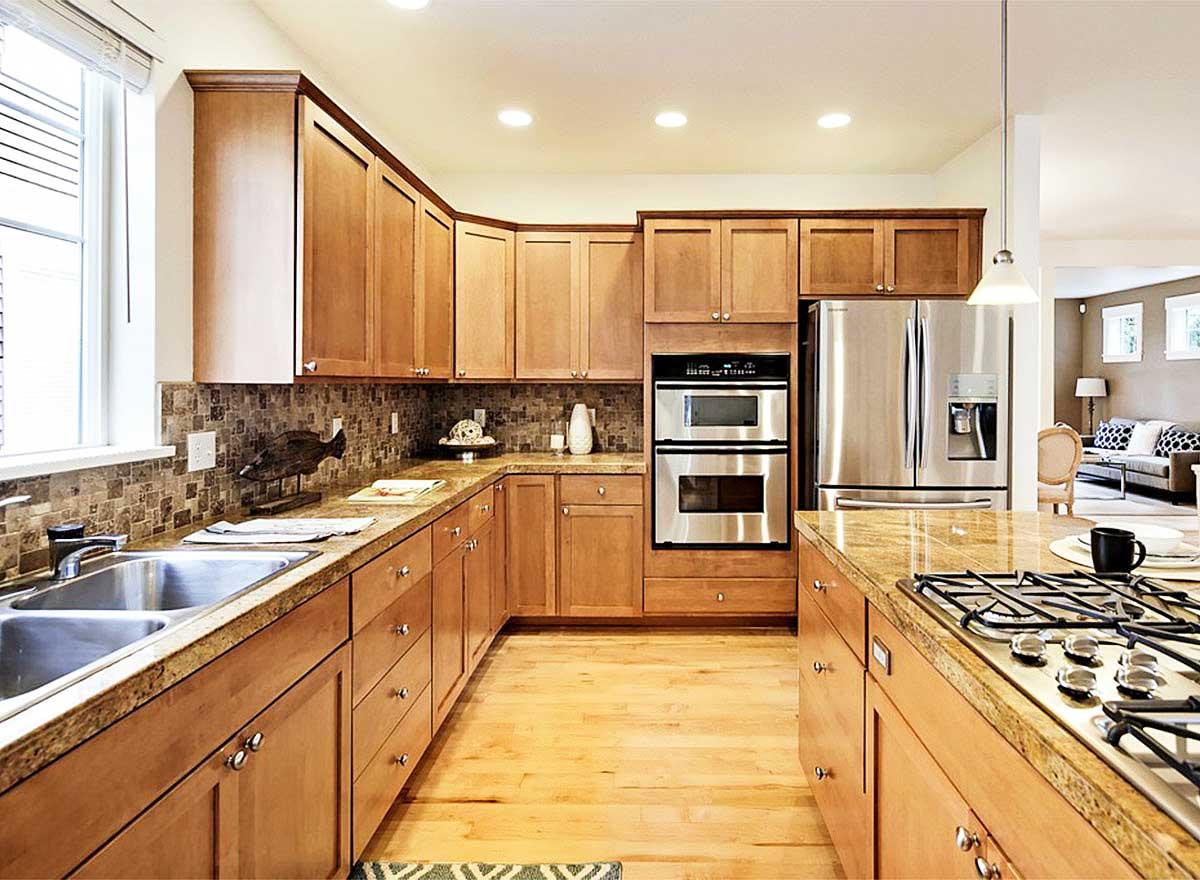

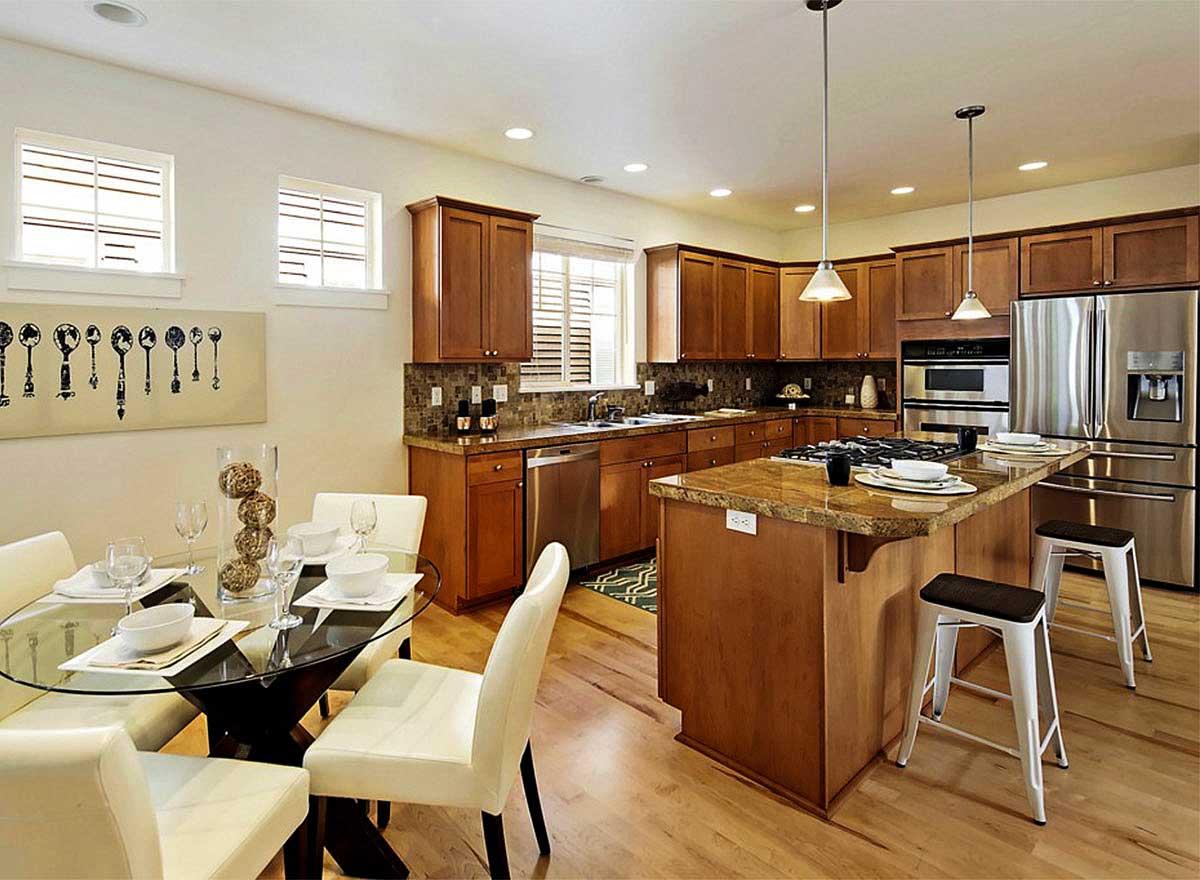

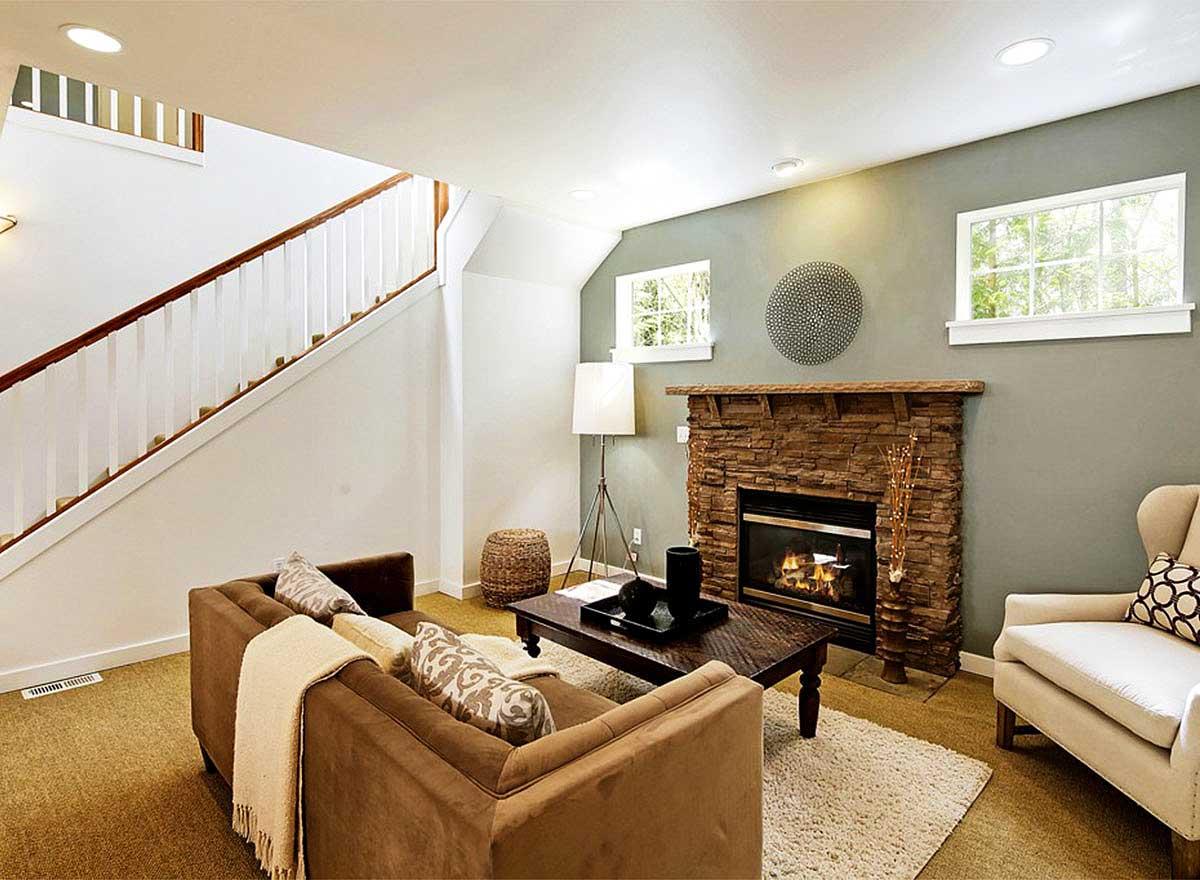

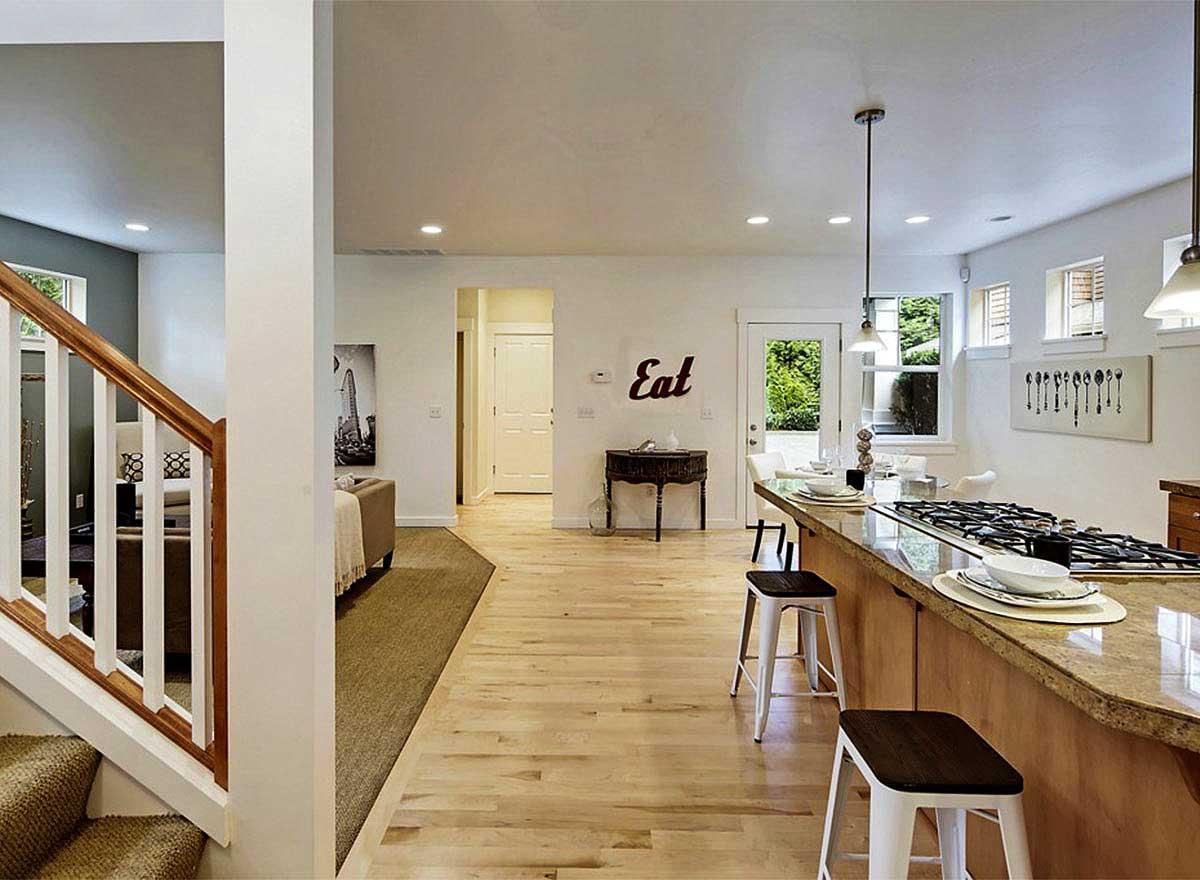

  • A second open area is the kitchen, nook and family room space. From the kitchen, you can see just about everywhere. A covered porch off the back is a nice touch.

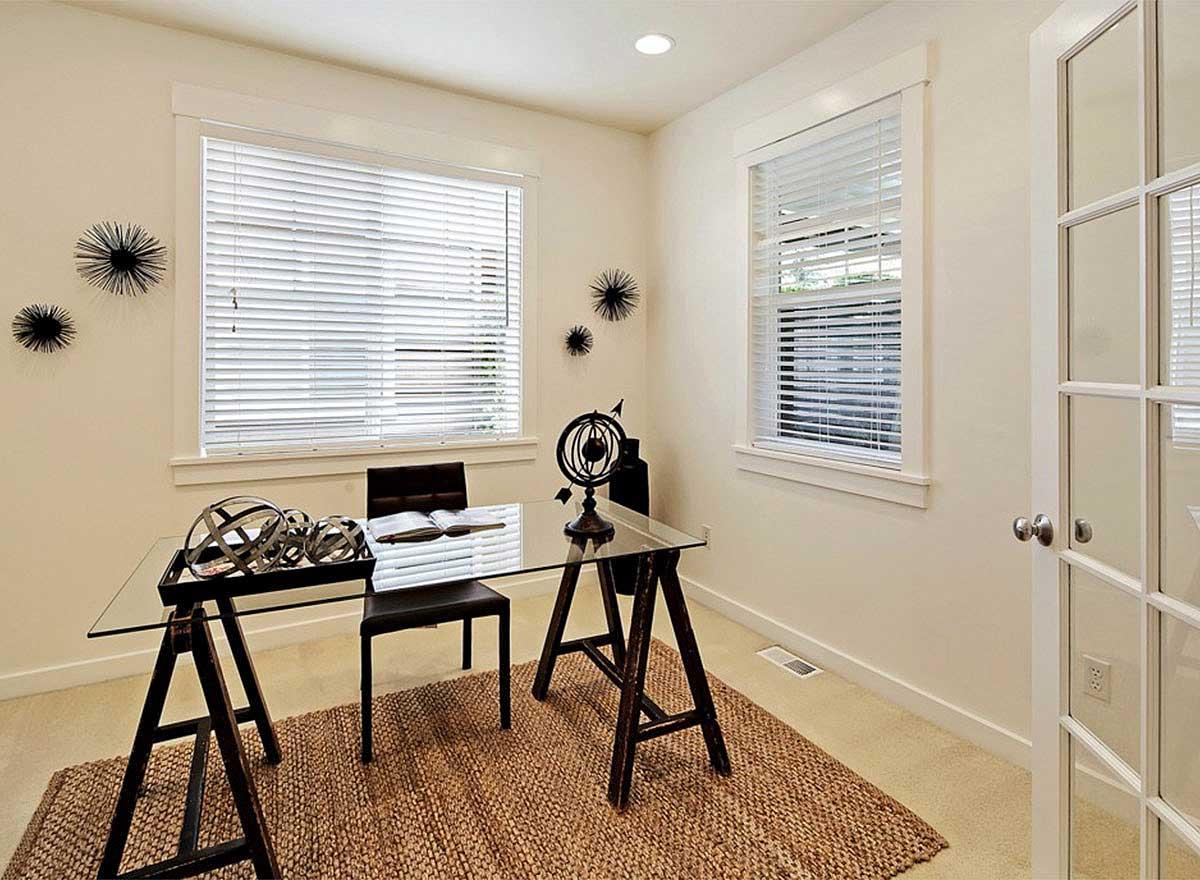

  • A cozy den gives you some more intimate space to retreat to.

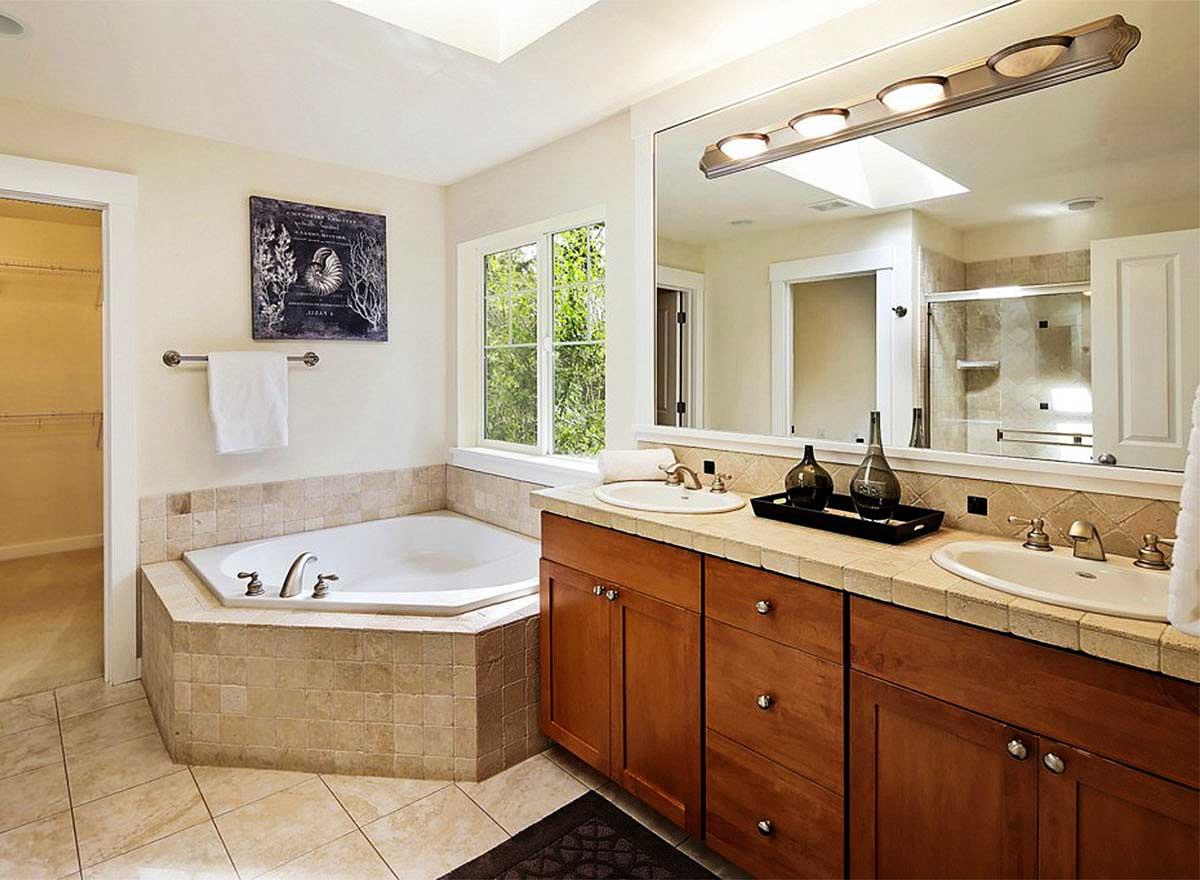

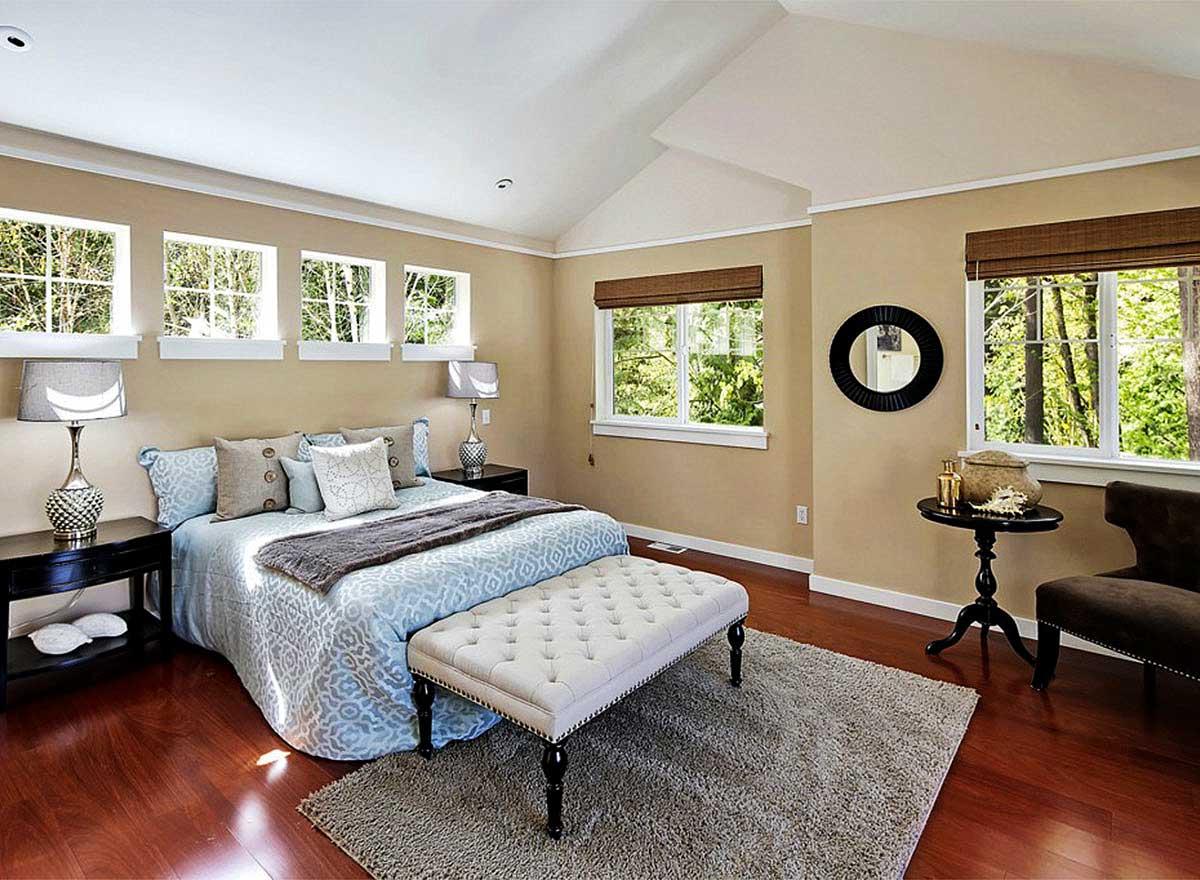

  • Upstairs, the master suite will surely please with a bumped out seating area and a huge walk-in closet.

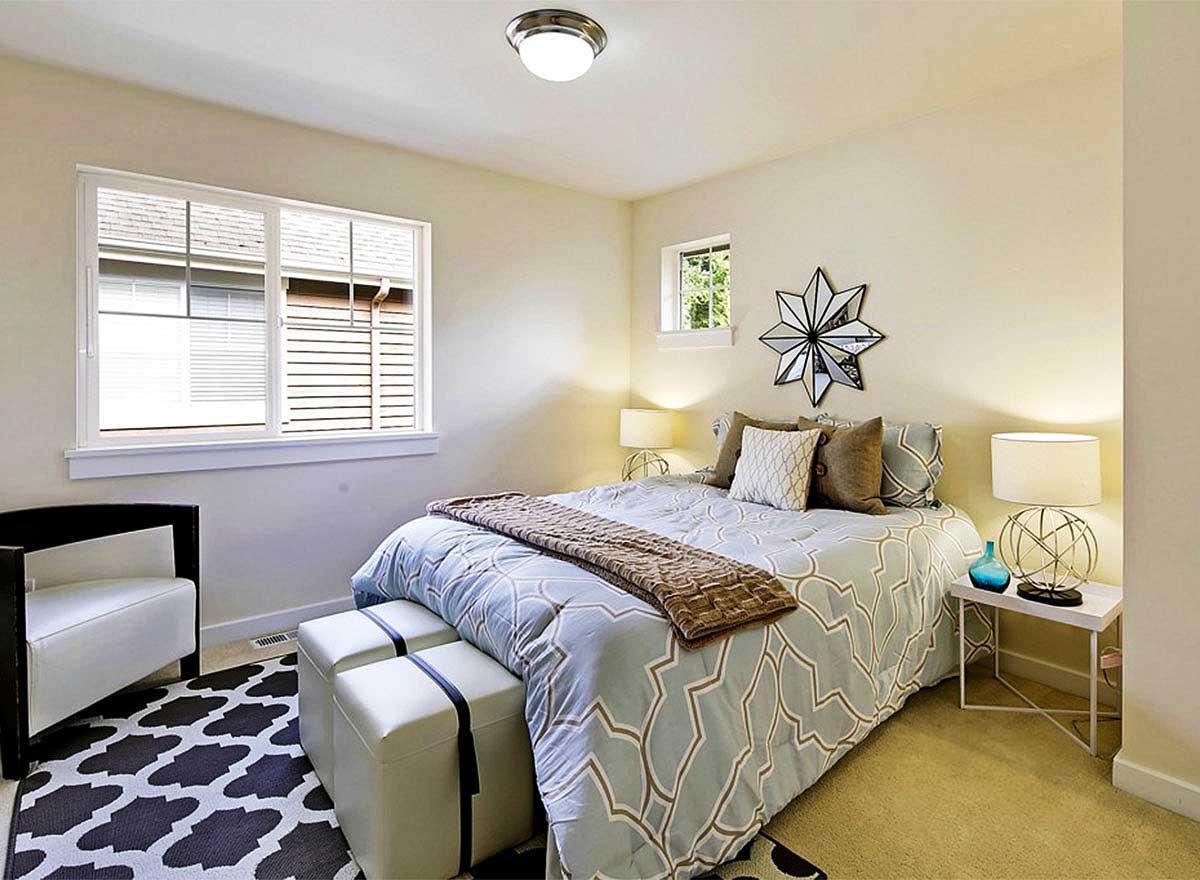

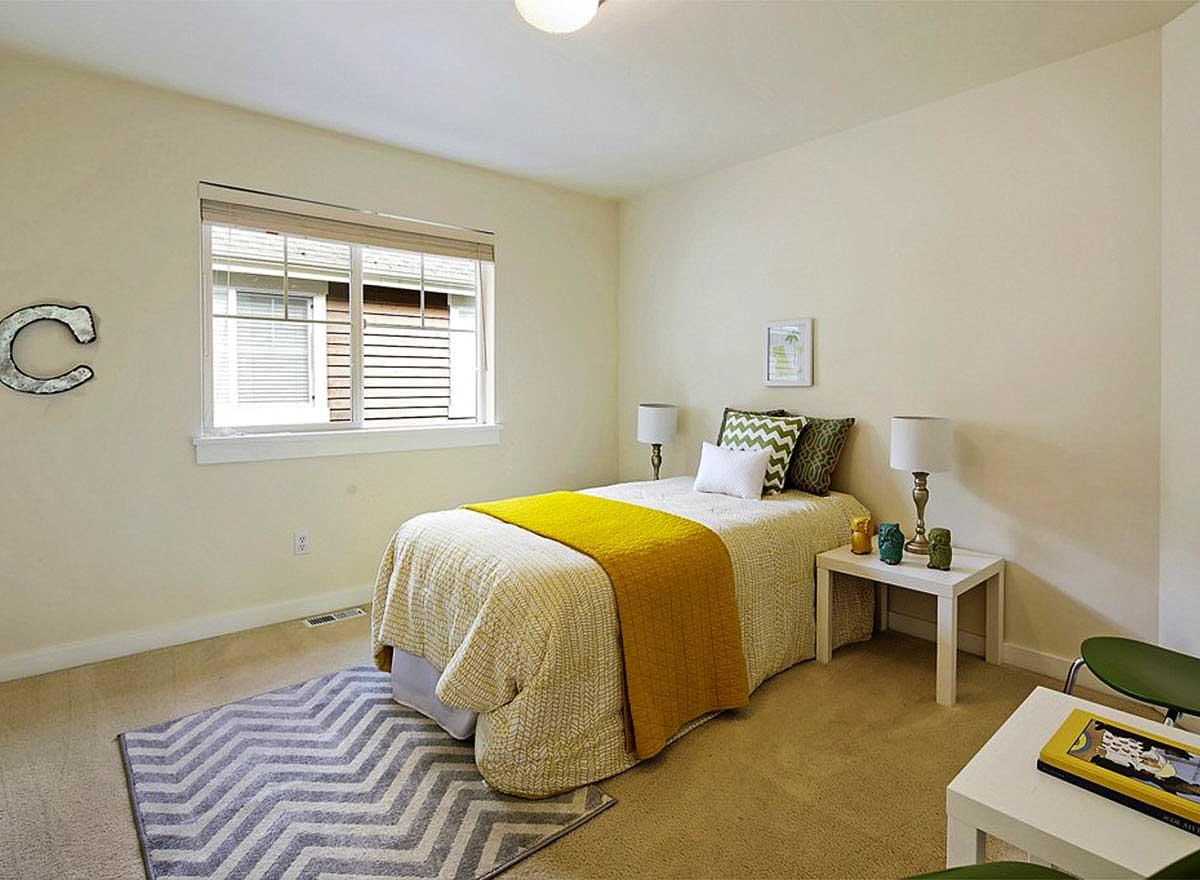

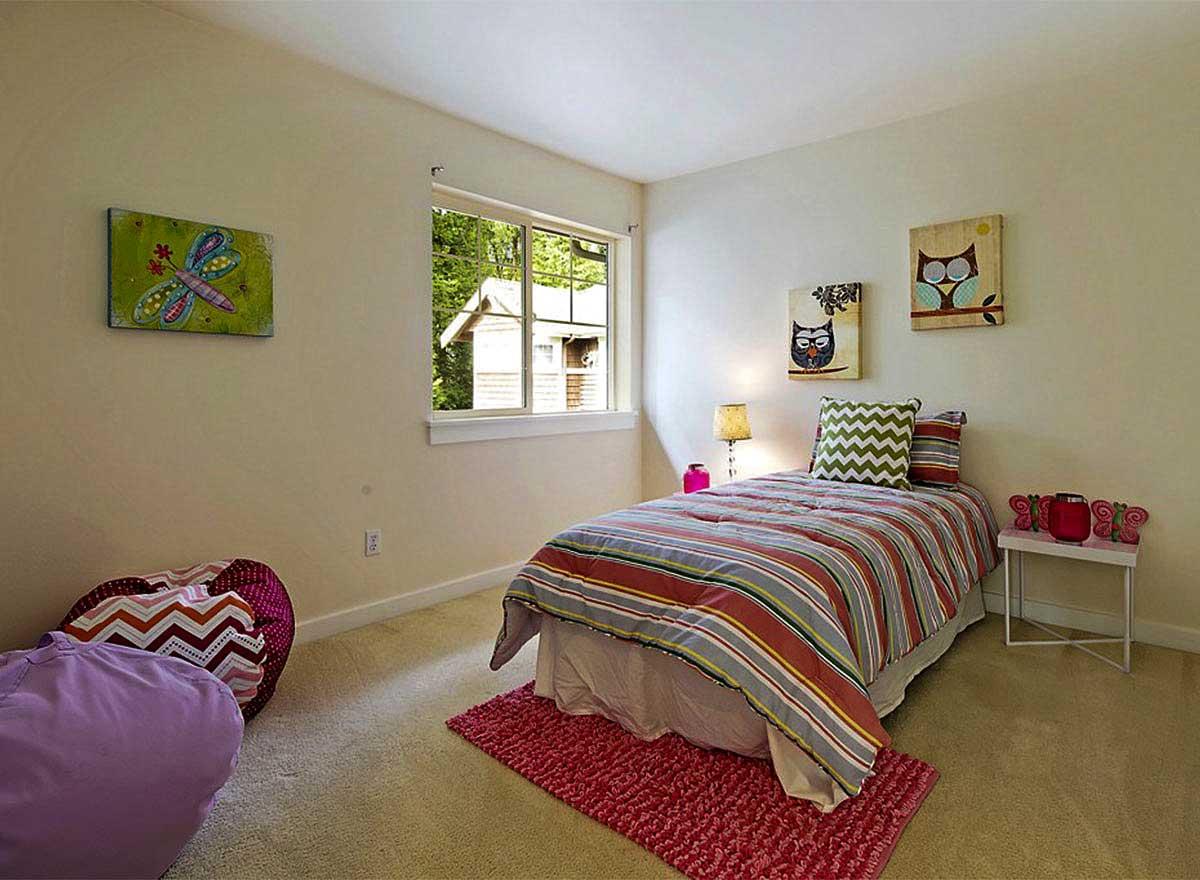

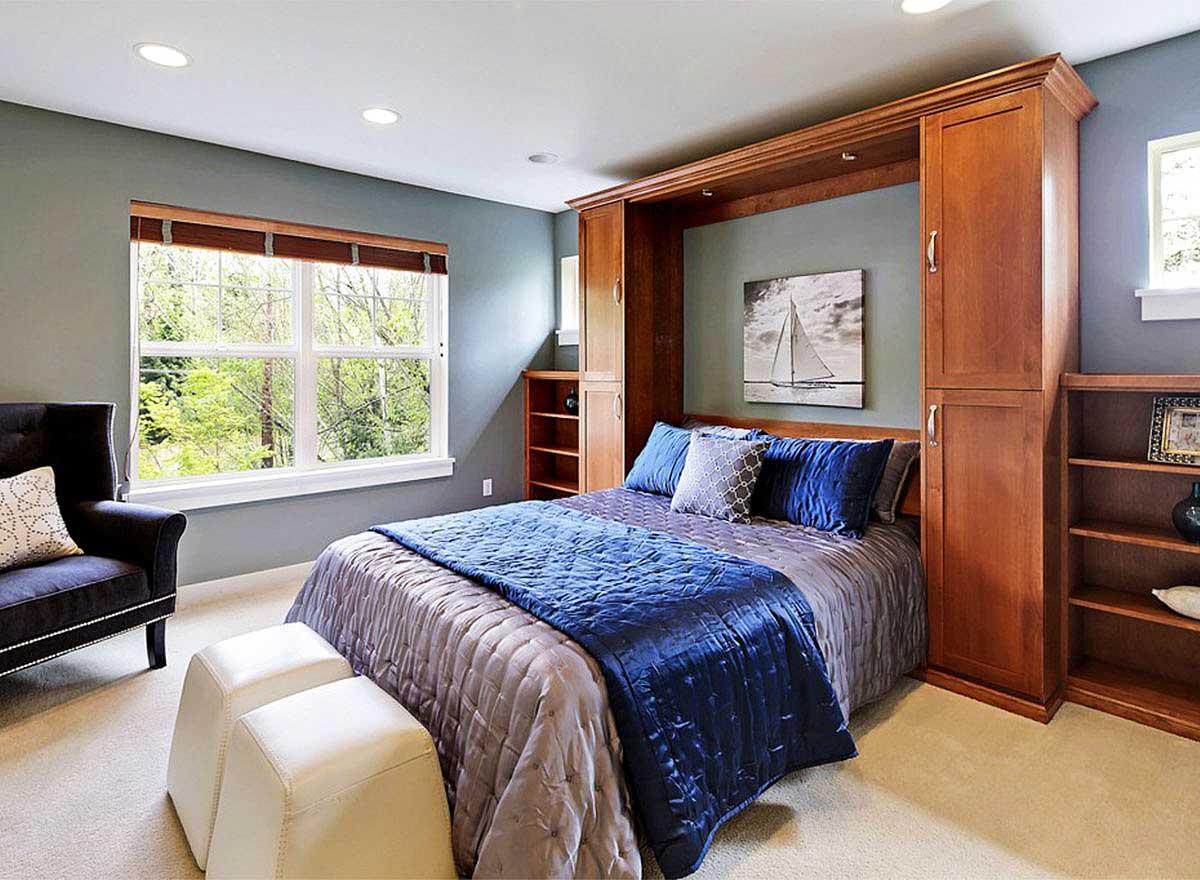

  • Three more bedrooms, plus a loft, bonus room and full bath complete the upstairs.

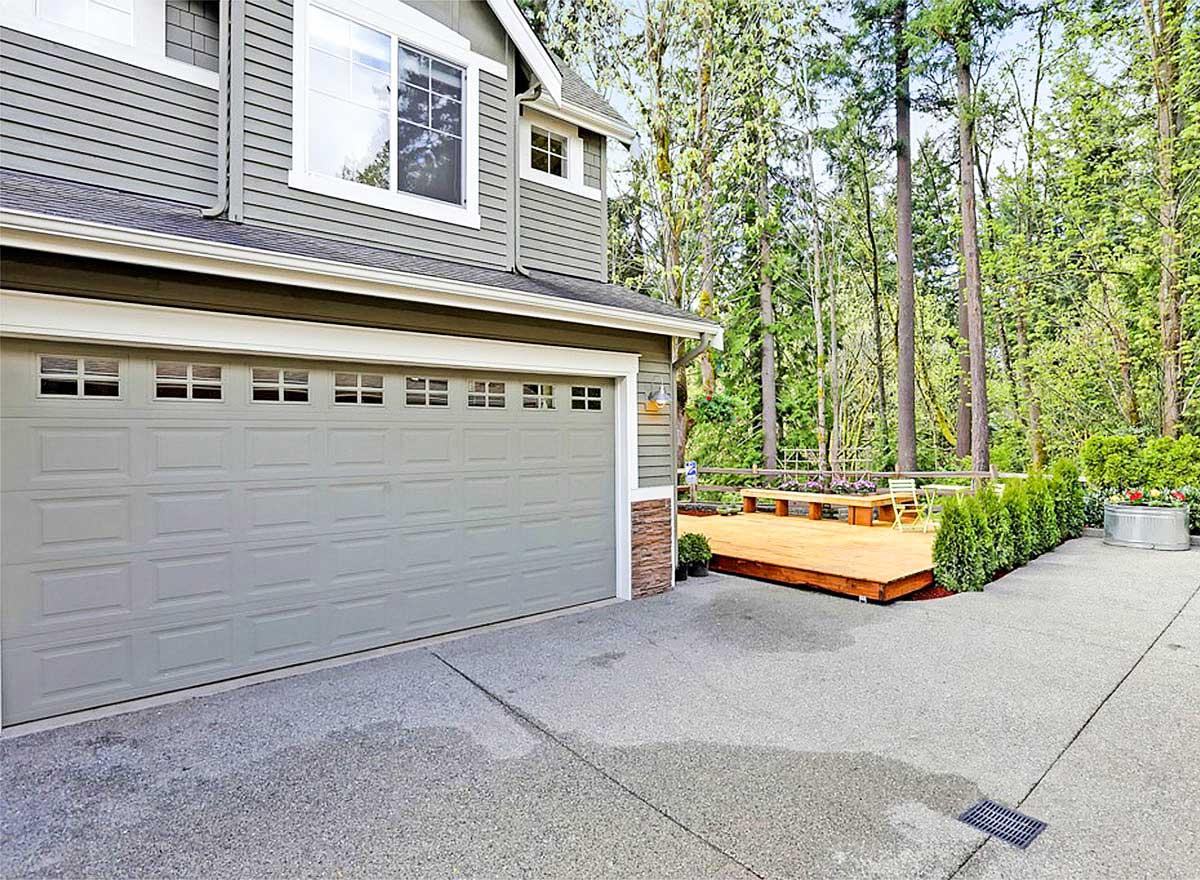

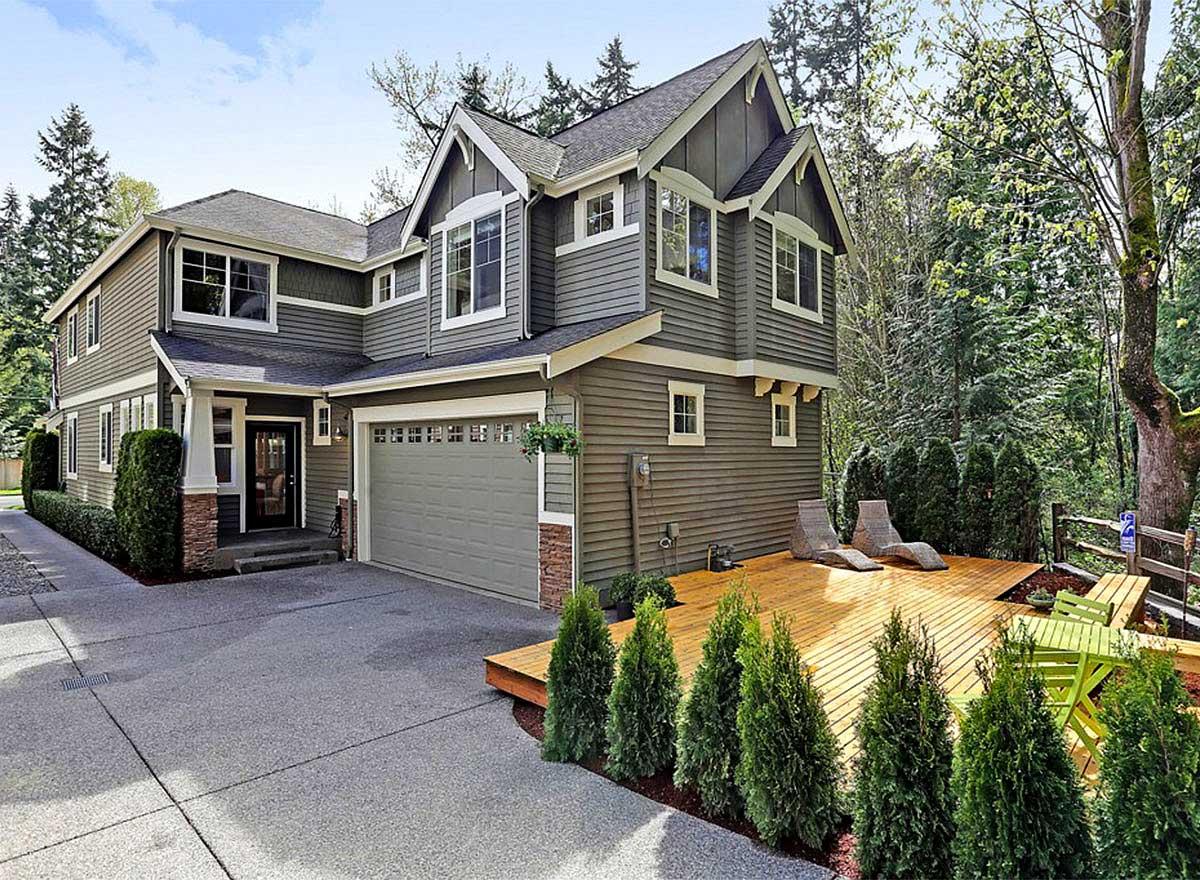

  • This plan comes with a two-car side-entry garage. A rear-entry and three-car options are also available.
  • Related Plans: Get a rear-entry two-car garage with house plan 23102JD. And an alternate elevation with house plan 23529JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
  •

See What's Included in this Plan...

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,825 sq. ft.
  • 1st Floor: 1,300 sq. ft.
  • 2nd Floor: 1,525 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Dimensions

  • Width: 28' 0"
  • Depth: 71' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 400 sq. ft.
  • Details: 2 Cars
  • Location: Side

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
