Plan 62462DJ
Dazzling Mediterranean House Plan
Heated S.F.
4,114
Beds
4
Baths
4.5
Stories
2
Cars
4
Photos
What's Included
Plan Details
  • A magnificent roof line captures your attention immediately in this dazzling Mediterranean house plan.
  • Unusual angles and shapes let you know this is no ordinary house plan.
  • Gorgeous ceiling treatments can be found throughout the house and there's a spacious first floor guest suite that would make a sumptuous in-law suite.
  • Interior columns are used to define the sunken living room that has a big corner fireplace to gather around.
  • The informal area of the home has huge rooms that are all open to each other.
  • An octagonal sitting room distinguishes the luxurious master suite on the second floor.
  • Open rails in the hall let you see into the foyer and living room below.
  • Both bedrooms 2 and 3 have built-in desks, huge walk-in closets and private bathrooms.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.

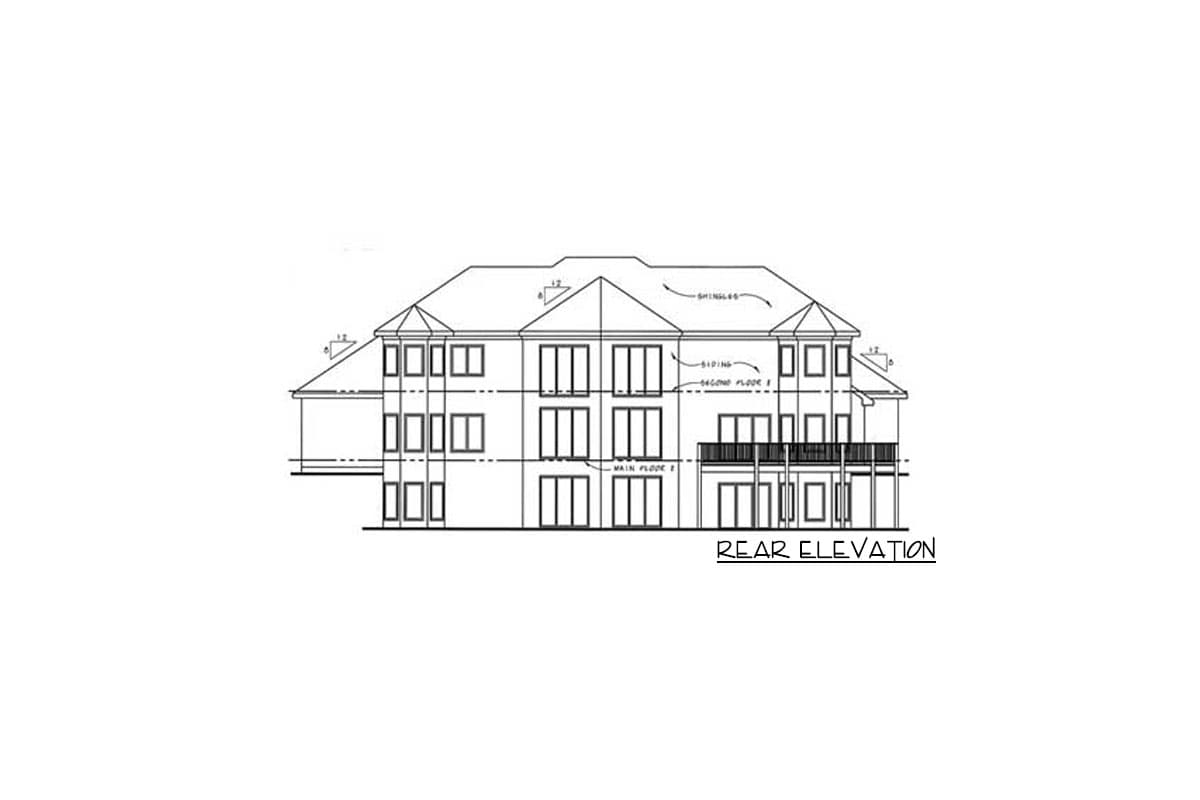

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Dazzling Mediterranean House Plan

  • 4,114

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

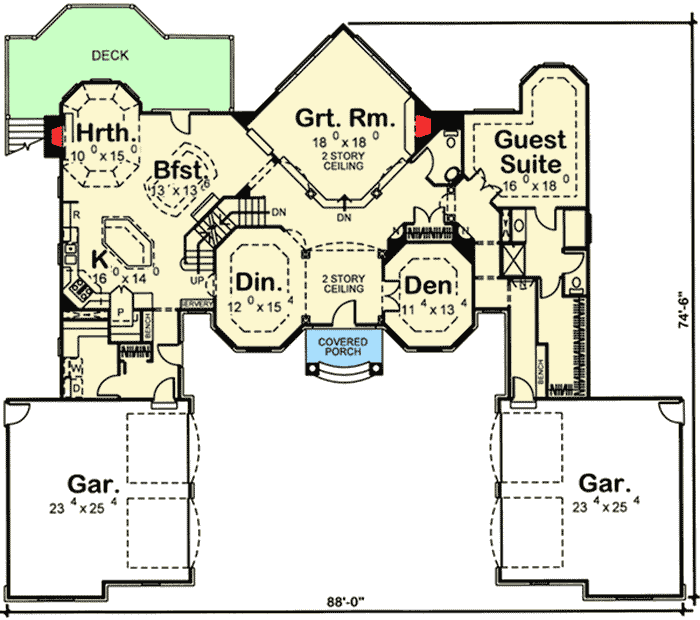

Floor Plan

  • Main Level

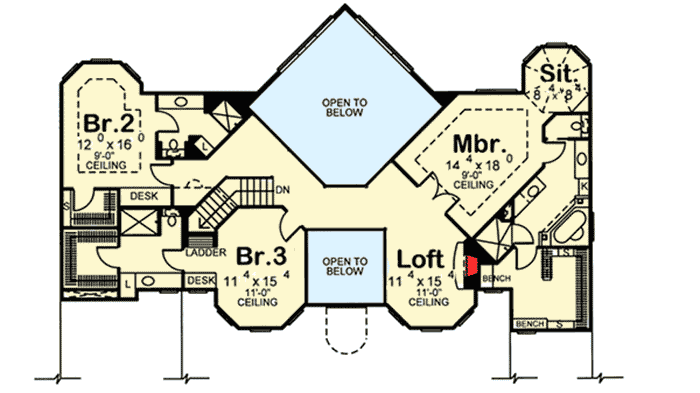

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,114 sq. ft.
  • 1st Floor: 2,414 sq. ft.
  • 2nd Floor: 1,700 sq. ft.

Dimensions

  • Width: 88' 0"
  • Depth: 74' 6"
  • Max ridge height: 28' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1194 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
