Plan 68527VR Detailed Craftsman with Split Bedroom Layout

2,095 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Detailed Craftsman with Split Bedroom Layout

Plan 68527VR

  • 2,095

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Rustic detailing enhances the exterior of this exciting Craftsman house plan with a front porch that is 13' deep at its deepest.
  • Inside, columns are used instead of walls, giving the home a huge expanse of wonderful sightlines.
  • The stunning vaulted and beamed ceiling of the family room carries out onto the rear porch too.
  • The split bedroom layout works well giving the master suite its privacy.

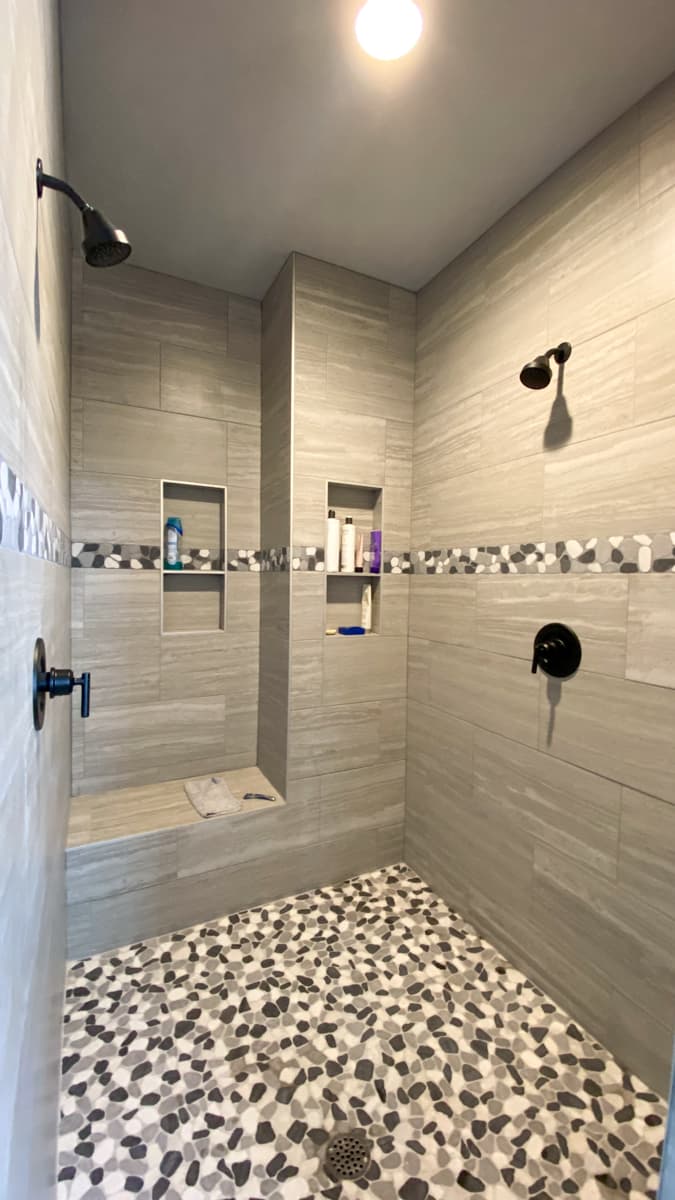

  • The master suite has a five-fixture bath, a large walk-in closet and access to the rear porch.
  • Related Plans: Get a smaller rear porch with house plan 68569VR. Get a side-entry garage with house plans 68404VR (2,300 sq. ft.), 68516VR (2,500 sq. ft.), 68405VR (2,512 sq. ft.) and 68410VR (2,697 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

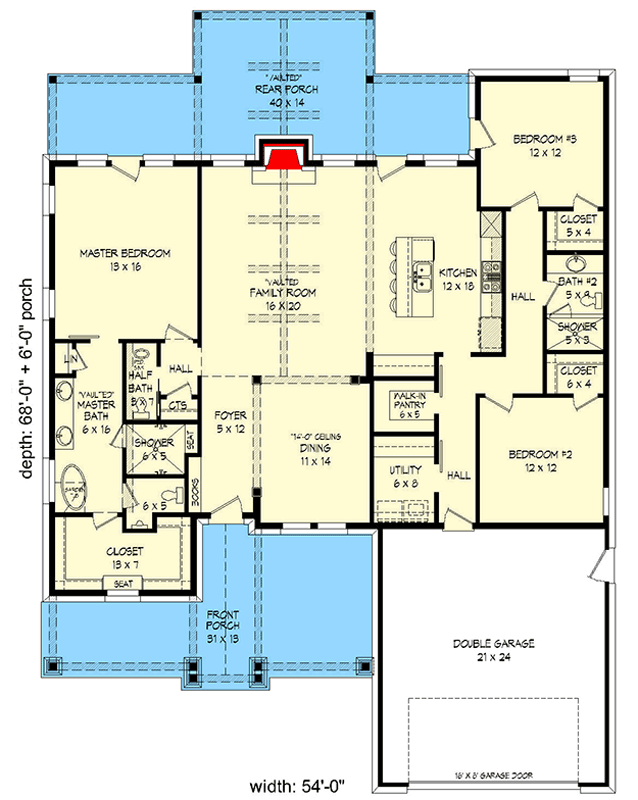

Detailed Craftsman with Split Bedroom Layout - 68527VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,095 sq. ft.
  • 1st Floor: 2,095 sq. ft.
  • Porch, Combined: 720 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 74' 0"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Family Room Vaulted

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Detailed Craftsman with Split Bedroom Layout

  • 2,095

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,275
  • 5 Sets $1,360
  • 5 Sets + PDF $1,494
  • CAD + PDF - Single-Build $1,825
  • View all purchase option online

About This Plan

  • Rustic detailing enhances the exterior of this exciting Craftsman house plan with a front porch that is 13' deep at its deepest.
  • Inside, columns are used instead of walls, giving the home a huge expanse of wonderful sightlines.
  • The stunning vaulted and beamed ceiling of the family room carries out onto the rear porch too.
  • The split bedroom layout works well giving the master suite its privacy.
  • The master suite has a five-fixture bath, a large walk-in closet and access to the rear porch.
  • Related Plans: Get a smaller rear porch with house plan 68569VR. Get a side-entry garage with house plans 68404VR (2,300 sq. ft.), 68516VR (2,500 sq. ft.), 68405VR (2,512 sq. ft.) and 68410VR (2,697 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,095 sq. ft.
  • 1st Floor: 2,095 sq. ft.
  • Porch, Combined: 720 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 74' 0"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
