Plan 58482SV
Dramatic Vaulted Family Room
Heated S.F.
1,532
Beds
2-3
Baths
2 - 3
Stories
1-2
Cars
2
What's Included
Plan Details
  • Windows rise for two stories in the vaulted family room of this three bedroom home.
  • The kitchen has a large center island and the open floor plan allows those in the kitchen to enjoy the two-story windows of the family room.
  • Each of the two bedrooms on the main floor has its own bathroom while the second floor could accommodate another bedroom and bath in the future.

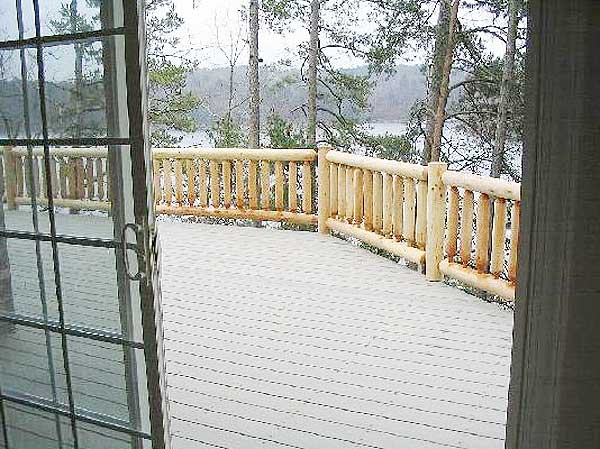

  • Note the huge cedar deck that opens to the main floor bedrooms as well as the family room.
  • Note the full depth is 47' when you include the deck which extends 13' past the family room.
  • Related Plans: Move the garage to the front with house plan 58412SV.
  • Get a rear-facing garage with house plan 58483SV and get a larger home with house plan 58290SV (1900 sq. ft.).
What's Included
  • Foundation Sheet

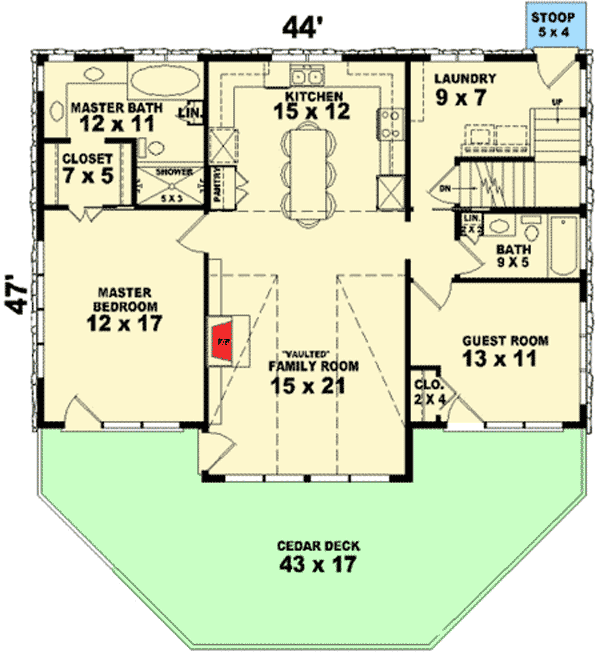

  • 1st Level Floor Plan

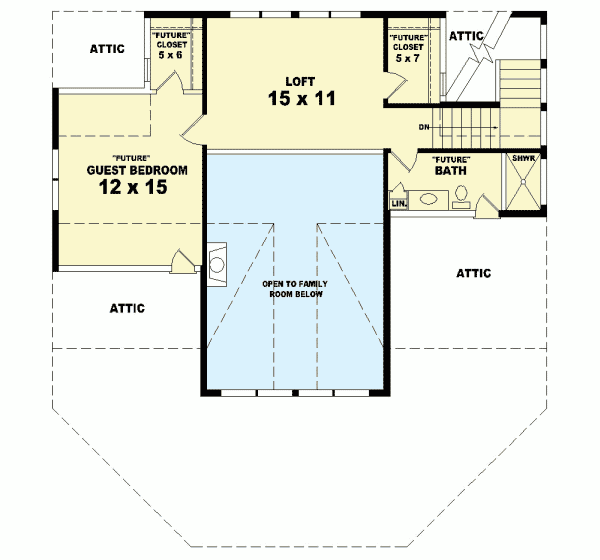

  • 2nd & 3rd Level Floor Plans
  • Framing Section
  • Roof Plan
  • Cabinet Details
  • Stair Detail

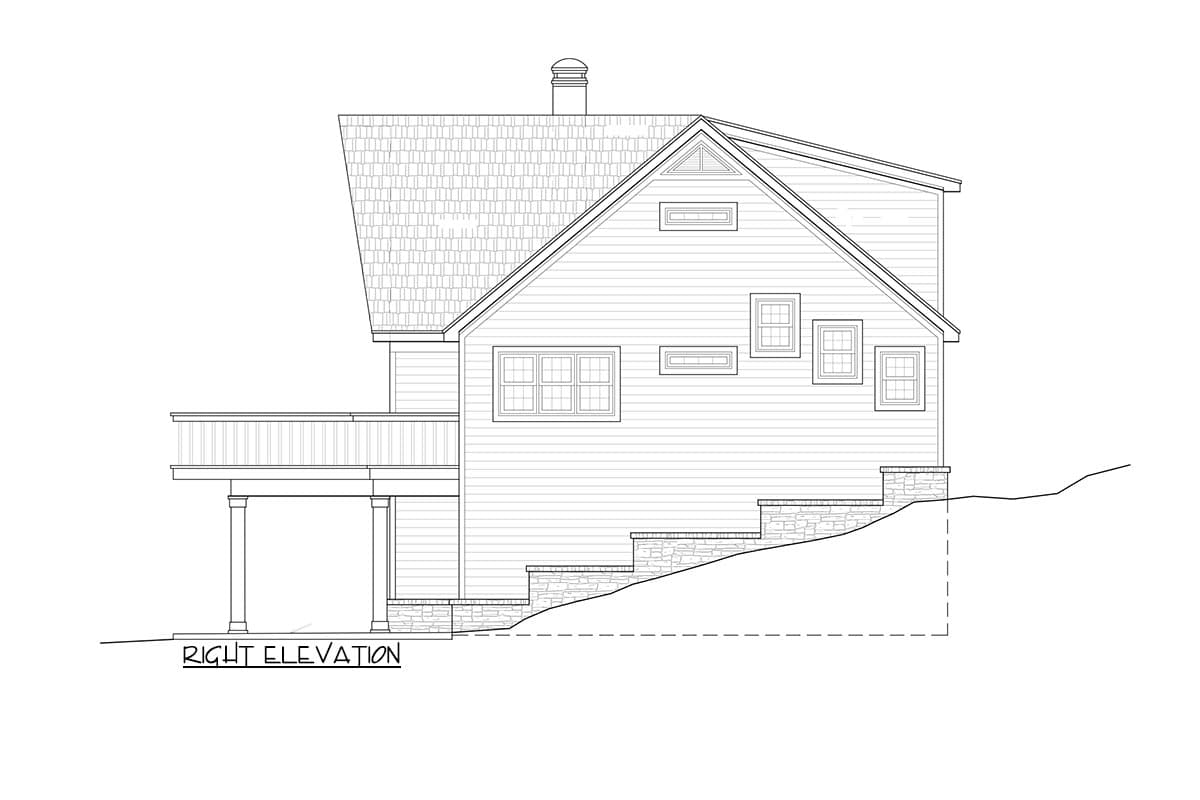

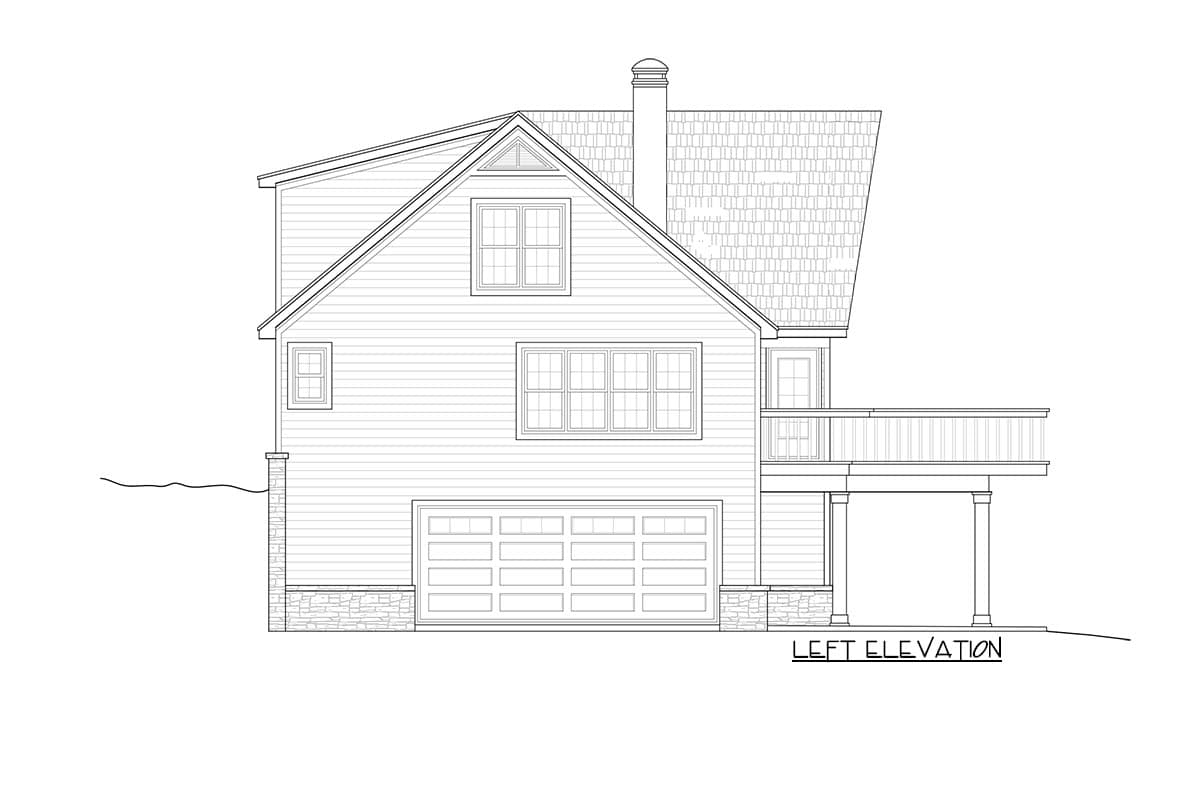

  • Front and Side Elevation

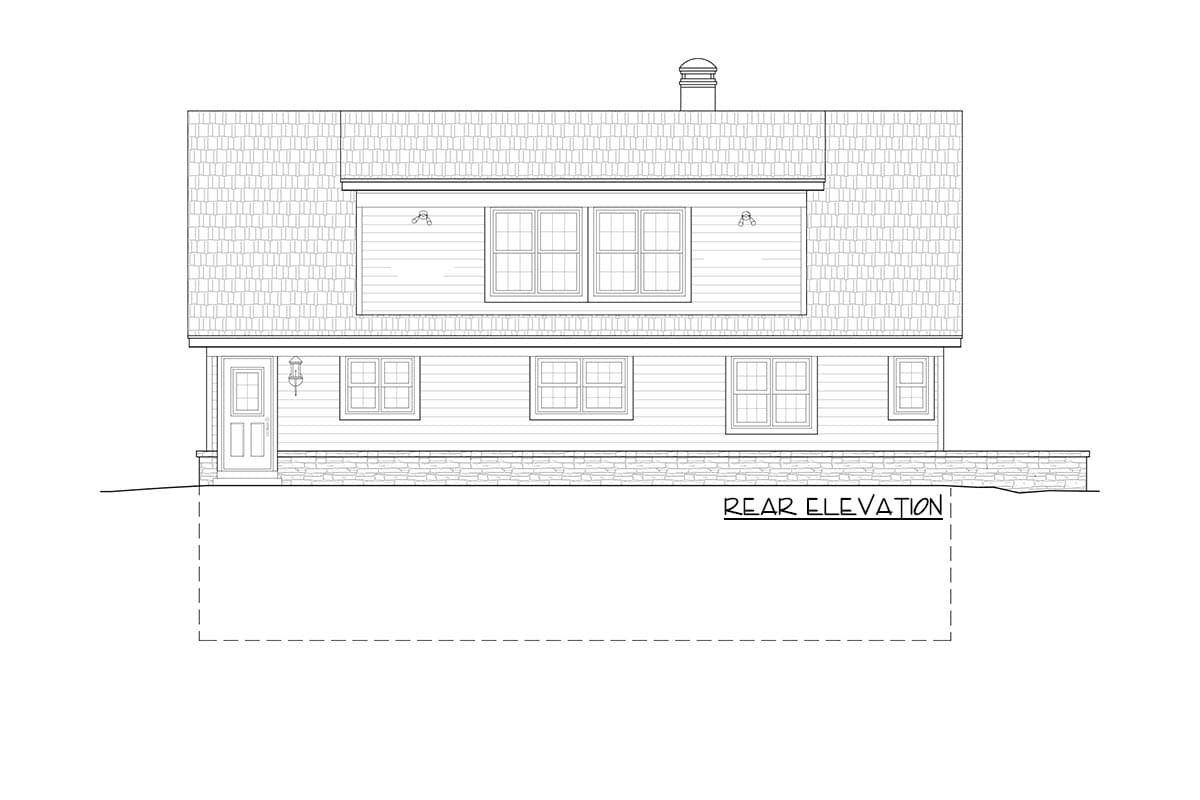

  • Rear and Side Elevations
May not apply to carports, garages, pool houses, storage bldgs, barns, ETC
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Dramatic Vaulted Family Room

  • 1,532

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

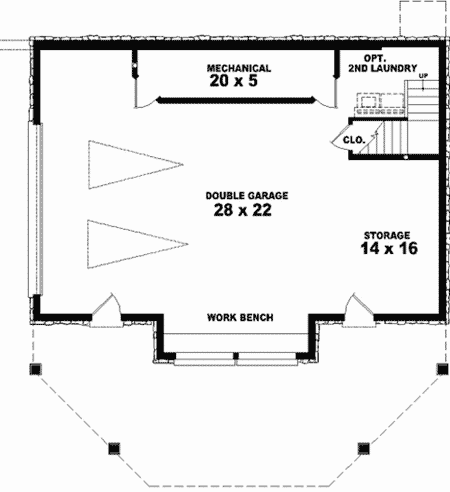

  • Lower Level
