Plan 67718MG

Duplex House Plan For The Small Narrow Lot - 1421 Sq Ft 3 Bedroom Units

Heated S.F.
2,842
Units
2
Width
Depth

Floor Plan

Plan 67718MG

Main Level
Main Level
2nd Floor
2nd Floor

Plan 67718MG

M-F 9am-5pm EST |

1-203-761-8500

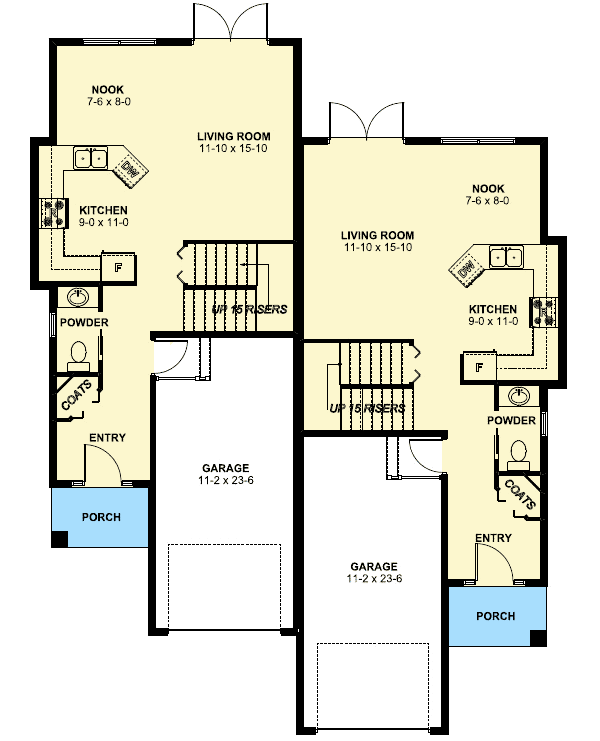

Main Level

Plan 67718MG: Duplex House Plan For The Small Narrow Lot - 1421 Sq Ft 3 Bedroom Units - Floor Plan - Main Level - Contemporary, Northwest

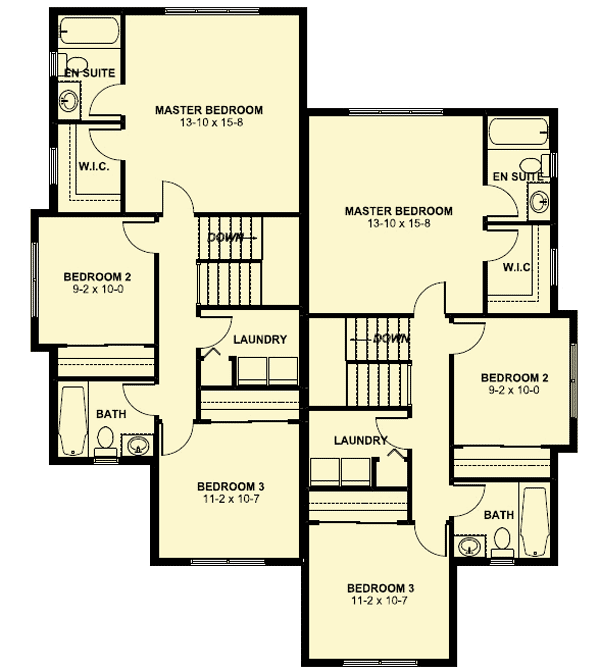

2nd Floor

Plan 67718MG: Duplex House Plan For The Small Narrow Lot - 1421 Sq Ft 3 Bedroom Units - Floor Plan - 2nd Floor - Contemporary, Northwest

Plan Details

  • This duplex plan was designed with small narrow lots in mind.
  • It has the amenities to make for comfortable living including three bedrooms and two baths upstairs and an open living area down with a powder room for company.
  • Each 1,421 square foot unit gives you 588 square feet on the first floor, 833 square feet on the second floor and 572 square feet of basement space.
  • Related Plan: Get a Craftsman exterior with house plan 67719MG.
Unit A
Heated Area
1,421Sq. Ft.
588 Sq. Ft. 1st
833 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
294 Sq. Ft.
Dimensions
21' 6"width
56'depth
27'height
Unfinished Areas
294 Sq. Ft. Garage
572 Sq. Ft. Basement Unfinished
Unit B
Heated Area
1,421Sq. Ft.
588 Sq. Ft. 1st
833 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
294 Sq. Ft.
Dimensions
21' 6"width
56'depth
27'height
Unfinished Areas
294 Sq. Ft. Garage
572 Sq. Ft. Basement Unfinished

What's Included

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,842 sq. ft.

1st Floor

1,176 sq. ft.

2nd Floor

1,666 sq. ft.

Basement Unfinished

1,144 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 0"

Depth

56' 0"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Northwest

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,842 sq. ft.

1st Floor

1,176 sq. ft.

2nd Floor

1,666 sq. ft.

Basement Unfinished

1,144 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 0"

Depth

56' 0"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Northwest

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans
