Plan 57223HA
Elegance with Courtyard Entry
Heated S.F.
1,693
Beds
2
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Decorative columns with lanterns, door and window trim with custom grilles and a dressy roof dormer define this attractive two bedroom house plan with courtyard entry.
  • The living room enjoys a fireplace with flanking glass doors to an oversized rear patio and a dining area with bay window.
  • A pass-through snack counter is part of the smartly-designed kitchen which features an abundance of cabinets, built-in pantry and convenient adjacent laundry room.
  • The spacious master bedroom has an elegant bath, large walk-in closet and 9' wide sliding glass doors to the rear patio.
What's Included

  • Front Cover Sheet

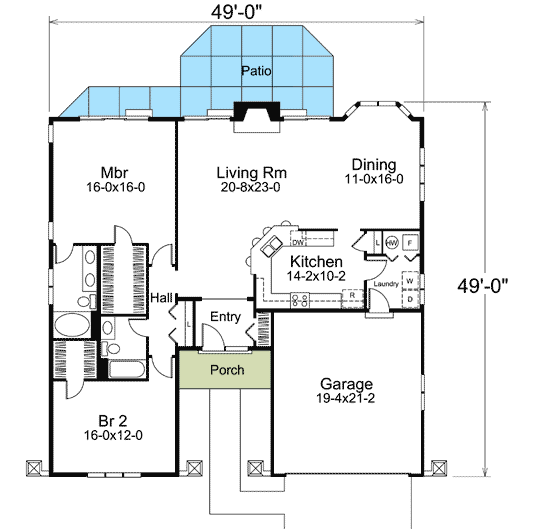

  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

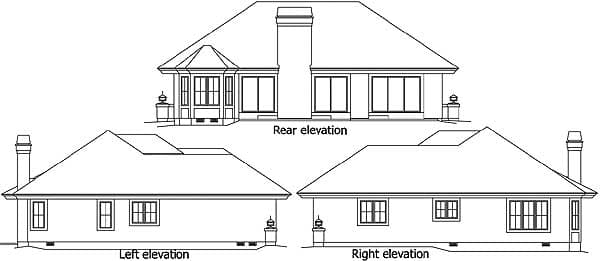

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Elegance with Courtyard Entry

  • 1,693

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,693 sq. ft.
  • 1st Floor: 1,693 sq. ft.

Dimensions

  • Width: 49' 0"
  • Depth: 49' 0"
  • Max ridge height: 25' 8"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 409 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 6"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
