Exciting Northwest House Plan
Heated S.F.
3,341
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details

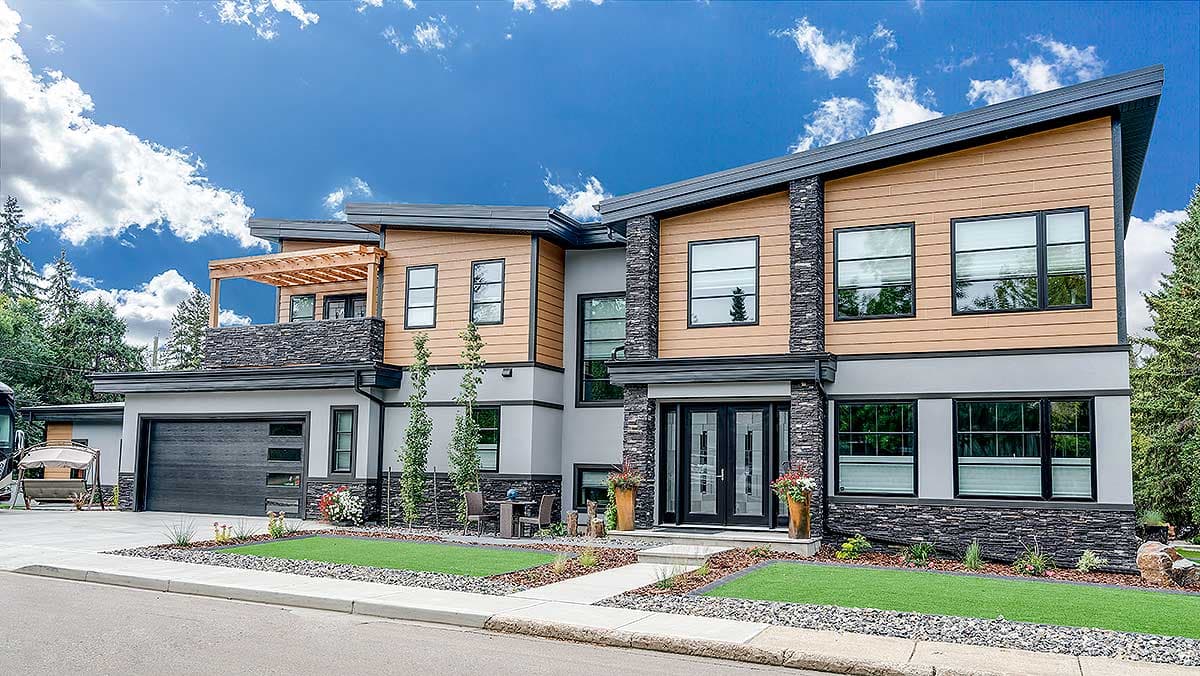

  • Slanted roof lines flare out on this Northwest house plan giving you a contemporary vibe.
  • The open floor plan gives you superb sight lines front to back and side to side.
  • This home was designed with lots of glass to brighten the whole house.
  • The walk-through pantry has a wine rack on one side and a wet bar in front of it. Another walk-in pantry comes with a convenient extra freezer.
  • Three spacious bedrooms occupy the second floor with the master bedroom enjoying it's own private deck.
  • A door in the master walk-in closet leads right in to the second floor laundry room.
  • And the whole family will get a lot of use out of the bonus space.
What's Included
  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
