Plan 21961DR Expansive Cottage with Covered Deck

3,276 5-6 3.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Expansive Cottage with Covered Deck

Plan 21961DR

  • 3,276

    Heated s.f.

  • 5-6

    Beds

  • 3.5

    Baths

  • 2

    Stories

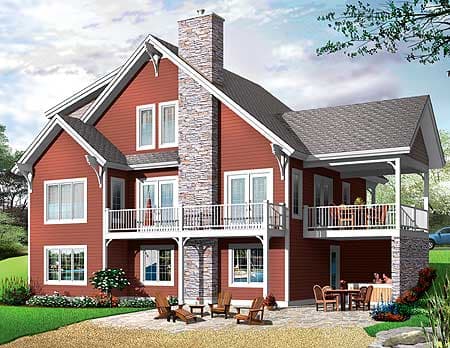

  • Set off by a sturdy stone chimney, stone accents and decorative gables, this striking cottage design could be used as a four-season vacation home or as a family retreat. It expands on the original - house plan 21567DR - by adding a finished lower level.
  • The main floor is wide open and full of natural light. The family room is open to above creating a very spacious space to relax in. A spacious 12'x14' covered deck gives you lots of room to entertain and take in the views.
  • Upstairs, an overlook gives views to the family room below and two bedrooms share a roomy bath.
  • The lower level features up to four bedrooms plus a second family or game room. And take advantage of a sloping lot with access to the outdoors.
  • Related Plans: Eliminate the finished lower level and covered deck with house plans 21567DR and 21091DR.

Each plan includes the following:

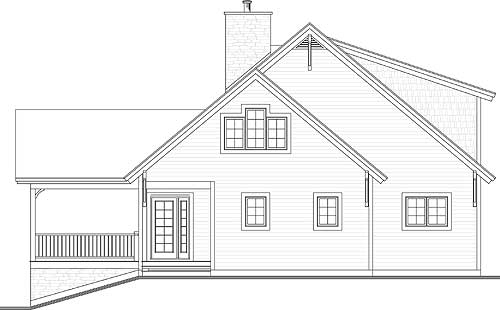

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

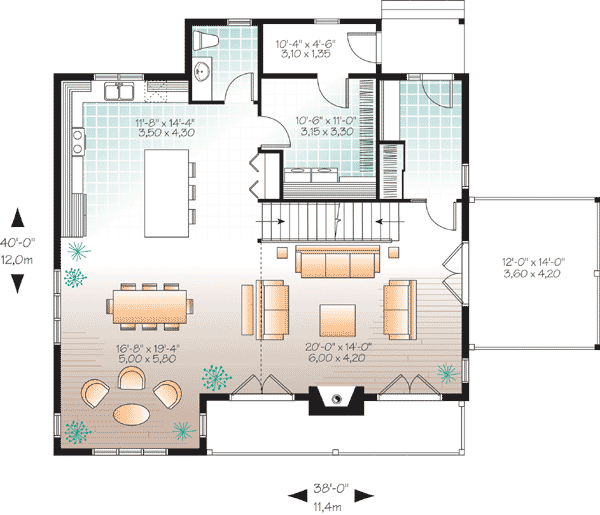

Expansive Cottage with Covered Deck - 21961DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

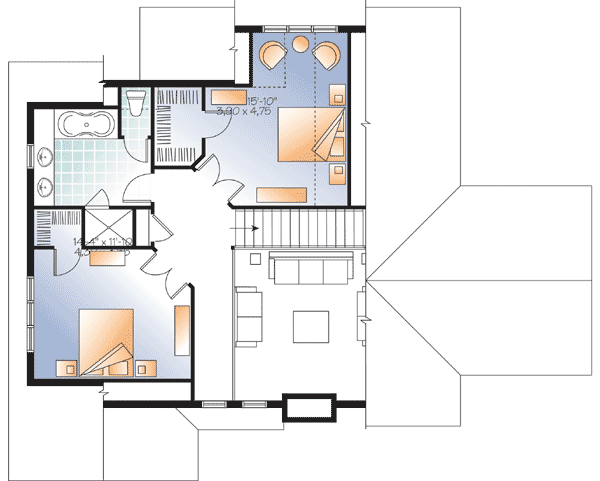

Expansive Cottage with Covered Deck - 21961DR floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

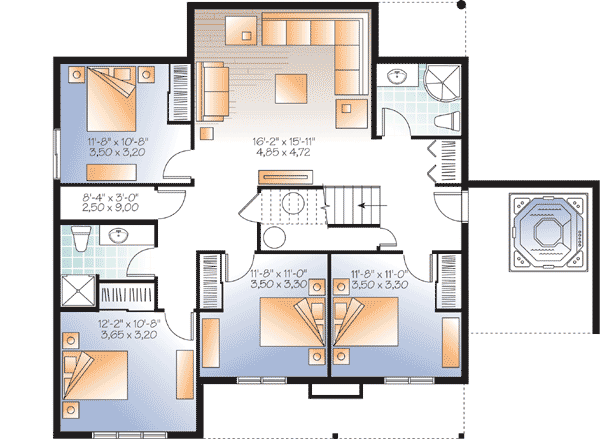

Expansive Cottage with Covered Deck - 21961DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,276 sq. ft.
  • Lower Level: 1,300 sq. ft.
  • 1st Floor: 1,246 sq. ft.
  • 2nd Floor: 730 sq. ft.
  • Balcony / Veranda: 118 sq. ft.
  • Entry: 30 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 40' 0"
  • Max ridge height: 35' 2"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 8" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Expansive Cottage with Covered Deck

  • 3,276

    Heated s.f.

  • 5-6

    Beds

  • 3.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,995
  • 3 Sets + PDF $2,120
  • CAD + PDF - Single-Build $2,595
  • View all purchase option online

About This Plan

  • Set off by a sturdy stone chimney, stone accents and decorative gables, this striking cottage design could be used as a four-season vacation home or as a family retreat. It expands on the original - house plan 21567DR - by adding a finished lower level.
  • The main floor is wide open and full of natural light. The family room is open to above creating a very spacious space to relax in. A spacious 12'x14' covered deck gives you lots of room to entertain and take in the views.
  • Upstairs, an overlook gives views to the family room below and two bedrooms share a roomy bath.
  • The lower level features up to four bedrooms plus a second family or game room. And take advantage of a sloping lot with access to the outdoors.
  • Related Plans: Eliminate the finished lower level and covered deck with house plans 21567DR and 21091DR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,276 sq. ft.
  • Lower Level: 1,300 sq. ft.
  • 1st Floor: 1,246 sq. ft.
  • 2nd Floor: 730 sq. ft.
  • Balcony / Veranda: 118 sq. ft.
  • Entry: 30 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 40' 0"
  • Max ridge height: 35' 2"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 8" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 21961DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21961DR
|
