Plan 21091DR Four-Seasons Cottage

1,625 3 2 2
watch
video Print
Compare
...

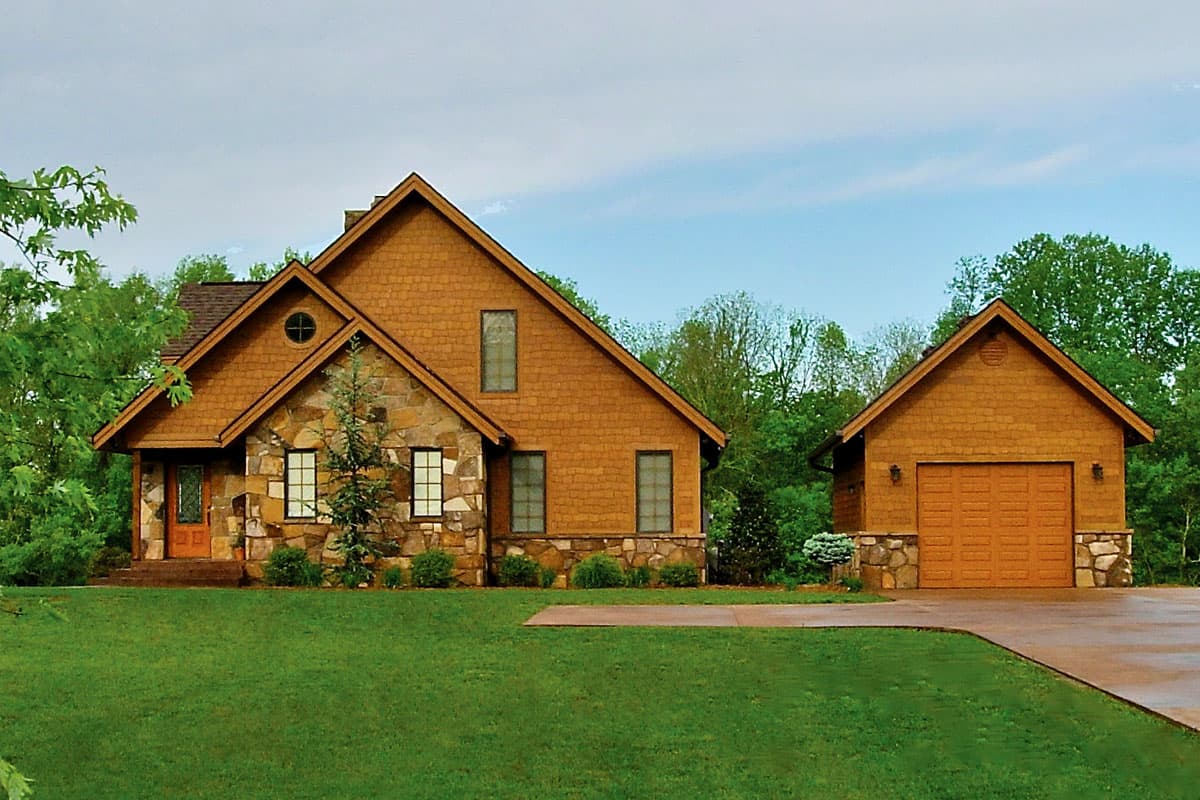

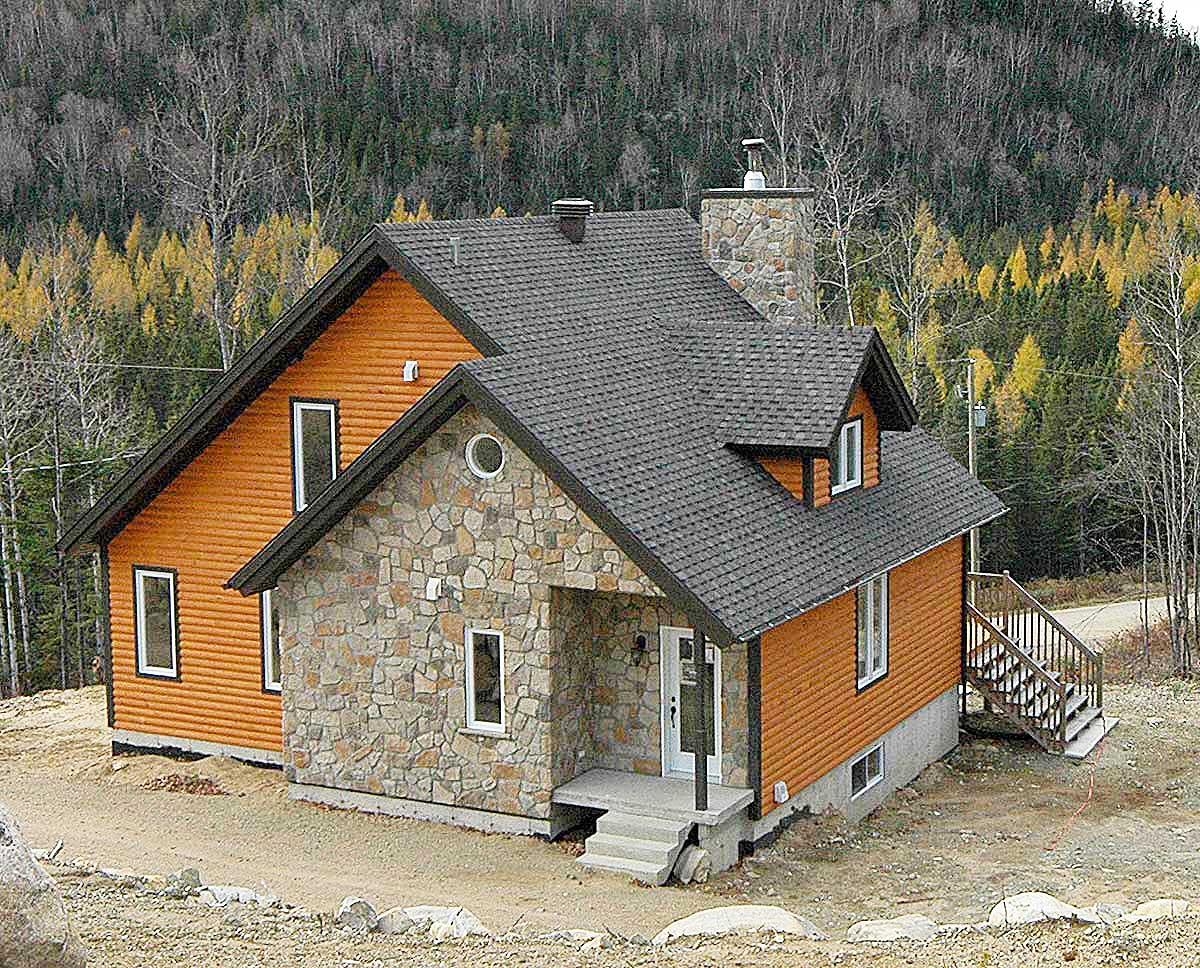

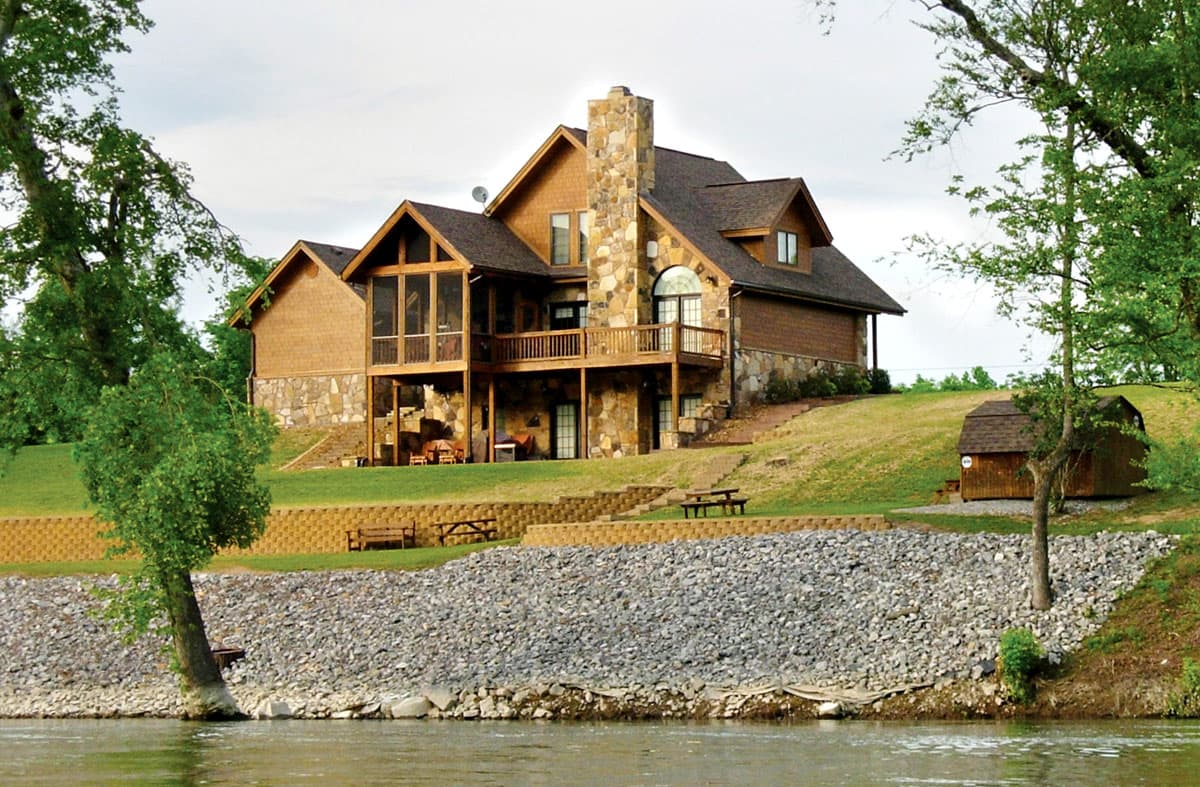

All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Four-Seasons Cottage

Plan 21091DR

  • 1,625

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

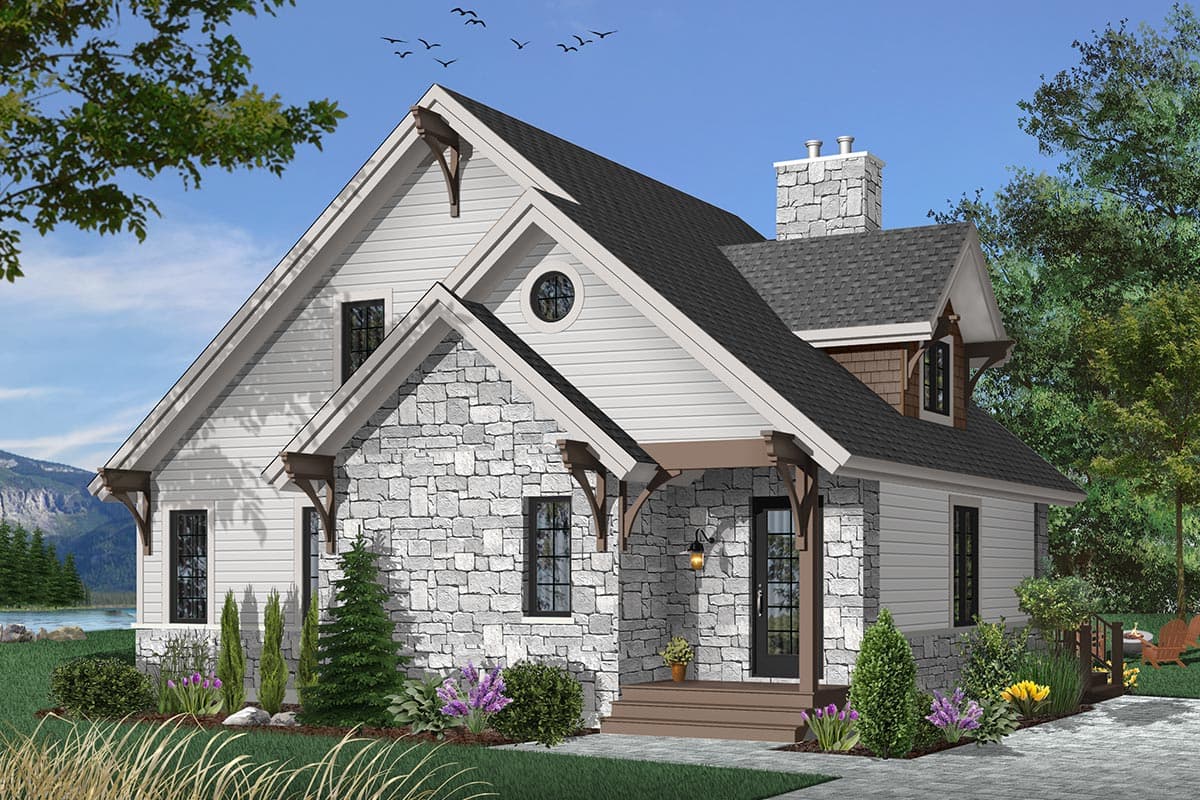

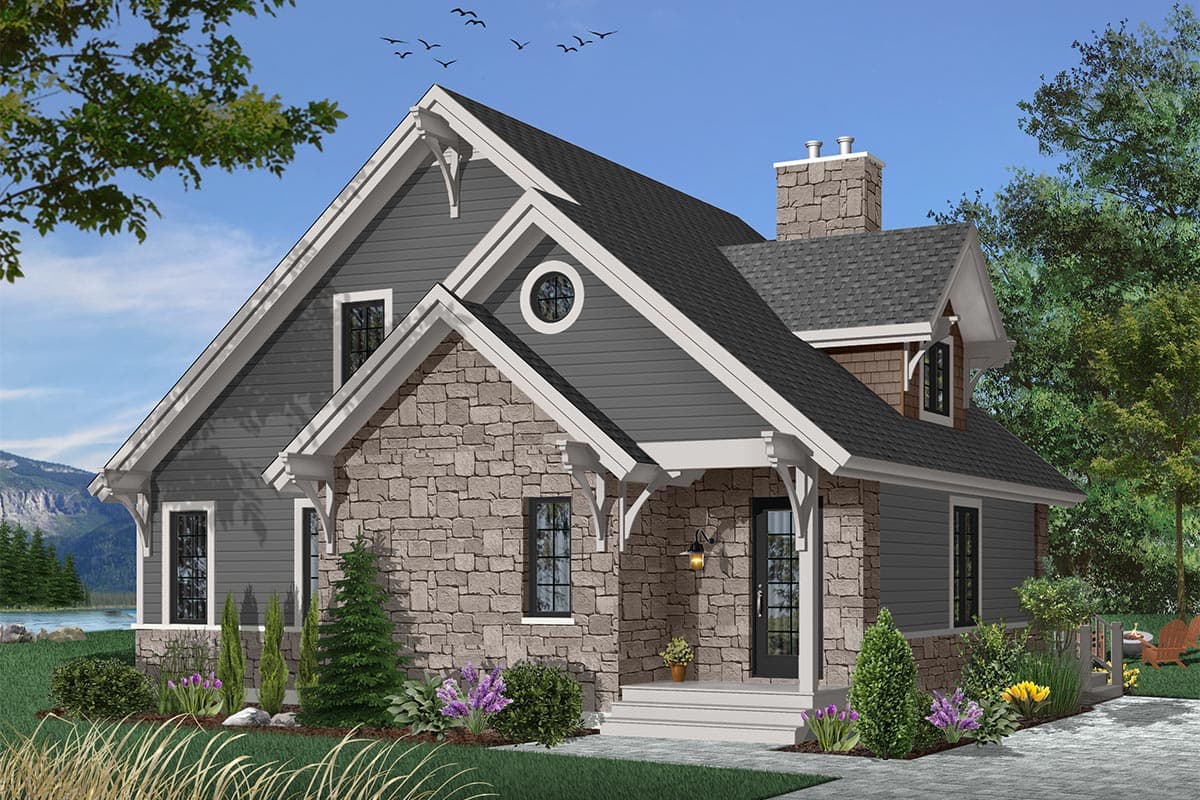

  • Set off by a sturdy stone chimney, stone accents and decorative gables, this striking cottage design could be used as a four-season vacation home.

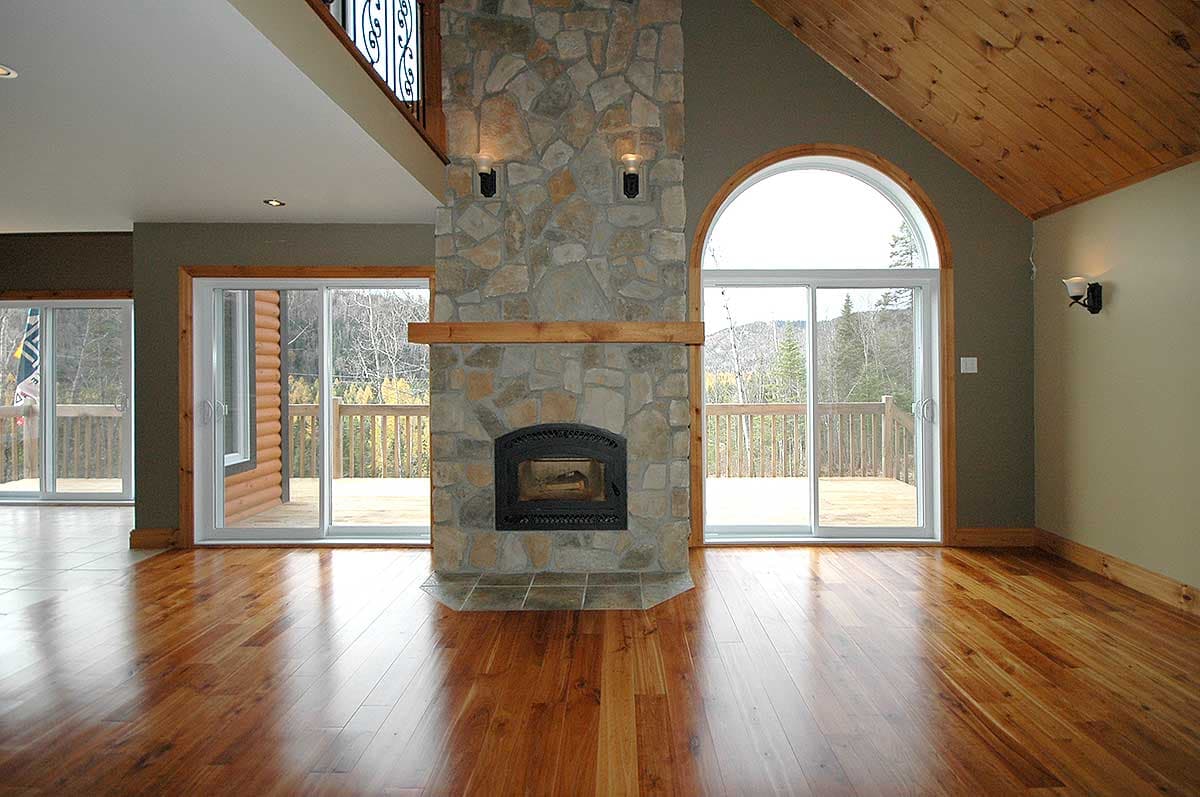

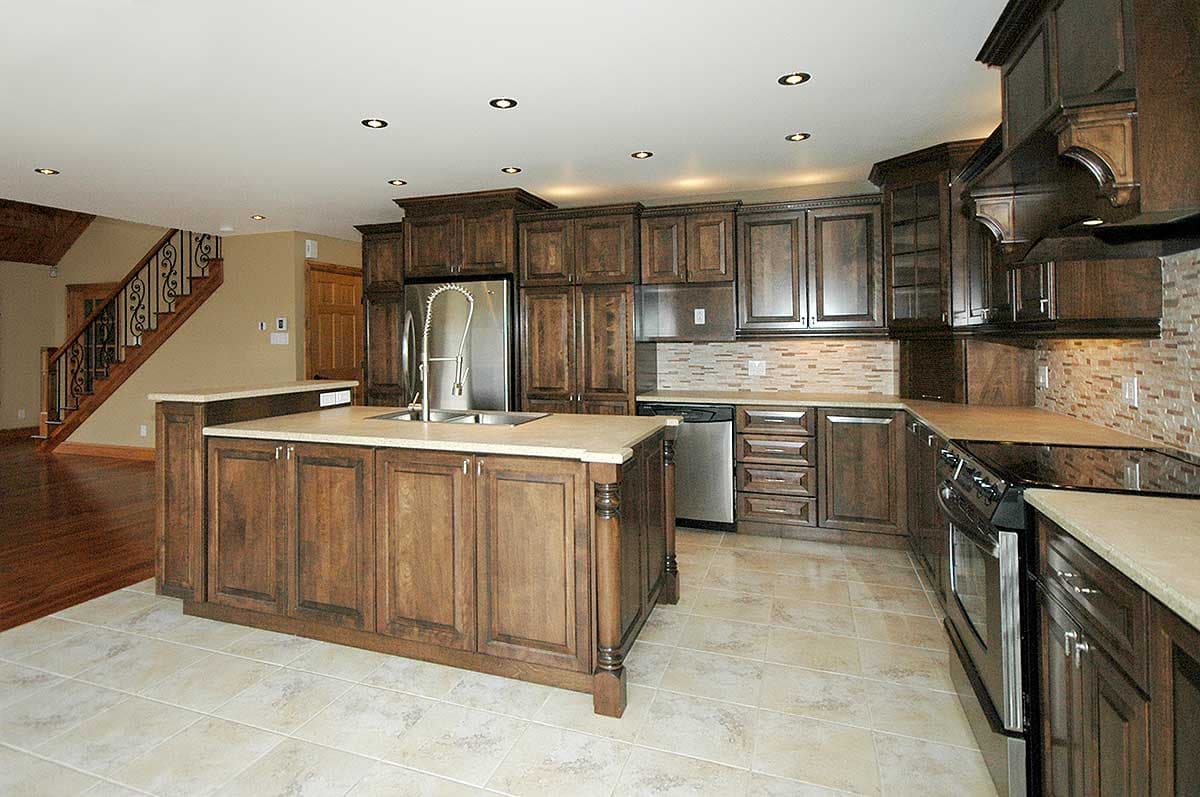

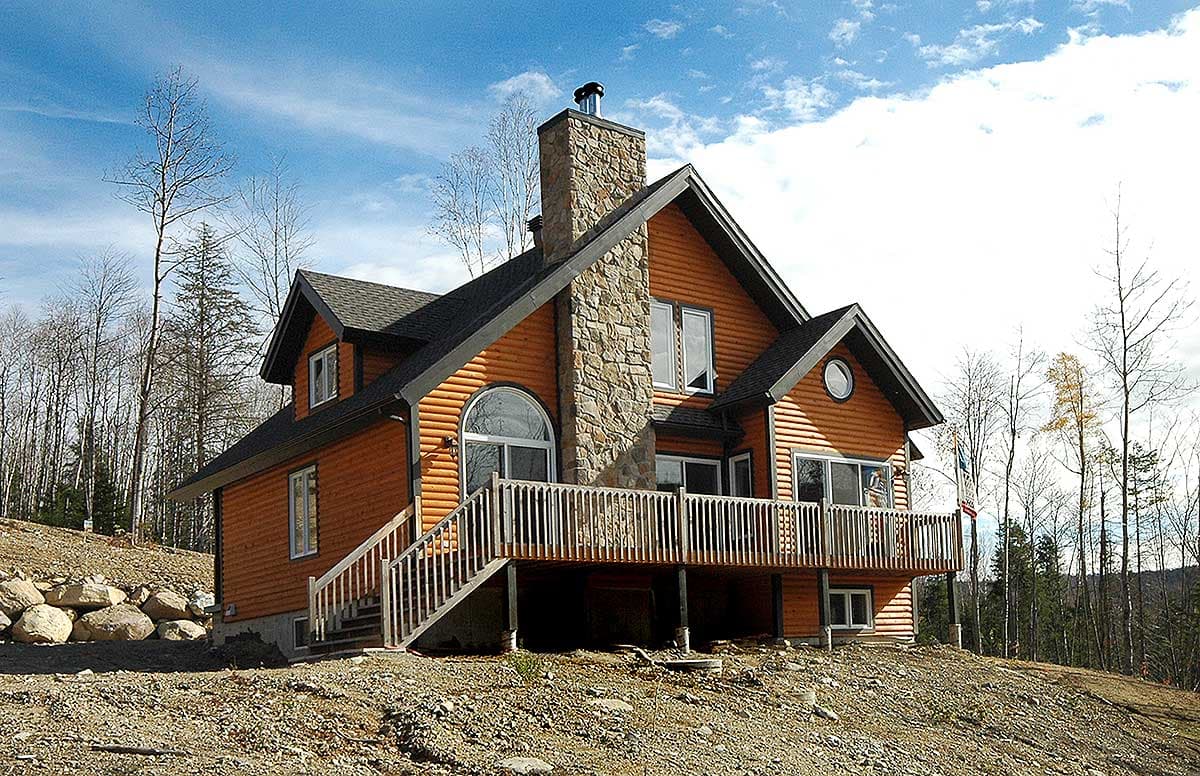

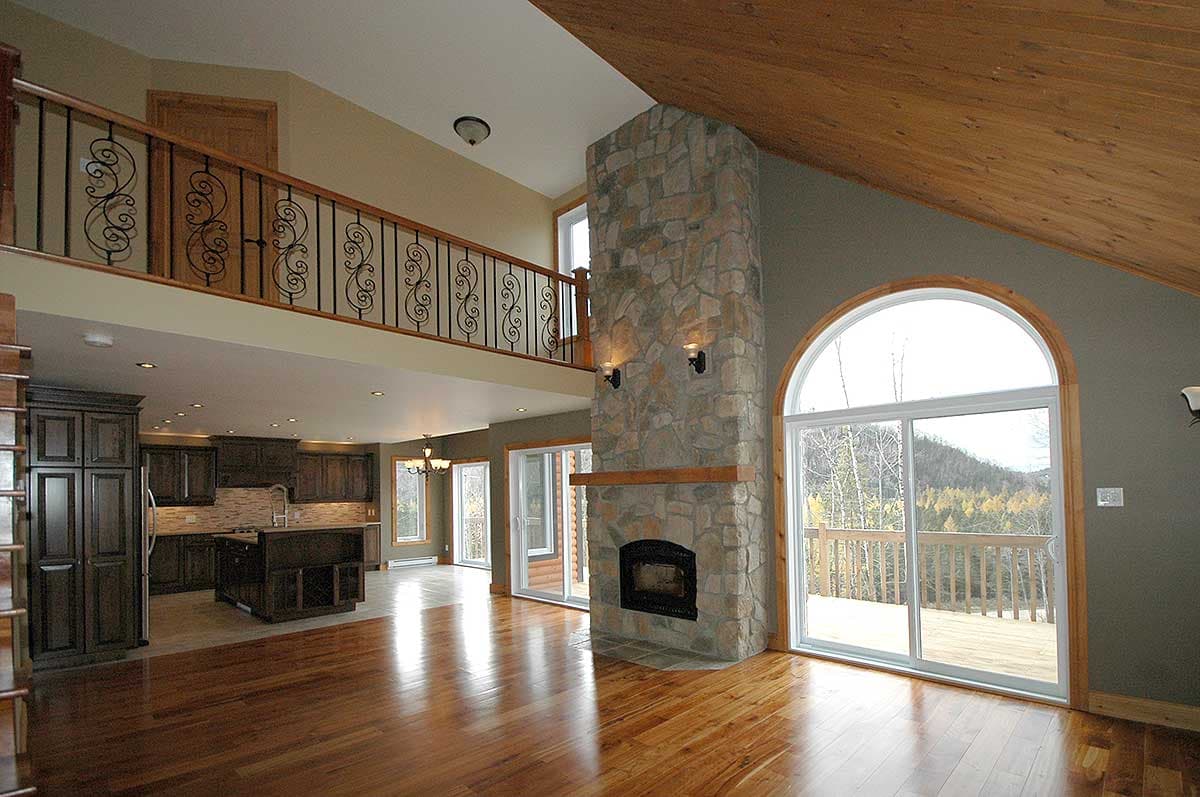

  • Open to each other, the family room and kitchen-dining room offer a wonderful living area. The fireplaced family room rises for two stories, the kitchen-dining room is enlarged by a box bay, and both rooms open to a deck.

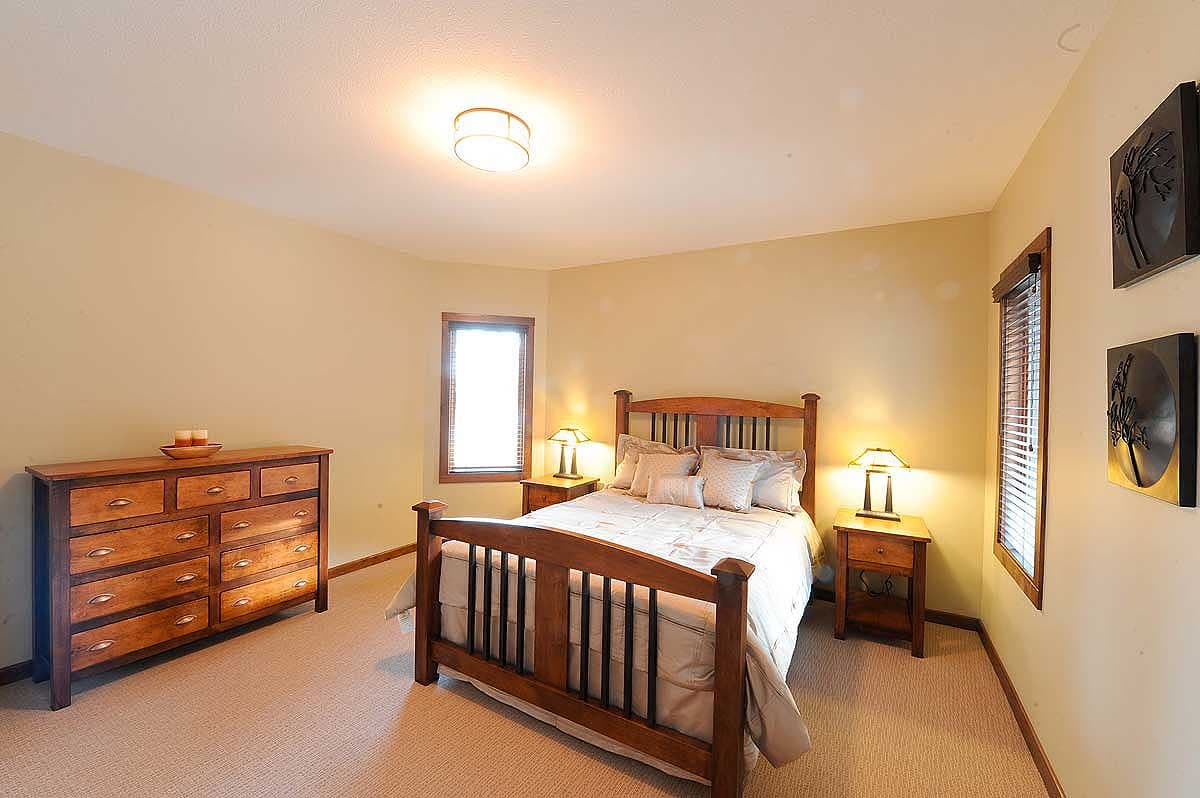

  • The sheltered main entry opens to a hall with a large coat closet, while the main-level bedroom includes a large walk-in closet.

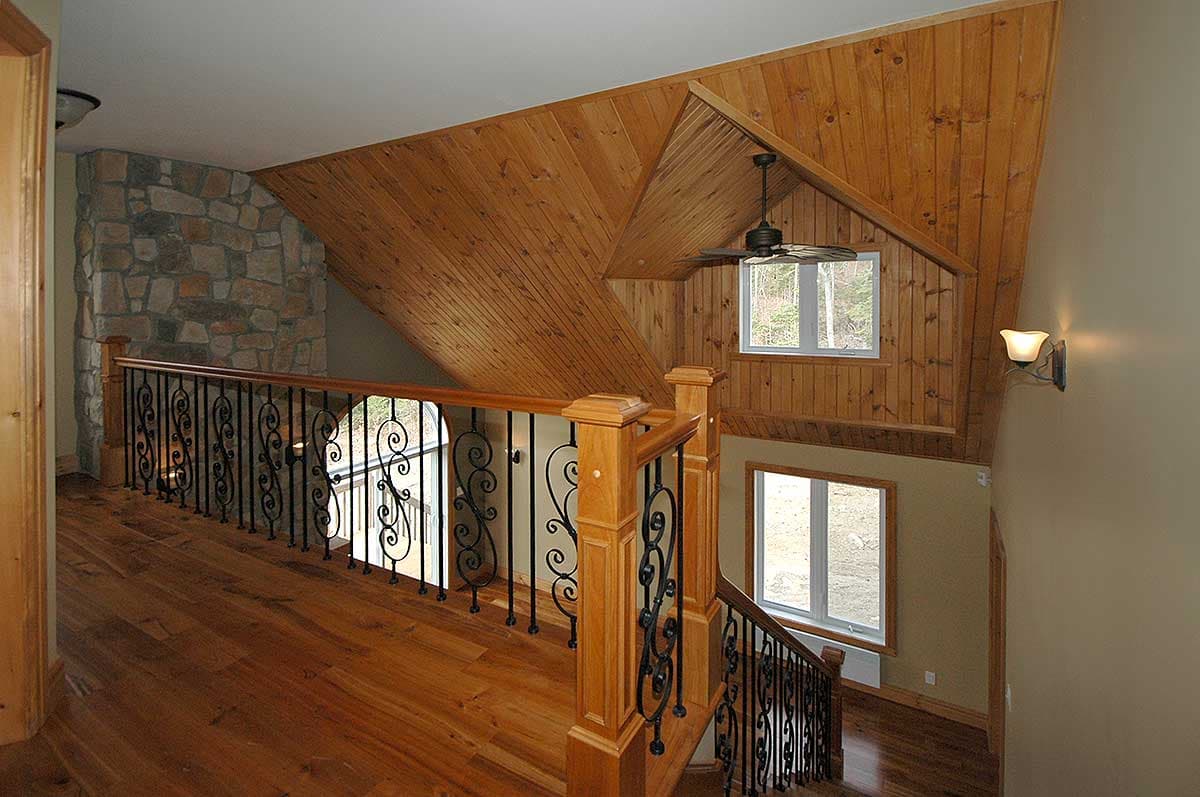

  • Upstairs, a mezzanine overlooks the family room below. Two bedrooms share the second bath.
  • In the crawlspace version, the water heater is placed underneath the stairs and the washer and dryer - that are normally in the basement - would go in the enclosed space behind the fridge.
  • The deck and bathroom/walk-in closet bumpout are both considered in the 36' width and depth of the home.
  • Related Plans: Get a larger version with house plan 22592DR (1,876 sq. ft.) Get a version in reverse layout with home plan 21567DR. Get a walkout basement and more room on the second floor with house plan 21961DR and 21979DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

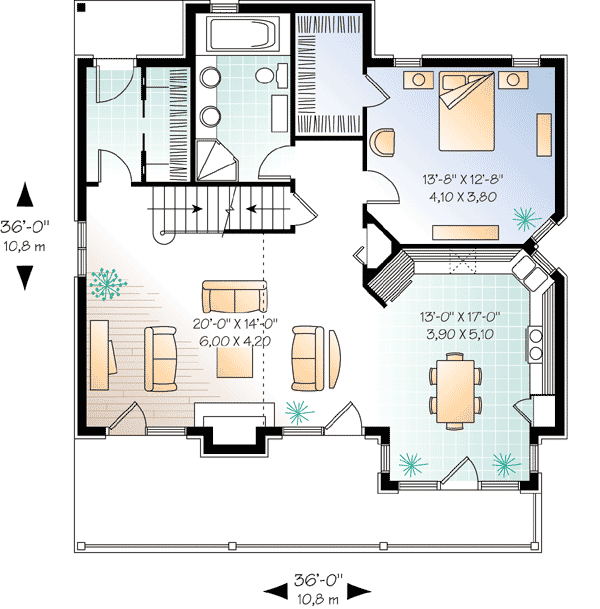

Four-Seasons Cottage - 21091DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

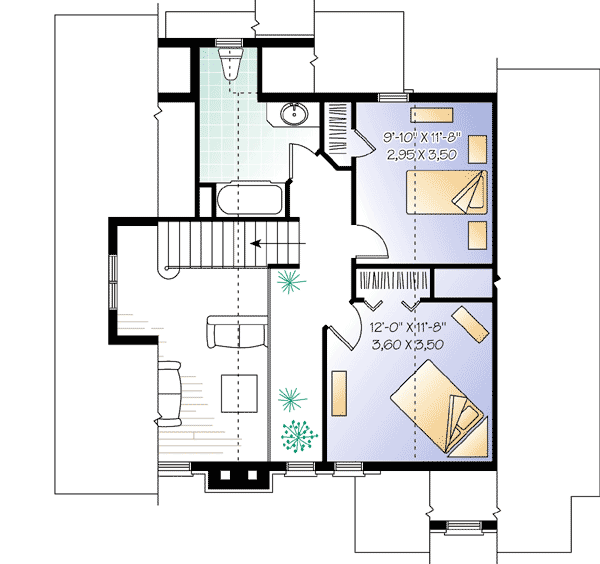

Four-Seasons Cottage - 21091DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,625 sq. ft.
  • 1st Floor: 1,108 sq. ft.
  • 2nd Floor: 517 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 36' 0"
  • Max ridge height: 25' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Four-Seasons Cottage

  • 1,625

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,450
  • 3 Sets + PDF $1,575
  • CAD + PDF - Single-Build $2,050
  • View all purchase option online

About This Plan

  • Set off by a sturdy stone chimney, stone accents and decorative gables, this striking cottage design could be used as a four-season vacation home.
  • Open to each other, the family room and kitchen-dining room offer a wonderful living area. The fireplaced family room rises for two stories, the kitchen-dining room is enlarged by a box bay, and both rooms open to a deck.
  • The sheltered main entry opens to a hall with a large coat closet, while the main-level bedroom includes a large walk-in closet.
  • Upstairs, a mezzanine overlooks the family room below. Two bedrooms share the second bath.
  • In the crawlspace version, the water heater is placed underneath the stairs and the washer and dryer - that are normally in the basement - would go in the enclosed space behind the fridge.
  • The deck and bathroom/walk-in closet bumpout are both considered in the 36' width and depth of the home.
  • Related Plans: Get a larger version with house plan 22592DR (1,876 sq. ft.) Get a version in reverse layout with home plan 21567DR. Get a walkout basement and more room on the second floor with house plan 21961DR and 21979DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,625 sq. ft.
  • 1st Floor: 1,108 sq. ft.
  • 2nd Floor: 517 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 36' 0"
  • Max ridge height: 25' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
Plan 21091DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21091DR
|
