Family Friendly Country House Plan

Plan 5142MM

  • 1,501

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This family-friendly country home plan provides a very functional split-floor plan layout with many desirable features including an expansive master bedroom and bath with plenty of storage space in the separate walk-in closets.
  • The large great room features an attractive vaulted ceiling and a gas log fireplace adds charm to any gathering.
  • You'll find front and rear porches for outside enjoyment.
  • The open kitchen layout is a treat. You'll enjoy having plenty of counter space and access to friends and family in the open eating area and to the rear covered porch.
  • The garage is spacious and has built-in storage. In the slab and crawlspace versions you have even more room there by using the space allocated for stairs as garage space.
  • Related Plans: For a slightly-altered version, see house plan 5187MM. Get a side-entry garage with house plans 5147MM and 5186MM.
  • For a Craftsman exterior, see house plans 51041MM, 51043MM and 51040MM.

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form: In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

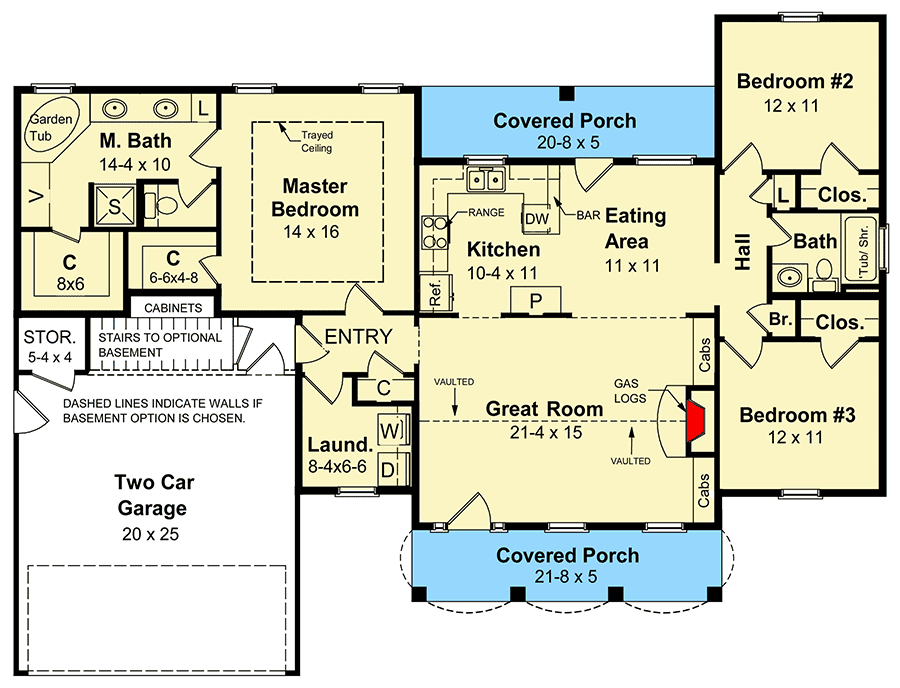

Family Friendly Country House Plan - 5142MM floor plan - Main Level
