Plan 82063KA
First or Second Floor Master Suite
Heated S.F.
3,090
Beds
5
Baths
3
Stories
2
Cars
2
What's Included
Plan Details
  • Choose from a first or second floor master suite in this five bedroom Mediterranean home plan.
  • You can also use the first floor master as an in-law suite.
  • Two story ceilings rise above the foyer and family room adding to a sense of spaciousness.
  • Two columns define the dining room area without blocking the views with walls.
  • In back, the informal family living area has views of the rear patio.
  • On the second floor, the master suite is huge with a larger walk-in closet.
  • Three large family bedrooms share a 4 piece hall bathroom with a linen closet in it.
  • Related Plan: Get an alternate exterior with house plan 82064KA.
What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

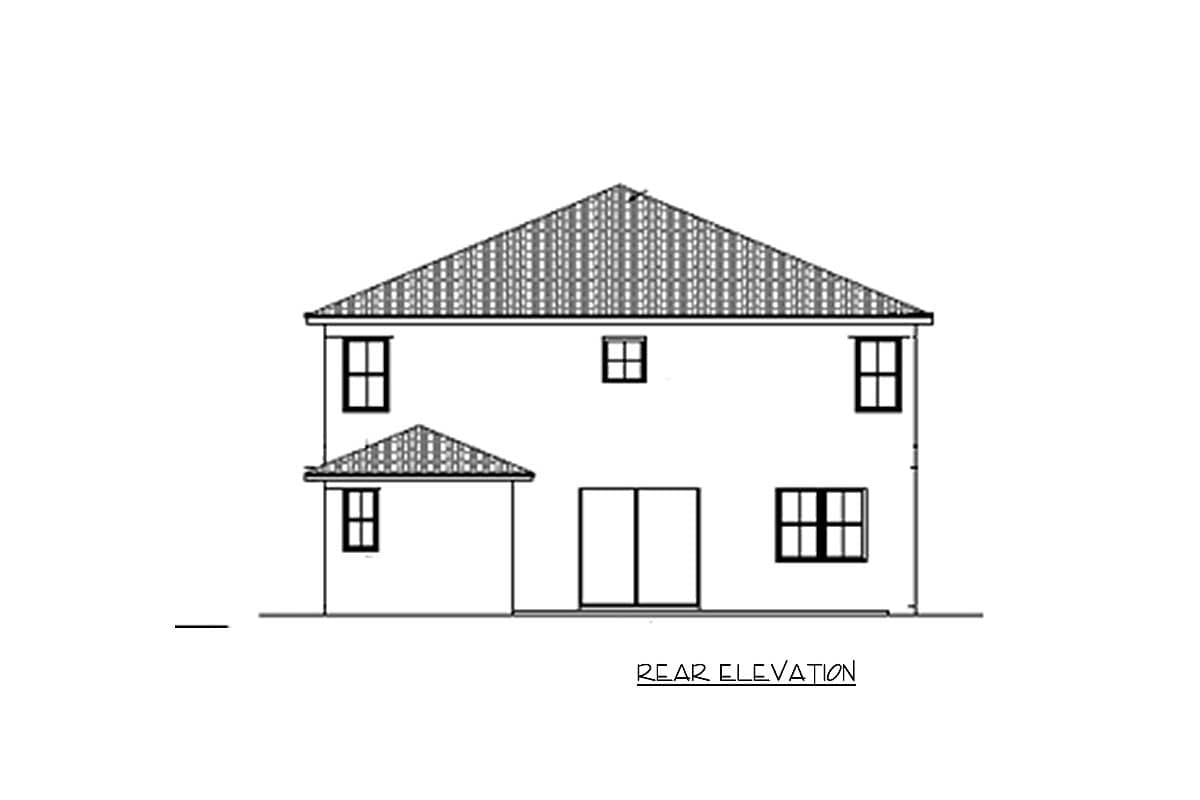

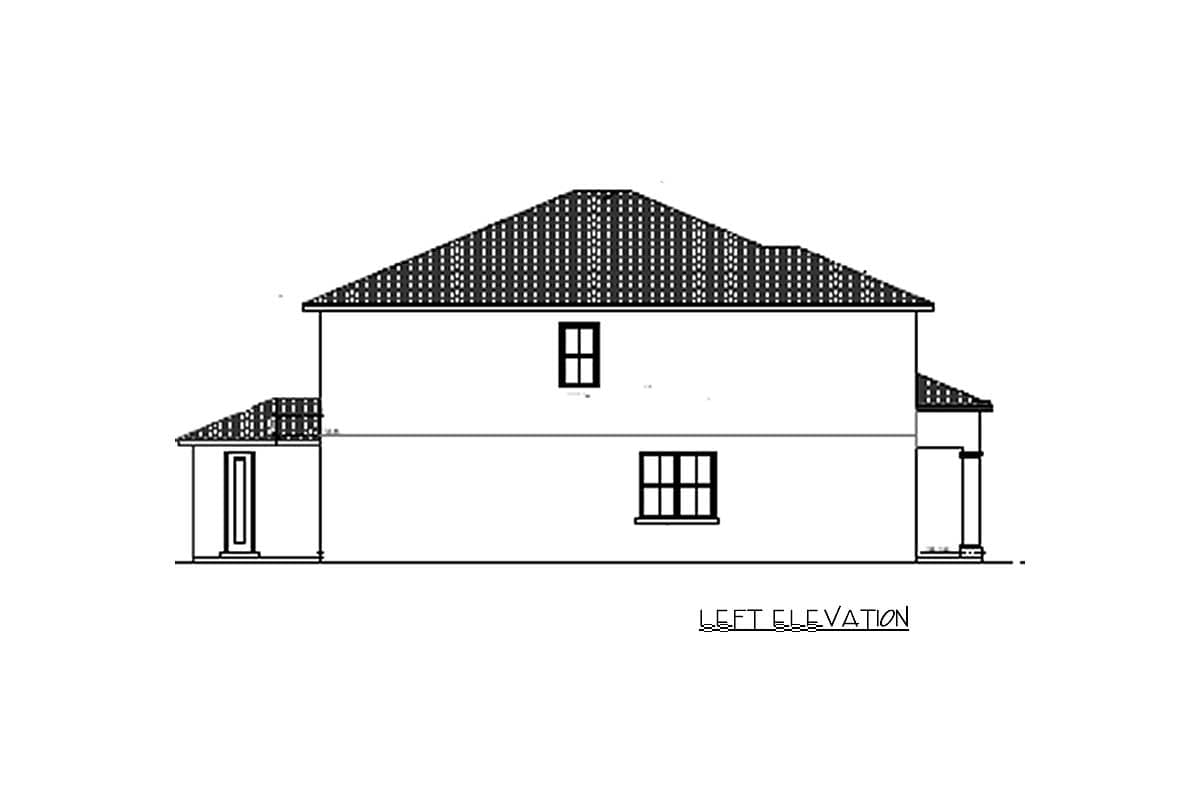

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

First or Second Floor Master Suite

  • 3,090

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,090 sq. ft.
  • 1st Floor: 1,600 sq. ft.
  • 2nd Floor: 1,490 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 62' 4"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 425 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 9' 4" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

First or Second Floor Master Suite

  • 3,090

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

First or Second Floor Master Suite

  • 3,090

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,090 sq. ft.
  • 1st Floor: 1,600 sq. ft.
  • 2nd Floor: 1,490 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 62' 4"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 425 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 9' 4" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
