Plan 22489DR Four Bedroom Split Level House Plan

2,735 4 2.5 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Four Bedroom Split Level House Plan

Plan 22489DR

  • 2,735

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

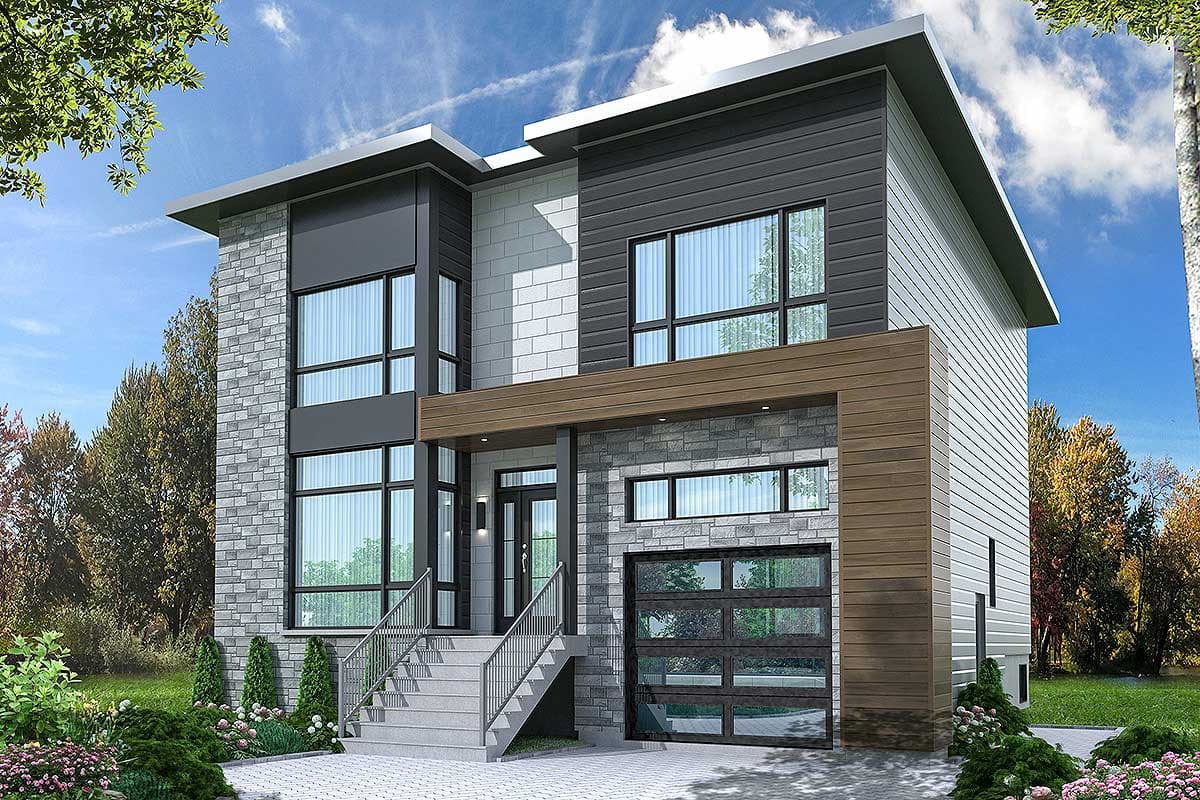

  • Transom windows enhance the contemporary vibe of this Northwest house plan.
  • The L-shaped open floor plan heightens the views from the kitchen so you can keep an eye on family activites while cooking.
  • Pocket doors slide closed in the office so you can work in peace and quiet.
  • The garage and powder room are three steps down from the main level.
  • Upstairs four spacious bedrooms include the master suite with its private bathroom and big walk-in closet.

Each plan includes the following:

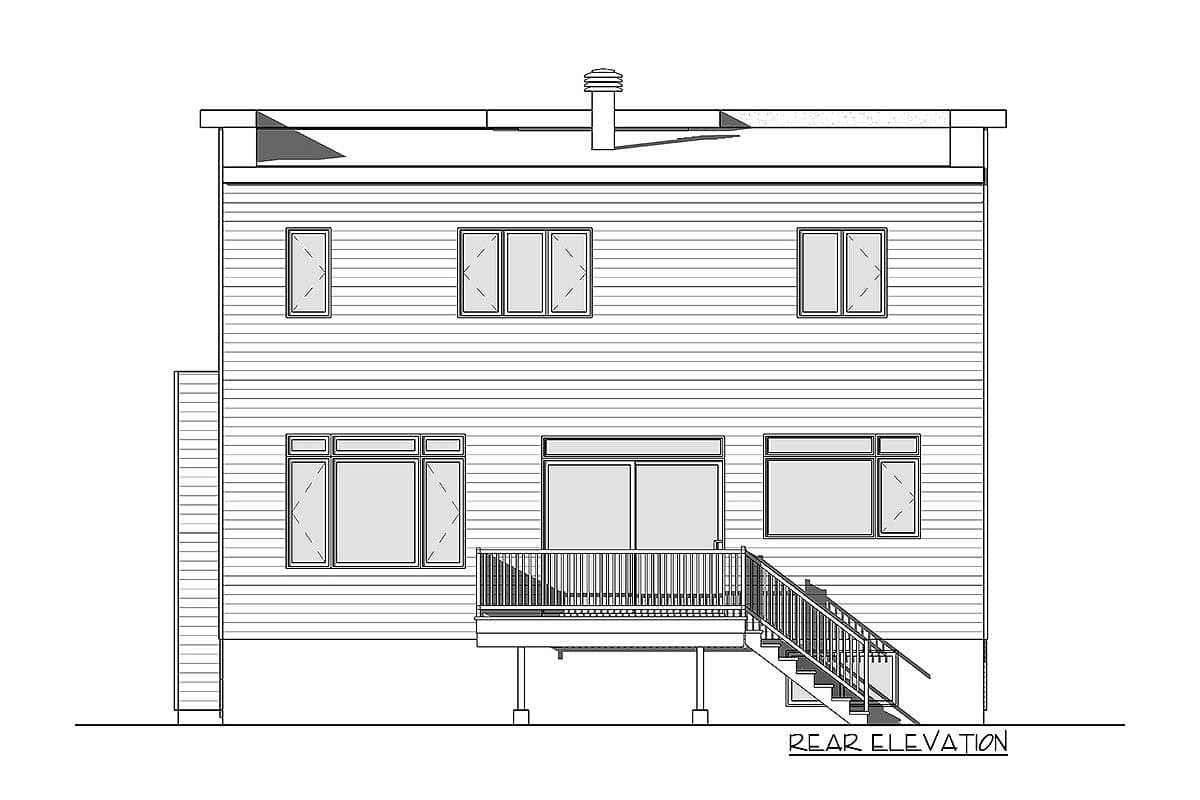

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

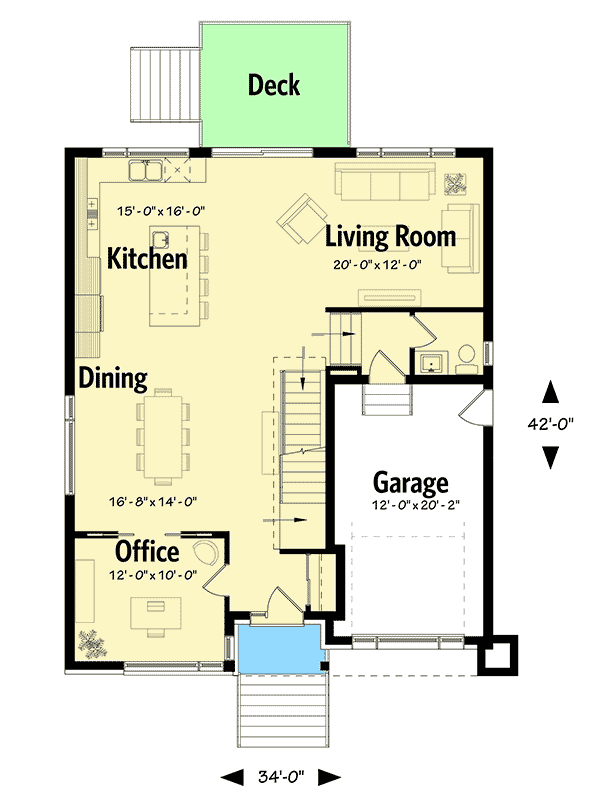

Four Bedroom Split Level House Plan - 22489DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

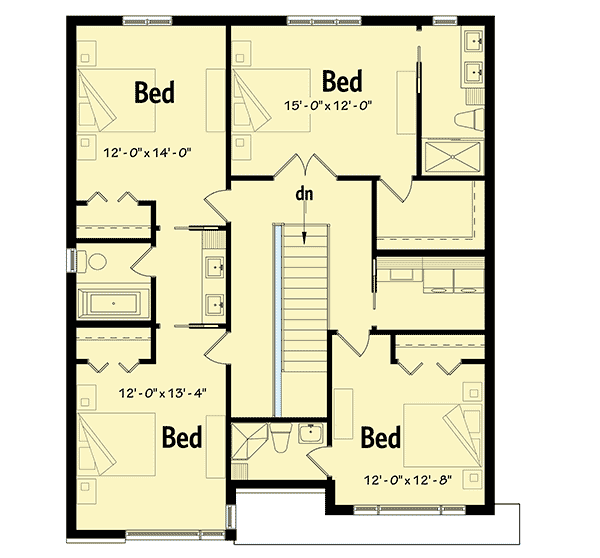

Four Bedroom Split Level House Plan - 22489DR floor plan - 2nd Floor

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

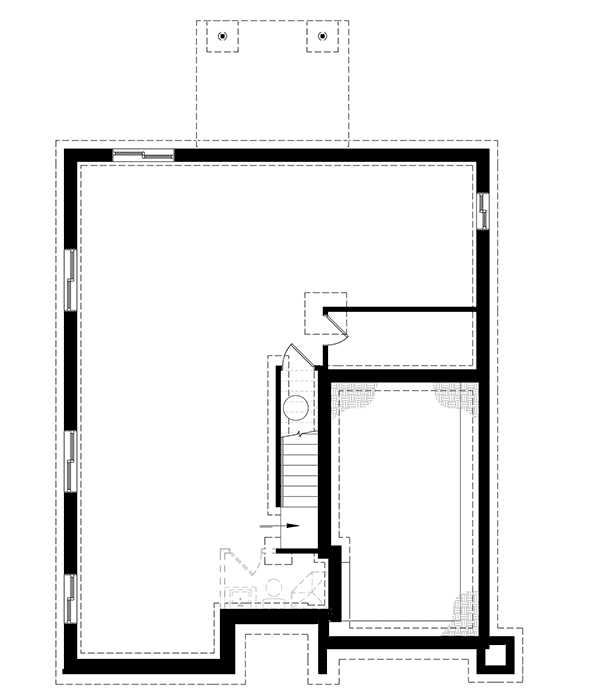

Four Bedroom Split Level House Plan - 22489DR floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,735 sq. ft.
  • 1st Floor: 1,100 sq. ft.
  • 2nd Floor: 1,367 sq. ft.
  • Porch, Combined: 28 sq. ft.
  • Basement Unfinished: 1,107 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 42' 0"
  • Max ridge height: 26' 9"

Garage

  • Type: Attached
  • Area: 268 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Four Bedroom Split Level House Plan

  • 2,735

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,390
  • 5 Sets + PDF $1,515
  • CAD + PDF - Single-Build $1,990
  • View all purchase option online

About This Plan

  • Transom windows enhance the contemporary vibe of this Northwest house plan.
  • The L-shaped open floor plan heightens the views from the kitchen so you can keep an eye on family activites while cooking.
  • Pocket doors slide closed in the office so you can work in peace and quiet.
  • The garage and powder room are three steps down from the main level.
  • Upstairs four spacious bedrooms include the master suite with its private bathroom and big walk-in closet.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,735 sq. ft.
  • 1st Floor: 1,100 sq. ft.
  • 2nd Floor: 1,367 sq. ft.
  • Porch, Combined: 28 sq. ft.
  • Basement Unfinished: 1,107 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 42' 0"
  • Max ridge height: 26' 9"

Garage

  • Type: Attached
  • Area: 268 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 22489DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/22489DR
|
