Grand Mountain House Plan with Ample Outdoor Living

Plan 95073RW

  • 5,935

    Heated s.f.

  • 3-5

    Beds

  • 2.5+ - 4.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • The side-entry garage offers a courtyard approach to this 3-bedroom, mountain house plan, while an arched roofline atop the front entry provides a grand first impression.
  • Five fireplaces sprinkled throughout the home offer a lodge-like feeling of comfort, one of which is located in the luxurious master bedroom. A private patio and deluxe en suite, with a garden tub and oversized shower, complete the master.
  • Double-height ceilings in the great room provide a feeling of spaciousness and the open-concept floor plan is what homeowner's desire. Enjoy the host's kitchen when entertaining, or utilize the outdoor kitchen during warmer seasons.
  • On the second level, two lofts spaces are connected by a bridge and overlook the great room and foyer. A separate staircase leads to an exercise area and office above the 4-car garage.
  • Two additional guest suites on the main level both provide access to the back deck and include a full bathroom.
  • The expansive lower level boasts a recreation / game room, large bar and wine cellar, home theater, and two bedrooms, each with their own full bath.

  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

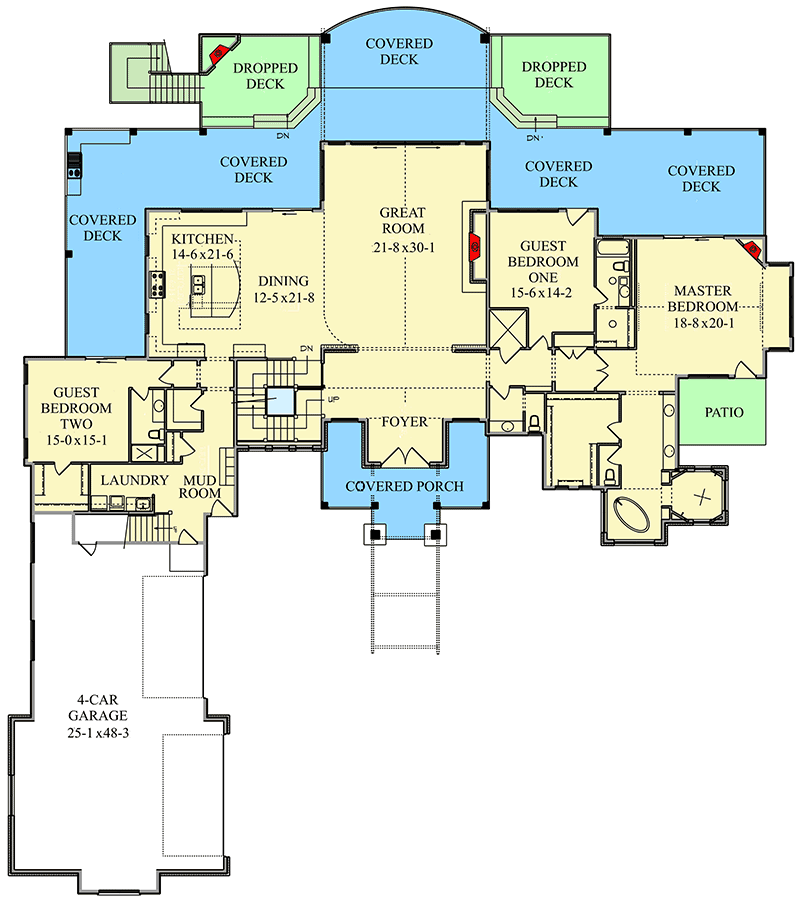

Grand Mountain House Plan with Ample Outdoor Living - 95073RW floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

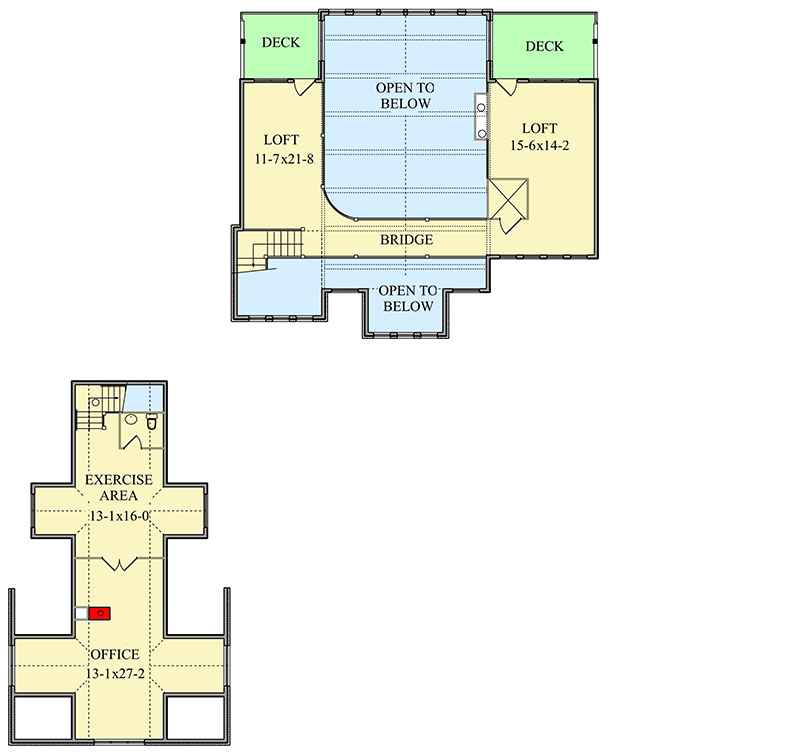

Grand Mountain House Plan with Ample Outdoor Living - 95073RW floor plan - Second Level

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

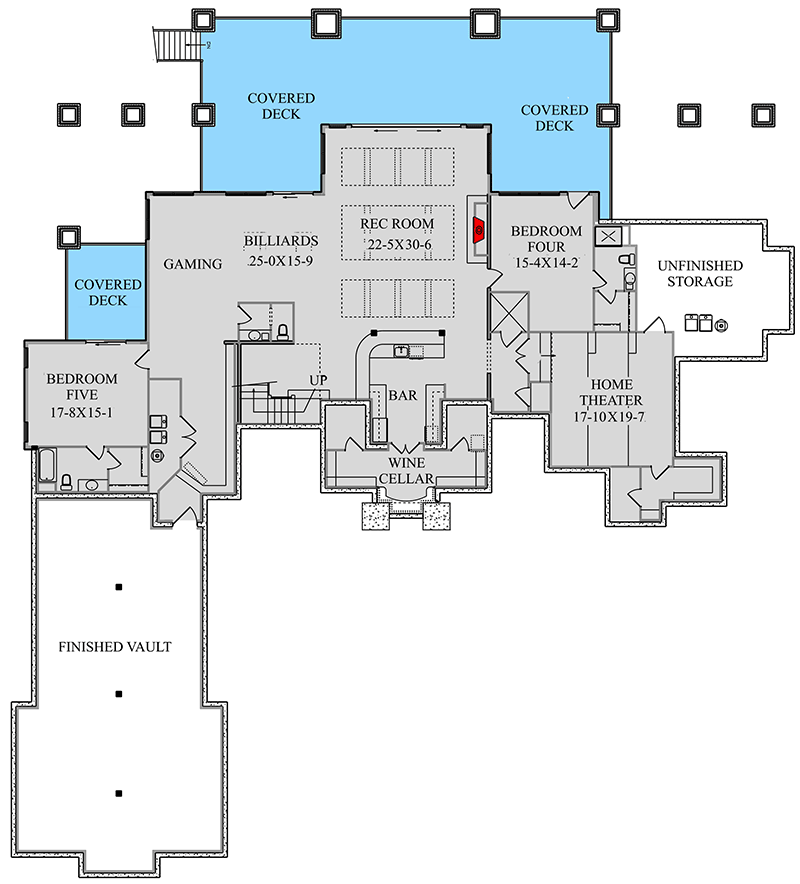

Grand Mountain House Plan with Ample Outdoor Living - 95073RW floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,935 sq. ft.
  • 1st Floor: 4,136 sq. ft.
  • 2nd Floor: 1,799 sq. ft.
  • Optional Lower Level: 4,842 sq. ft.
  • Basement Unfinished: 700 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 116' 0"
  • Depth: 131' 6"
  • Max ridge height: 30' 11"

Garage

  • Type: Attached
  • Area: 1552 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12

Architectural Style

Special features

Grand Mountain House Plan with Ample Outdoor Living

  • 5,935

    Heated s.f.

  • 3-5

    Beds

  • 2.5+ - 4.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $4,100
  • CAD - Single-Build $5,800
  • View all purchase option online

About This Plan

  • The side-entry garage offers a courtyard approach to this 3-bedroom, mountain house plan, while an arched roofline atop the front entry provides a grand first impression.
  • Five fireplaces sprinkled throughout the home offer a lodge-like feeling of comfort, one of which is located in the luxurious master bedroom. A private patio and deluxe en suite, with a garden tub and oversized shower, complete the master.
  • Double-height ceilings in the great room provide a feeling of spaciousness and the open-concept floor plan is what homeowner's desire. Enjoy the host's kitchen when entertaining, or utilize the outdoor kitchen during warmer seasons.
  • On the second level, two lofts spaces are connected by a bridge and overlook the great room and foyer. A separate staircase leads to an exercise area and office above the 4-car garage.
  • Two additional guest suites on the main level both provide access to the back deck and include a full bathroom.
  • The expansive lower level boasts a recreation / game room, large bar and wine cellar, home theater, and two bedrooms, each with their own full bath.

Floor Plans

  • Main Level

  • Second Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,935 sq. ft.
  • 1st Floor: 4,136 sq. ft.
  • 2nd Floor: 1,799 sq. ft.
  • Optional Lower Level: 4,842 sq. ft.
  • Basement Unfinished: 700 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 116' 0"
  • Depth: 131' 6"
  • Max ridge height: 30' 11"

Garage

  • Type: Attached
  • Area: 1552 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
