Hip-Roofed Ranch Home Plan

Plan 15888GE

  • 2,090

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This rustic hip-roofed house plan promotes open spaces and spectacular outdoor views. Vaulted ceilings in the foyer and lodge room allow for ample amounts of natural light.
  • The open kitchen/breakfast area in this rustic home plan is perfect for casual dining or entertaining. From the breakfast area, walk out onto the patio which can be covered or screened.
  • The beautiful master suite includes a luxurious master bath and walk-in closet. Two additional bedrooms with a shared bath finish out this ranch floor plan.
  • The bonus room option over the garage gives you 422 square feet of expansion space.
  • A large two car garage comes equipped with an area perfect for a workshop or storage.
  • Related Plans: Save money with a gable roof with house plan 15885GE. Downsize with house plans 15887GE (1,873 sq. ft.),  15886GE (1,729 sq. ft.) and 25665GE (1,515 sq. ft.). See what started it all, and photos and links to even more versions, with house plan 15651GE (2,611 sq. ft.).

The plan set includes the following:

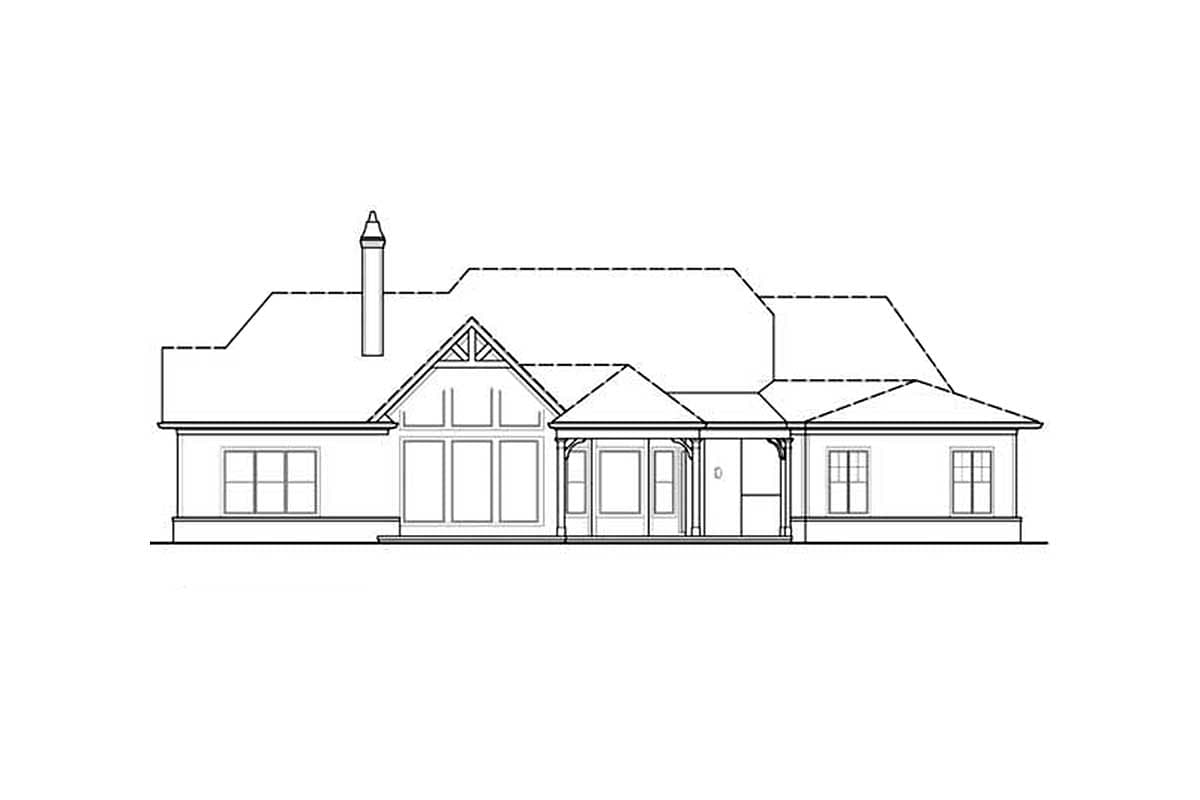

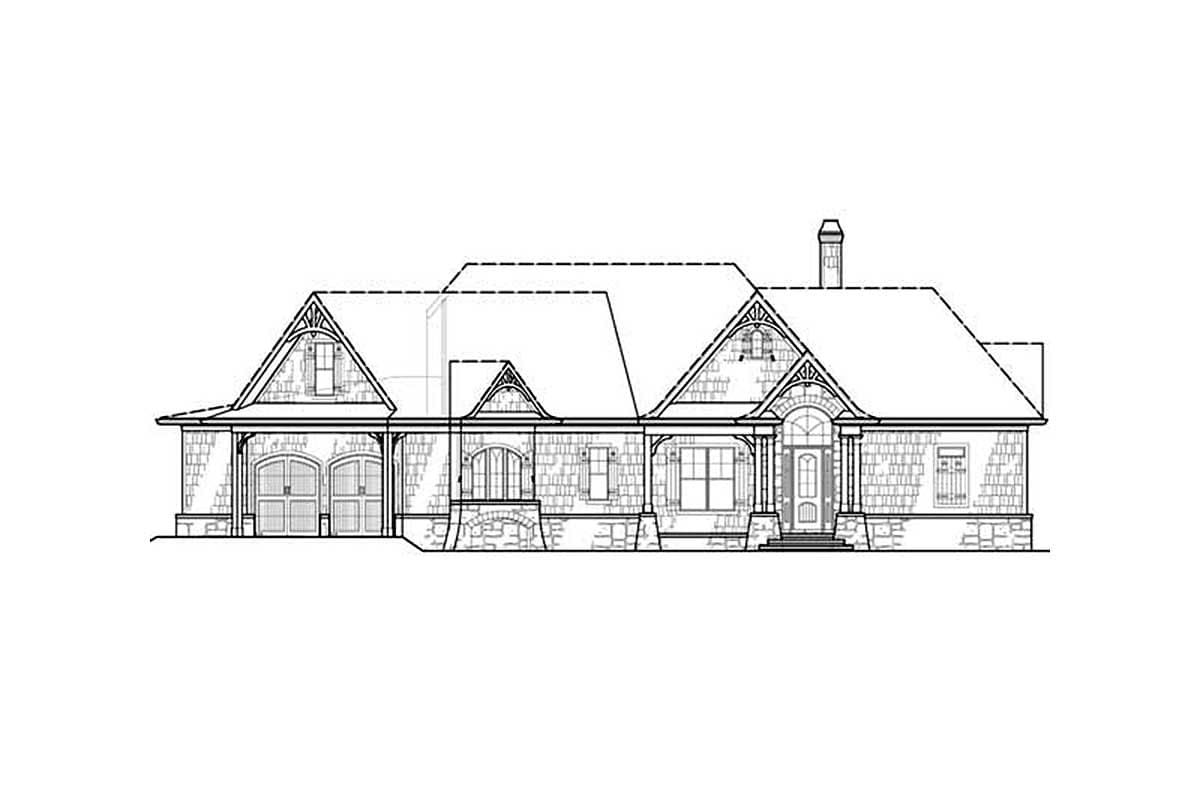

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

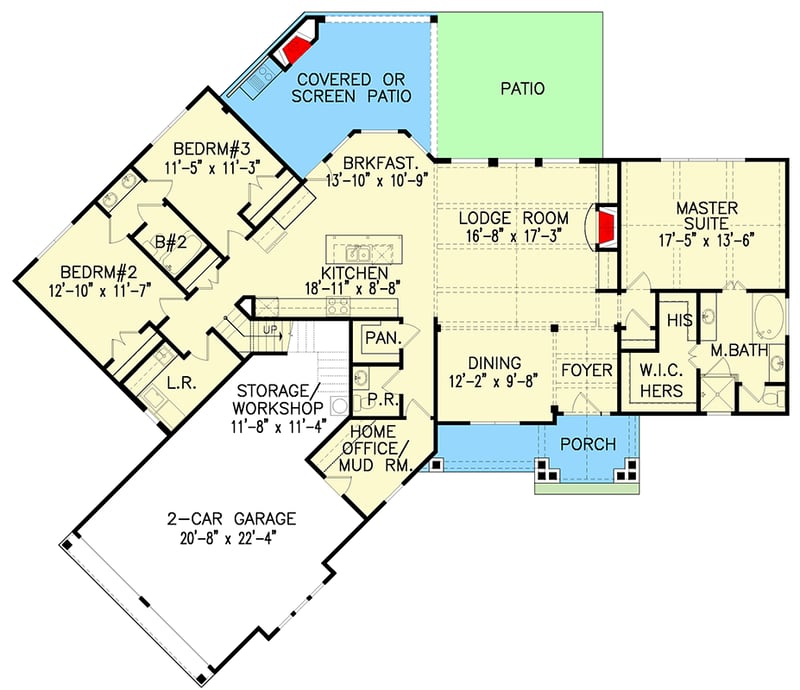

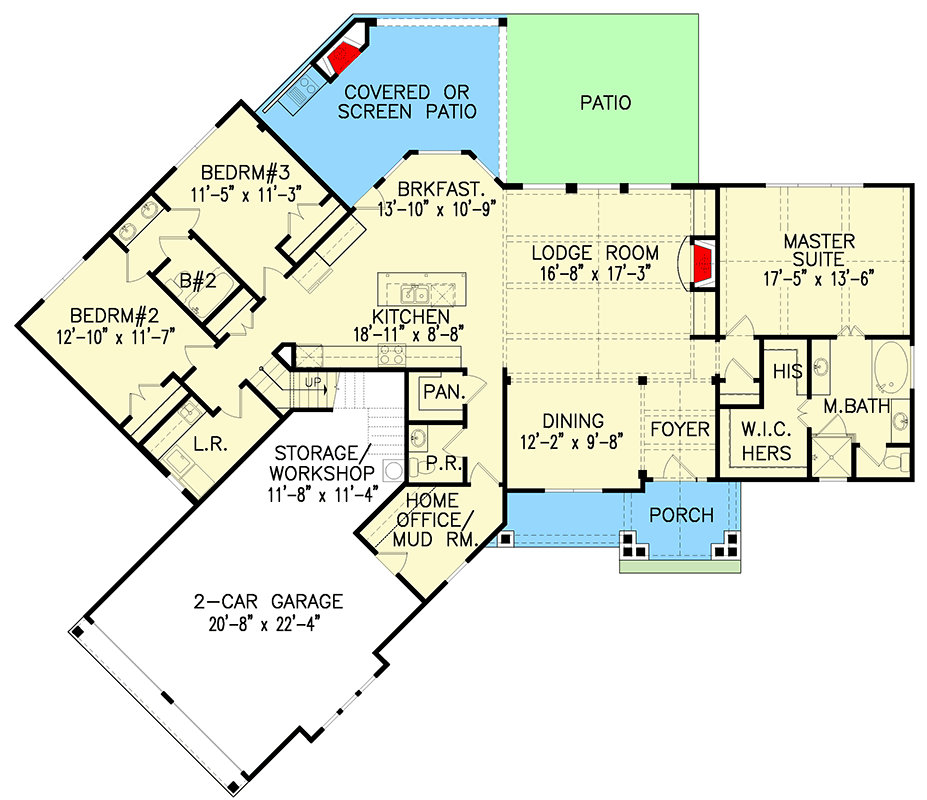

Hip-Roofed Ranch Home Plan - 15888GE floor plan - Main Level

2nd Floor - Optionally Finished Bonus Room Over Garage

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

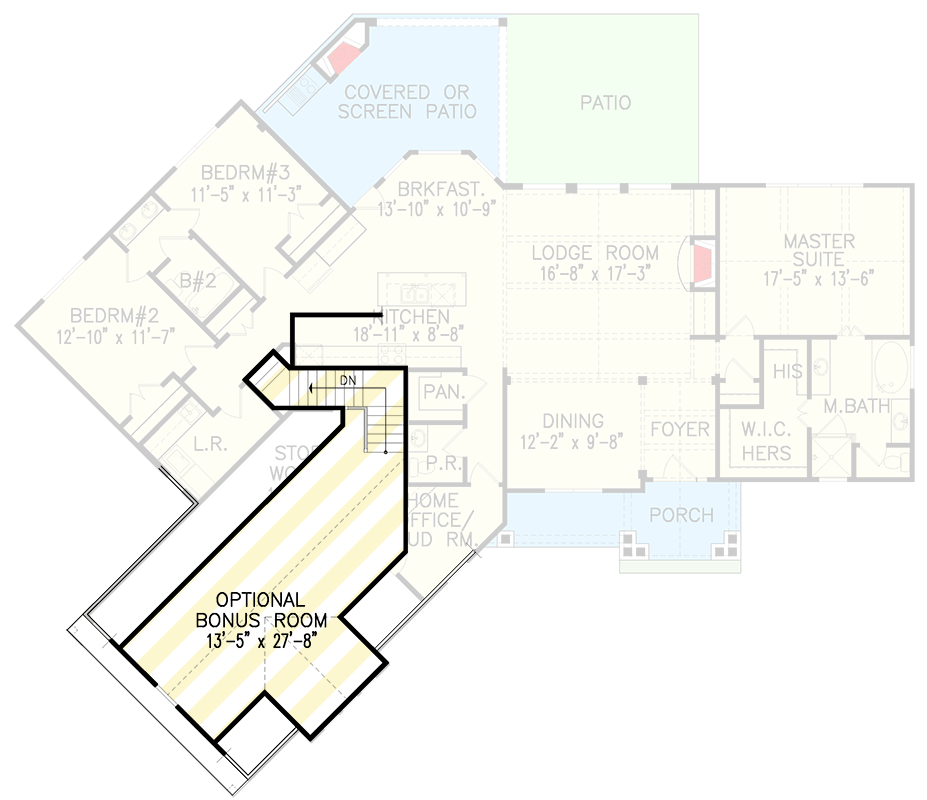

Hip-Roofed Ranch Home Plan - 15888GE floor plan - 2nd Floor - Optionally Finished Bonus Room Over Garage
