Graceful Lines

Plan 48320FM

  • 4,868

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • With a sweeping roofline and a great attention to detail, this luxury house plan makes a statement.
  • A grand covered entryway opens to foyer with 20'2" ceilings flanked by a private study with fireplance and built-ins and a formal dining room.
  • The great room features a fireplace with bookshelves and media center built-ins to the sides. This room gets lots of light from the rear wall of windows.
  • The kitchen is open to the nook which has rear patio access.
  • The master suite has patio access and a luxurious master bath. The walk-in closet is partitioned and has built-in shelving.
  • A guest bedroom is located off the two-car garage.
  • Upstairs, you'll find three bedroom suites and a media/rec room. This has access to a large deck overlooking the back yard.
  • Related Plans: Get a one-car garage in front with house plans 48447FM (4,906 sq. ft.) and 48000FM (4,237 sq. ft.).
  • Other versions with a porte-cochered include house plans 48014FM (4,182 sq. ft.), 48002FM (3,769 sq. ft.), 48128FM (3,355 sq. ft.), 48211FM (4,276 sq. ft.), and 48414FM (4,309 sq. ft.).
    When you want to go really big, see house plan 48266FM (6,274 sq. ft.).

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

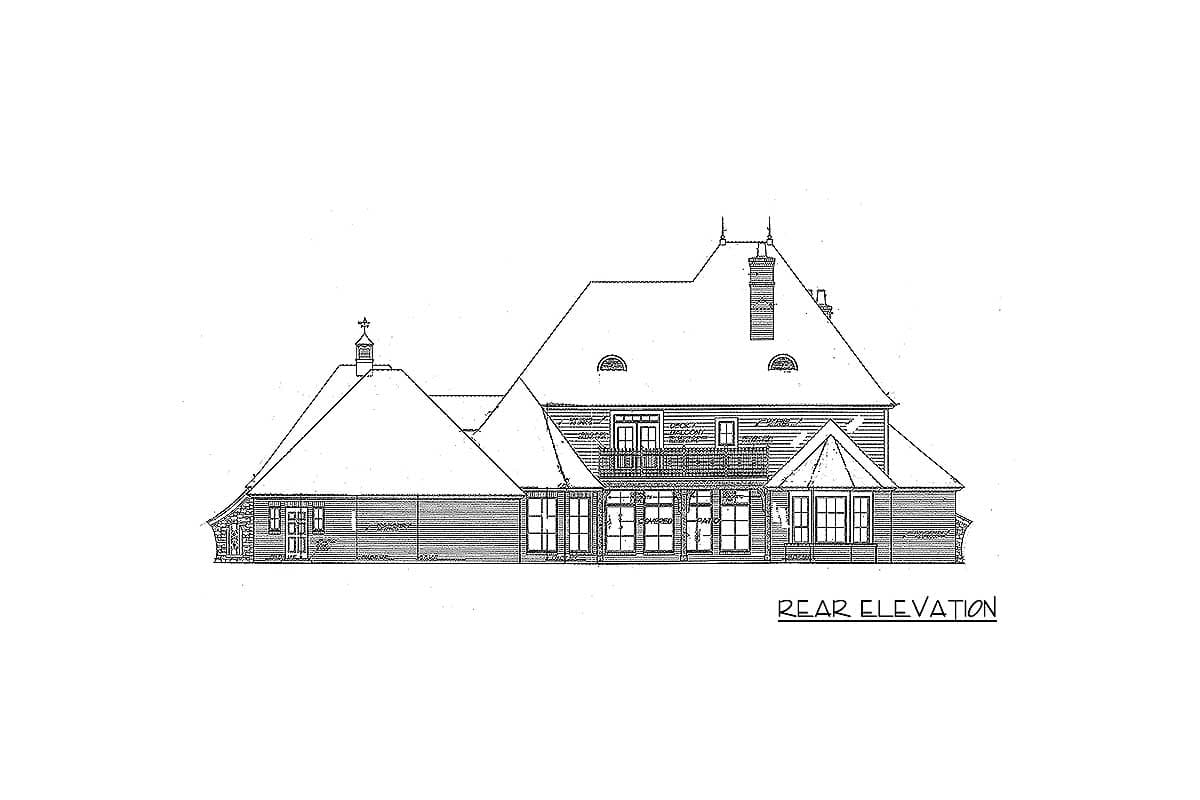

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

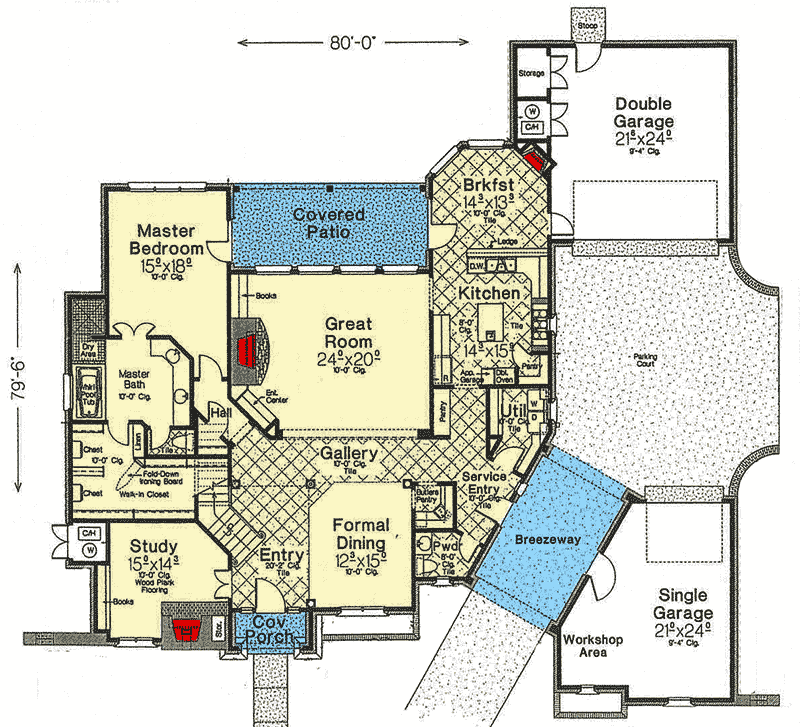

Graceful Lines - 48320FM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

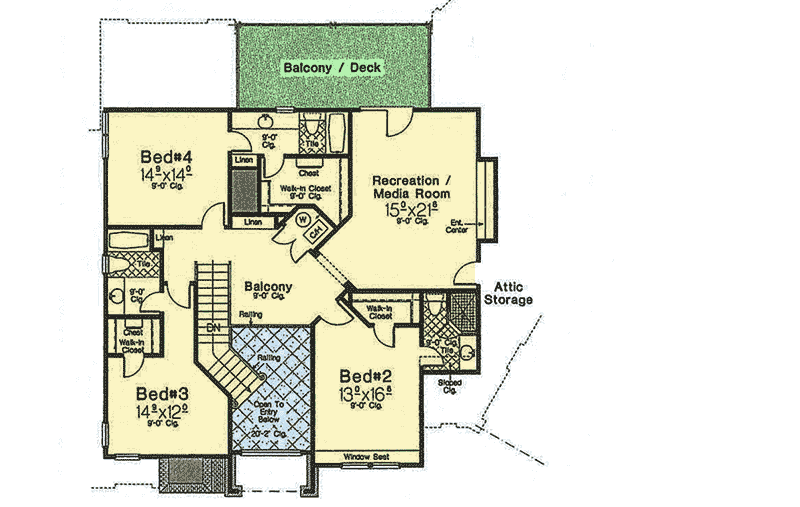

Graceful Lines - 48320FM floor plan - 2nd Floor

Graceful Lines

  • 4,868

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,868 sq. ft.
  • 1st Floor: 3,296 sq. ft.
  • 2nd Floor: 1,572 sq. ft.

Dimensions

  • Width: 92' 0"
  • Depth: 85' 6"
  • Max ridge height: 42' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1178 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Rear

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
