Plan 92350MX

Exclusive

Lake House Plan with Stacked Rear Porches - 2618 Sq Ft

Heated S.F.
2,618
Beds
3
Baths
3.5
Stories
2
Cars
2

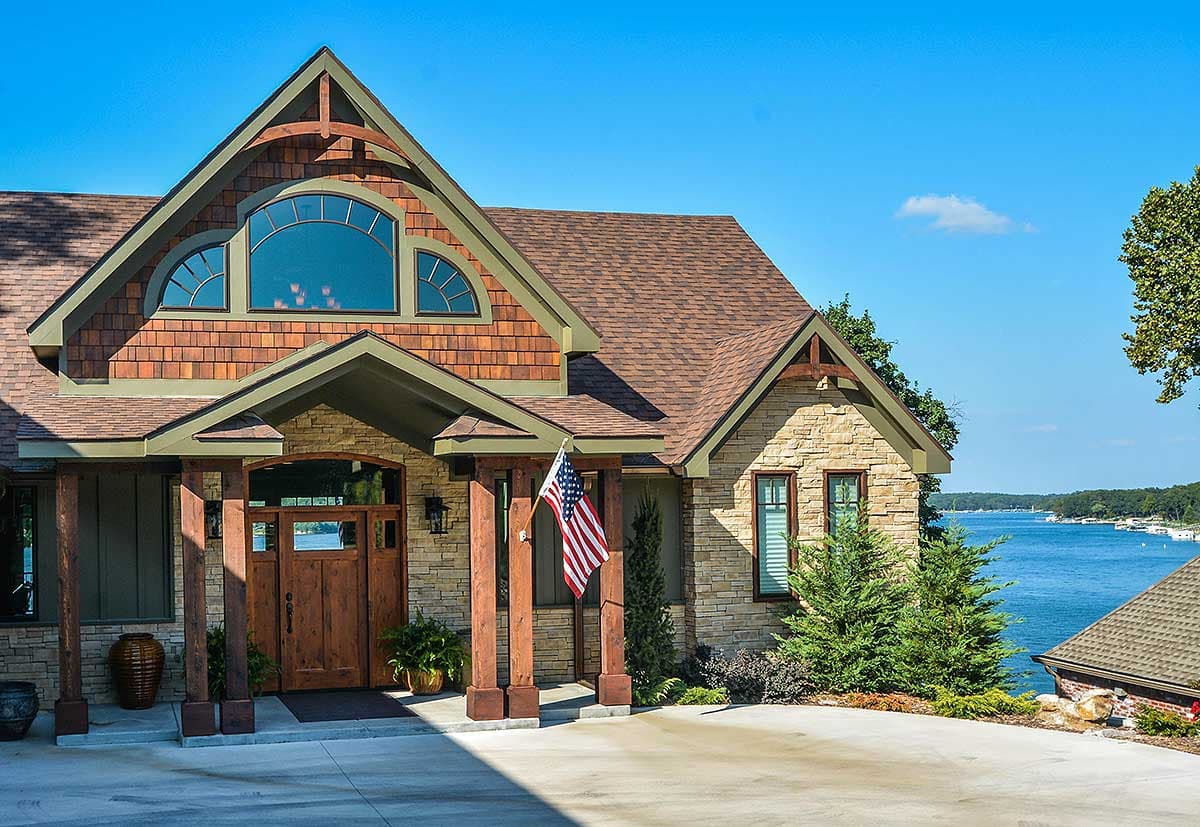

Client Photos

Floor Plan

Plan 92350MX

Main Level
Main Level
2nd Floor
2nd Floor
Optional Finished Lower Level
Optional Finished Lower Level

Plan 92350MX

M-F 9am-5pm EST |

1-203-761-8500

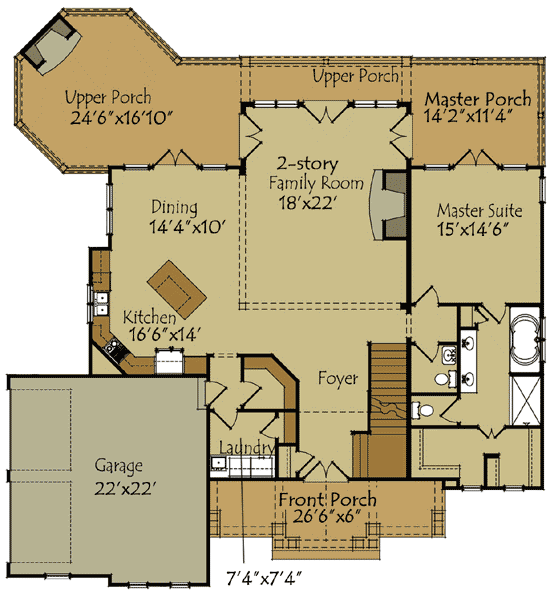

Main Level

Plan 92350MX: Lake House Plan with Stacked Rear Porches - 2618 Sq Ft - Floor Plan - Main Level - Craftsman, Mountain, Rustic

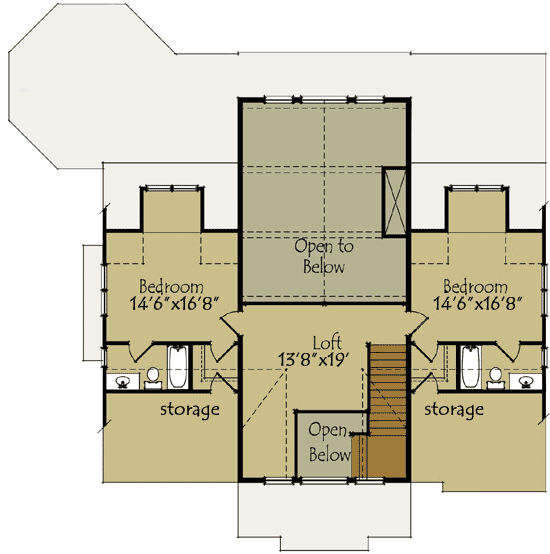

2nd Floor

Plan 92350MX: Lake House Plan with Stacked Rear Porches - 2618 Sq Ft - Floor Plan - 2nd Floor - Craftsman, Mountain, Rustic

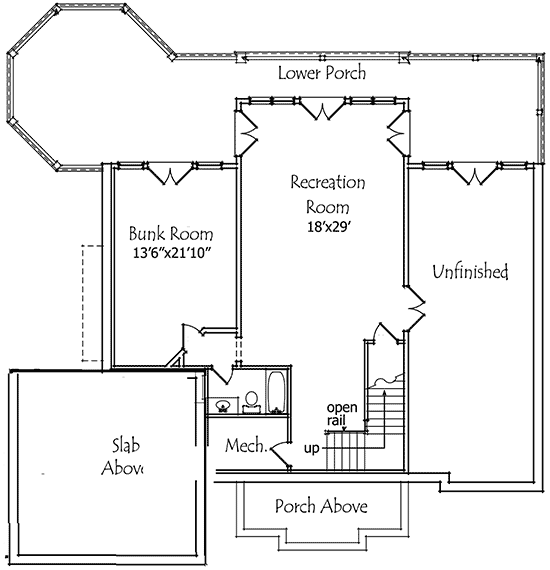

Optional Finished Lower Level

Plan 92350MX: Lake House Plan with Stacked Rear Porches - 2618 Sq Ft - Floor Plan - Optional Finished Lower Level - Craftsman, Mountain, Rustic

Plan Details

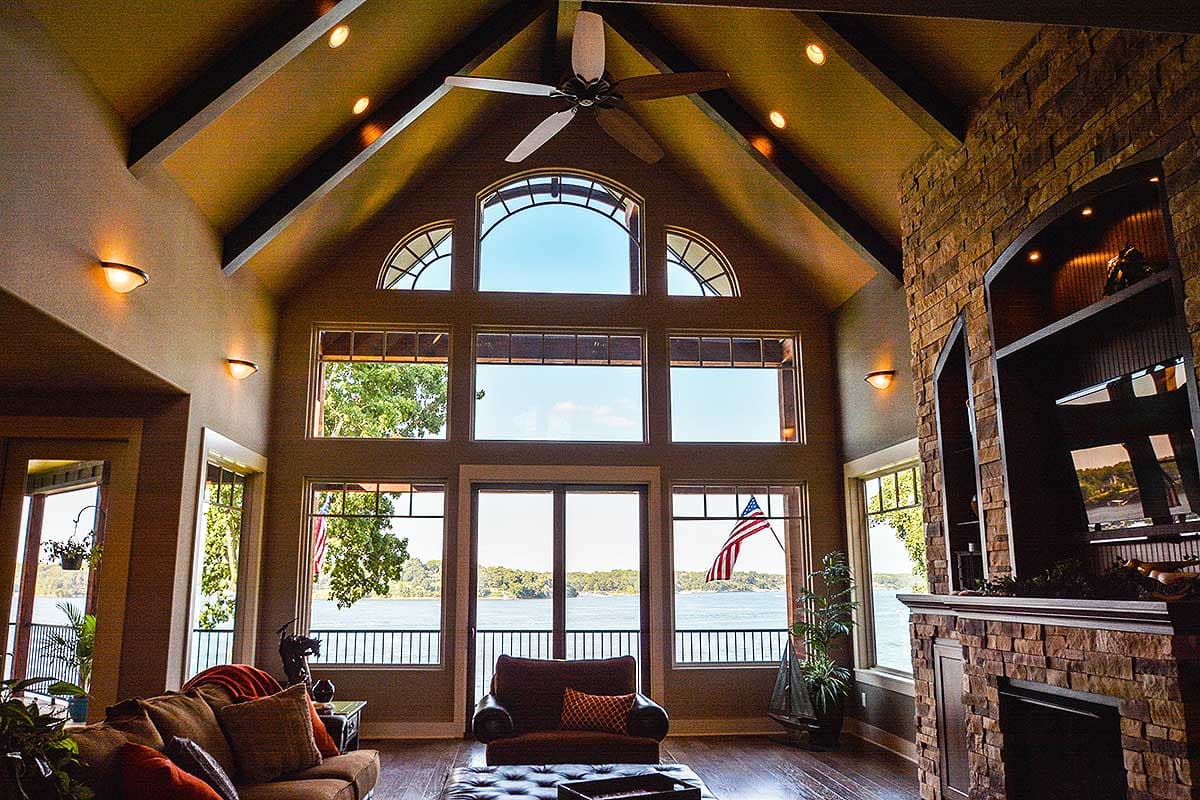

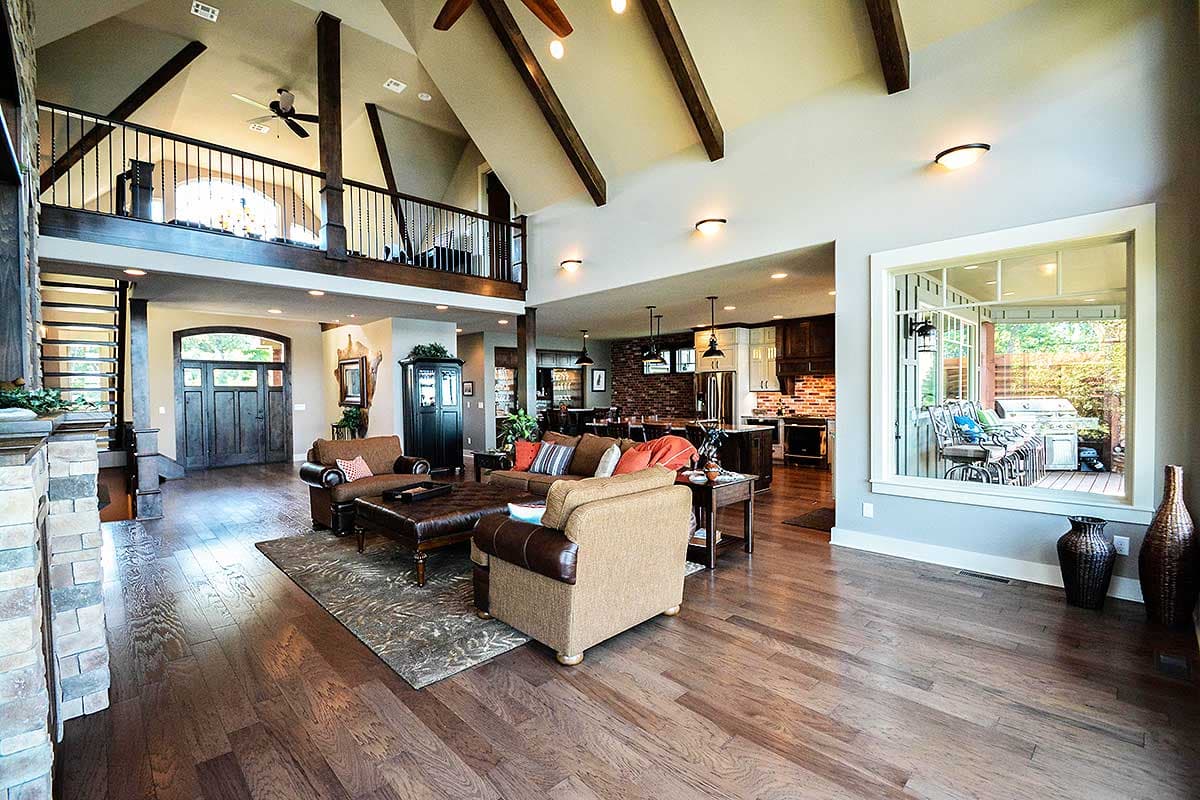

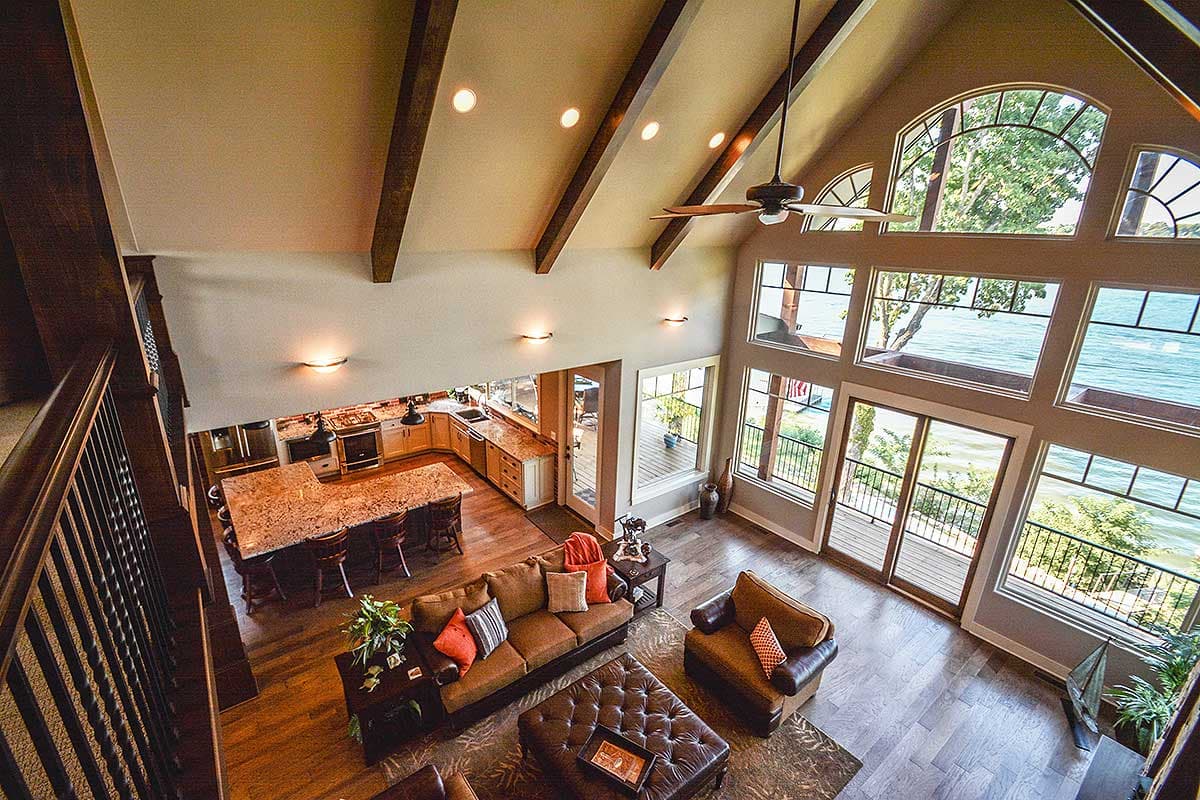

  • Both the foyer and the family room are vaulted in this rugged Mountain home plan with a delightful open floor plan.

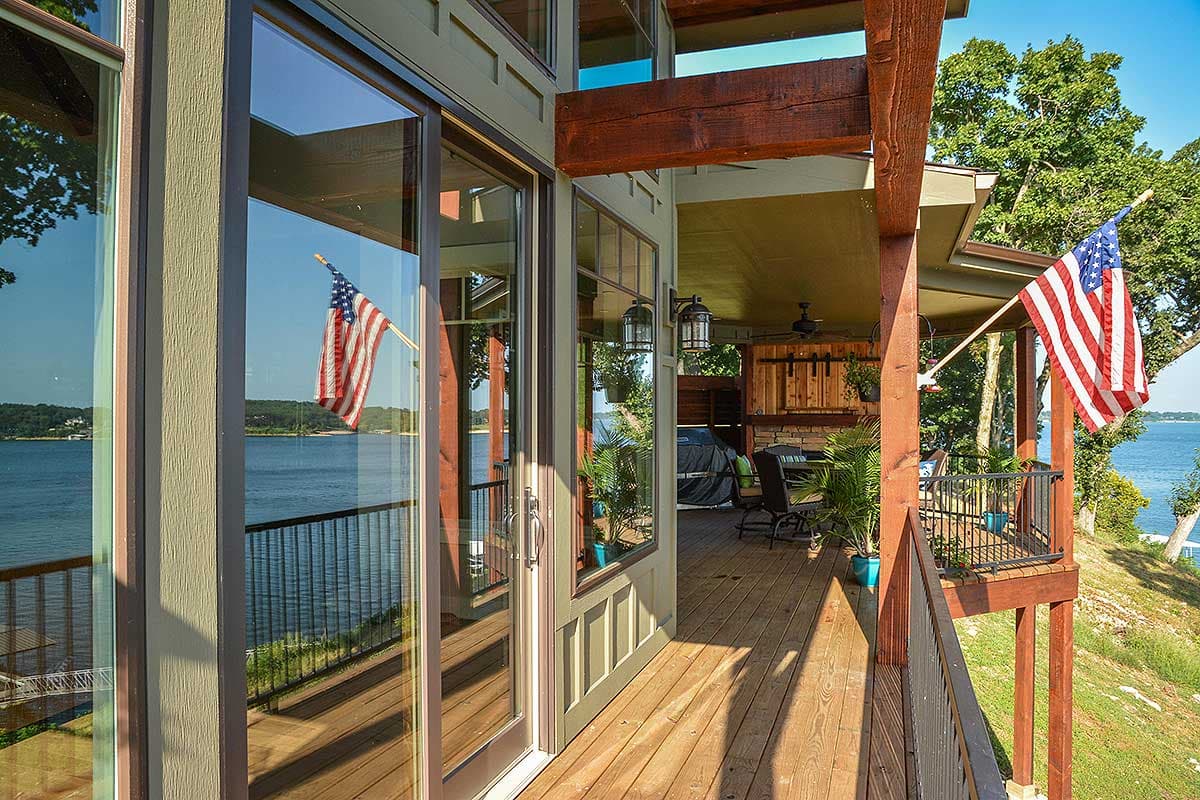

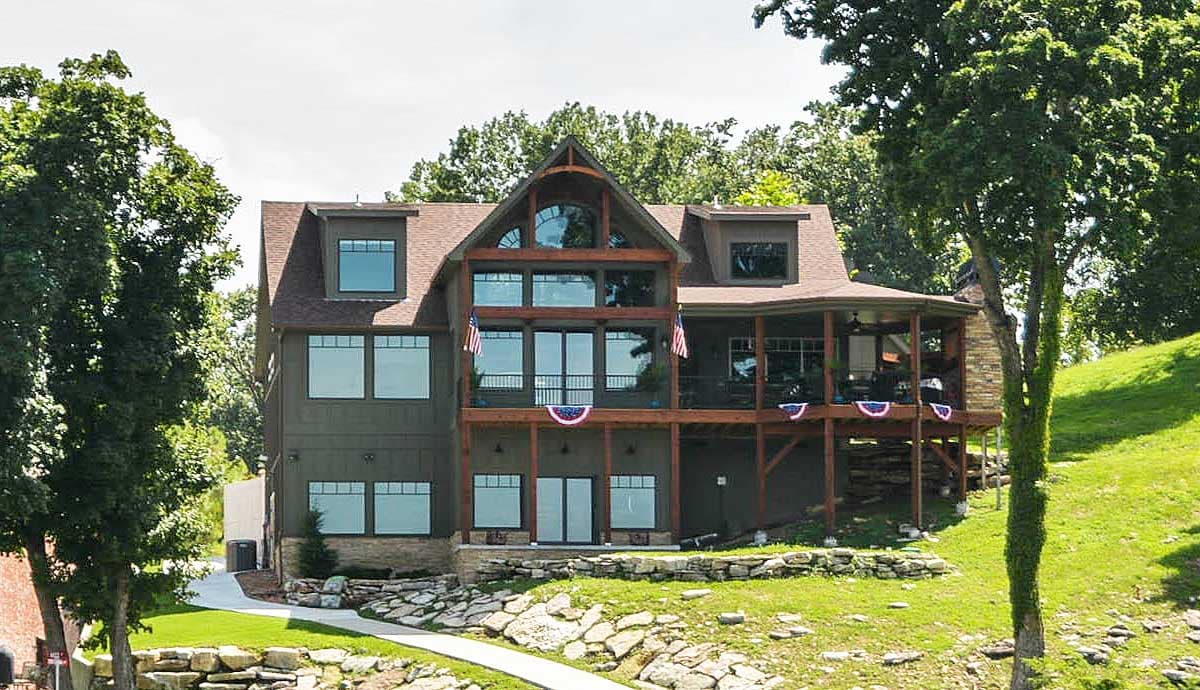

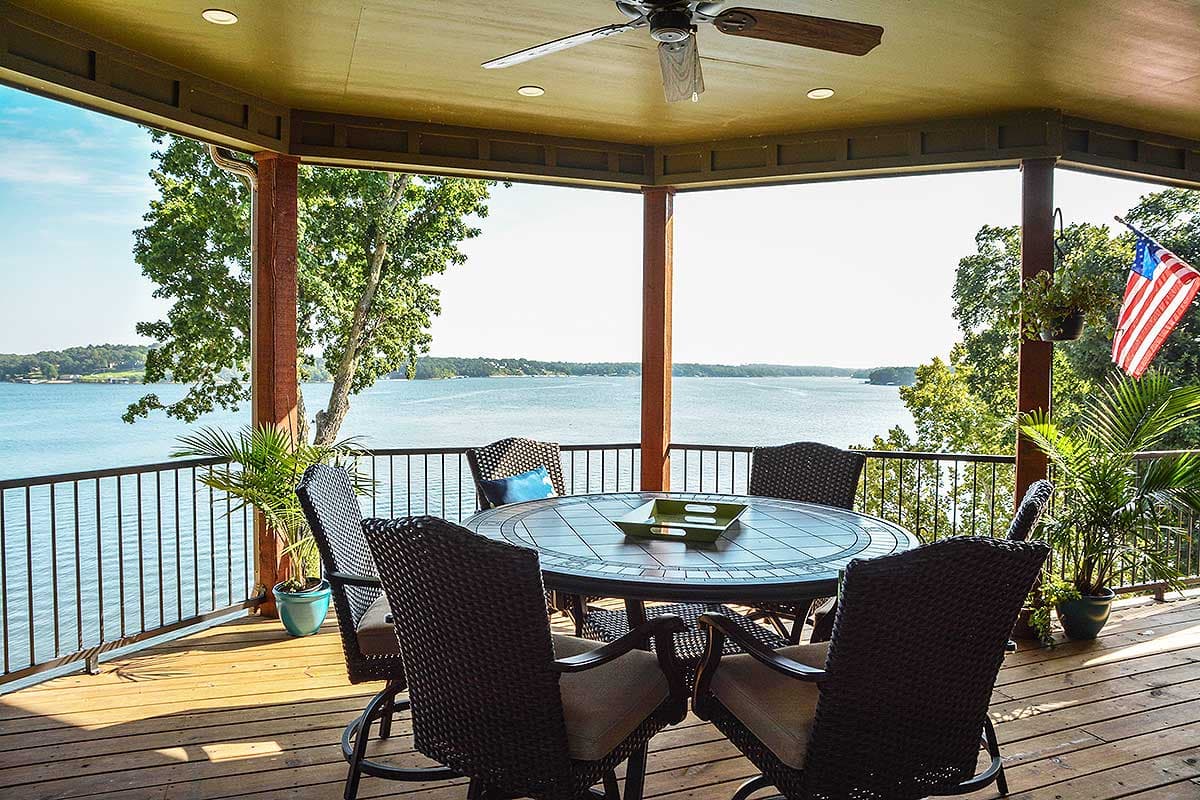

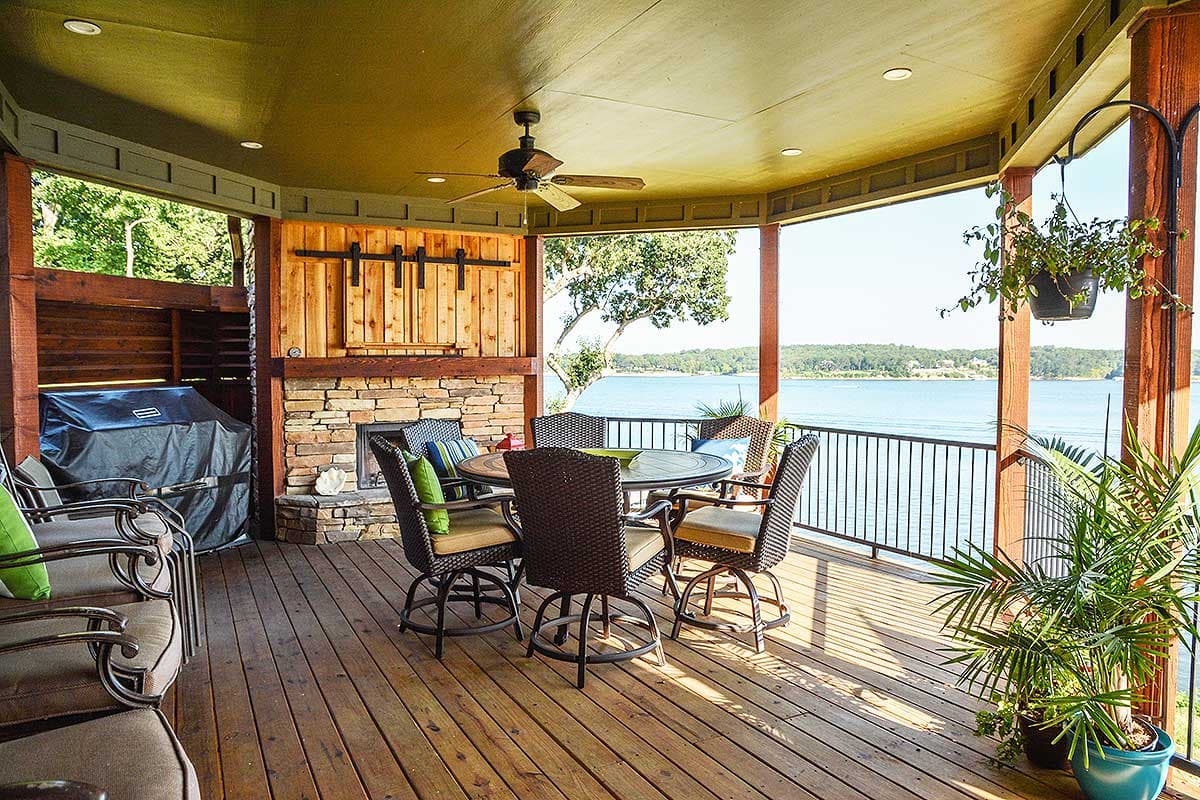

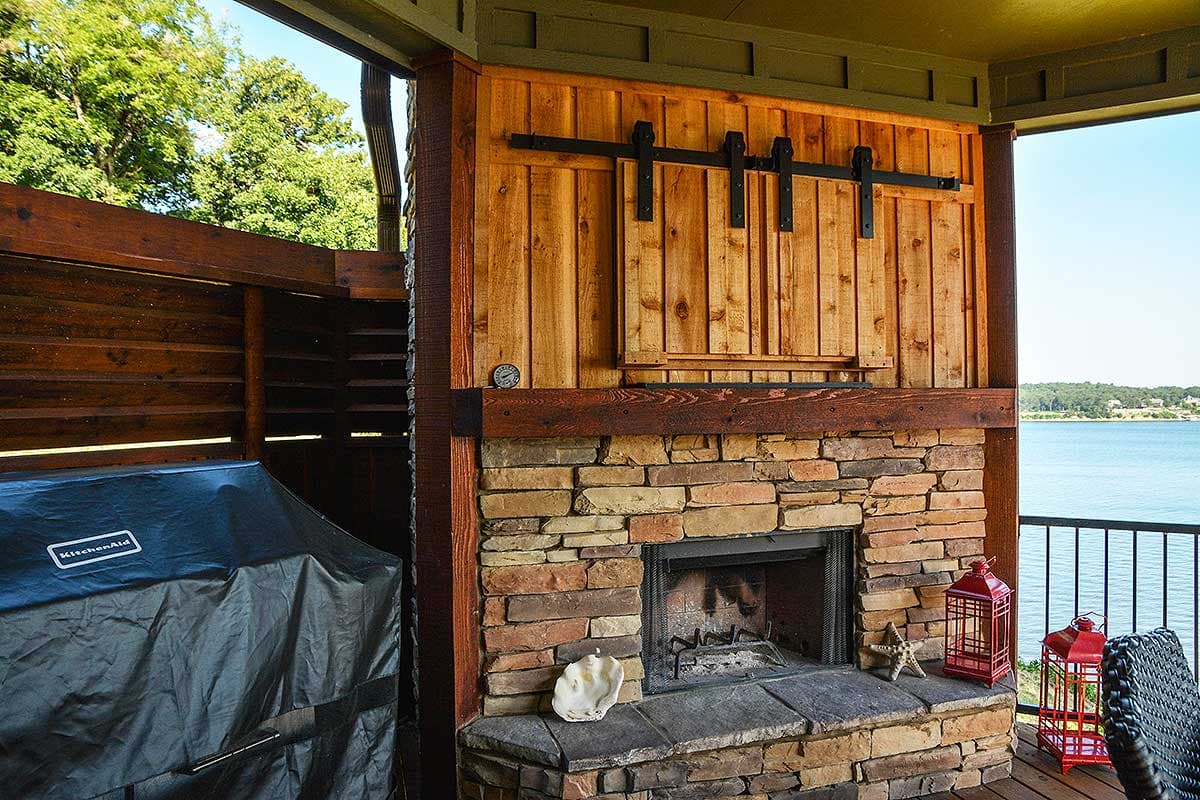

  • The large rear porch has a fireplace to warm your family gatherings.
  • Double doors in the master suite open to its own rear porch.
  • Two bedrooms on the second floor are set up for charming window seats and a loft overlooks both the foyer and the family room below.

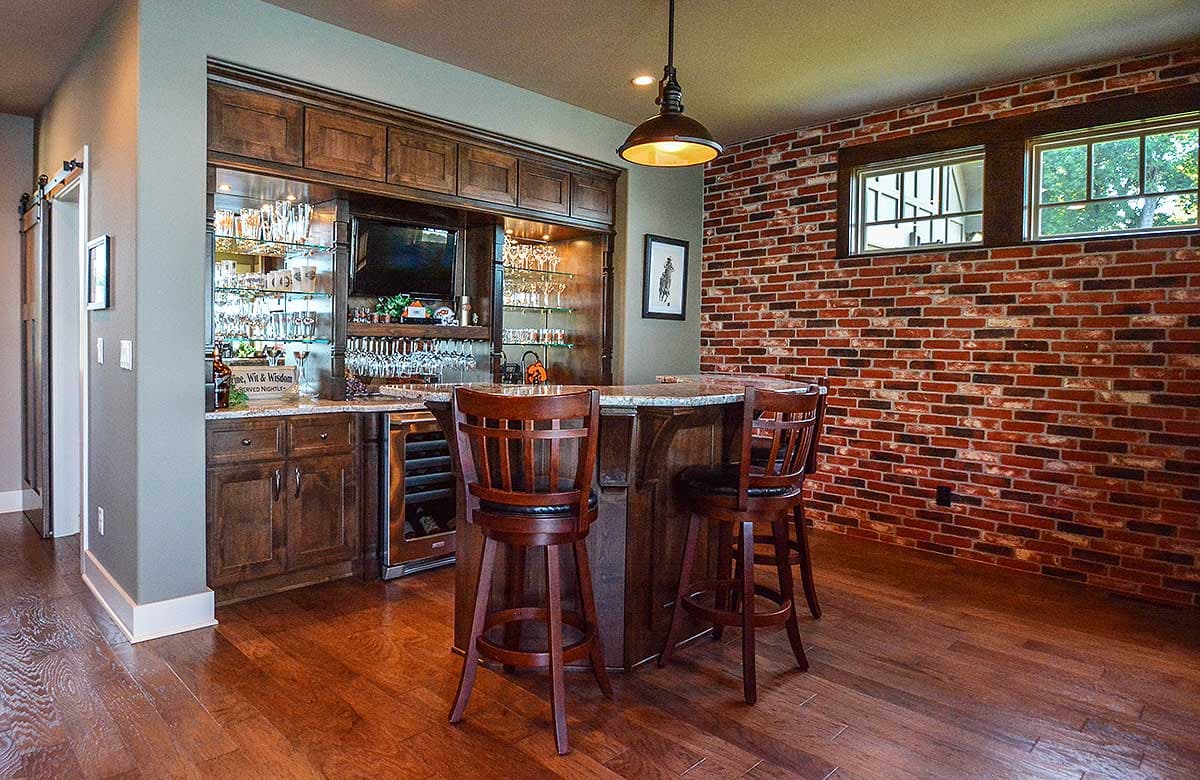

  • Added Bonus: The basement is unfinished but plans include a layout for a bunk room, rec room and storage at no extra cost.
  • Related Plans: Get an alternate version with house plan 92391MX and a version where the garage is removed and a golf cart garage is provided with house plan 92328MX.

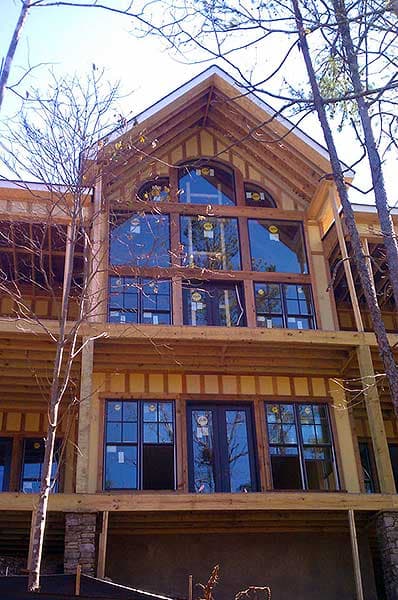

Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

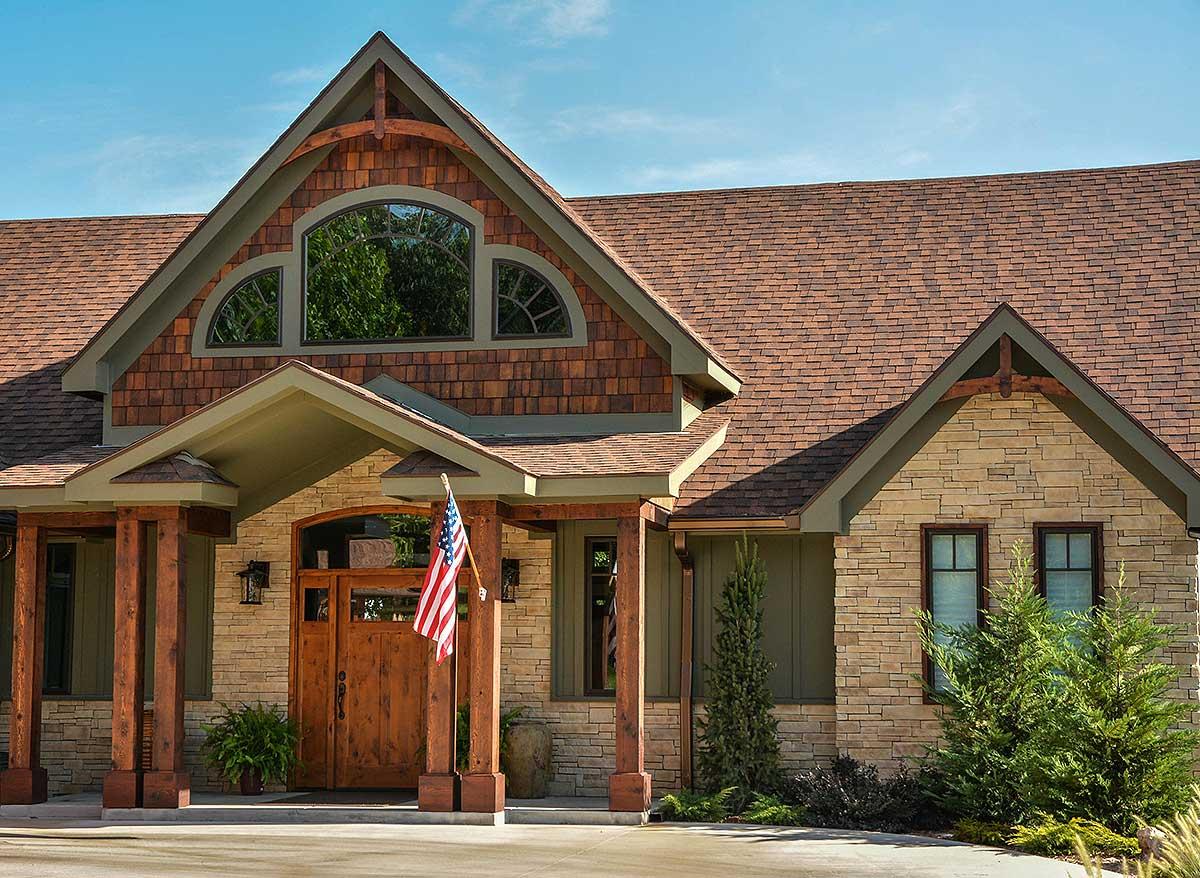

build gallery item - House Plan 92350MX comes to life in Georgia

House Plan 92350MX comes to life in Georgia

25

Photos

What's Included

This structured plan set includes:

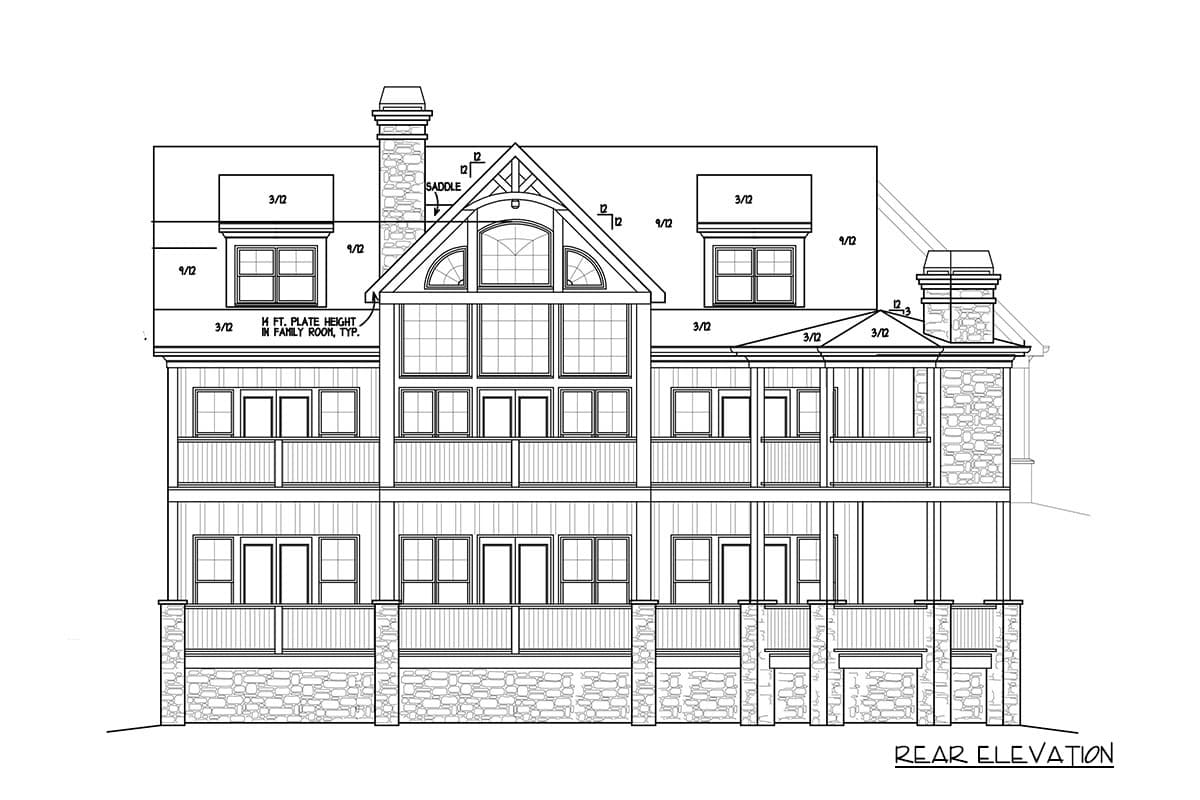

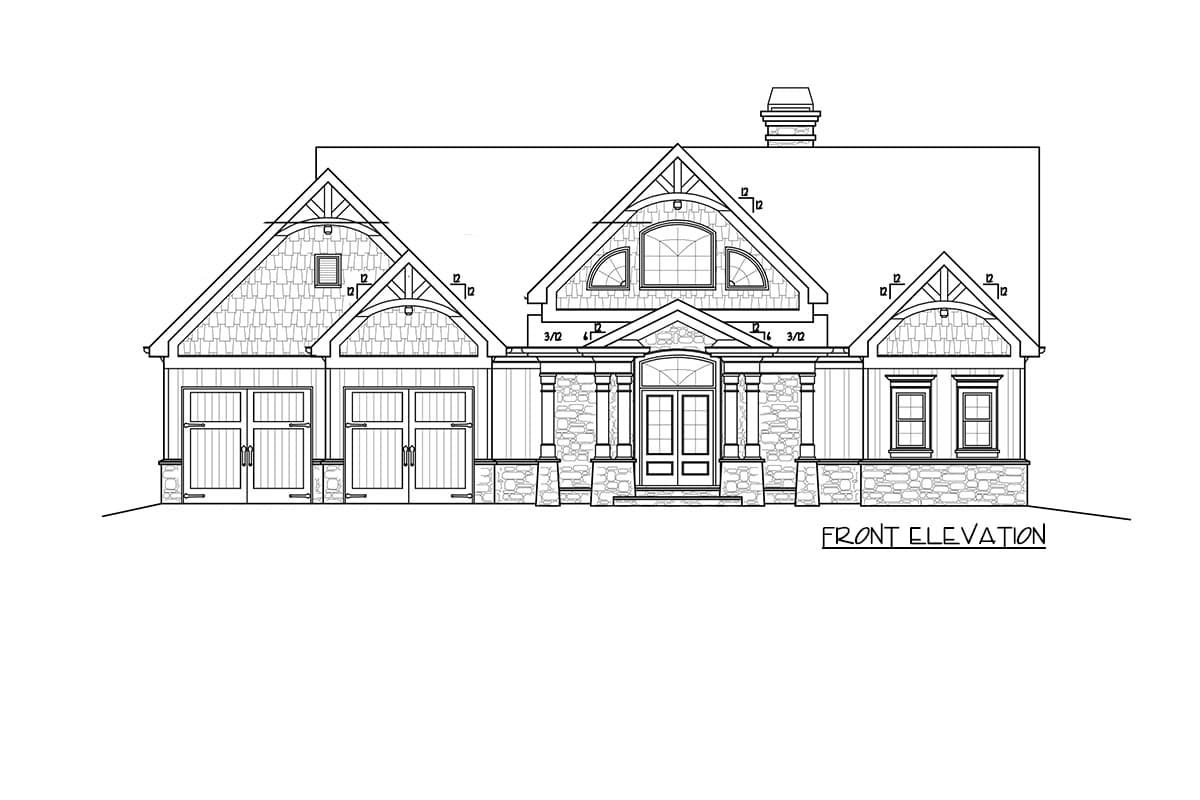

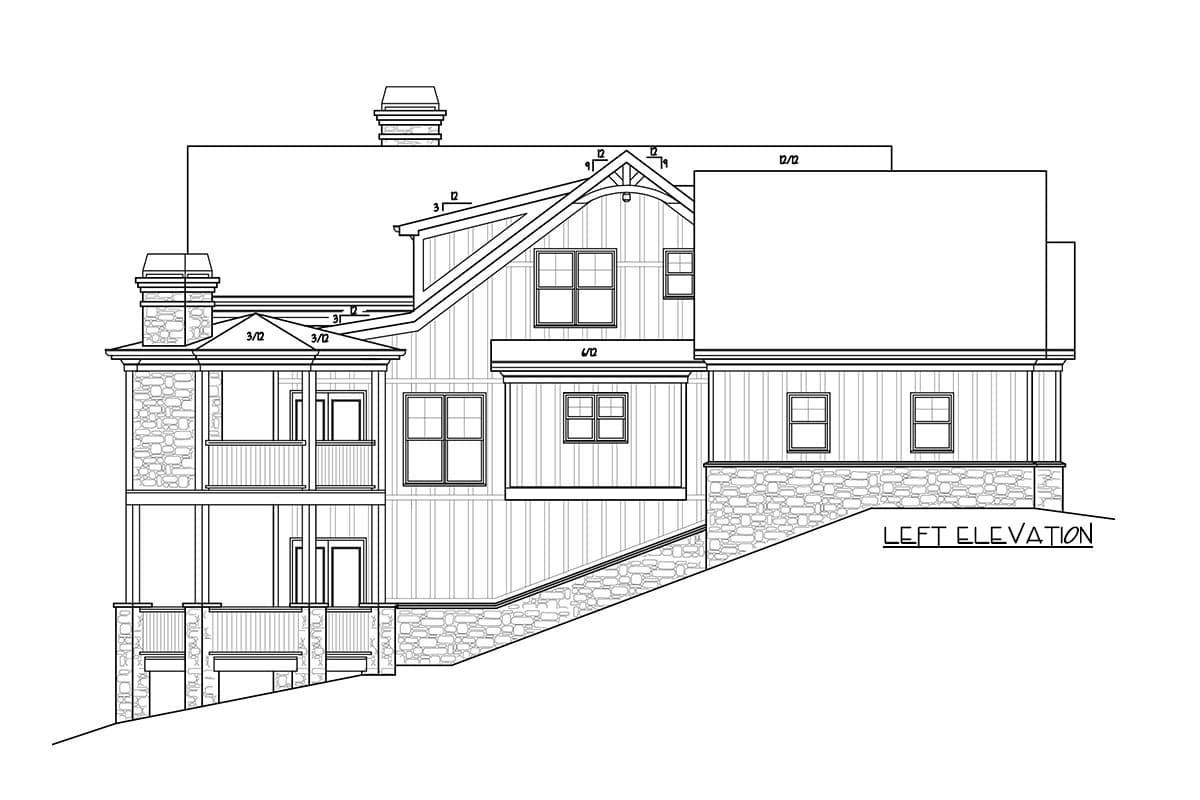

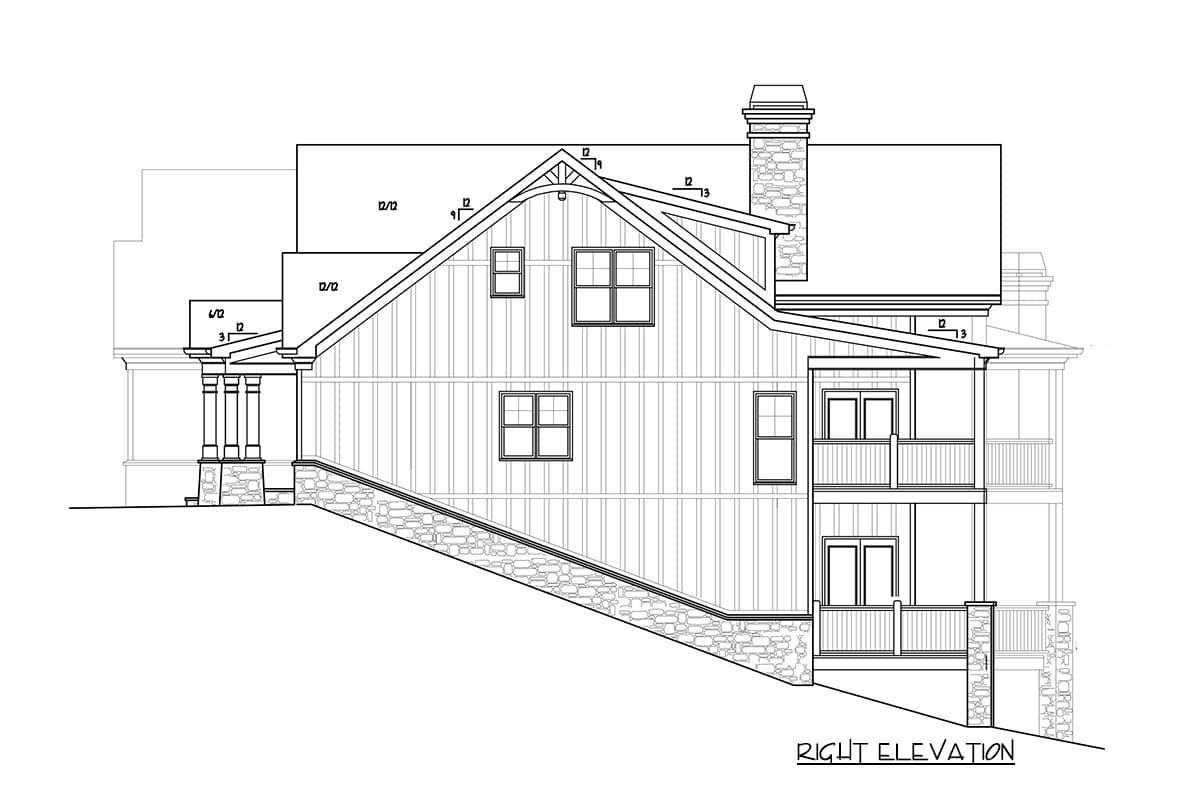

  • Front, side and rear elevations at 1/4" scale.  All elevations include notes, dimensions and recommended materials.
  • Complete dimensioned and detailed floor plans
  • Foundation plan.  Typically, the plans show a basement foundation. Slab and crawlspace foundations are also available for most plans for an additional fee.
  • Roof plans at 1/4" scale showing all pitches, ridges, hips and valleys
  • Building cross section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Electrical plans are customer specific and not included.  A custom electrical plan can be created for $350.

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,618 sq. ft.

1st Floor

1,760 sq. ft.

2nd Floor

858 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

63' 6"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

968 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Bunk Room

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Stacked Porches

Two Story Great Room

Walk-in Pantry
