Plan 680086VR
Lake View Home Plan with Full Front Porch and Side Open Deck
Heated S.F.
2,595
Beds
3
Baths
2
Stories
2
Cars
3
What's Included
Plan Details
  • A timber-frame truss lends character to the front porch that spans the entire front of this two-story mountain house plan and wraps around to an open deck on the left.

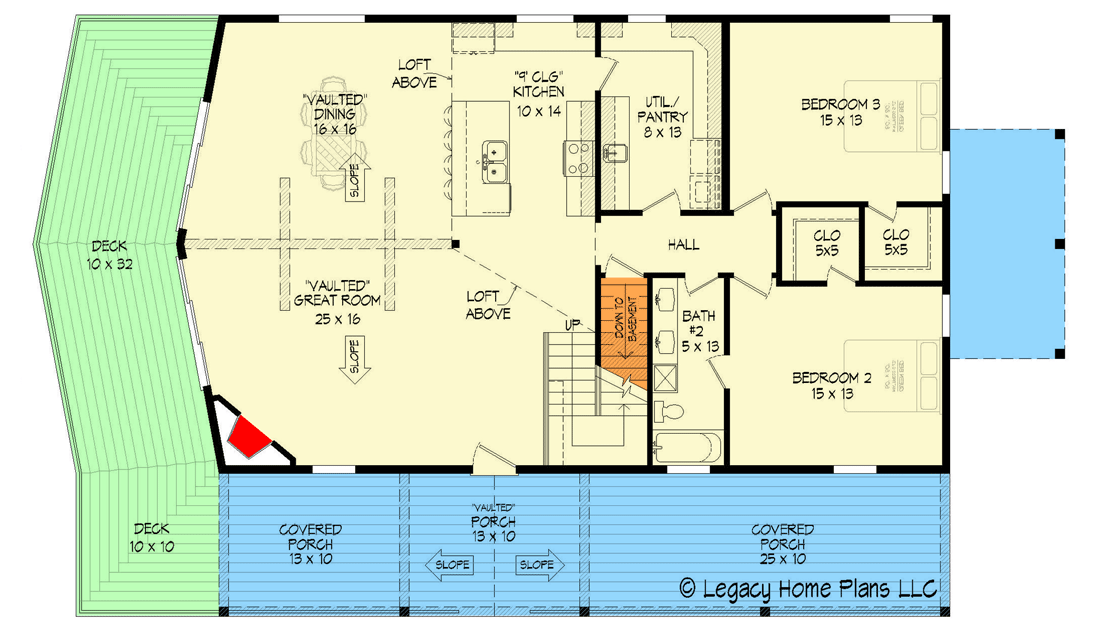

  • The sun-drenched interior features a 2-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • Two bedrooms on the main level are separated by walk-in closets and share a bathroom.

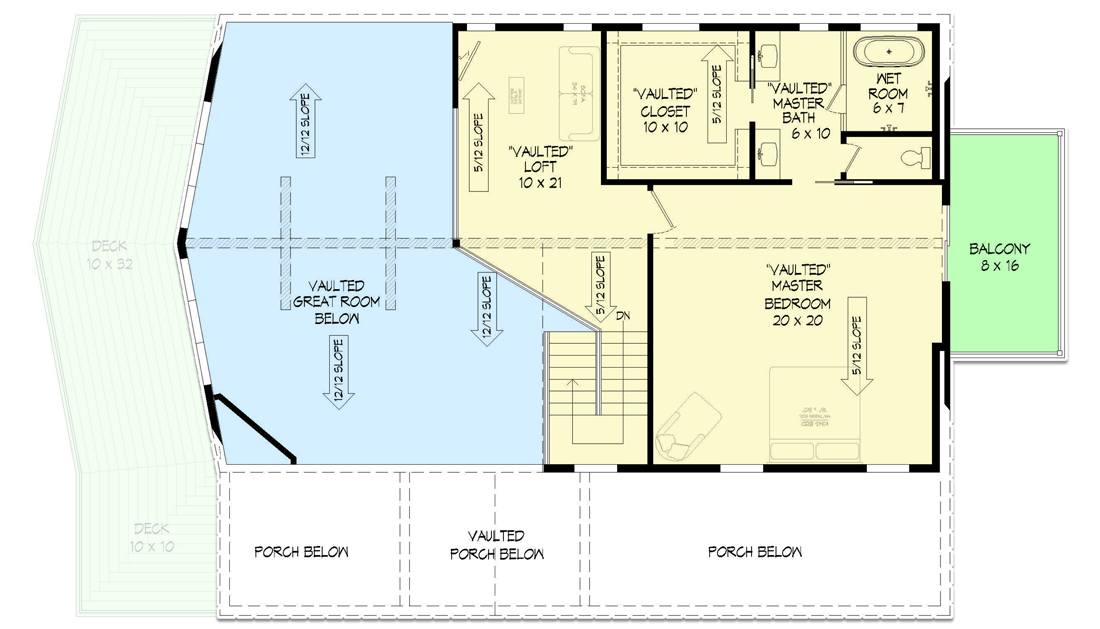

  • The master bedroom with vaulted ceiling is located upstairs and boasts a 4-fixture bathroom, and a walk-in closet. A loft area at the top of the stairs looks out across the great room below. The ceilings on this flor go from 8'6" to 14'9".

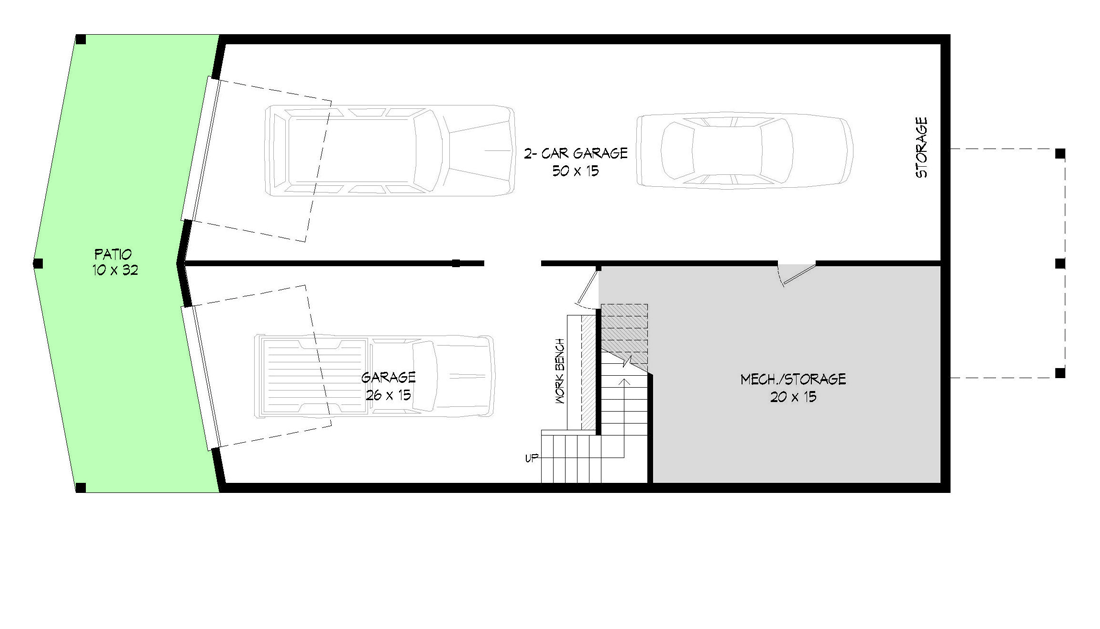

  • An unfinished lower level gives you a drive-under garage and bonus storage/mechanical space.
  • Related Plans: Get an alternate version with house plans 68955VR and 68892VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

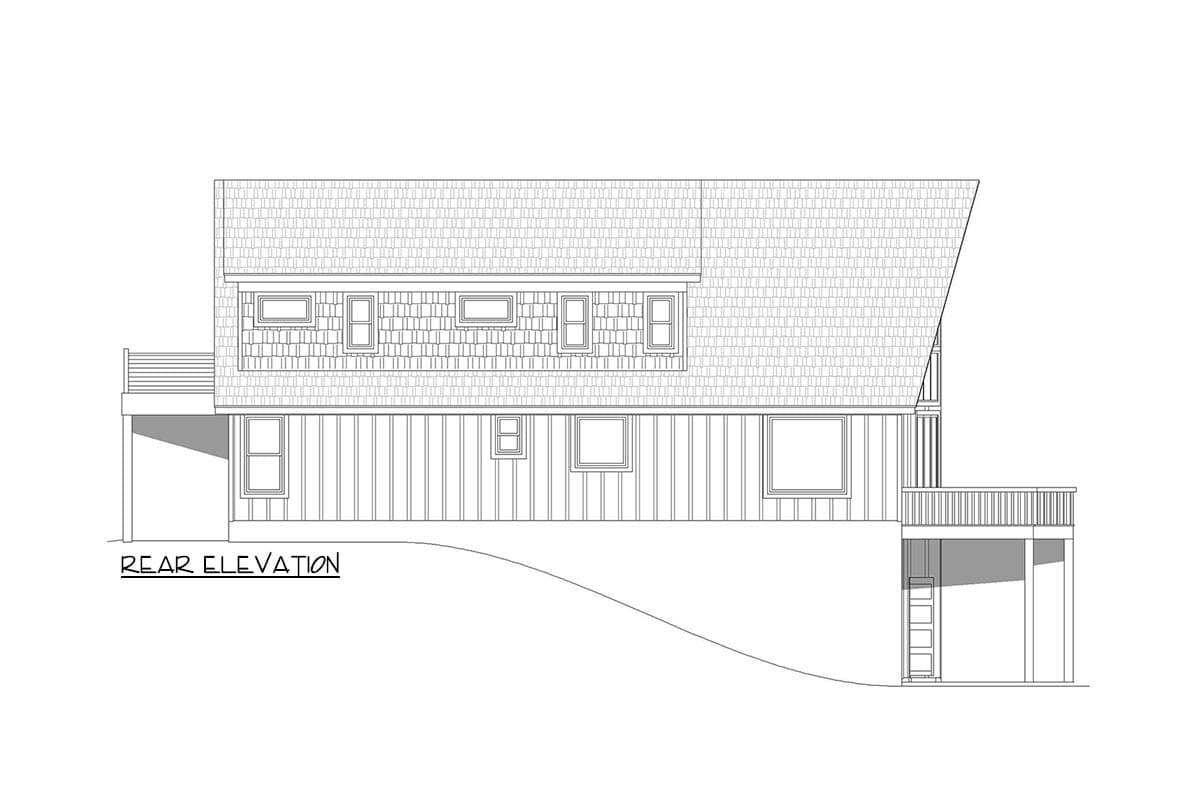

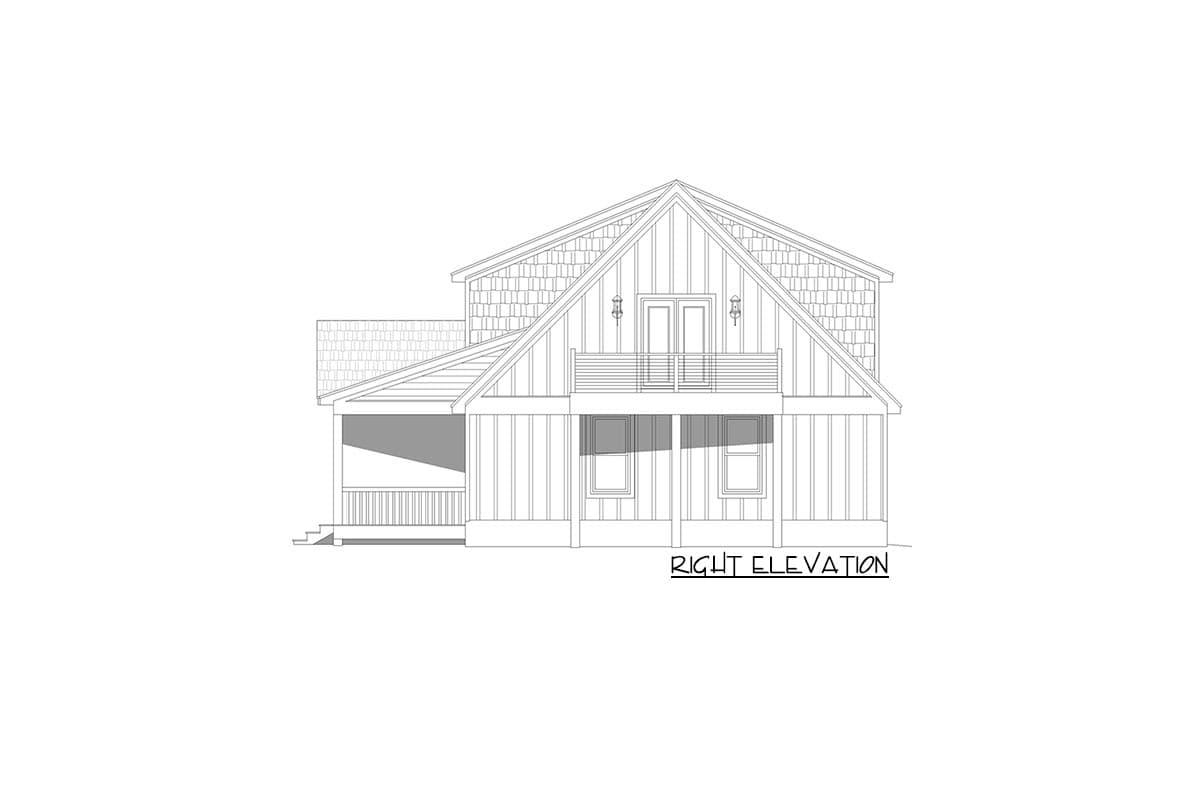

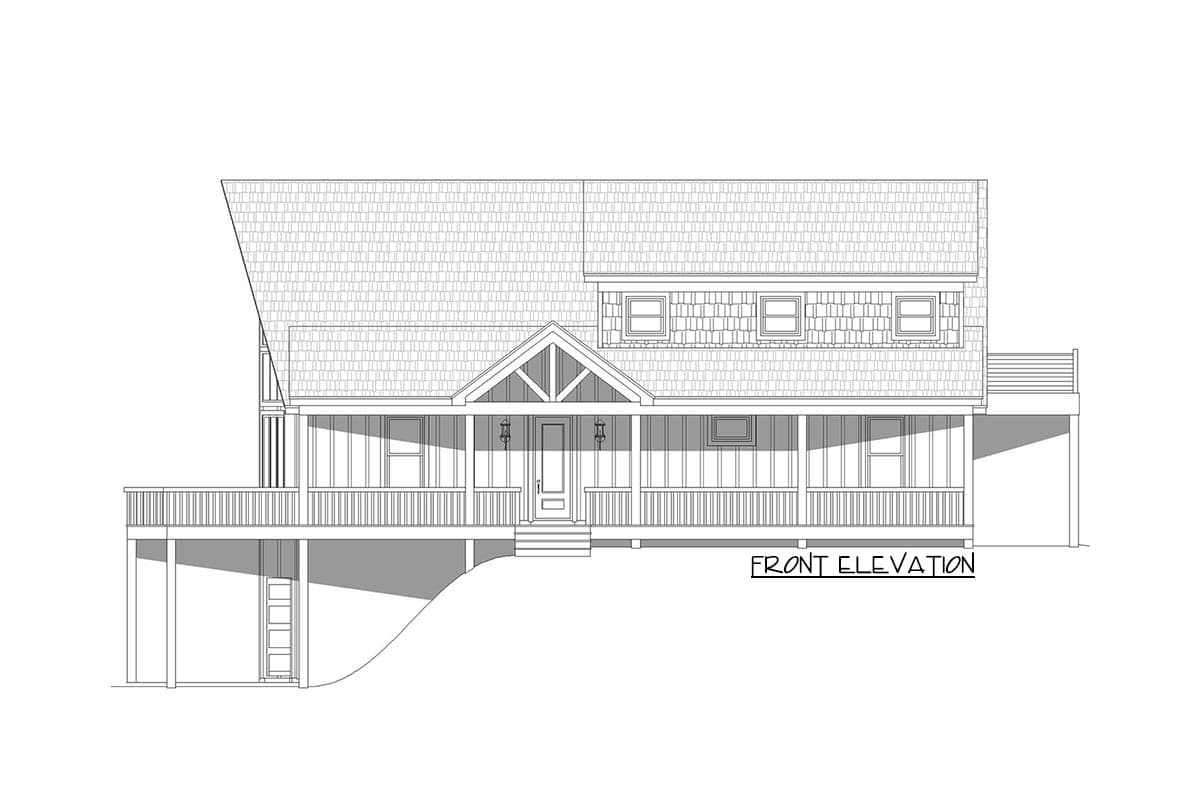

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Lake View Home Plan with Full Front Porch and Side Open Deck

  • 2,595

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,595 sq. ft.
  • 1st Floor: 1,680 sq. ft.
  • 2nd Floor: 915 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 42' 0"
  • Max ridge height: 25' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Drive Under, Attached
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 8' 6"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
