Plan 68892VR Two-story Mountain House Plan with Vaulted Master Loft and Tandem Drive-Under Garage

Two-story Mountain House Plan with Vaulted Master Loft and Tandem Drive-Under Garage

Plan 68892VR

  • 2,082

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 3

    Cars

  • A timber-frame truss lends character to the front porch of this two-story, mountain house plan, complete with a wrap-around porch to enjoy the available views.
  • The sun-drenched interior features a 2-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • Two bedrooms on the main level are separated by a shared bathroom.
  • The master bedroom with vaulted ceiling is located upstairs and boasts a 4-fixture bathroom, and a walk-in closet.
  • Two bays on the lower level give you parking for up to three vehicles with a tandem bay and a standard bay with access between the two. A mechanical room completes the home.
  • Related Plan: Get two standard garage bays in the lower level with house plan 68623VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

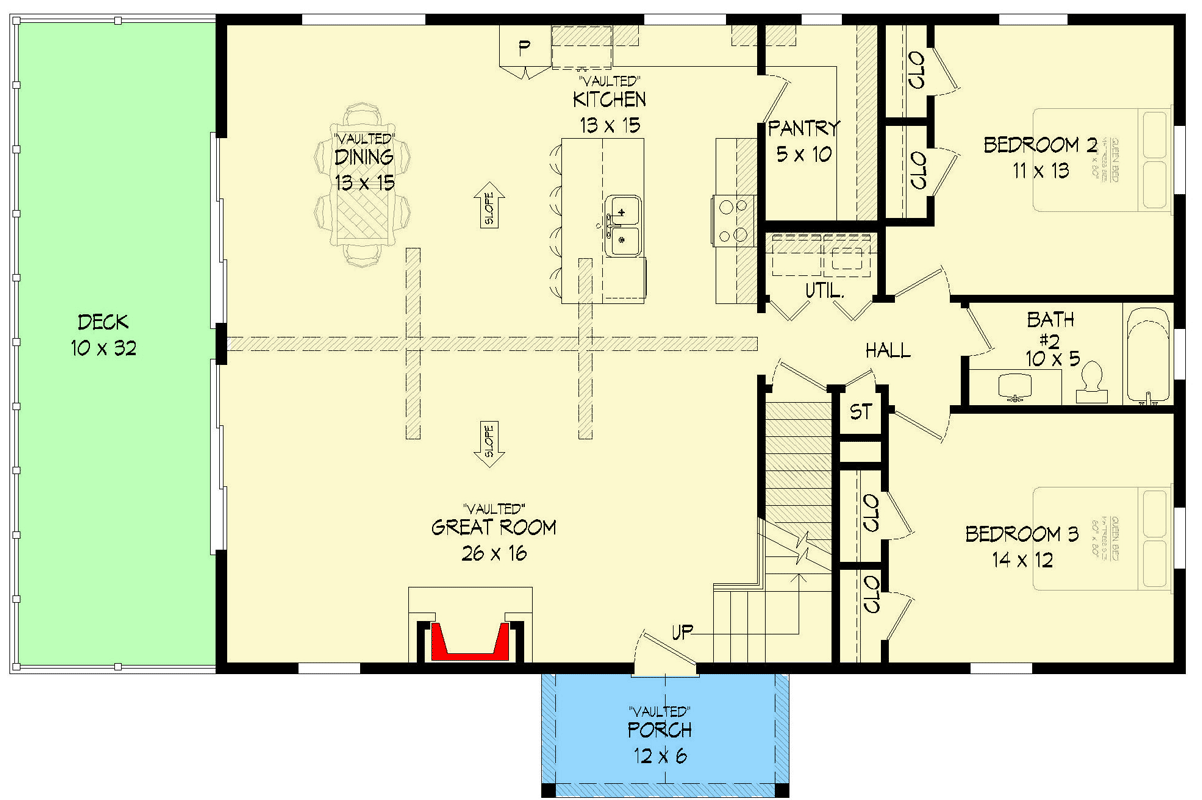

Two-story Mountain House Plan with Vaulted Master Loft and Tandem Drive-Under Garage - 68892VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

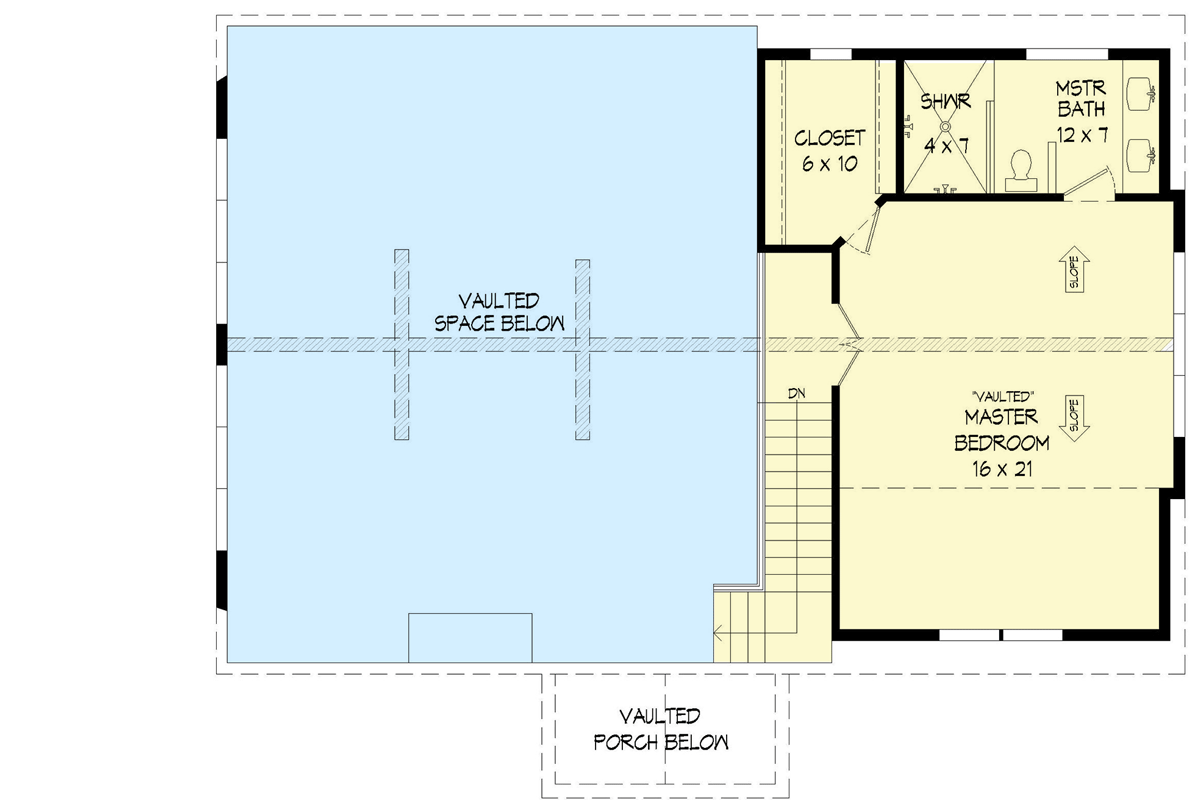

Two-story Mountain House Plan with Vaulted Master Loft and Tandem Drive-Under Garage - 68892VR floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

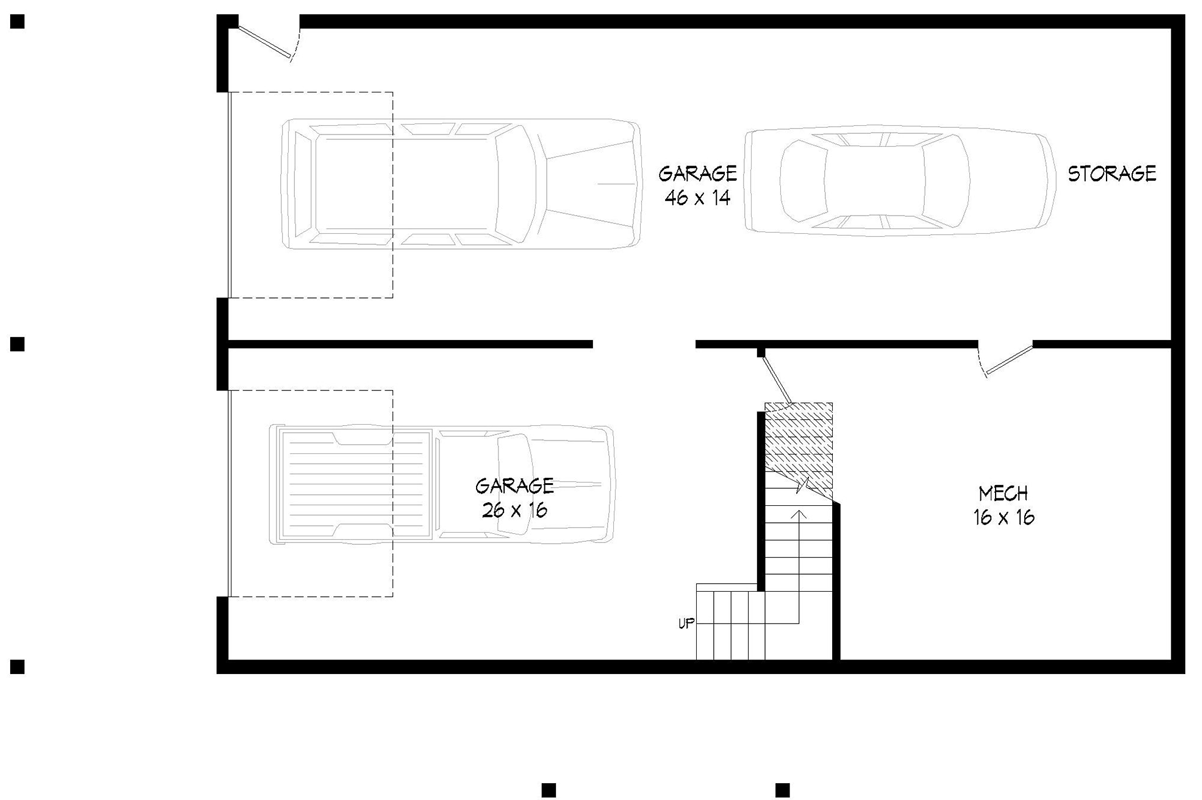

Two-story Mountain House Plan with Vaulted Master Loft and Tandem Drive-Under Garage - 68892VR floor plan - Basement

Plan details

Two-story Mountain House Plan with Vaulted Master Loft and Tandem Drive-Under Garage

  • 2,082

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,195
  • 5 Sets $1,360
  • 5 Sets + PDF $1,411
  • CAD + PDF - Single-Build $1,745
  • View all purchase option online

About This Plan

  • A timber-frame truss lends character to the front porch of this two-story, mountain house plan, complete with a wrap-around porch to enjoy the available views.
  • The sun-drenched interior features a 2-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • Two bedrooms on the main level are separated by a shared bathroom.
  • The master bedroom with vaulted ceiling is located upstairs and boasts a 4-fixture bathroom, and a walk-in closet.
  • Two bays on the lower level give you parking for up to three vehicles with a tandem bay and a standard bay with access between the two. A mechanical room completes the home.
  • Related Plan: Get two standard garage bays in the lower level with house plan 68623VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,082 sq. ft.
  • 1st Floor: 1,504 sq. ft.
  • 2nd Floor: 578 sq. ft.
  • Deck & Porch: 392 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 32' 6"
  • Max ridge height: 26' 10"

Garage

  • Type: Drive Under, Attached
  • Area: 1504 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
