Lovely 4-Bed Contemporary House Plan with Multiple Living Rooms

Plan 80942PM

  • 2,423

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Multiple modern exterior materials compliment the fresh design of this 4-bedroom, contemporary house plan.
  • A desirable, open-concept floor plan greets you upon entering with a central, double-sided fireplace serving as a focal point. A second sitting nook sits between the living room and dining room.
  • The kitchen boasts an L-shaped island with seating for informal meals, a walk-in pantry, and a wine room. Sliding doors lead to a back, covered porch.
  • Upstairs, discover a quiet family room to retreat to for solitude when needed. French doors lead to the master bedroom, which includes a walk-in closet and a 5-fixture master bathroom.
  • Three additional bedrooms share a bathroom with dual sinks and a separate tub and shower. The first-floor laundry room sits just inside from the 2-car garage entry.
  • NOTE: Please allow up to 20 business days for delivery.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

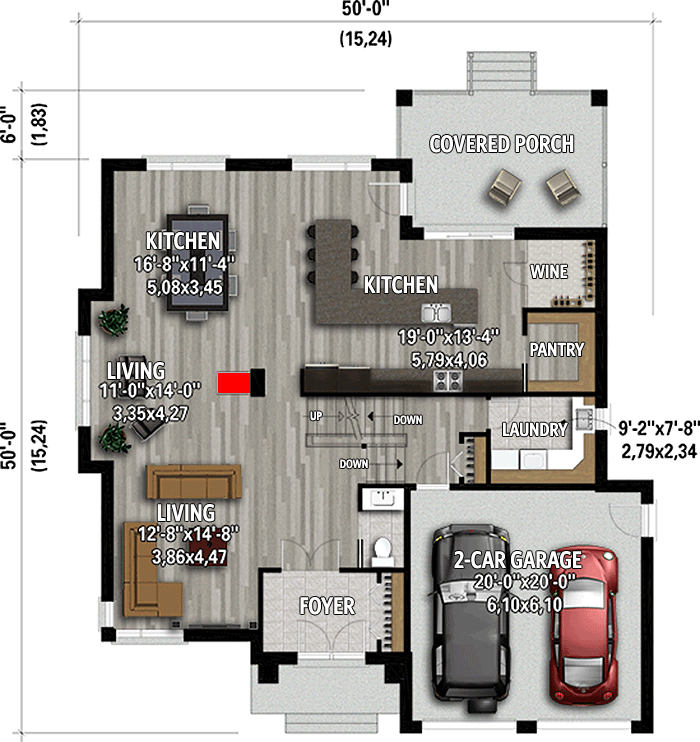

Lovely 4-Bed Contemporary House Plan with Multiple Living Rooms - 80942PM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Lovely 4-Bed Contemporary House Plan with Multiple Living Rooms - 80942PM floor plan - 2nd Floor

Lovely 4-Bed Contemporary House Plan with Multiple Living Rooms

  • 2,423

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,423 sq. ft.
  • 1st Floor: 1,580 sq. ft.
  • 2nd Floor: 1,843 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 50' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 456 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
