Plan 65760BS

Luxury Coastal Modern House Plan with 6 Bedrooms and Elevator

Name: Plan 65760BS: Luxury Coastal Modern House Plan with 6 Bedrooms and Elevator
Brand: Architectural Designs
SKU: 65760BS
Price: 5824.80 USD
Availability: InStock

Heated S.F.

8,062

Beds

Baths

6.5

Stories

Cars

Floor Plan

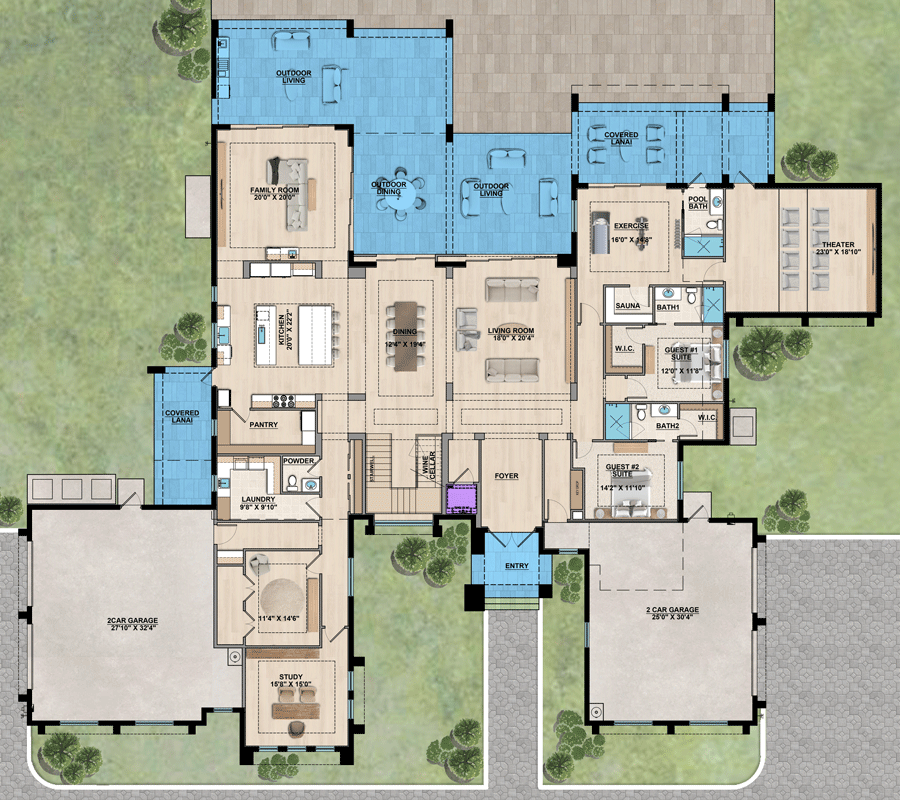

Main Level

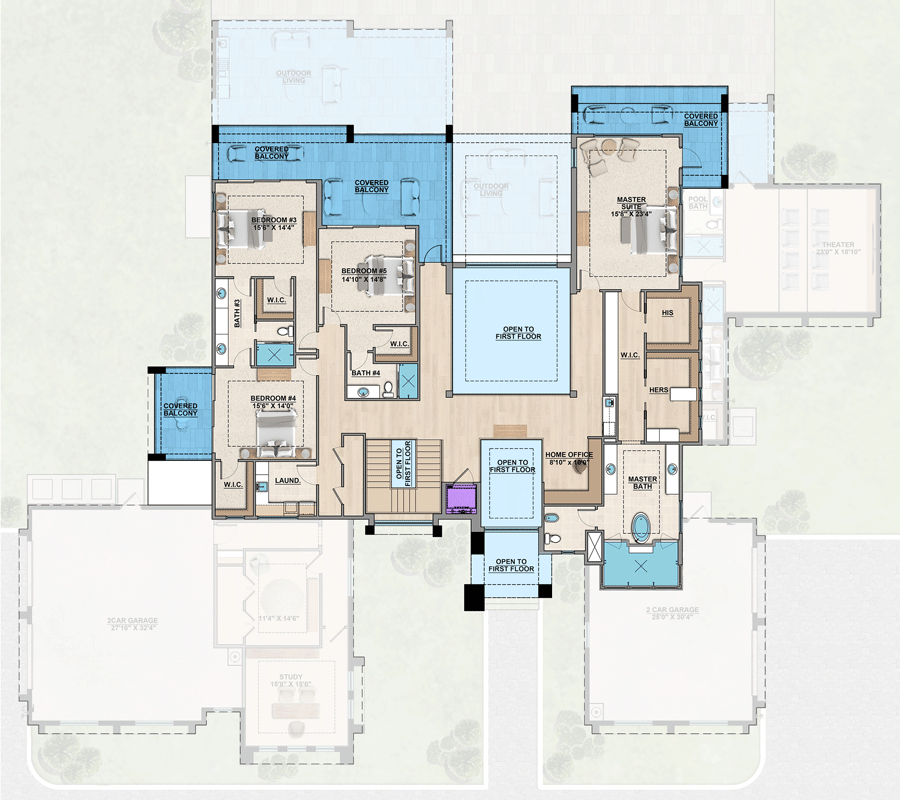

2nd Level

Plan Details

This expansive 8,062 square foot luxury home features a striking contemporary Florida-style aesthetic, complete with six bedrooms, six full bathrooms, a half bath, and a four-car side-entry garage.
The grand entrance opens into a soaring foyer that immediately establishes the home's airy, sophisticated atmosphere and seamless connection to the upper level via a private elevator.
The main living level is designed for effortless hosting, featuring a formal dining room, a dedicated library, and a gourmet kitchen equipped with a large walk-in pantry.
Privacy is prioritized with a thoughtful split-bedroom layout, while the primary suite is situated on the second floor to offer an elevated retreat.
Entertainment options abound throughout the residence, including a specialized home theater, a wine room, and a versatile game room for recreation.
The transition from indoor to outdoor living is defined by a massive 1,834 square foot lanai featuring an outdoor kitchen, complemented by additional balcony and veranda spaces perfect for enjoying the coastal climate.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

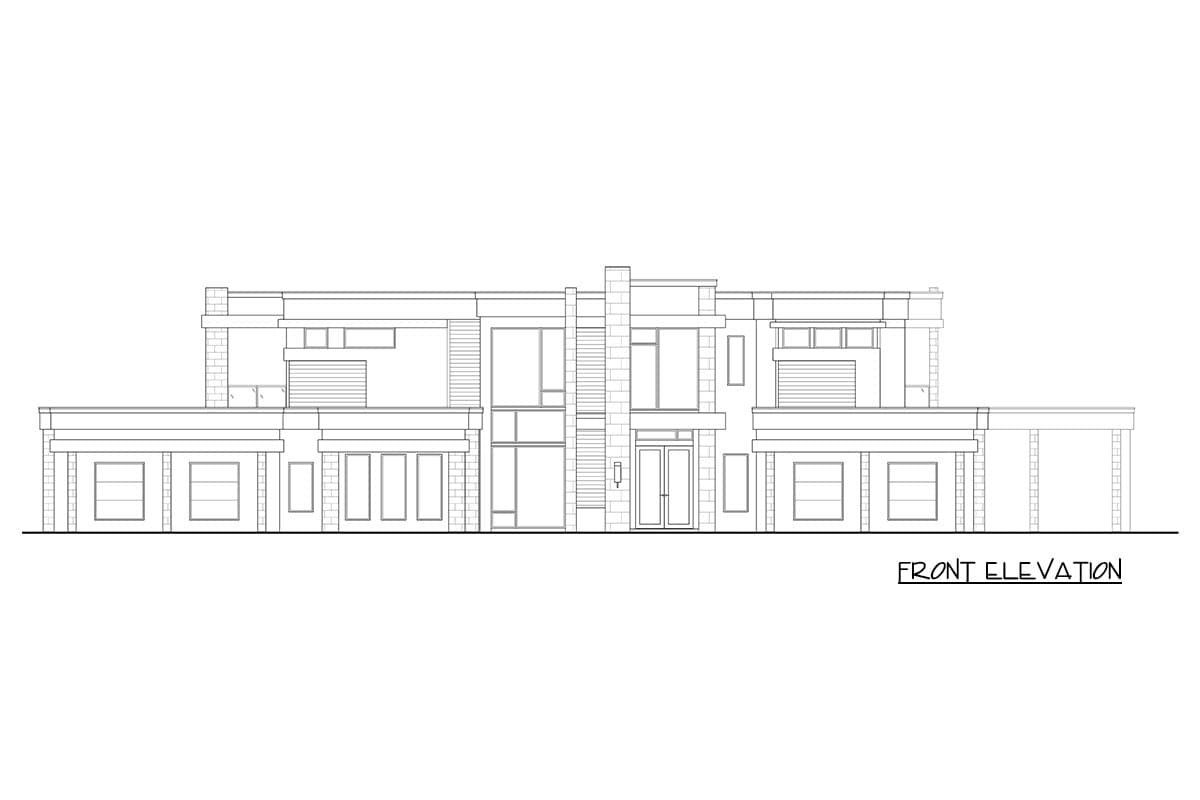

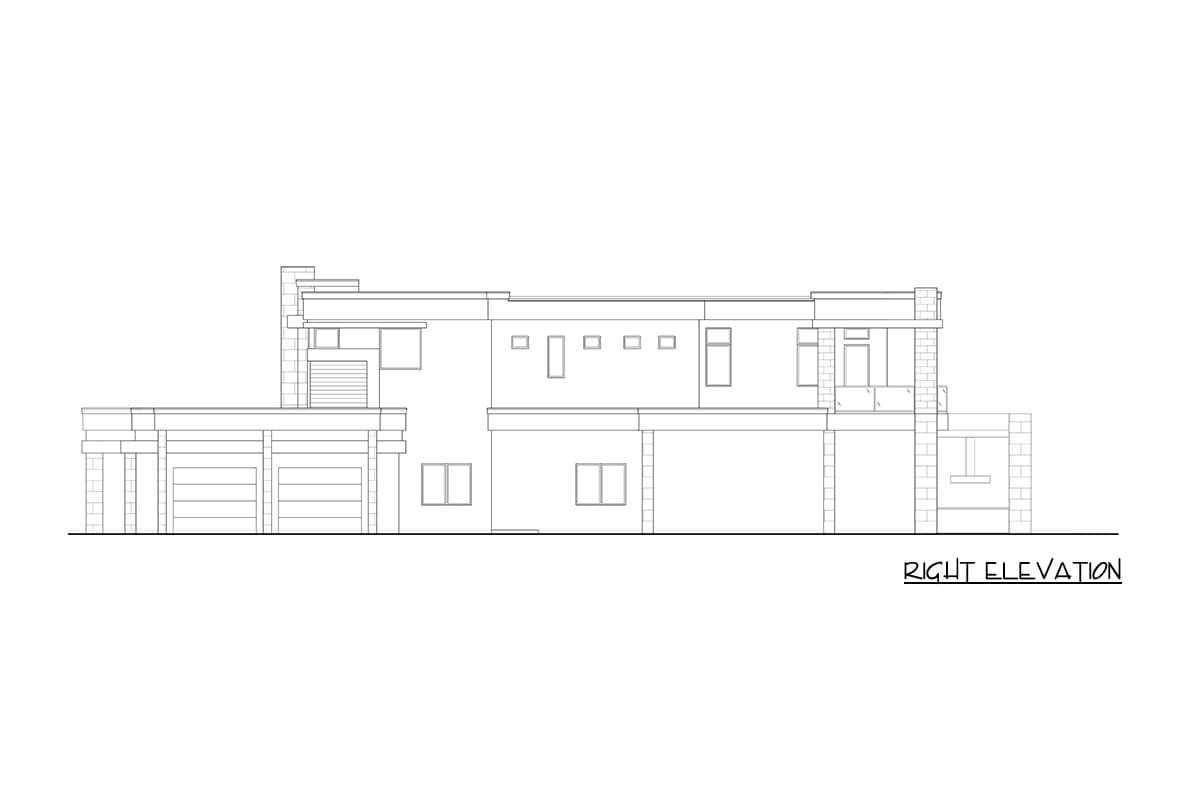

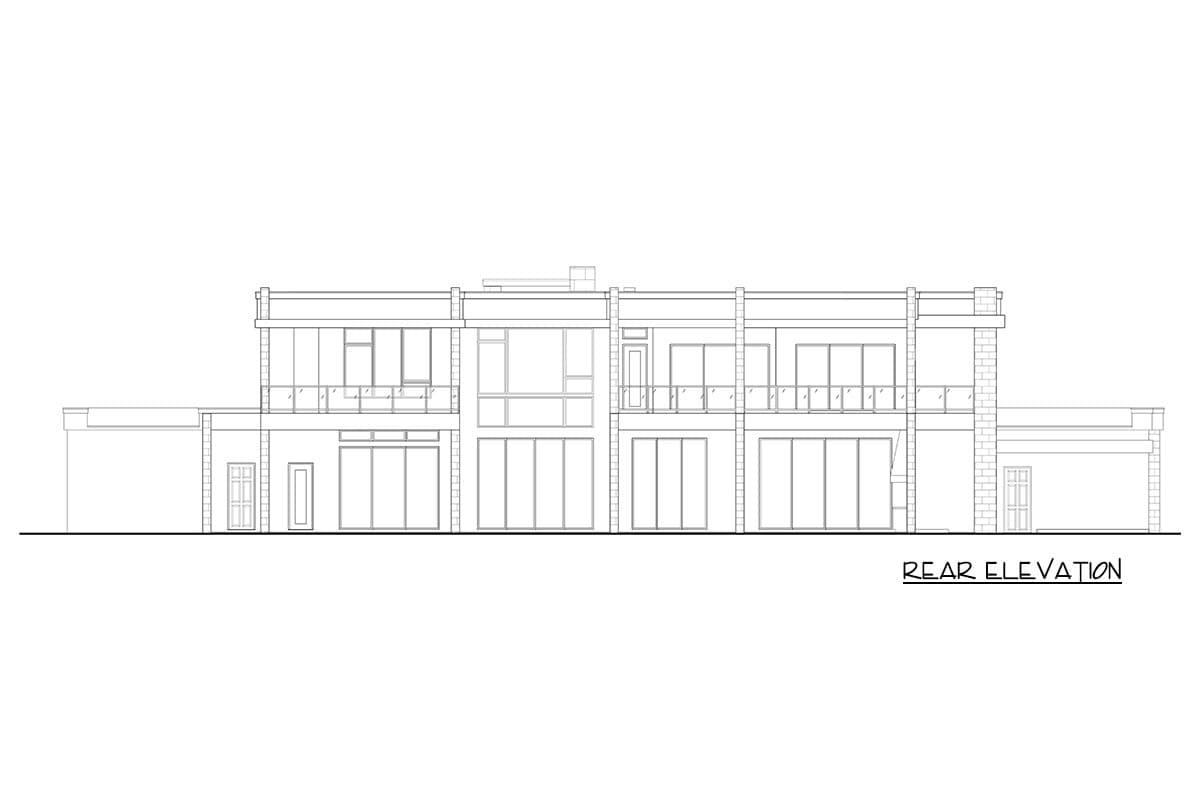

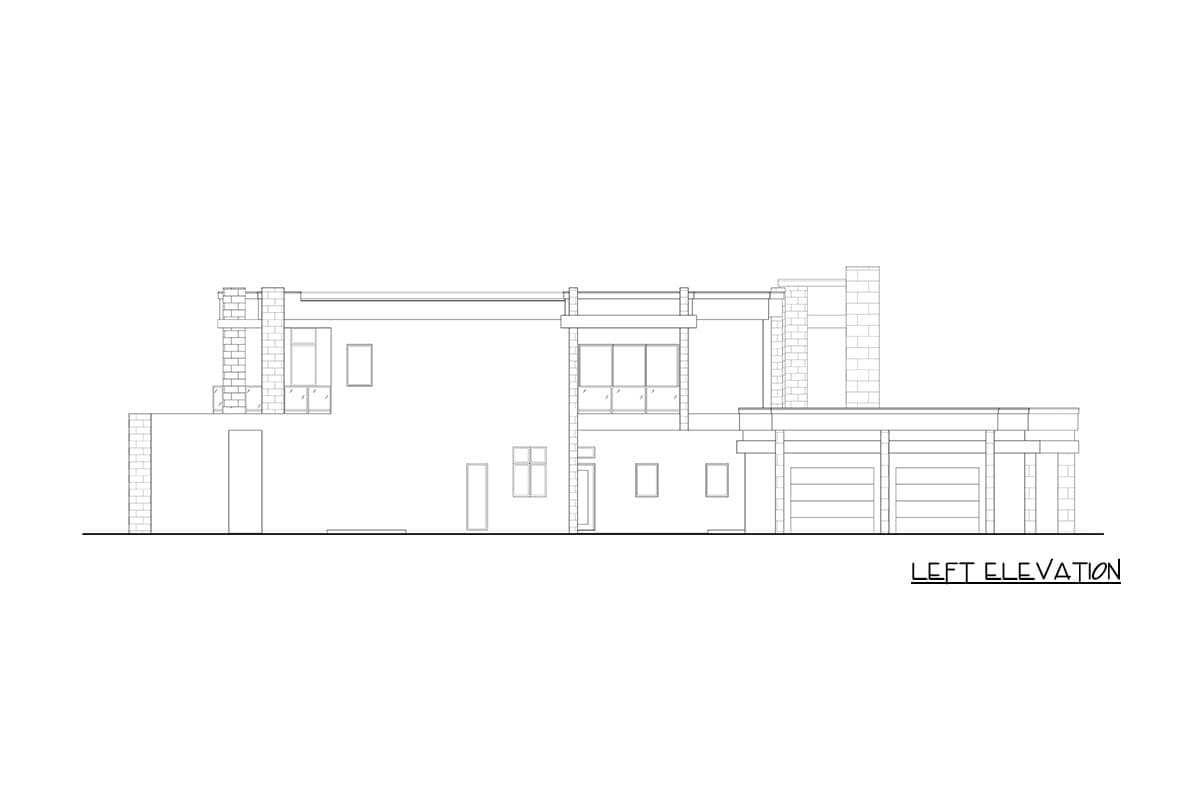

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
