Luxury Contemporary Home Plan for Indoor Outdoor Living - 4000 Sq Ft

Name: Plan 65621BS: Luxury Contemporary Home Plan for Indoor Outdoor Living - 4000 Sq Ft
Brand: Architectural Designs
SKU: 65621BS
Price: 4000.0 USD
Availability: InStock

Heated S.F.

4,000

Beds

Baths

4.5

Stories

Cars

Floor Plan

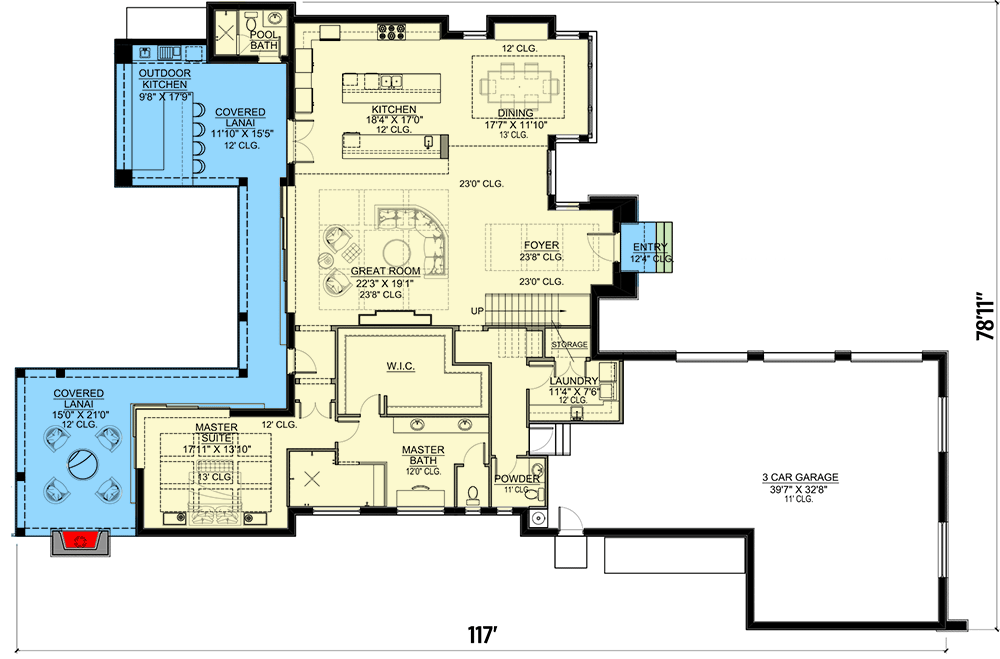

Main Level

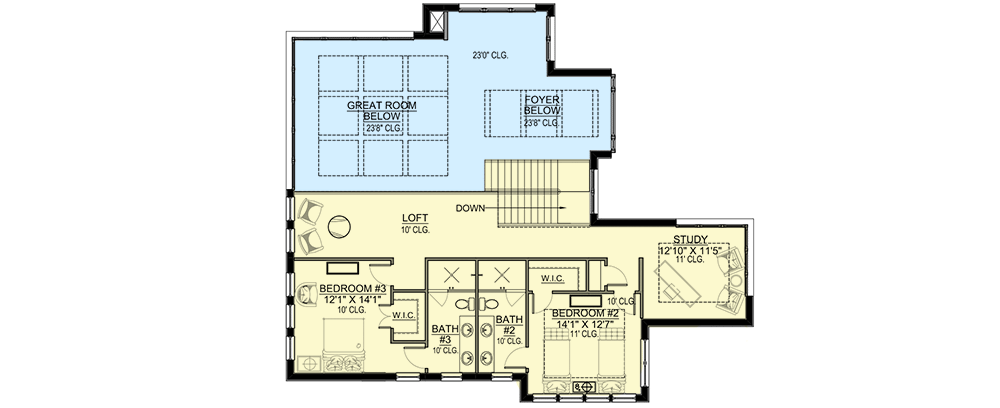

2nd Floor

Plan Details

At 4,000 square feet, this Contemporary home plan is filled with luxurious amenities that make entertaining a breeze.
The 3-car garage extends from the front of the home to create a parking courtyard, while stone accents on either side of the front entrance gives a grand first impression.
Tall ceilings above the foyer and great room make the space feel even larger and an oversized sliding door on the rear wall encourages outdoor living by leading to the expansive covered lanai.
The heart of the home is perfect for any style of chef and enjoys two lengthy islands, a large range, and opens to the light-filled dining area.
The master suite is located on the main level and boasts a private covered lanai with a fireplace, an oversized shower in the ensuite, and a generous walk-in closet.
Two additional bedroom suites are located upstairs, along with a loft and quiet study.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
