Magnificent Shingle Style Dream Home with Third Level

Plan 23813JD

This plan plants 3 trees

7,815
Heated s.f.
5
Beds
5.5
Baths
3
Stories
3
Cars

Beautiful covered porches wrap around two side of this magnificent Shingle style home.
Filled to the brim with luxurious amenties, this home will wow friends and family alike.
Tray, two-story or coffered ceilings crown all of the main rooms and even the porches get special treatment.
The unusual music room off the living room is circular in shape and flooded with light from windows on all side.
Fireplaces warm the study and the huge family room that is open to the nook and kitchen.
A separate prep kitchen makes entertaining on a grand scale easy.
A large wine cellar and residential elevator are added bonuses.
The second floor is equally magnificent with four luxurious bedroom suites and a sunken bonus room that is included in the home's 7,815 square feet of finished living space.
A huge private deck wraps around the opulent master suite with its separate sitting room with fireplace.
The master bath is truly fit for a king with an enormous soaking tub and a dressing room area that opens to the second floor laundry room for convenience.
Go up one more floor for second bonus room that includes and extra storage.
Related: Remove the third level with house plan 23500JD (6,725 sq. ft.)
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.

Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.

Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.

Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.

Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.

Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.

Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

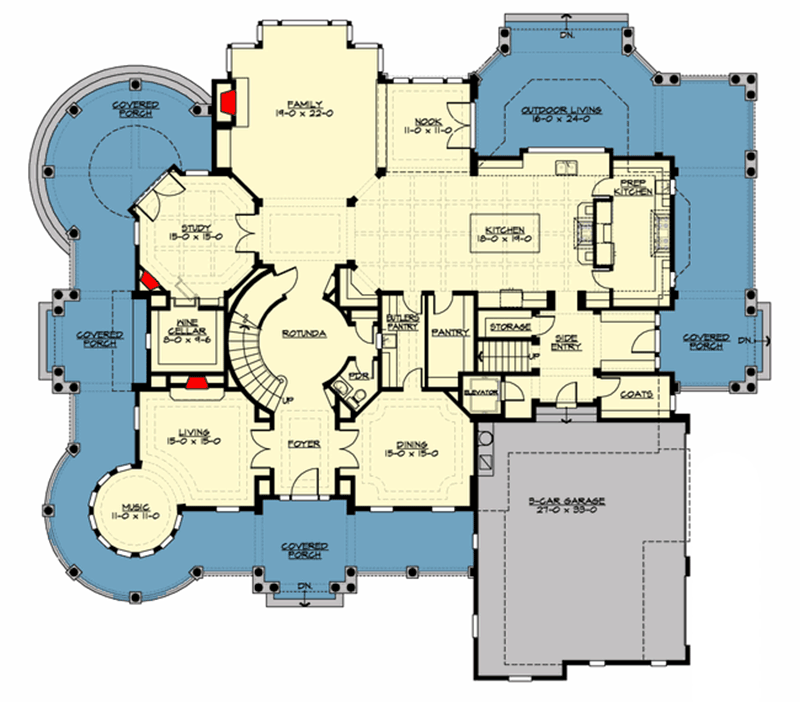

Magnificent Shingle Style Dream Home with Third Level - 23813JD floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

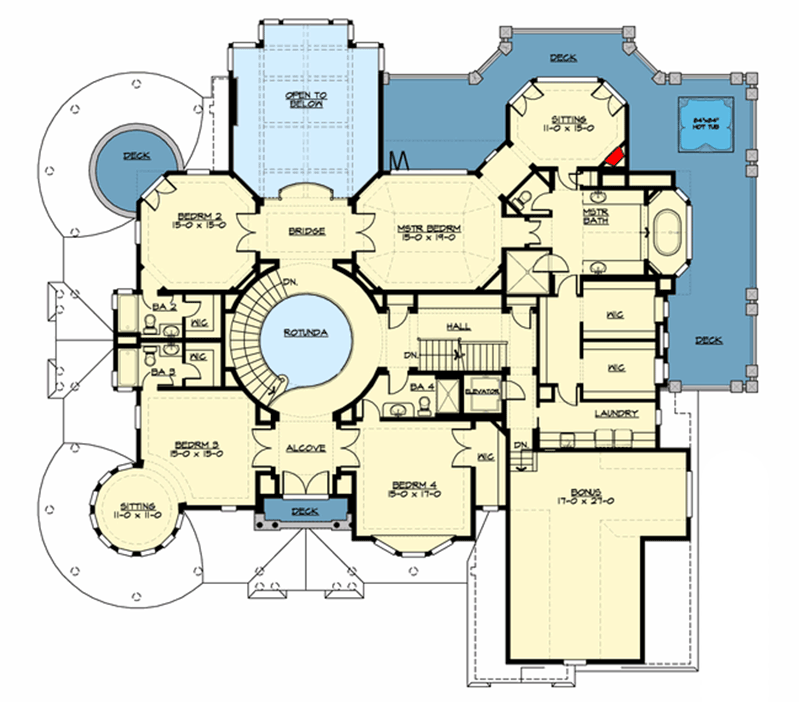

Magnificent Shingle Style Dream Home with Third Level - 23813JD floor plan - 2nd Floor

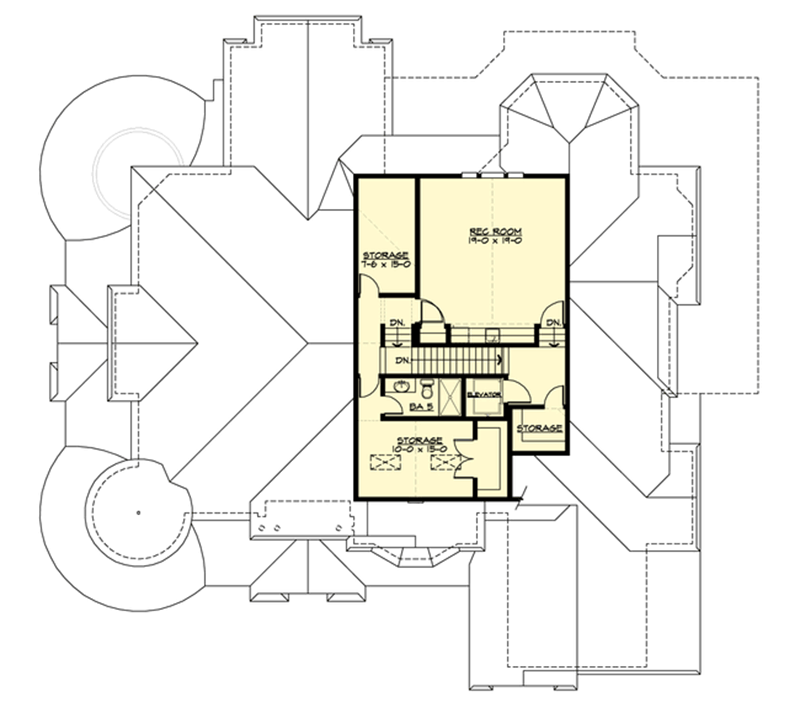

3rd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Magnificent Shingle Style Dream Home with Third Level - 23813JD floor plan - 3rd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 7,815 sq. ft.
1st Floor: 3,285 sq. ft.
2nd Floor: 3,440 sq. ft.
3rd Floor: 1,090 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 5
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 93' 0"
Depth: 85' 6"
Max ridge height: 40' 6"

Garage

Type: Attached
Area: 935 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Third Floor 8' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 4 on 12

Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections
