Master Down Modern Home Plan with Huge Outdoor Living Room

Plan 90298PD

  • 1,825

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • On the upper floor, the dining room is open to the living room and the kitchen, creating one great open space.Windows on three sides give you great views.
  • An open-air outdoor living room, located right off the kitchen, is a great place for outdoor entertainment and meals.
  • Stairs are located in the open living area and take you to the lower level where all the bedrooms are located.
  • Related Plan: Get a smaller version with the master up with house plan 90232PD (1,576 sq. ft.).  Get all 3 bedrooms on the lower floor with house plan 90241PD (1,647 sq. ft.).

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

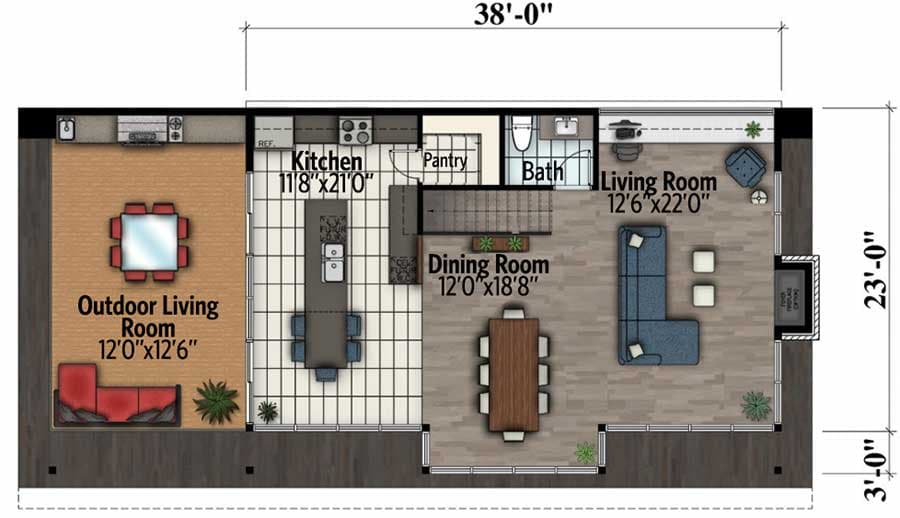

Master Down Modern Home Plan with Huge Outdoor Living Room - 90298PD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

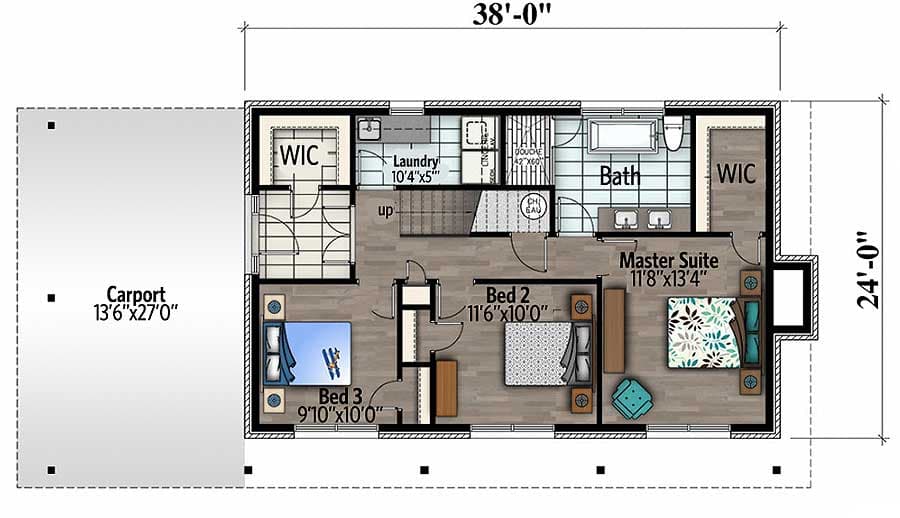

Master Down Modern Home Plan with Huge Outdoor Living Room - 90298PD floor plan - Lower Level

Master Down Modern Home Plan with Huge Outdoor Living Room

  • 1,825

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,825 sq. ft.
  • Lower Level: 912 sq. ft.
  • 1st Floor: 913 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 26' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Carport, Drive Under
  • Area: 360 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Truss
