Master Down Newport Masterpiece

Plan 23414JD

This plan plants 3 trees

7,915
Heated s.f.
5
Beds
5.5+
Baths
2
Stories
4
Cars

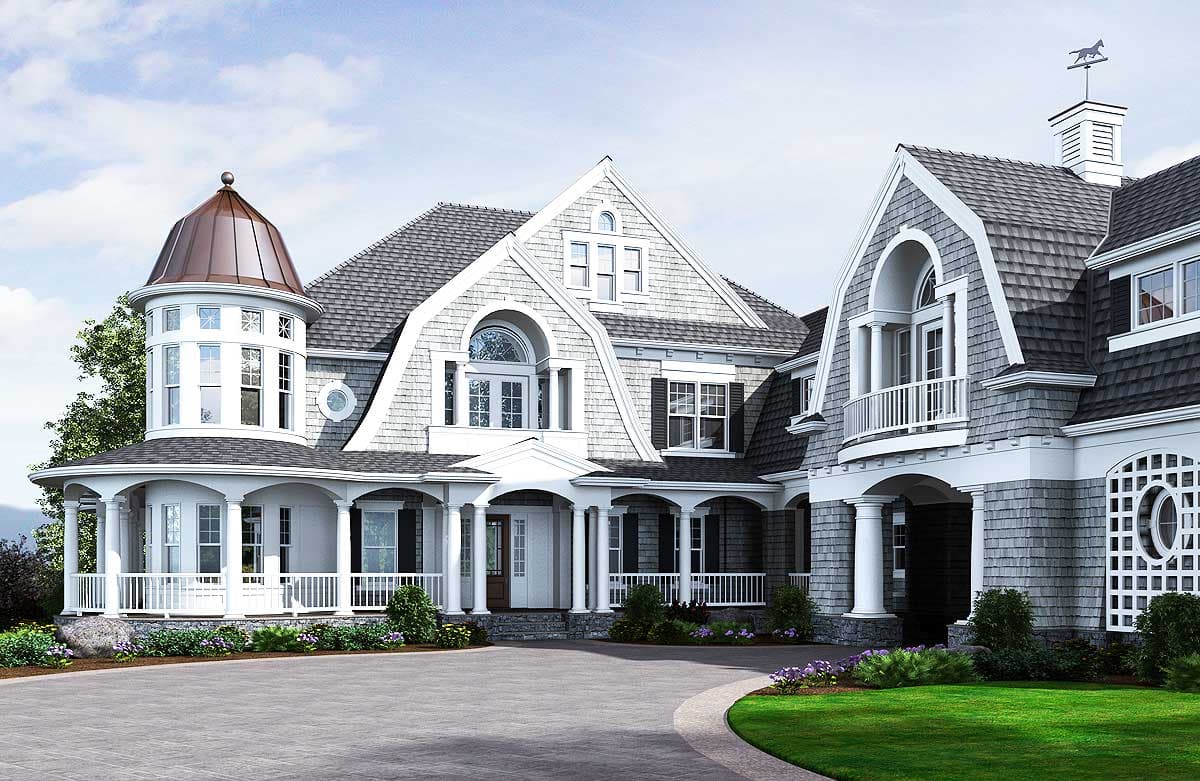

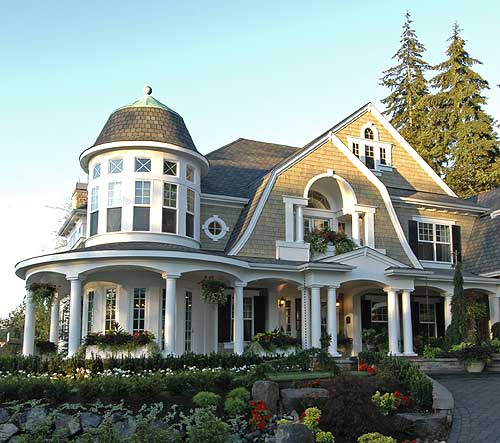

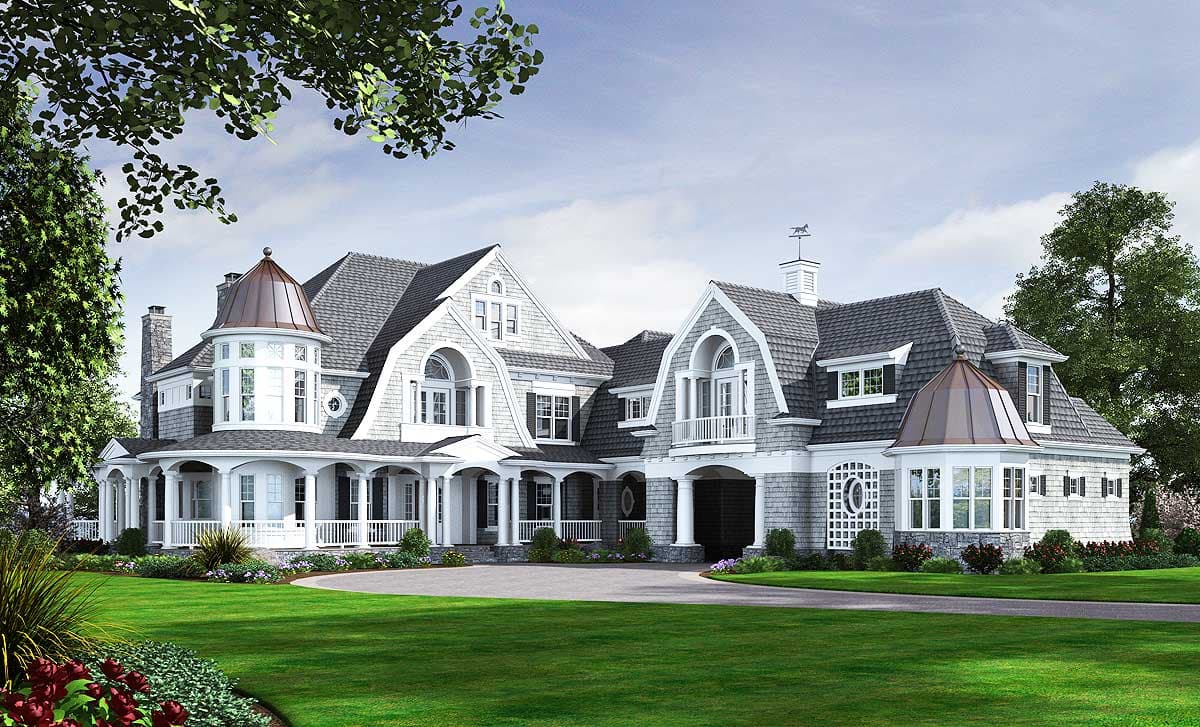

Embodying the essence of Newport elegance, the shingle-style gables, gambrels, columns, turrets and verandas entice visitors to approach. This master down version of our popular master-up plan (see house plan 232119JD) is a welcome addition to this luxury home plan series.

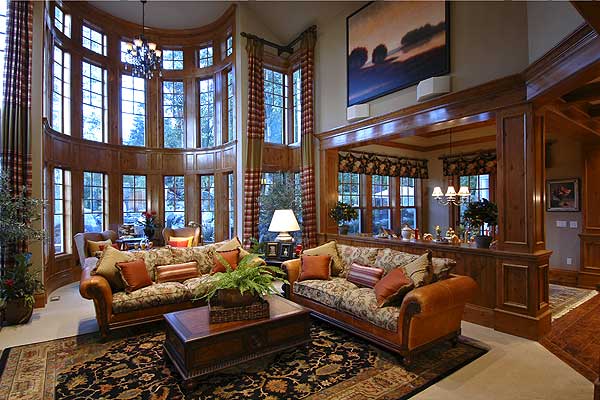

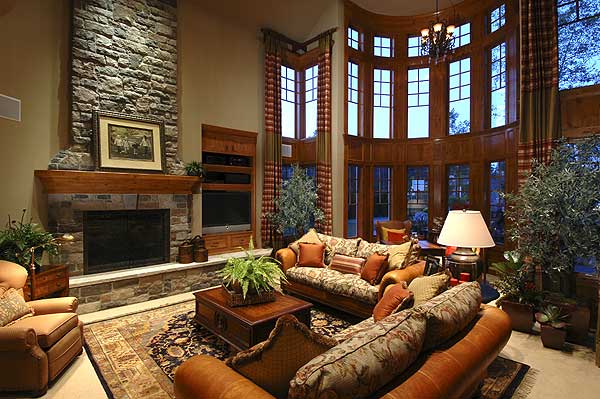

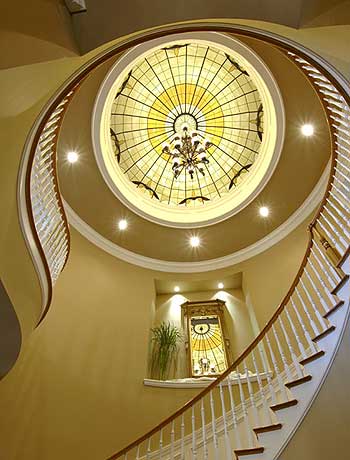

You are immediately drawn from the traditional foyer into the spectacular grand circular rotunda with its domed ceiling. The two-story great room beyond, with its curved bayed window, anchors the expansive family living area.

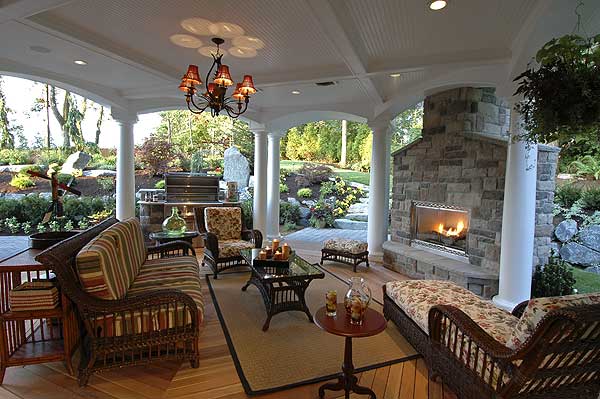

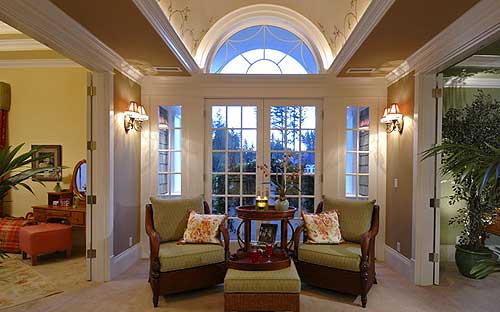

Formal dining room provides for grand entertaining, while the intimate library and circular sitting room allow for quiet activities. And the outdoor living room with fireplace makes a great place to retreat to with friends.
Service spaces including a butlery, mud room with elevator and back stair enhance the home's functionality.

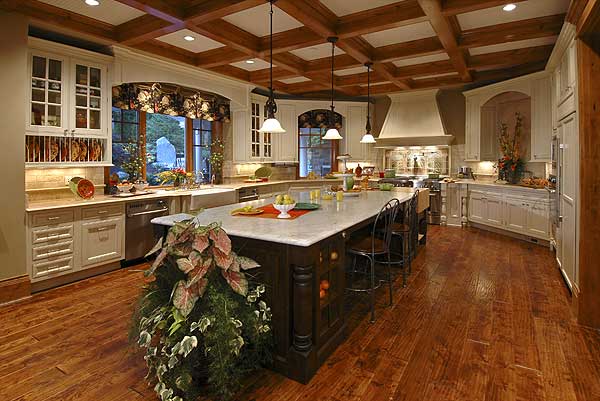

The kitchen is a gourmet's dream and is designed for multiple chefs and the creation of culinary delights.
The master suite is a magnificent private retreat and has its own private patio. The master bath with soaking tub, spacious double closets and vanities has it all.

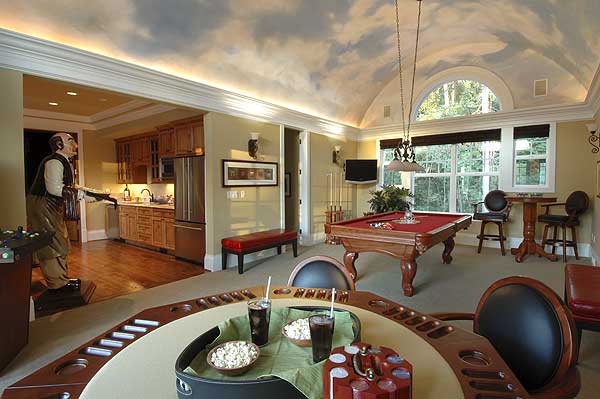

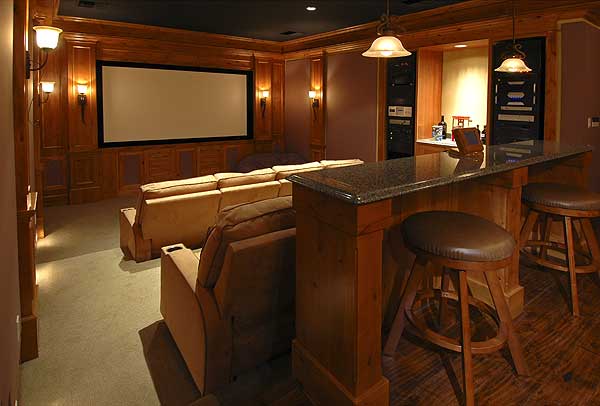

A home theater, game room, laundry and kitchen room round out the upper floor.
Related Plans: See these master-up designs - 23415JD (with finished basement), 23219JD, 23222JD (with third floor loft with private deck) and 23220JD (with a 2-story gym).
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.

Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.

Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.

Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.

Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.

Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

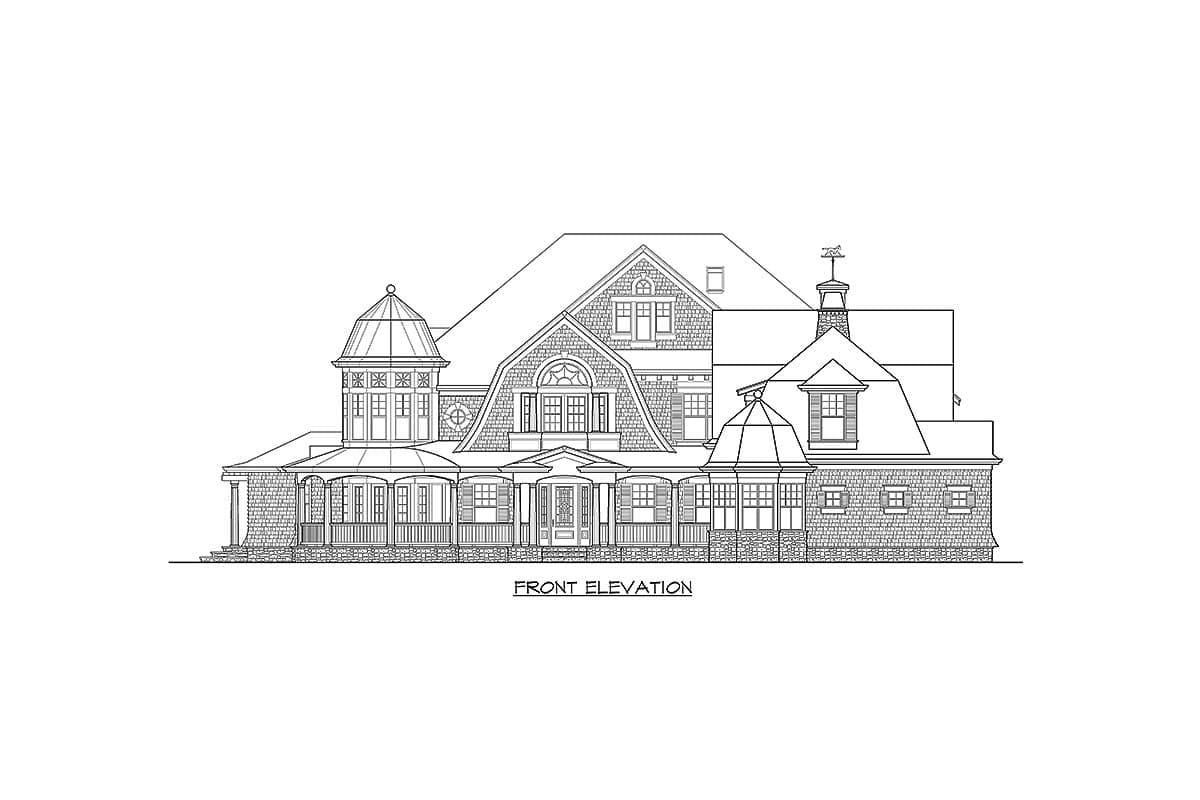

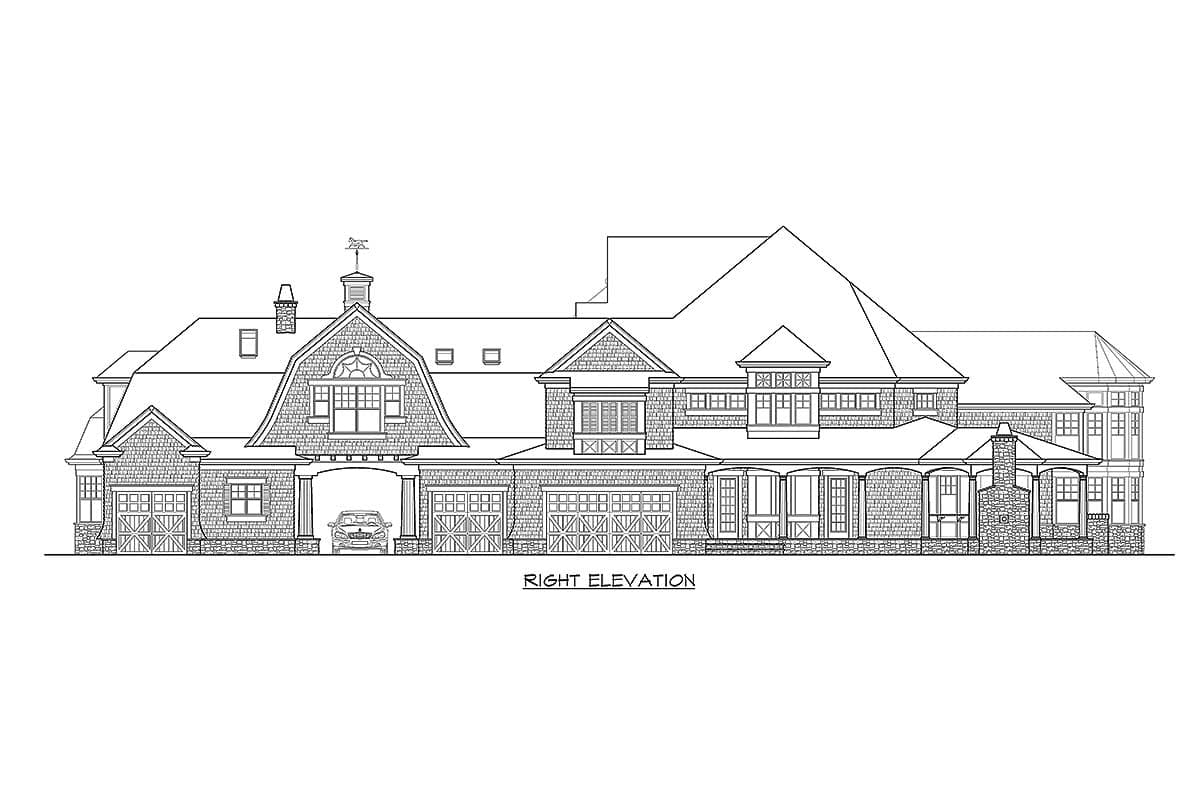

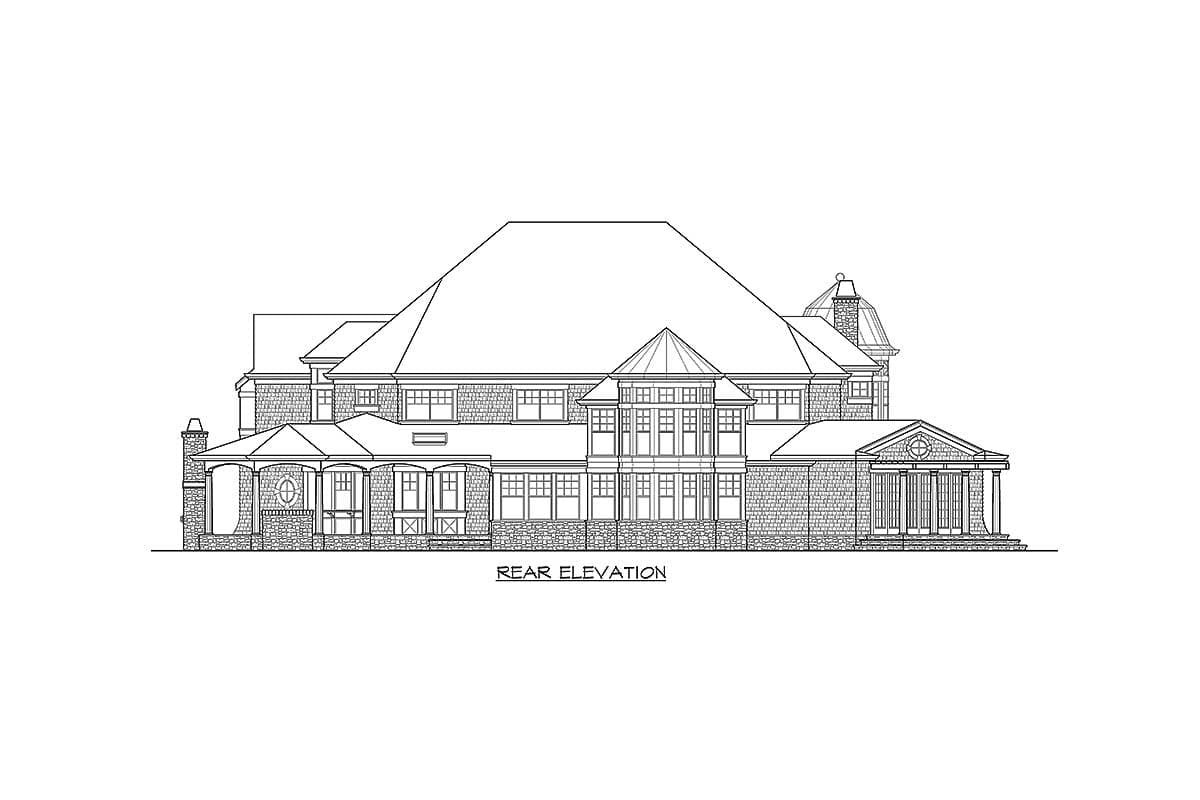

Elevation Sheet

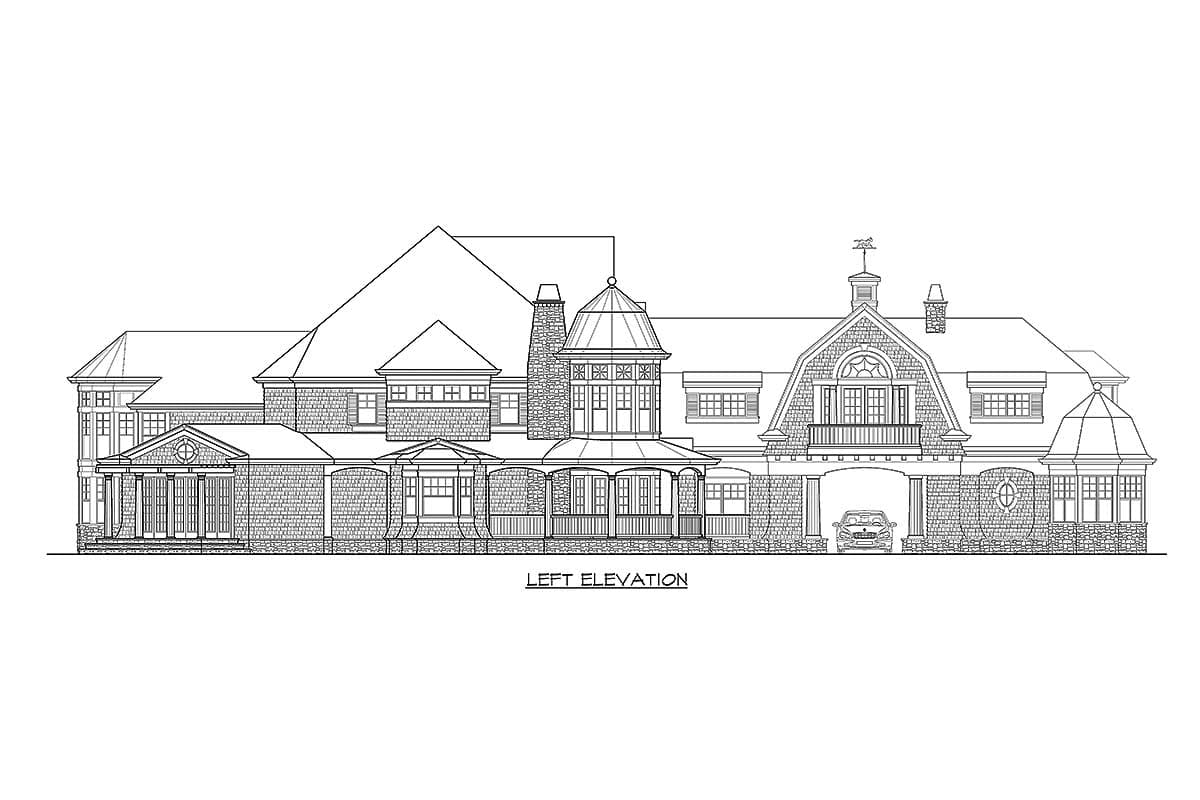

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.

Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

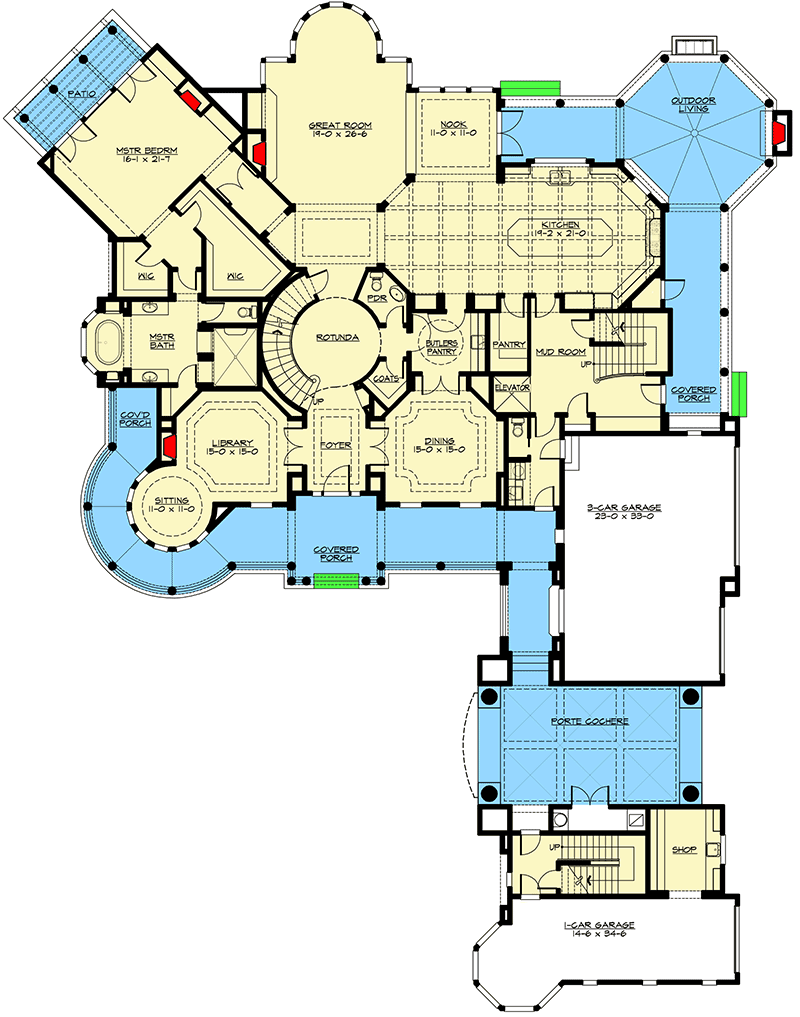

Master Down Newport Masterpiece - 23414JD floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

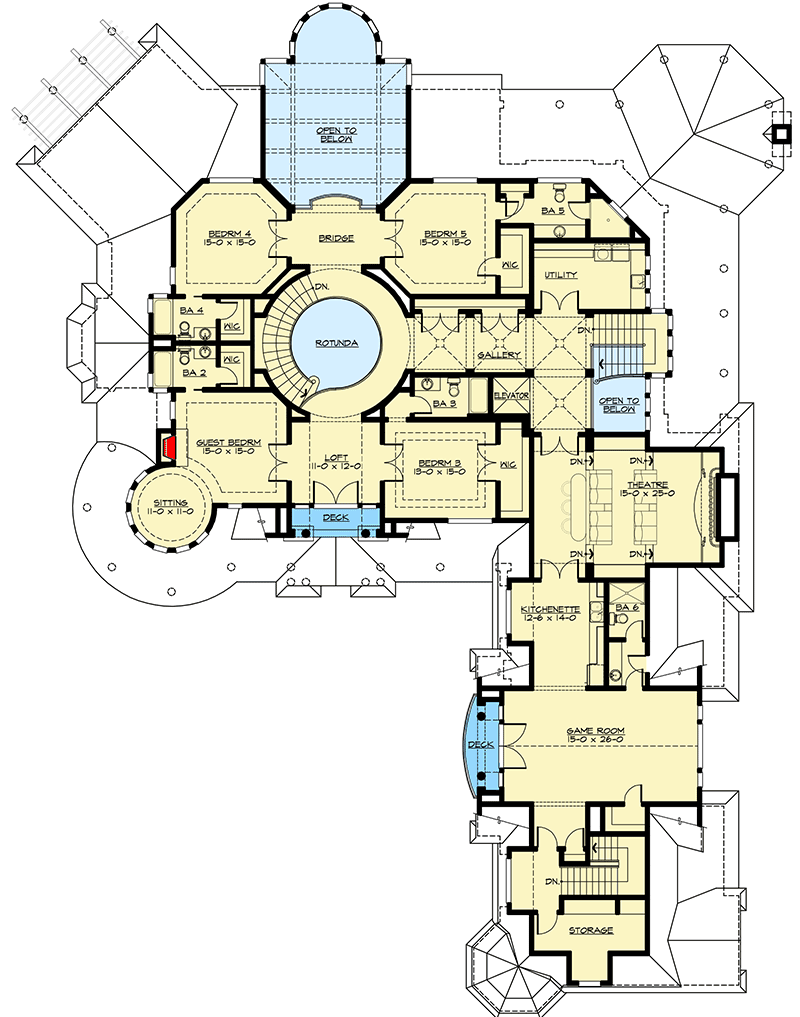

Master Down Newport Masterpiece - 23414JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 7,915 sq. ft.
1st Floor: 4,105 sq. ft.
2nd Floor: 3,810 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 5
Half bathrooms: 2

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 102' 0"
Depth: 135' 0"
Max ridge height: 39' 6"

Garage

Type: Attached
Area: 1400 sq. ft.
Count: 4 Cars
Entry Location: Side, Rear

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12

Framing Type: Stick and Truss

Architectural Style

Special features

Plan Collections
