Plan 23222JD Grand Estate Home with Lots of Extras

7,985 4 4.5+ 2-3 5
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Grand Estate Home with Lots of Extras

Plan 23222JD

  • 7,985

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2-3

    Stories

  • 5

    Cars

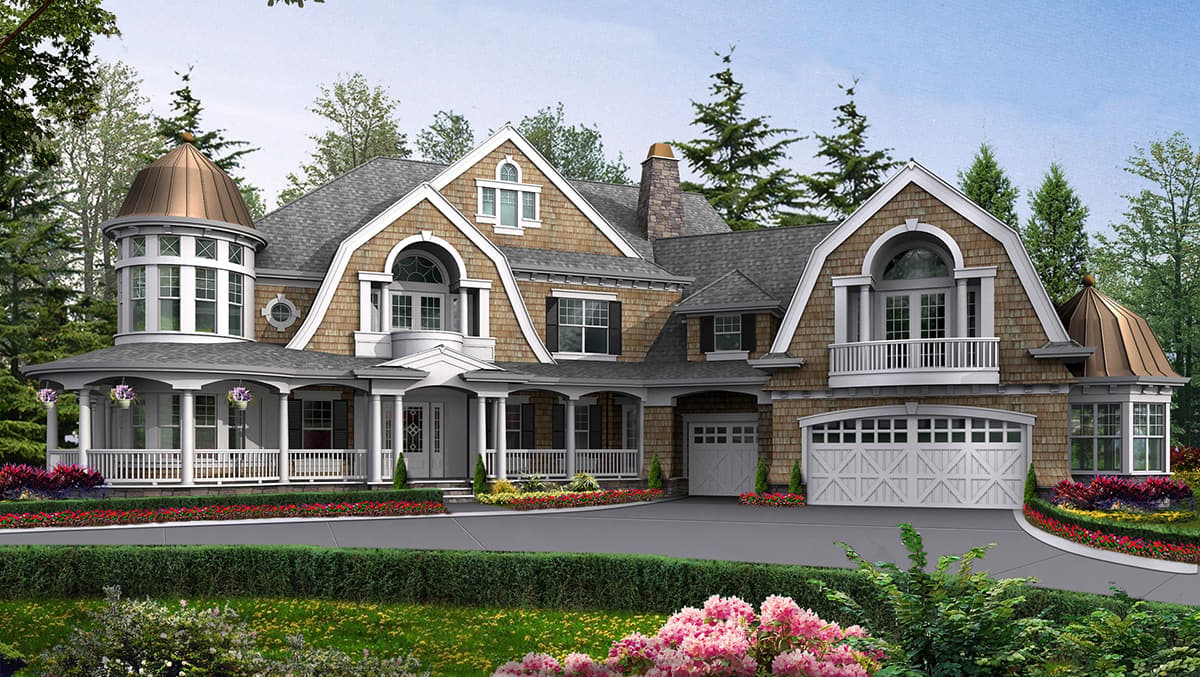

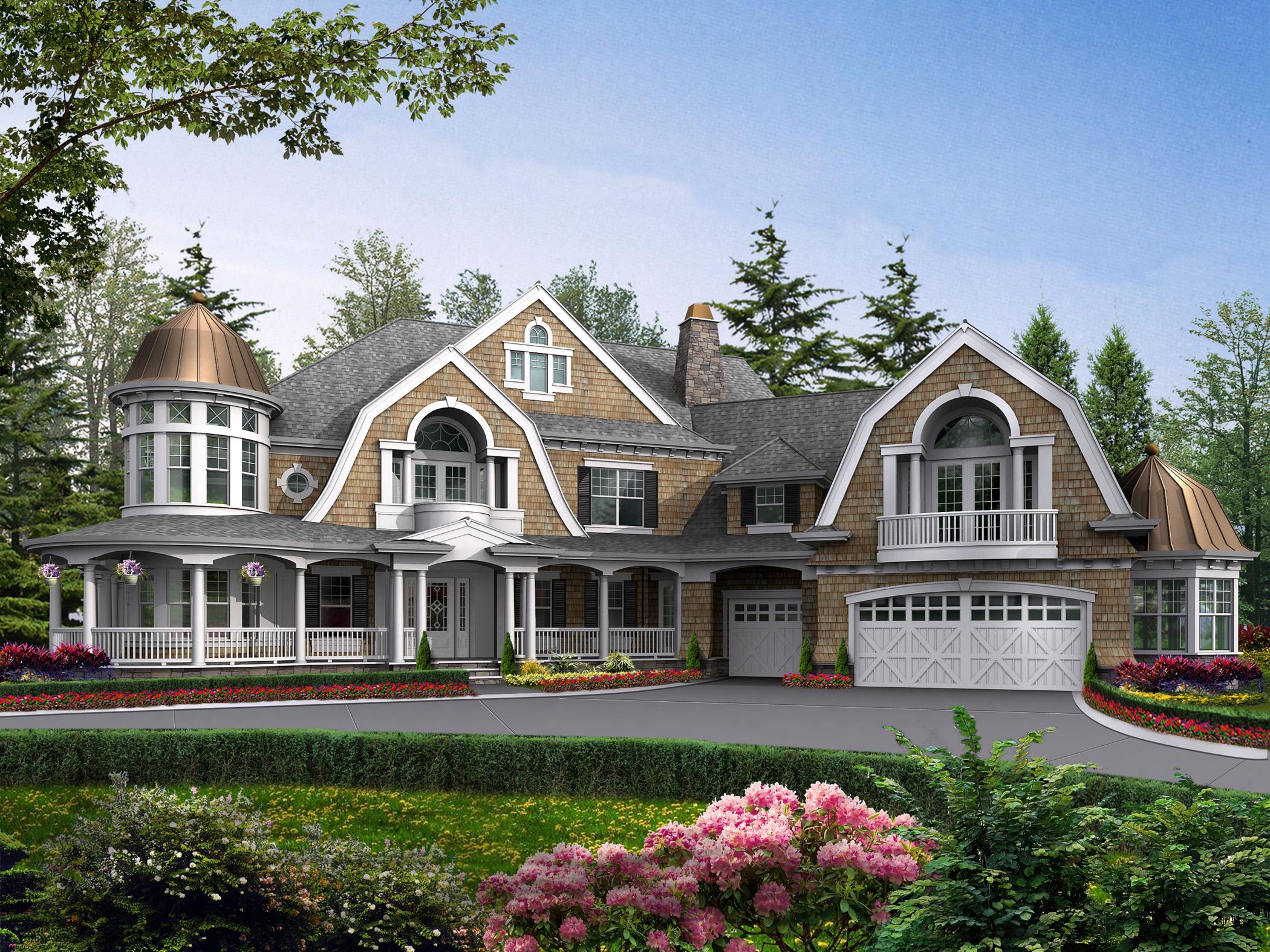

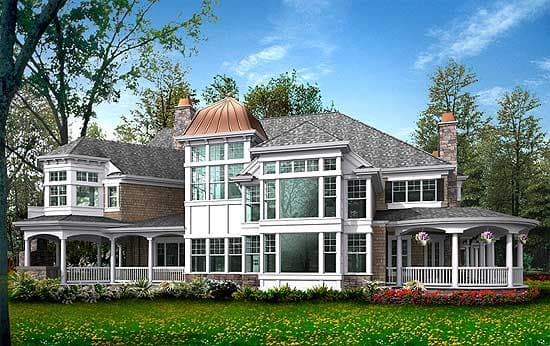

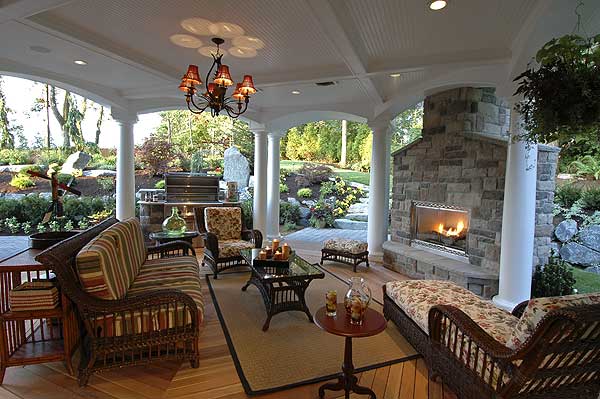

  • Embodying the essence of Newport elegance, the shingle-style gables, gambrels, columns, turrets and verandas entice visitors to approach.

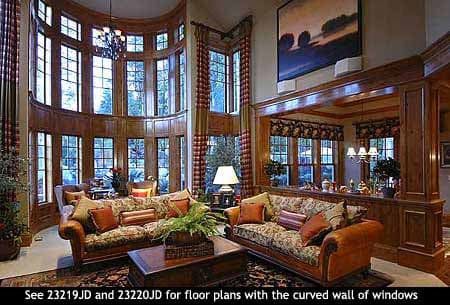

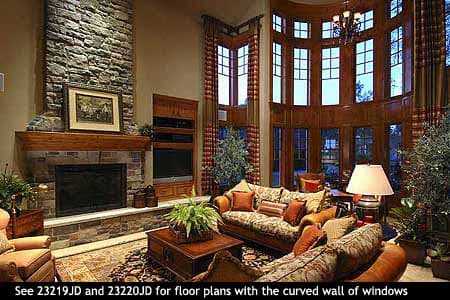

  • You are immediately drawn from the traditional foyer into the spectacular grand circular rotunda with its domed ceiling. The two-story grand room beyond, with its curved bayed window, anchors the expansive family living area.

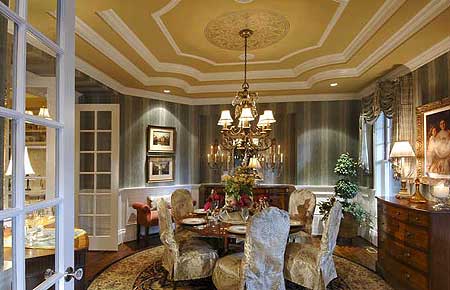

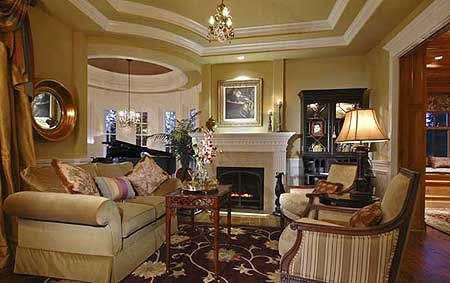

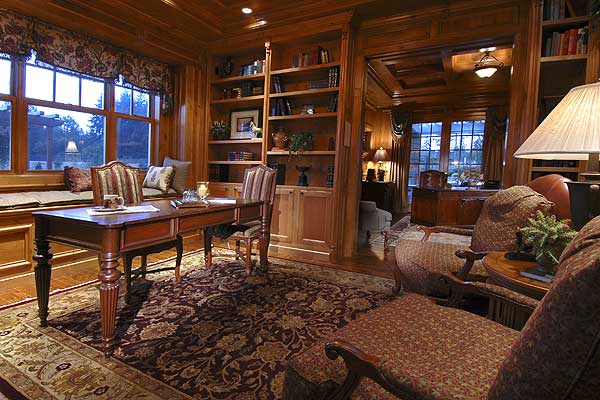

  • Formal living and dining rooms provide for grand entertaining, while the intimate library and study allow for quiet activities. Service spaces including a butlery, mud room with elevator and back stair enhance the home's functionality.

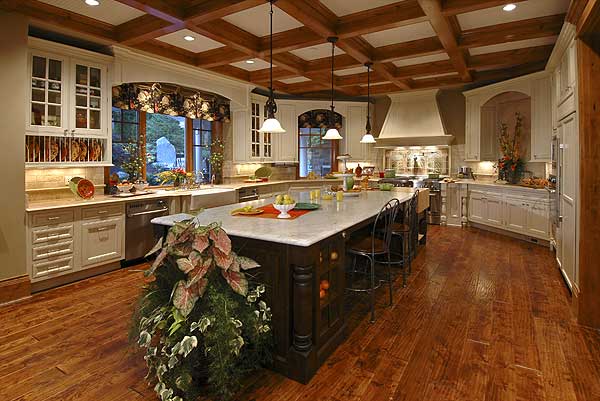

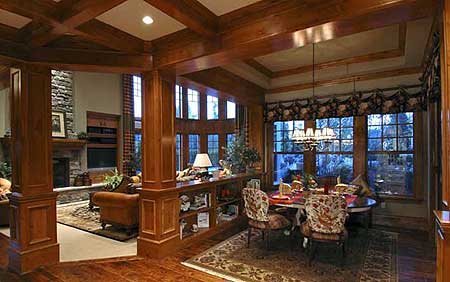

  • The kitchen is a gourmet's dream and is designed for multiple chefs and the creation of culinary delights.

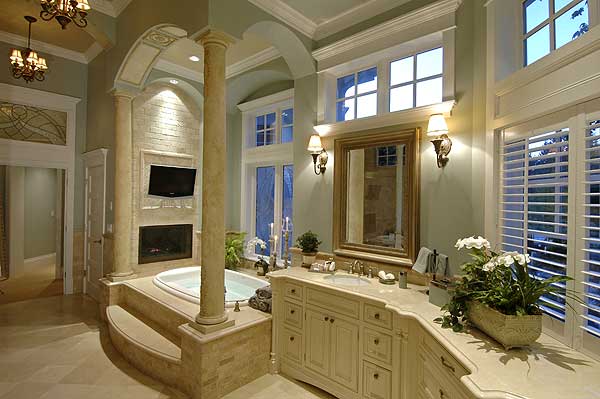

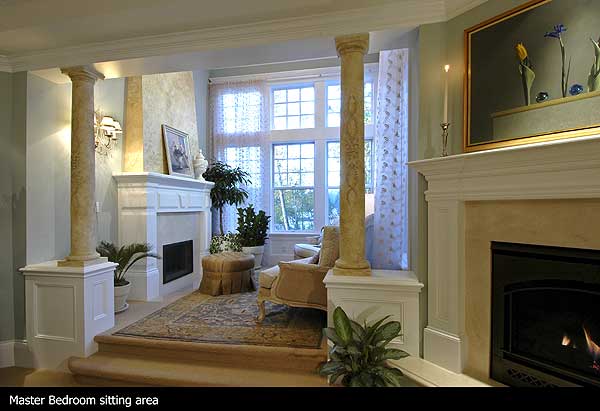

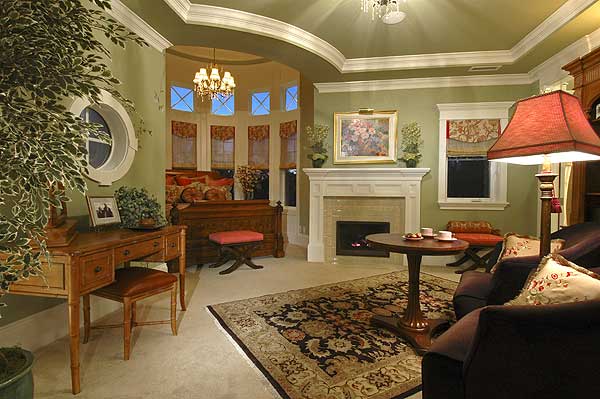

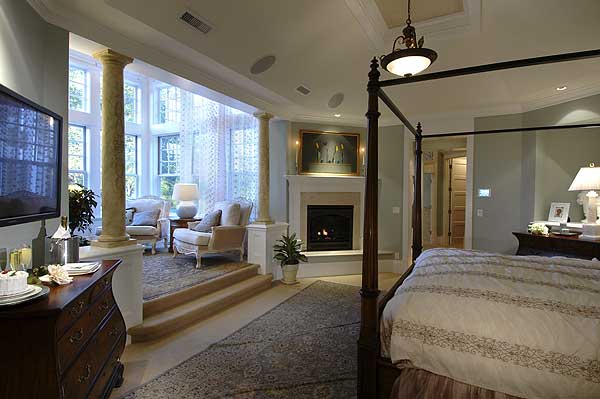

  • The upstairs master suite is a magnificent retreat. The master bath with a columned soaking tub, spacious double closets and vanities, stepped ceiling, balcony and stacked washer/dryer has it all. Three suites have walk-in closets and private baths. The guest suite features a turreted sitting area.

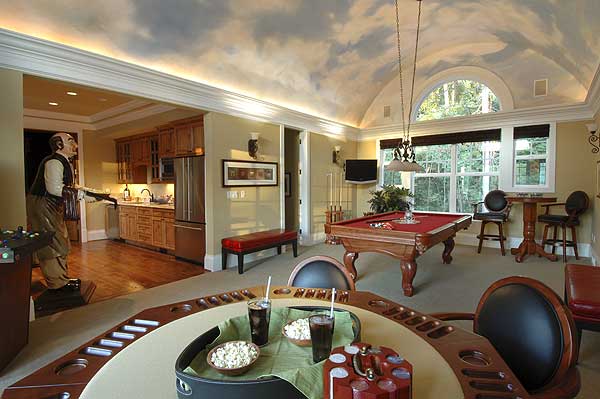

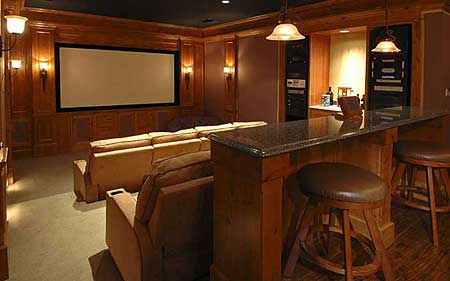

  • A home theater, game room and deck round out this floor.
  • On the third floor, a large loft with a deck and full bath makes for an airy retreat.
  • Related Plans: Cut down on space and eliminate the third story loft with house plan 23219JD.
  • Gain a two-story gym with house plan 23220JD.
  • Get a main floor master suite with house plan 23414JD.
  • Get a finished walkout basement with house plan 23415JD.
  • See a video of these alternate versions . Click here to begin.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

    •

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

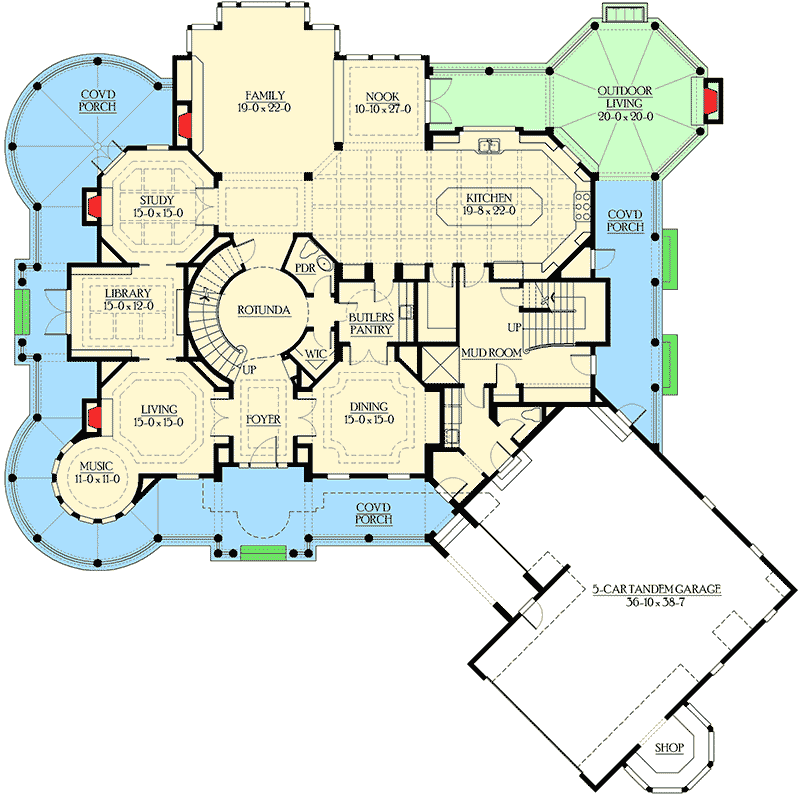

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Estate Home with Lots of Extras - 23222JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

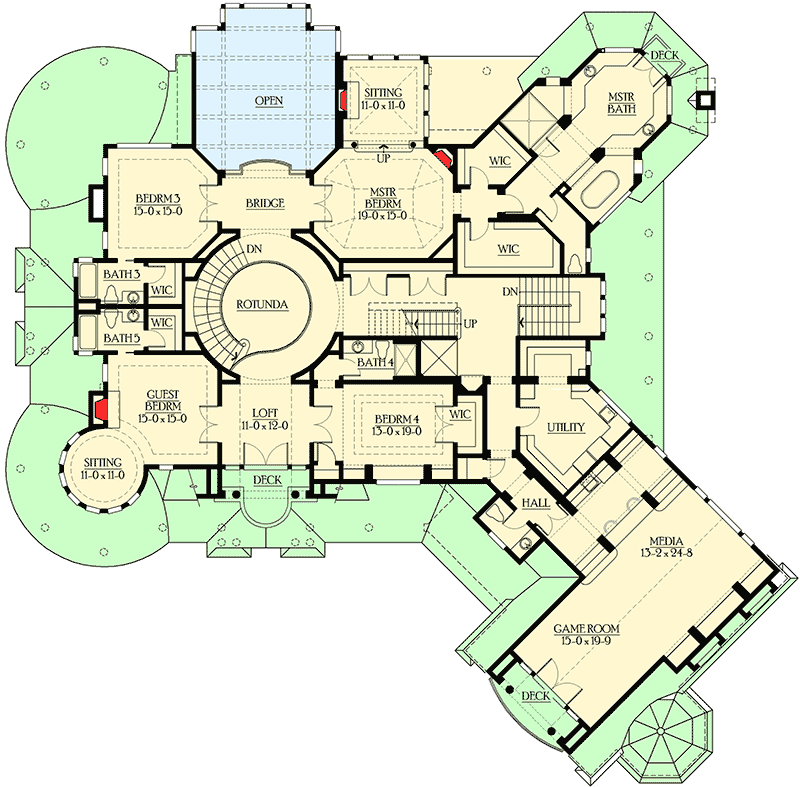

Grand Estate Home with Lots of Extras - 23222JD floor plan - 2nd Floor

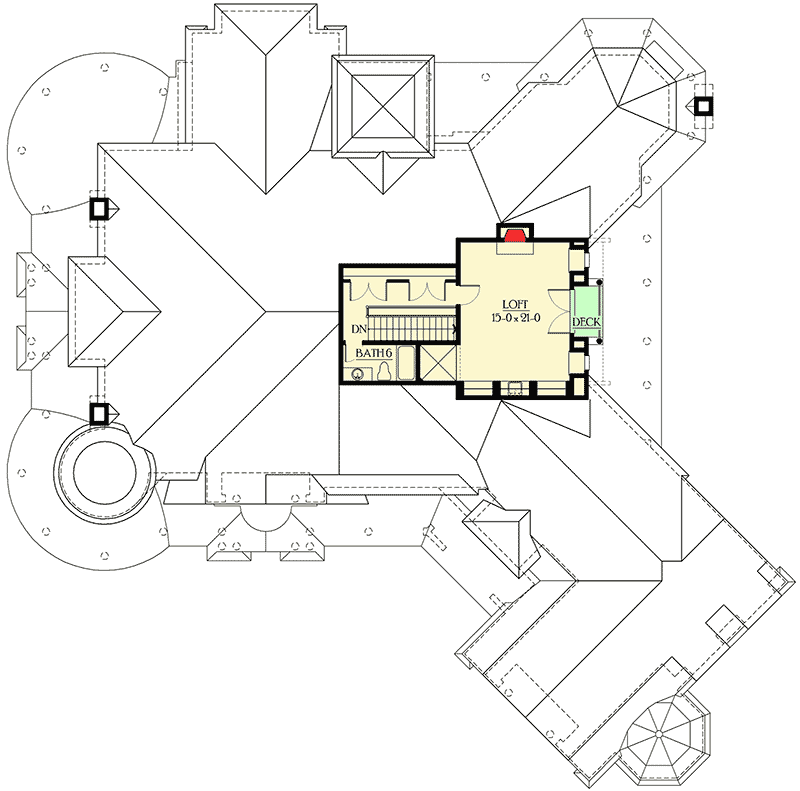

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Estate Home with Lots of Extras - 23222JD floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 7,985 sq. ft.
  • 1st Floor: 3,430 sq. ft.
  • 2nd Floor: 4,055 sq. ft.
  • 3rd Floor: 500 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 105' 0"
  • Depth: 105' 0"
  • Max ridge height: 39' 7"

Garage

  • Type: Attached
  • Area: 1355 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Grand Estate Home with Lots of Extras

  • 7,985

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2-3

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $4,600
  • CAD + PDF - Unlimited Build $6,500
  • View all purchase option online

About This Plan

  • Embodying the essence of Newport elegance, the shingle-style gables, gambrels, columns, turrets and verandas entice visitors to approach.
  • You are immediately drawn from the traditional foyer into the spectacular grand circular rotunda with its domed ceiling. The two-story grand room beyond, with its curved bayed window, anchors the expansive family living area.
  • Formal living and dining rooms provide for grand entertaining, while the intimate library and study allow for quiet activities. Service spaces including a butlery, mud room with elevator and back stair enhance the home's functionality.
  • The kitchen is a gourmet's dream and is designed for multiple chefs and the creation of culinary delights.
  • The upstairs master suite is a magnificent retreat. The master bath with a columned soaking tub, spacious double closets and vanities, stepped ceiling, balcony and stacked washer/dryer has it all. Three suites have walk-in closets and private baths. The guest suite features a turreted sitting area.
  • A home theater, game room and deck round out this floor.
  • On the third floor, a large loft with a deck and full bath makes for an airy retreat.
  • Related Plans: Cut down on space and eliminate the third story loft with house plan 23219JD.
  • Gain a two-story gym with house plan 23220JD.
  • Get a main floor master suite with house plan 23414JD.
  • Get a finished walkout basement with house plan 23415JD.
  • See a video of these alternate versions . Click here to begin.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

    •

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,985 sq. ft.
  • 1st Floor: 3,430 sq. ft.
  • 2nd Floor: 4,055 sq. ft.
  • 3rd Floor: 500 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 105' 0"
  • Depth: 105' 0"
  • Max ridge height: 39' 7"

Garage

  • Type: Attached
  • Area: 1355 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
