Newport Masterpiece with Finished Walkout

Plan 23415JD

  • 10,275

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 5

    Cars

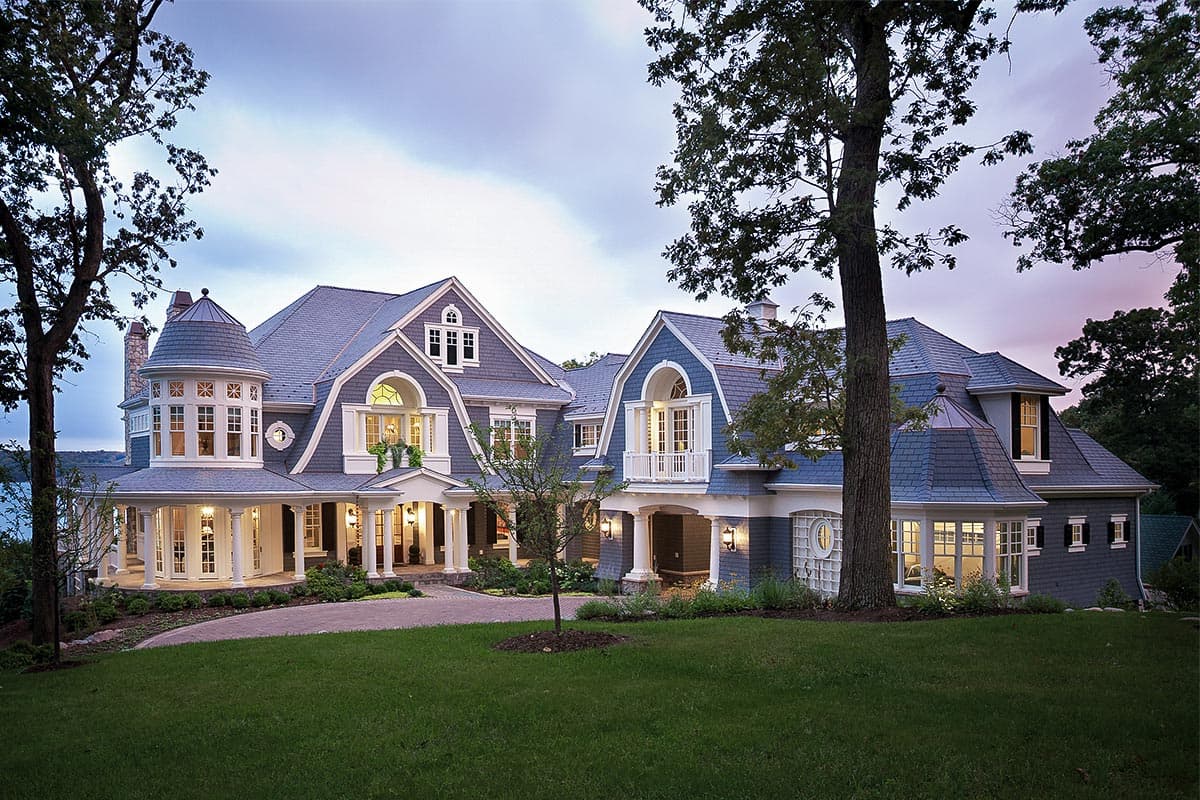

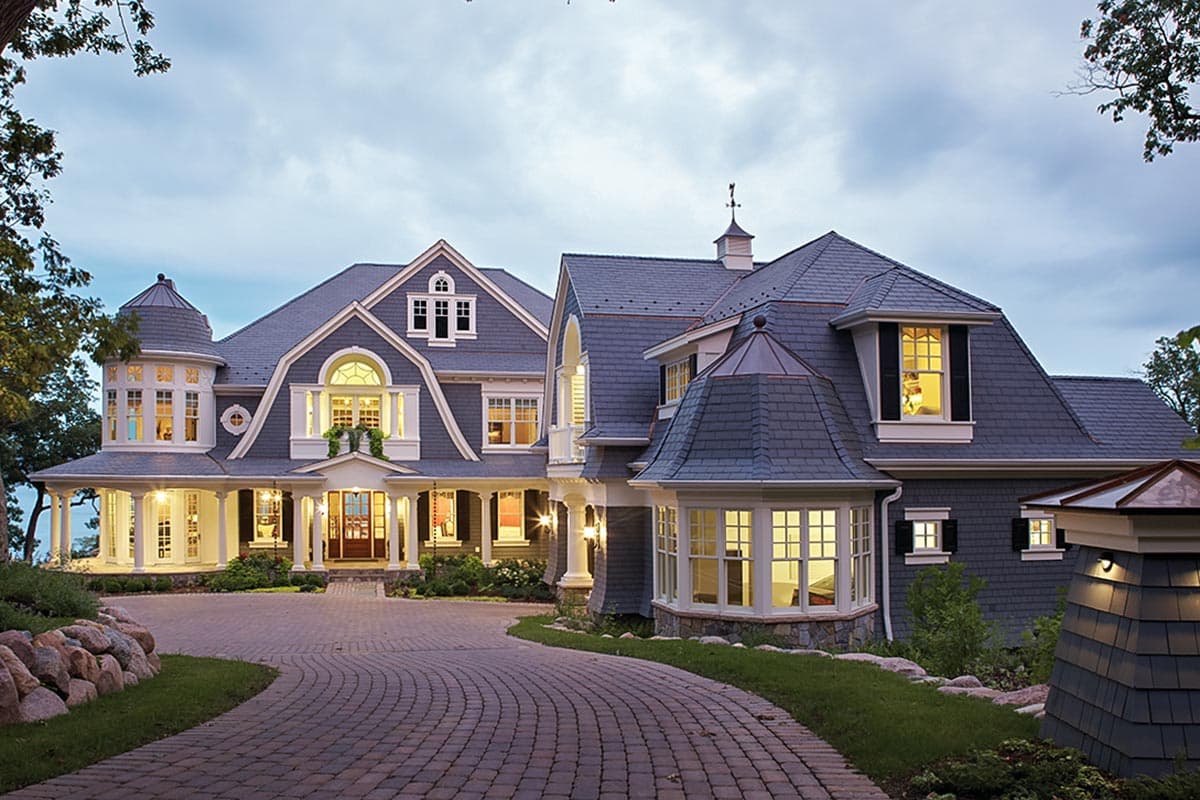

  • Embodying the essence of Newport elegance, the shingle-style gables, gambrels, columns, turrets and verandas entice visitors to approach. Part of our popular Newport series, this one offers a finished walkout basement for your special lot.
  • You are immediately drawn from the traditional foyer into the spectacular grand circular rotunda with its domed ceiling. The two-story great room beyond, with its curved bayed window, anchors the expansive family living area.
  • Formal dining room provides for grand entertaining, while the intimate library and circular sitting room allow for quiet activities. And the outdoor living room with fireplace makes a great place to retreat to with friends.
  • Service spaces including a butlery, mud room with elevator and back stair enhance the home's functionality.
  • The kitchen is a gourmet's dream and is designed for multiple chefs and the creation of culinary delights.
  • Upstairs, the master suite is a magnificent private retreat with its own step-up sitting room with fireplace. The master bath with a columned soaking tub, spacious double closets and vanities has it all. The children's suites are highlighted by playful and unique spaces. Plus there is the guest suite with circular sitting room.
  • A great home office setup comes with its own conference room and kitchen.
  • Related Plans: Finish the basement later with these house plans - 23414JD (master down), 23219JD, 23222JD (with third floor loft with private deck) and 23220JD (with a 2-story gym).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

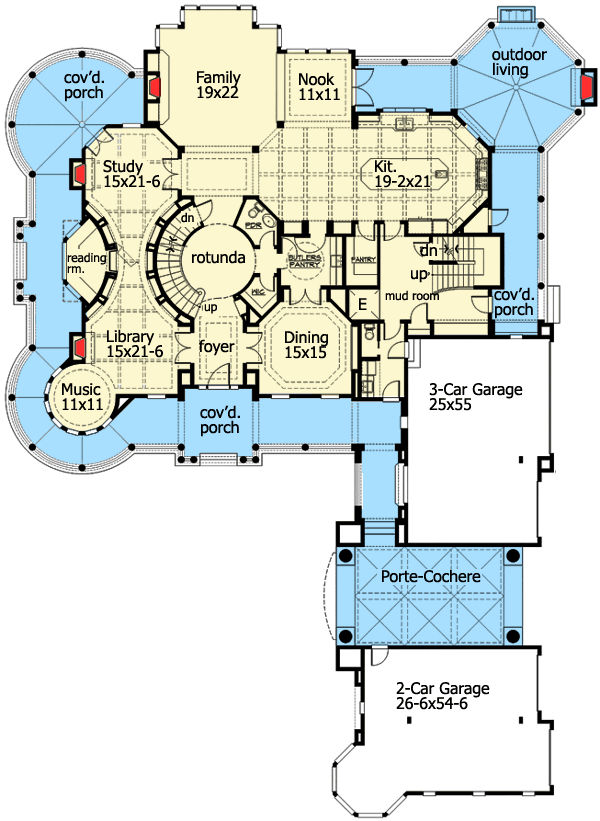

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Newport Masterpiece with Finished Walkout - 23415JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

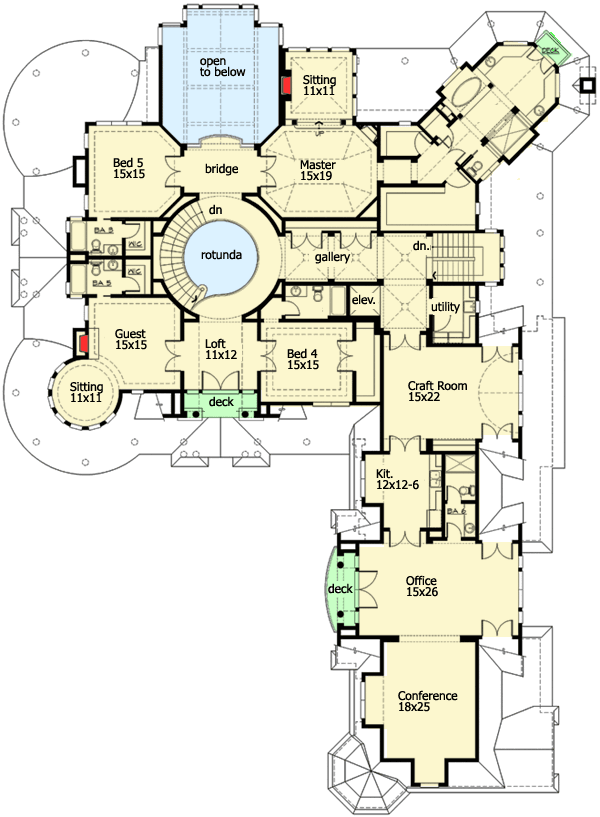

Newport Masterpiece with Finished Walkout - 23415JD floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

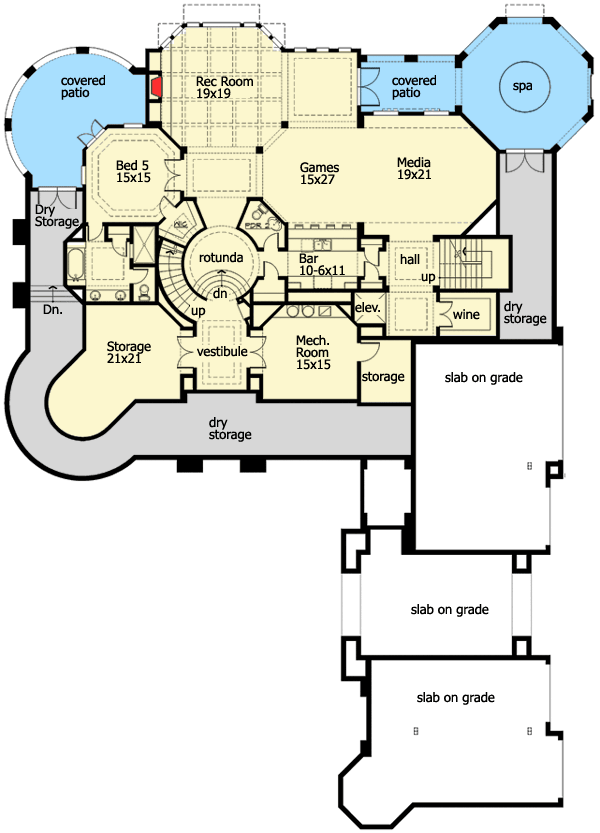

Newport Masterpiece with Finished Walkout - 23415JD floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 10,275 sq. ft.
  • Lower Level: 2,585 sq. ft.
  • 1st Floor: 3,350 sq. ft.
  • 2nd Floor: 4,340 sq. ft.
  • Storage: 1,410 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 96' 0"
  • Depth: 129' 0"
  • Max ridge height: 39' 6"

Garage

  • Type: Attached
  • Area: 1575 sq. ft.
  • Count: 5 Cars
  • Entry Location: Side, Rear

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Family Room Second Story
Dining Room Tray
Study Coffered
Library Coffered
Kitchen Coffered
Dining Room Tray
All Bedrooms Tray
Master Bedroom Vaulted 11' 4"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick and Truss

Architectural Style

Special features

Plan Collections

Newport Masterpiece with Finished Walkout

  • 10,275

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $6,000
  • CAD + PDF - Unlimited Build $8,600
  • View all purchase option online

About This Plan

  • Embodying the essence of Newport elegance, the shingle-style gables, gambrels, columns, turrets and verandas entice visitors to approach. Part of our popular Newport series, this one offers a finished walkout basement for your special lot.
  • You are immediately drawn from the traditional foyer into the spectacular grand circular rotunda with its domed ceiling. The two-story great room beyond, with its curved bayed window, anchors the expansive family living area.
  • Formal dining room provides for grand entertaining, while the intimate library and circular sitting room allow for quiet activities. And the outdoor living room with fireplace makes a great place to retreat to with friends.
  • Service spaces including a butlery, mud room with elevator and back stair enhance the home's functionality.
  • The kitchen is a gourmet's dream and is designed for multiple chefs and the creation of culinary delights.
  • Upstairs, the master suite is a magnificent private retreat with its own step-up sitting room with fireplace. The master bath with a columned soaking tub, spacious double closets and vanities has it all. The children's suites are highlighted by playful and unique spaces. Plus there is the guest suite with circular sitting room.
  • A great home office setup comes with its own conference room and kitchen.
  • Related Plans: Finish the basement later with these house plans - 23414JD (master down), 23219JD, 23222JD (with third floor loft with private deck) and 23220JD (with a 2-story gym).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
