Mediterranean Delight

Plan 66274WE

  • 4,480

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Mediterranean home plan is a slight variation to luxury house plan 66011WE (4,000 sq. ft.). This floor plan is also a two-story design, but the second story is off of the back of the house and features not only the bonus room and bath, but an extra bedroom also.
  • Giving this house design a total of 4 bedrooms, plus the bonus room which shares the second floor private balcony to take maximum benefit of any kind of view you might have. Also, downstairs the home plan has squared off the family room making a very nice outdoor kitchen/sitting area with a nice ceiling design above on the lanai area. Great for those nights when you feel like dining al fresco.
  • The walk-in closet in the master suite has been enhanced, but this home plan still has that unique butler's pantry accessible from the dining room just like the smaller house plan.
  • Related Plans: Need something smaller? See house plan 66011WE (4,000 sq,. ft.), 66271WE (3,895 sq. ft.) and 66007WE (3,508 sq. ft.).
  • Need more room? See house plan 66185WE (5,087 sq. ft.).

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Mediterranean Delight

  • 4,480

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,200
  • PDF - single-use $1,200
  • CAD $1,200
  • View all purchase option online

About This Plan

  • This Mediterranean home plan is a slight variation to luxury house plan 66011WE (4,000 sq. ft.). This floor plan is also a two-story design, but the second story is off of the back of the house and features not only the bonus room and bath, but an extra bedroom also.
  • Giving this house design a total of 4 bedrooms, plus the bonus room which shares the second floor private balcony to take maximum benefit of any kind of view you might have. Also, downstairs the home plan has squared off the family room making a very nice outdoor kitchen/sitting area with a nice ceiling design above on the lanai area. Great for those nights when you feel like dining al fresco.
  • The walk-in closet in the master suite has been enhanced, but this home plan still has that unique butler's pantry accessible from the dining room just like the smaller house plan.
  • Related Plans: Need something smaller? See house plan 66011WE (4,000 sq,. ft.), 66271WE (3,895 sq. ft.) and 66007WE (3,508 sq. ft.).
  • Need more room? See house plan 66185WE (5,087 sq. ft.).

Floor Plans

  • Main Level

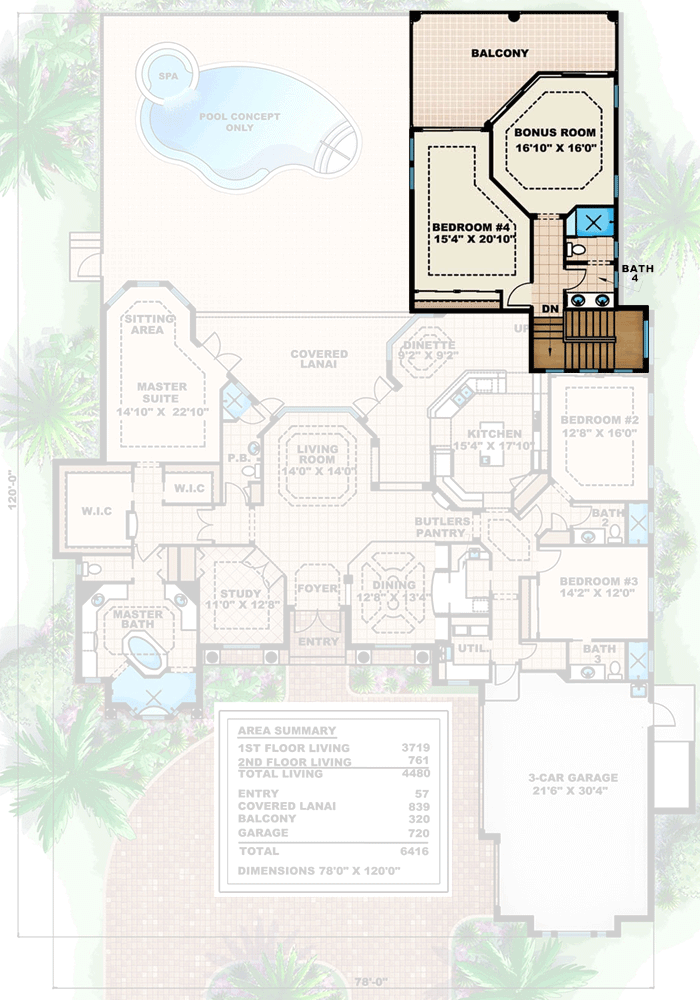

  • 2nd Floor
