Plan 66011WE

Cozy and Elegant Luxury House Plan

4,000 3 4 1-2 3
Pageloader

Cozy and Elegant Luxury House Plan

Plan 66011WE

  • 4,000

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This award winning luxury house plan is a unique combination of coziness and elegance. The floor plan flows flawlessly without compromising privacy or style. Natural views and the outdoor living spaces enhances the open, spacious feeling inside a home. This home plan encompasses this belief and is certainly setting a trend in residential design.
  • Distinguishing qualities include the overall layout and flow of the house plan, coffered ceilings that maximize daylight while reflecting grandeur and richness.
  • A pass-through wet bar that can also be used as a butler's pantry. The loft above the garage is a fun and logical use of space for a second floor game or media room.
  • The gourmet kitchen is superior in design and convenience. The dropped coffered ceiling in the kitchen provides intimate recessed lighting and a wonderful place to display art and kitchen decor.
  • Related Plans: Eliminate the bonus level with house plan 66271WE.
  • For something smaller, see house plan 66007WE (3,508 sq. ft.).
  • For larger versions, see these house plans - 66274WE (4,480 sq. ft.) and 66185WE (5,087 sq. ft.).

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Plan details



Cozy and Elegant Luxury House Plan

  • 4,000

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,700
  • PDF - single-use $1,700
  • CAD $1,700
  • View all purchase option online

About This Plan

  • This award winning luxury house plan is a unique combination of coziness and elegance. The floor plan flows flawlessly without compromising privacy or style. Natural views and the outdoor living spaces enhances the open, spacious feeling inside a home. This home plan encompasses this belief and is certainly setting a trend in residential design.
  • Distinguishing qualities include the overall layout and flow of the house plan, coffered ceilings that maximize daylight while reflecting grandeur and richness.
  • A pass-through wet bar that can also be used as a butler's pantry. The loft above the garage is a fun and logical use of space for a second floor game or media room.
  • The gourmet kitchen is superior in design and convenience. The dropped coffered ceiling in the kitchen provides intimate recessed lighting and a wonderful place to display art and kitchen decor.
  • Related Plans: Eliminate the bonus level with house plan 66271WE.
  • For something smaller, see house plan 66007WE (3,508 sq. ft.).
  • For larger versions, see these house plans - 66274WE (4,480 sq. ft.) and 66185WE (5,087 sq. ft.).

Floor Plans

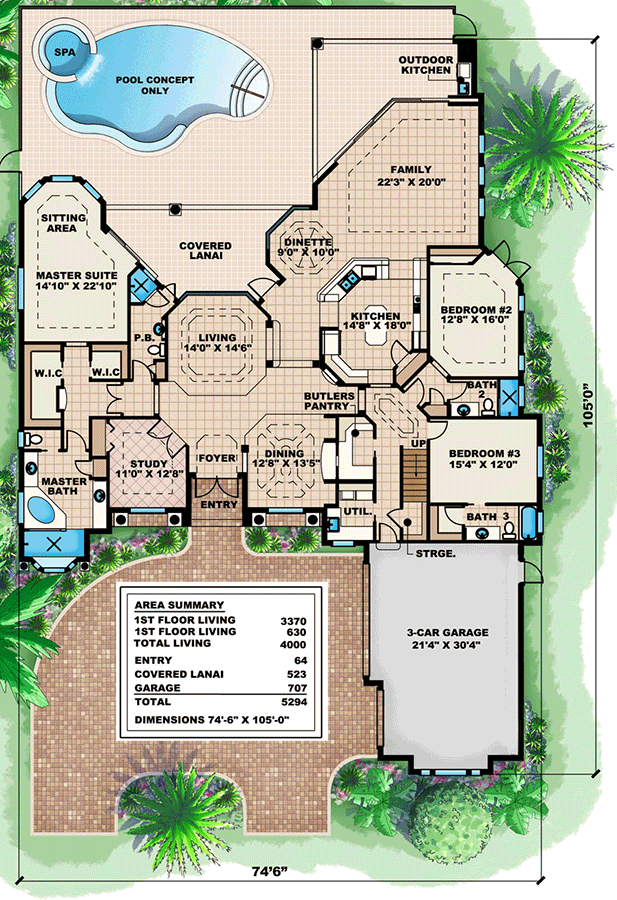

  • Main Level

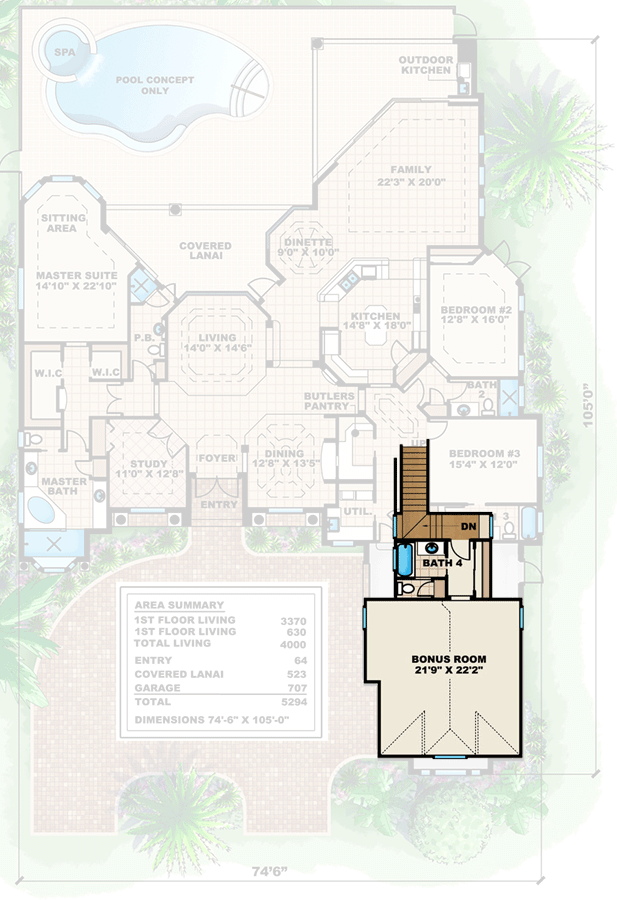

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,000 sq. ft.
  • 1st Floor: 3,370 sq. ft.
  • 2nd Floor: 630 sq. ft.
  • Lanai: 523 sq. ft.
  • Entry: 64 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6 and Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 6"
  • Depth: 109' 6"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 707 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
