Beautifully Designed Tuscan House Plan

Plan 66185WE

  • 5,087

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This beautifully designed Tuscan style house plan features four oversized bedrooms and a bonus room that has the possibility of an exercise room, hobby room, or game room.
  • The family room has two sets of zero-corner sliders which allows the entire room to be opened up with no boundaries to the outside. This feature is great for entertaining!
  • The wine cellar is conveniently located next to the wet bar.
  • You will enjoy relaxing at the end of the day in the master sitting area that has a seamless window of glass overlooking the pool and spa.
  • Related Plans: For a one-story version, see house plan 66271WE.
  • For something smaller, see these house plans - 66007WE (3,508 sq. ft.), 66011WE (3,508 sq. ft.) and 66274WE (4,480 sq. ft.).

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Beautifully Designed Tuscan House Plan

  • 5,087

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $2,250
  • 8 Sets $2,375
  • Reproducible Set $2,500
  • PDF - single-use $2,500
  • CAD $2,500
  • View all purchase option online

About This Plan

  • This beautifully designed Tuscan style house plan features four oversized bedrooms and a bonus room that has the possibility of an exercise room, hobby room, or game room.
  • The family room has two sets of zero-corner sliders which allows the entire room to be opened up with no boundaries to the outside. This feature is great for entertaining!
  • The wine cellar is conveniently located next to the wet bar.
  • You will enjoy relaxing at the end of the day in the master sitting area that has a seamless window of glass overlooking the pool and spa.
  • Related Plans: For a one-story version, see house plan 66271WE.
  • For something smaller, see these house plans - 66007WE (3,508 sq. ft.), 66011WE (3,508 sq. ft.) and 66274WE (4,480 sq. ft.).

Floor Plans

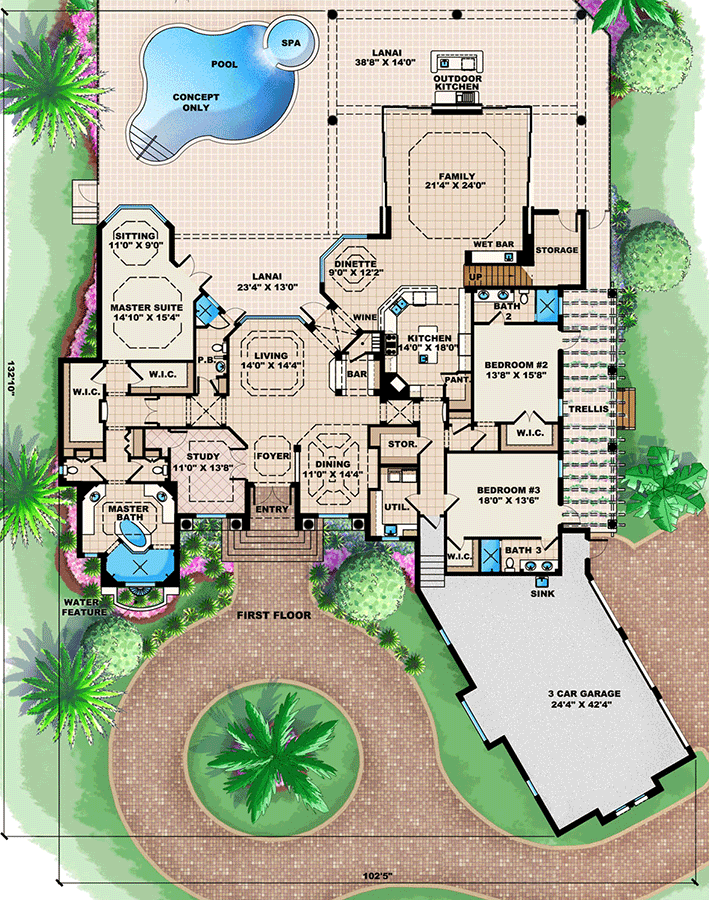

  • Main Level

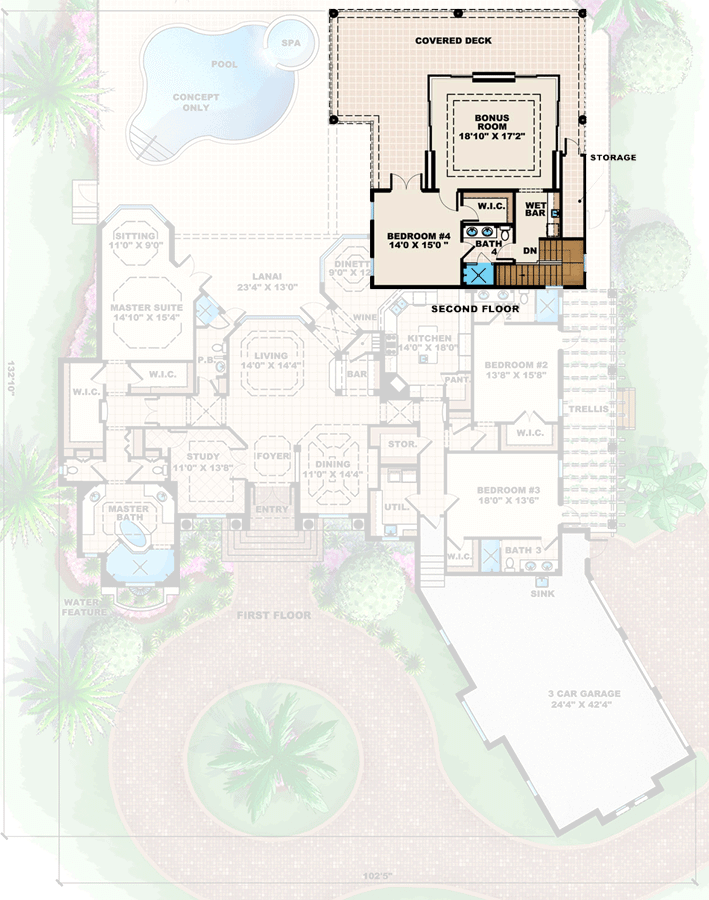

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,087 sq. ft.
  • 1st Floor: 4,203 sq. ft.
  • 2nd Floor: 884 sq. ft.
  • Lanai: 1,243 sq. ft.
  • Balcony / Veranda: 708 sq. ft.
  • Entry: 36 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 102' 5"
  • Depth: 132' 10"
  • Max ridge height: 33' 9"

Garage

  • Type: Attached
  • Area: 1178 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
