Plan 16827WG
Mediterranean Estate Home Plan
Heated S.F.
8,205
Beds
6
Baths
5.5
Stories
2
Cars
4
What's Included
Plan Details
  • A Tuscan exterior blends with a fabluous floor plan to produce a one-of-a-kind masterpiece.
  • Your first impression will be through the front courtyard with a pergola off the dining room.
  • The grand hall leads you into the formal living room with a wall of windows to enjoy the views.
  • Both a butler's pantry and a wine cellar aid in entertaining and are conveniently near the dining room.
  • Two sets of double doors off the informal family room lead to a marvelous lanai.
  • The master suite is filled with luxuries from a large sitting room to its own private master porch with fireplace to a room-sized walk-in closet and spa bath.
  • A gallery hall is filled with double doors that lead to the front loggia and on to the library and a family/guest bedroom.
  • Upstairs, the game room has access to a spacious terrace. The kids get their own baths and a work area is great for homework. If you need more room there is space available in the step-down media area.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mediterranean Estate Home Plan

  • 8,205

    Heated s.f.

  • 6

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

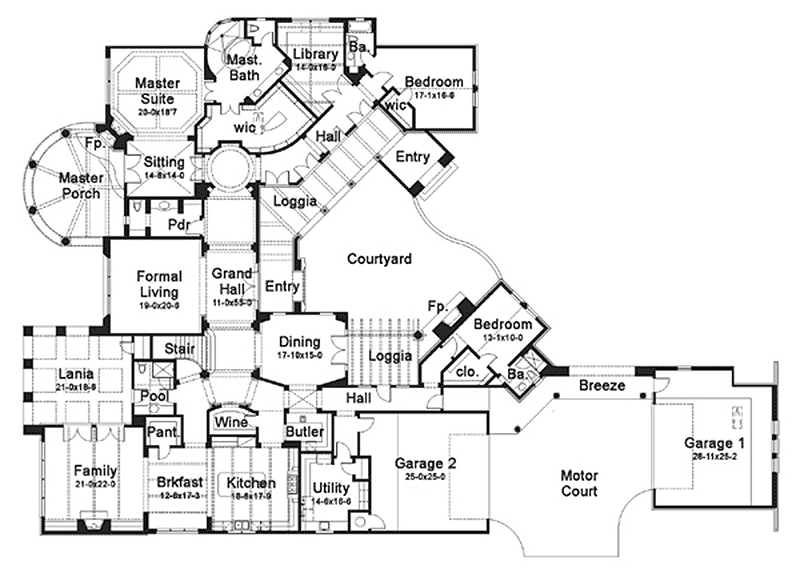

  • Main Level

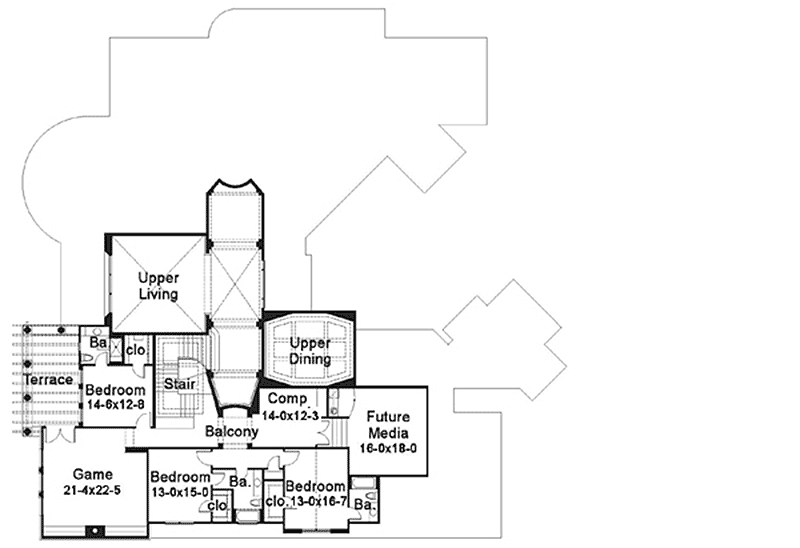

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 8,205 sq. ft.
  • 1st Floor: 5,929 sq. ft.
  • 2nd Floor: 2,276 sq. ft.

Dimensions

  • Width: 109' 6"
  • Depth: 160' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1441 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Courtyard

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Mediterranean Estate Home Plan

  • 8,205

    Heated s.f.

  • 6

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Mediterranean Estate Home Plan

  • 8,205

    Heated s.f.

  • 6

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 8,205 sq. ft.
  • 1st Floor: 5,929 sq. ft.
  • 2nd Floor: 2,276 sq. ft.

Dimensions

  • Width: 109' 6"
  • Depth: 160' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1441 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Courtyard

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
