Plan 82098KA

Mediterranean Family House Plan

Heated S.F.
2,766
Beds
3 - 4
Baths
3
Stories
2
Cars
3

Floor Plan

Plan 82098KA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 82098KA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

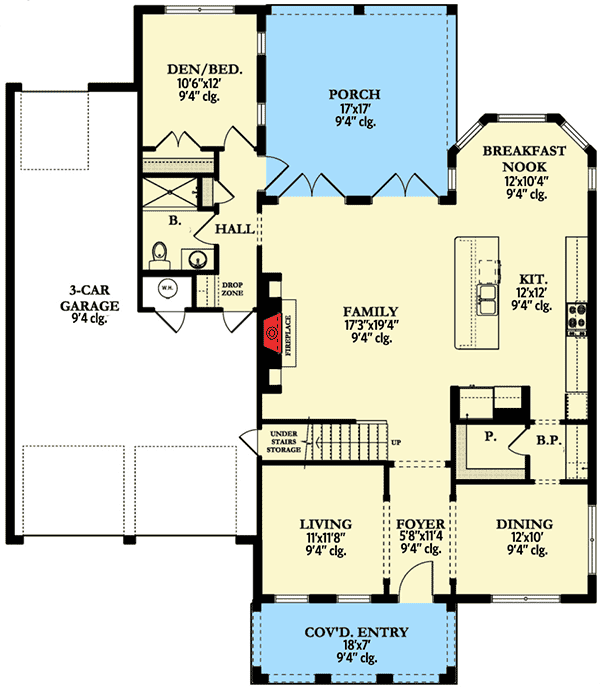

Plan 82098KA: Mediterranean Family House Plan - Floor Plan - Main Level - European, Mediterranean

2nd Floor

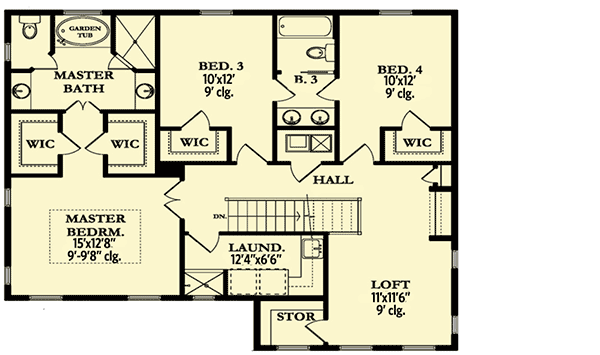

Plan 82098KA: Mediterranean Family House Plan - Floor Plan - 2nd Floor - European, Mediterranean

Plan Details

  • Wide openings between the foyer and the formal living and dining room gives you an easy flow when entertaining in this two-story Mediterranean house plan.
  • A walk-in pantry and a handy butler's pantry are placed near the kitchen.
  • Use the den in back as an extra bedroom since it has a closet and close proximity to a bathroom.
  • In the family room, two sets of double doors open to the rear covered porch where you can relax in the shade.
  • The large kitchen has a peninsula eating bar and is placed so you can enjoy the fireplace when working at the sink.
  • Upstairs, each bedroom gets a walk-in closet with the master suite having two.
  • Even the loft space gets a big walk-in closet.
  • The tandem three car garage has openings at both ends so you can drive a golf cart right in back.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

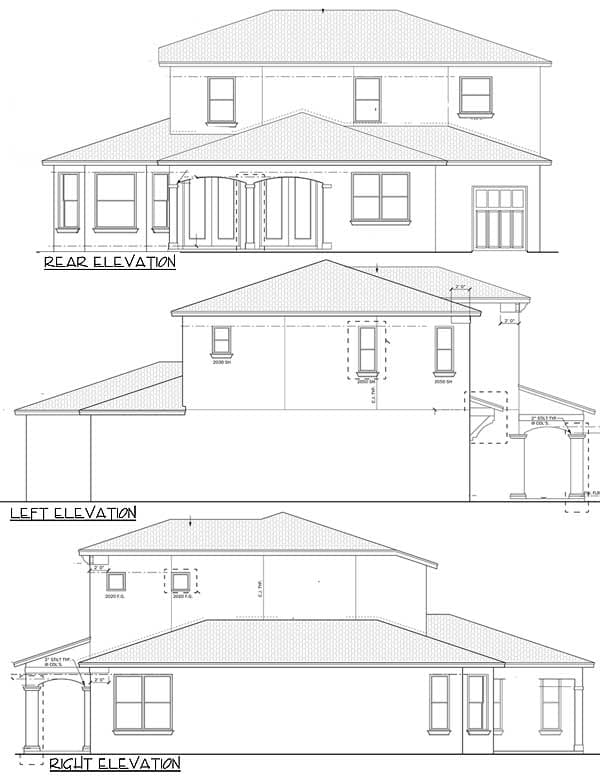

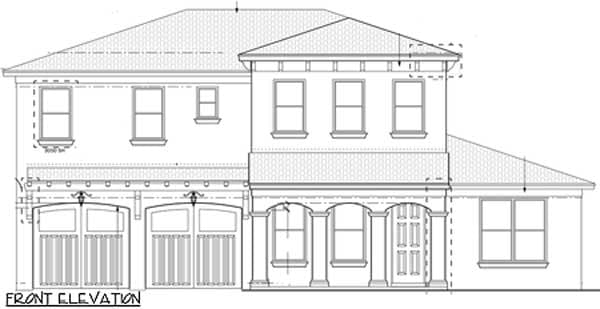

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,766 sq. ft.

1st Floor

1,493 sq. ft.

2nd Floor

1,283 sq. ft.

Porch, Front

126 sq. ft.

Porch, Rear

282 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

52' 8"

Depth

60' 4"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

702 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Special Features

Den

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - Upstairs

Tandem Garage

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,766 sq. ft.

1st Floor

1,493 sq. ft.

2nd Floor

1,283 sq. ft.

Porch, Front

126 sq. ft.

Porch, Rear

282 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

52' 8"

Depth

60' 4"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

702 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Special Features

Den

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - Upstairs

Tandem Garage

Walk-in Pantry
